1754940 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1754940

1754940: DescriptionTERM BLOCK PLUG 17POS STR 5.08MM; CategoryThe connector; File Size66KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1754940 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1754940	-	-	View	Buy Now

1754940 Overview

TERM BLOCK PLUG 17POS STR 5.08MM

1754940 Parametric

Parameter Name	Attribute value
type	plug, female socket
Number of pins	17
Number of pins per level	17
Number of levels	1
spacing	0.200"（5.08mm）
Needle seat direction	-
Plug entrance	180°
Terminal type	Without screws - branch spring, push-in spring
Installation type	free hanging
Current - IEC	12A
Voltage - IEC	630V
Current - UL	10A
Voltage - UL	300V
Wire Gauge or Range - AWG	14-24 AWG
Wire gauge or range - mm²	0.2-1.5mm²
color	green
Operating temperature	-
Contact mating surface treatment	tin
characteristic	Mating flange, retaining latch (non-conductor side)
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	10mm
Contact material	-
Shell material	Polyamide (PA), nylon
Contact tail length	-
Insulation height	0.429"（10.90mm）

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/1754940

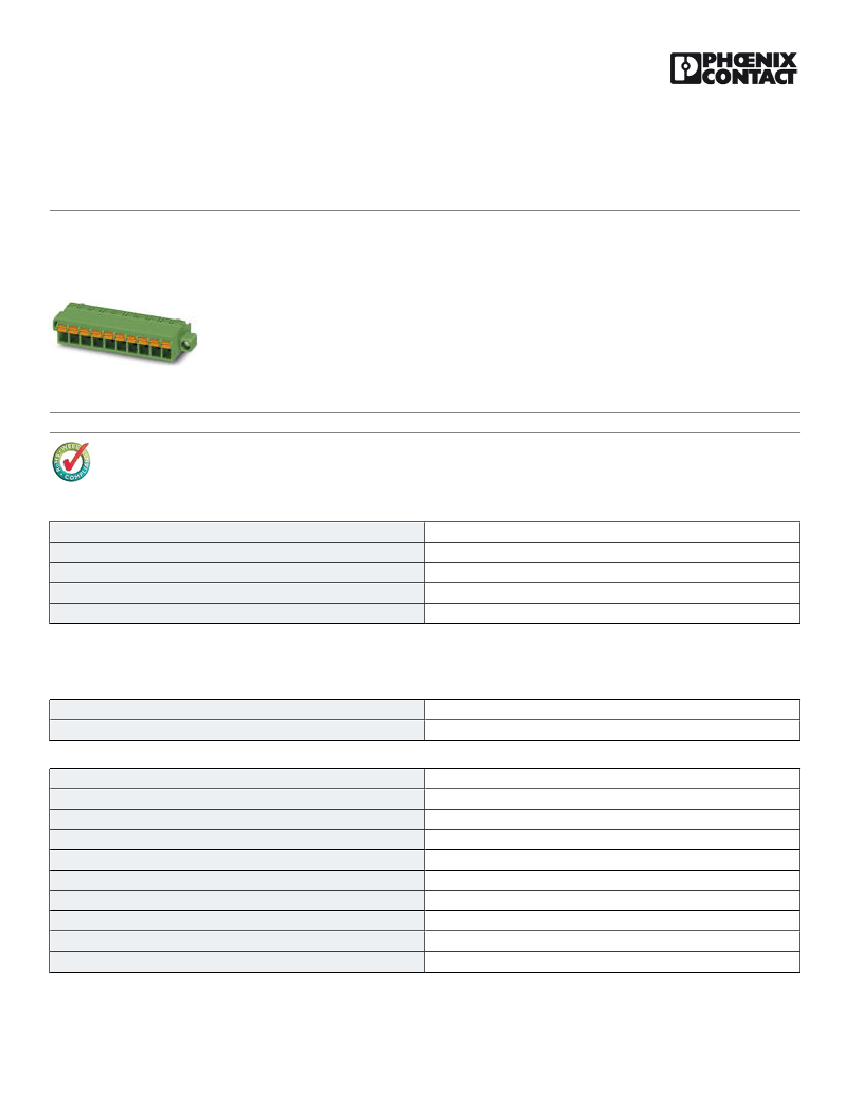

Printed-circuit board connector - FKCN 2,5/17-STF-5,08 - 1754940

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 17, Pitch: 5.08 mm,

Connection method: Spring-cage connection, Color: green, Contact surface: Tin

The figure shows a 10-position

version of the product

Key commercial data

Packing unit

Minimum order quantity

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

1 pc

50 pc

22.22 GRM

85366990

Bulgaria

Technical data

Dimensions

Pitch

Dimension a

5.08 mm

81.28 mm

General

Range of articles

Insulating material group

Rated surge voltage (III/3)

Rated surge voltage (III/2)

Rated surge voltage (II/2)

Rated voltage (III/3)

Rated voltage (III/2)

Rated voltage (II/2)

Connection in acc. with standard

Nominal current I

FKCN 2,5/..-STF

4 kV

320 V

630 V

EN-VDE

12 A

10/22/2014 Page 1 / 4
