Part Number

Search

3504

Description
CONN PIN RCPT .015-.025 PRESSFIT
CategoryThe connector

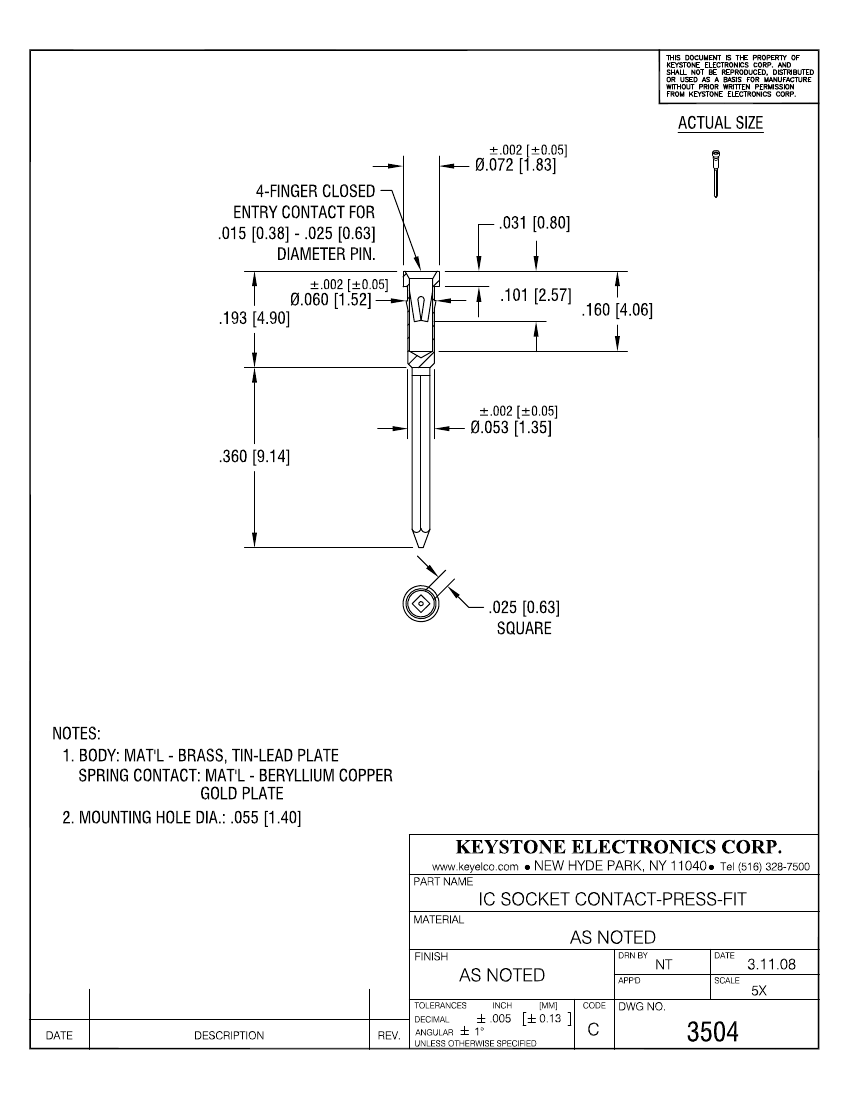

File Size185KB,1 Pages
ManufacturerKeystone Electronics
Download Datasheet Parametric View All

3504 Online Shopping

Suppliers Part Number Price MOQ In stock
3504 - - View Buy Now

3504 Overview

CONN PIN RCPT .015-.025 PRESSFIT

3504 Parametric

Parameter NameAttribute value
Solder tail typestandard tail
TerminationPress fit
Length - total0.553"(14.05mm)
Acceptable pin diameter0.015" ~ 0.025"(0.38mm ~ 0.64mm)
Accepts square pin specifications-
Pin hole diameter-
Mounting hole diameter0.057"(1.45mm)
Flange diameter0.072"(1.83mm)
Solder tail diameter0.025" (0.64mm) square
socket depth0.160"(4.06mm)
Contact materialcopper beryllium
Contact platinggold
Contact plating thickness10.0µin(0.25µm)
characteristic-
Operating temperature-
Board thickness-
insertion force-
