Telefon: +49 (0) 6135 931069

Telefax: +49 (0) 6135 931070

www.peak-electronics.de

info@peak-electronics.de

MZ SERIES

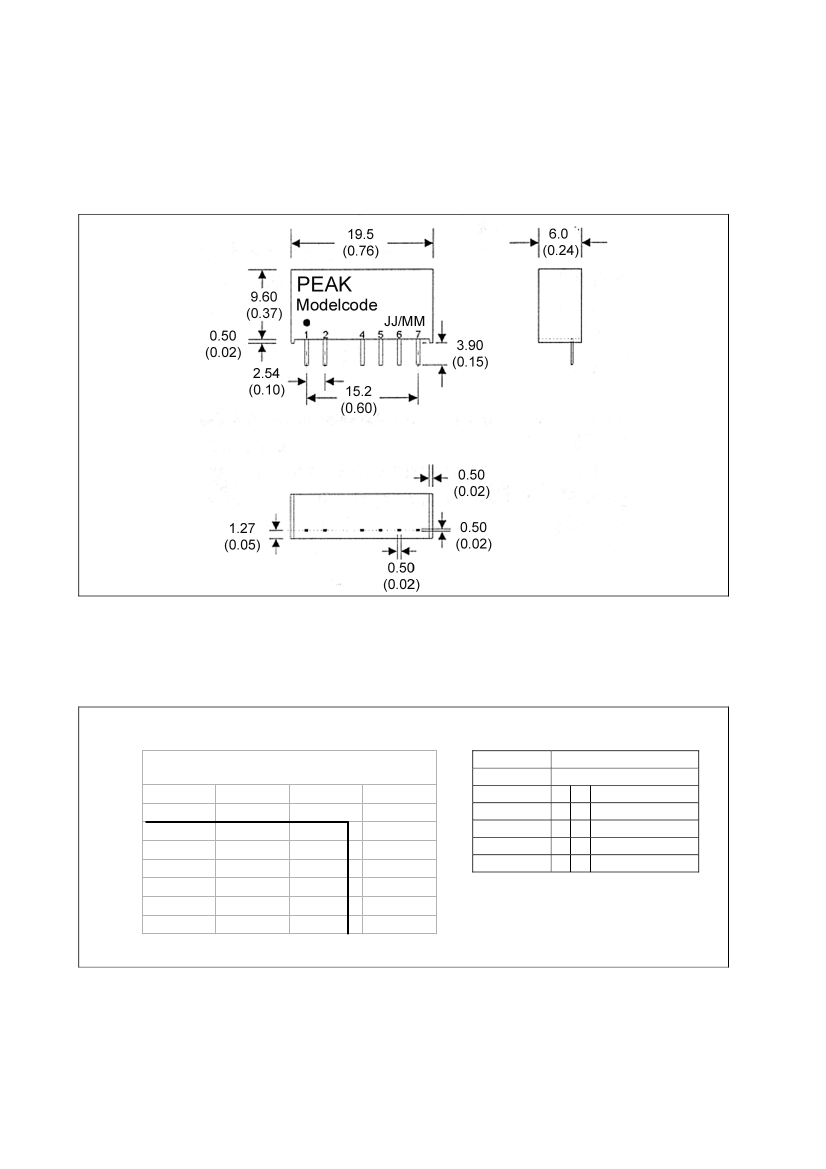

PZ5CUxxxxZ 1 KV ISOLATED 0.75 W UNREGULATED DUAL OUTPUT SIP7

Available Inputs:

5, 12 and 15 VDC

Available Outputs:

(+/-) 5, 12 and 15 VDC

Other specifications please enquire.

Electrical Specifications

(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)

Input Specifications

Voltage range

Filter

Isolation Specifications

Rated voltage

Resistance

Output Specifications

Voltage accuracy

Ripple and noise (at 20 MHz BW)

Short circuit protection

Line voltage regulation

Load voltage regulation

Temperature coefficient

General Specifications

Efficiency

Switching frequency

Environmental Specifications

Operating temperature (ambient)

Storage temperature

Derating

Humidity

Cooling

Physical Characteristics

Dimensions

Case material

+/- 10 %

Capacitors

1000 VDC

1000 MOhm

+/- 5 %, max.

100 mV p-p, max.

Momentary

+/- 1.2 % 1% Vin

+/- 8 % max. , Load 20 % – 100 %

+/- 0,02 % / °C

70 % min.

100 KHz, typ.

- 20° C to + 71° C

- 25 °C to + 125 °C

See graph

Up to 90 %, non condensing

Free air convection

19.50 x 6.00 x 9.60 mm

0.76 x 0.24 x 0.37 inches

Non conductive black plastic

Examples of Partnumbers

PART

NO.

INPUT

VOLTAGE

(VDC)

OUTPUT

VOLTAGE

(VDC)

OUTPUT

CURRENT

(max. mA)

PZ5CU-0505Z

PZ5CU-0512Z

PZ5CU-0515Z

PZ5CU-1205Z

PZ5CU-1212Z

PZ5CU-1215Z

PZ5CU-1505Z

PZ5CU-1512Z

PZ5CU-1515Z

+/- 5

+/- 12

+/- 15

+/- 5

+/- 12

+/- 15

+/- 5

+/- 12

+/- 15

+/- 75

+/- 30

+/- 25

+/- 75

+/- 30

+/- 25

+/- 75

+/- 30

+/- 25
