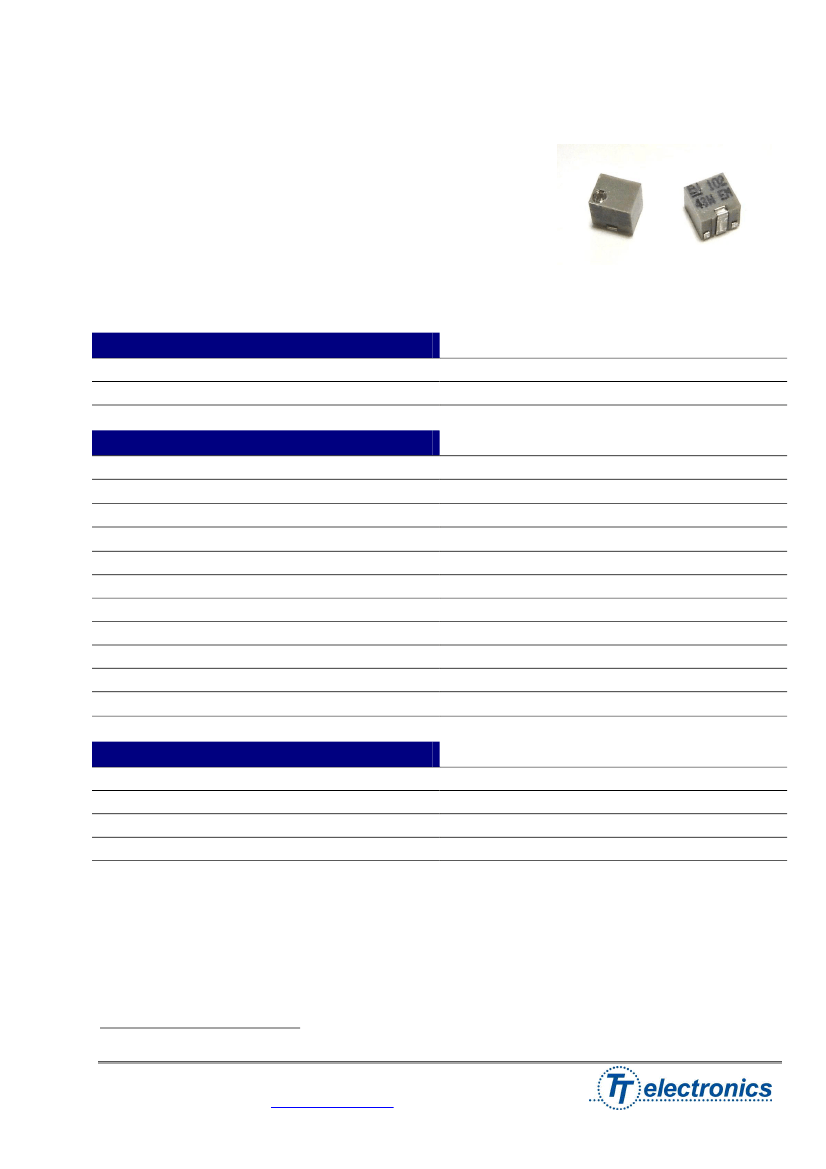

MODEL 43
3 mm Multi-Turn
Sealed Surface Mount
Cermet Trimming
Potentiometer
RoHS compliant
MODELS AVAILABLE
J hook surface mount
43W
ELECTRICAL
1
Resistance Range
Standard Resistance Tolerance
Input Voltage, Maximum
Power rating, Watts
End Resistance, Maximum
Actual Electrical Travel, Nominal
Dielectric Strength
Insulation Resistance, Minimum
Resolution
Contact Resistance Variation, Maximum
Temperature Coefficient of Resistance
10 Ohm to 2 Megohms
±
20%
200 Vdc or rms, not to exceed power rating
0.125 @ 70°C, derating to 0 @ 150°C
1% or 3 Ohms, whichever is greater
11 turns
600 V AC
100 Megohms
Essentially infinite
3% or 3 Ohms, whichever is greater
±100 ppm/°C
MECHANICAL
Mechanical Stop
Torque, Maximum
Weight, Approx.
Wiper Position
Wiper idles
2.5 in. oz.
0.01 oz.
Approx. 50%
1
Specifications subject to change without notice.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
November 8, 2006
Website:
www.bitechnologies.com
page 1 of 3
BI technologies
MODEL 43
ENVIRONMENTAL
Seal
Operating Temperature Range
Thermal Shock, 5 cycles, -55°C to +125°C
Moisture Resistance, Ten 24 Hour Cycles
Shock, 6 ms Sawtooth 100G’s
Vibration, 20G’s to 2000 Hz
High Temperature Exposure, 250 Hours @ 125°C
Rotational Life, 200 Cycles
Load Life, 0.125W, 1000 Hours, 70°C
Resistance to Solder Heat
85°C Fluorinert®
-65°C to +150°C
2%
∆R,
2%
∆V
Ratio max.
3%
∆R
1%
∆R,
1%
∆V
Ratio max.
1%
∆R,
1%
∆V
Ratio max.
2%
∆R,
2%
∆V
Ratio max.
3%
∆R
4%
∆R
or 4 ohms which ever is greatest, 2%
∆V
Ratio max.
260°C for 5 sec.
ORDERING INFORMATION
2
43 W R10K LF XX
Model Series
Pin Style
Packaging Option:
TR - 7” Tape & Reel
TB - Tube
RoHS Compliant Product Code
Resistance Value
INFORMATION
PACKAGING INFORMATION
Tape & Reel
Tape Width
Sprocket Pitch
Reel Diameter
Quantity per Reel
Tubes
Anti-Static Tubes, all units oriented with #1 pin to the same side
50 units per tube
12 mm
4 mm
7 inches
500 units
STANDARD RESISTANCE VALUES, OHMS
10
20
50
100
200
500
1K
2K
5K
10K
20K
50K
100K
200K
500K
1 Meg
2 Meg
2
Contact our customer service for custom designs and features.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
November 8, 2006
Website:
www.bitechnologies.com
page 2 of 3
BI technologies
MODEL 43

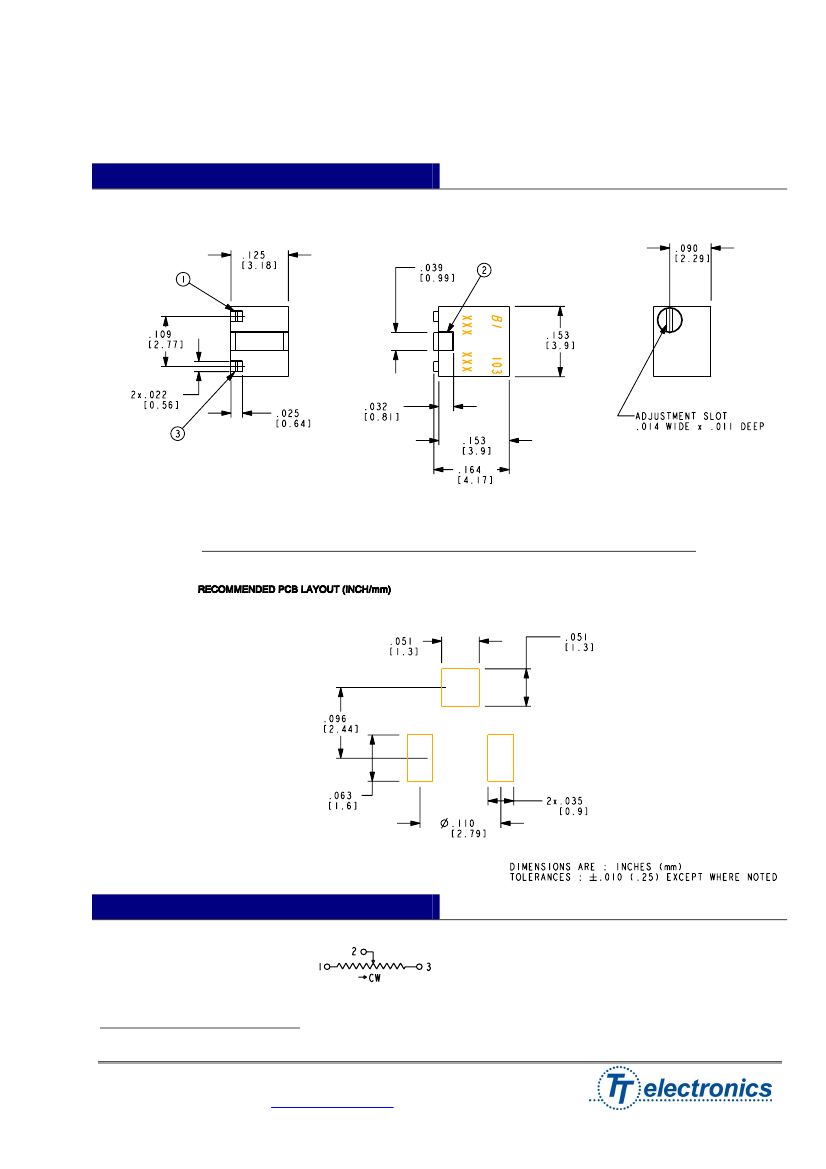

OUTLINE DRAWING
3
Model 43W
CIRCUIT DIAGRAM
3
Dimensions are Inches (mm), Tolerances are ±.01 inch (±.025 mm) unless otherwise stated.
