4312T-BS4096: DescriptionHeavy Duty Incremental Rotary Shaft Encoder; File Size120KB，2 Pages; ManufacturerETC

Download Datasheet View All

4312T-BS4096 Overview

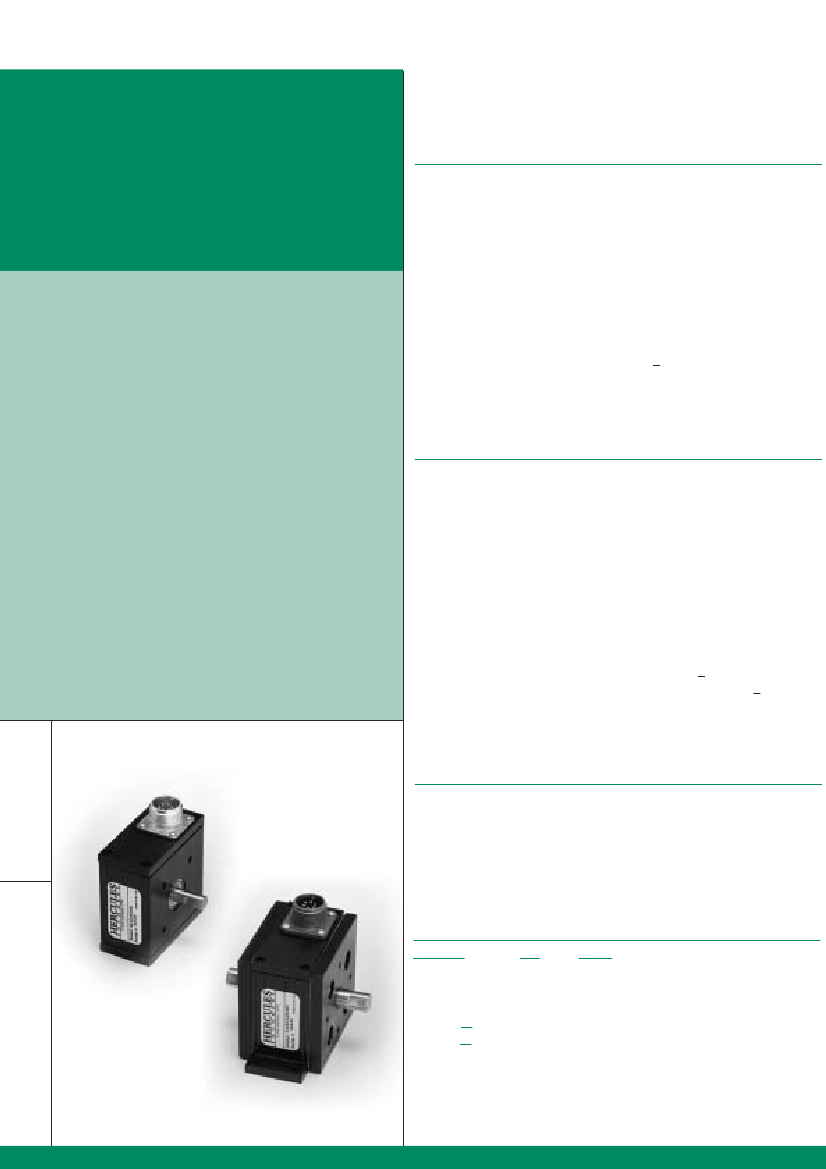

Heavy Duty Incremental Rotary Shaft Encoder

Preview

Download Datasheet

View All

Hercules Encoders

Specifications

Mechanical

Shaft Speed

Shaft Direction

Standard Shaft Sizes (Dia.)

Shaft Extension(s)

Shaft Seals

Mounting

Bearings

Radial Loading

Axial Loading

1500 RPM maximum

Bidirectional

.2497", .3747", .4997"

0.80" with .50 x .05" flat

Neoprene or PTFE Options

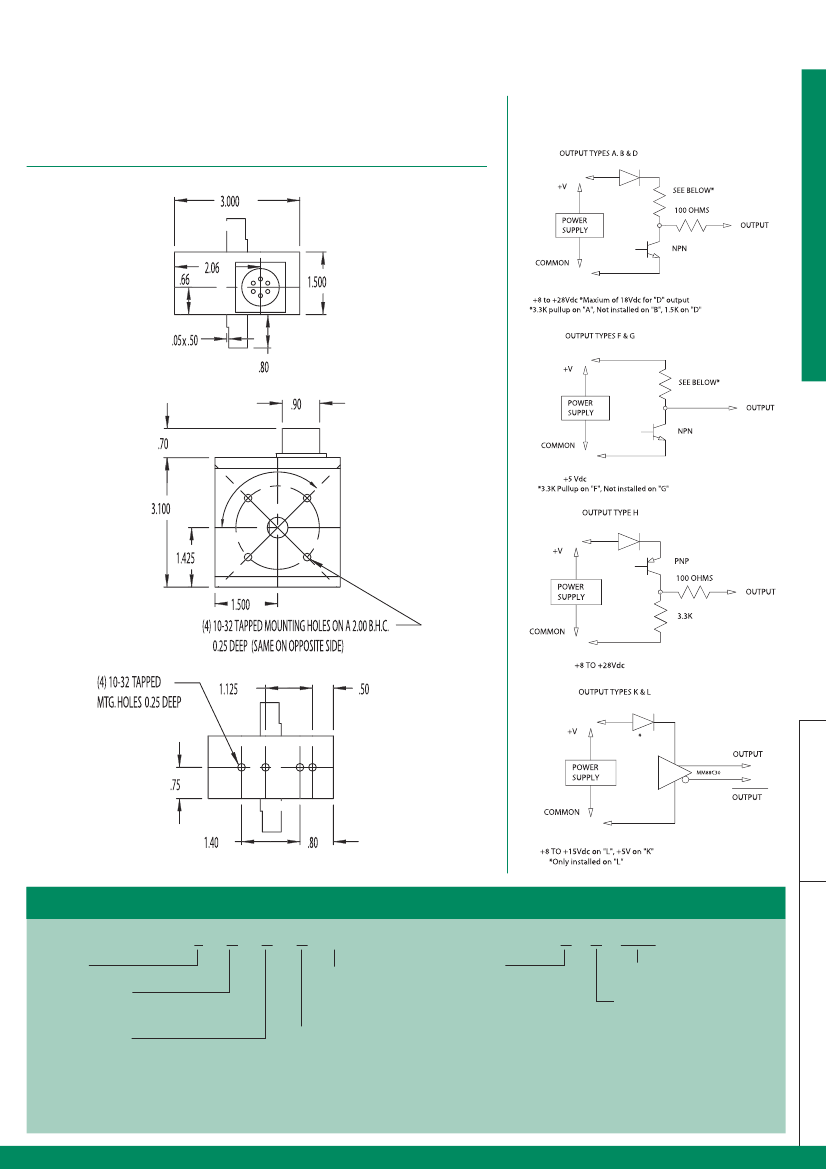

Refer to dimensional drawings

ABEC 5 Shielded

(3/8") 30 lbs. Operating

(1/2") 70 lbs. Operating

(3/8") 15 lbs. Operating

(1/2") 35 lbs. Operating

+0.1º of Shaft Rotation Typical

Black Anodized Aluminum

Standard: 17 oz, Sealed: 26 oz

6 Pin MS3102 or 18" Cable Out

Series 4000HR

Heavy Duty Incremental Rotary Shaft Encoder

• Enclosure: Slimline - 3"x 3" x 1 1/2" Space-Saver

• NEMA 12/13 or NEMA 4 type Sealing - Flush or

Flanged Base Styles

• Inherently Anti-Jitter Circuitry, Shatterproof Code

Disks

• Internally and Externally shielded ABEC 5 Stainless

Steel Bearings, Mounted Internally

• Low Supply Current Requirement - 50 milliamps

typical per encoder, maximum of 80 mA

• Operating Voltage Flexibility - 8 to 28 Vdc or 5 Vdc

Output, 5V or 8-15V with Line Driver

• Operating Temperature Rating designed for

extremes, from -40º to +85ºC (-40º to +185ºF)

H e r c u l e s

Pre

lim

ina

Accuracy

Housing

Weight

Connector

Electrical

Pulse Rate

Outputs

10 kHz , up to 125 kHz

NPN w/ pullup; NPN open collector; PNP sourcing

Line Driver (5 Vdc/TTL level, 8 to 15 Vdc)

All line drivers have complementary outputs

40 Vdc maximum

15 Vdc maximum

5.5 Vdc maximum

8 to 28 Vdc

5 Vdc with 5V TTL level output

Supply Current

50 mA typical, 80 mA maximum

Current Sinking

250 mA maximum

50/50 w/ +20% typical tolerance

Output Duty Cycle

Tighter to +5% by spec

Pulsed Outputs

5-10 µsec or 25-35 µsec

Rise/Fall Times

1 µsec typical, other options available

See Wiring Diagrams for Pin Outs

Output Ratings

Open Collector Transistor

Line Drivers 8-15 Vdc

5 Vdc TTL

Supply Voltage

Environmental

Operating Temp.

Shock

Vibration

Humidity

Enclosures (Sealed)

(Std)

-40º to + 85º C (-40º to + 185º F)

50 g’s for 11 Milliseconds

5 to 2000 Hertz at 20 g’s

100% Relative Humidity

NEMA 4 type — Water-tight

NEMA 12/13 equiv. — Dust-, Oil-Tight

Electrical Connections

Function

Common

Channel A

Channel B

Channel A

Channel B

Color

Red

Black

Blue

Brown

White

Green

For the latest specifications visit our website

www.herculesencoders.com
