MA259-IBM: DescriptionRectangular Connector Adapter, 9 Contacts(Side1), 9 Contacts(Side2), Board And Panel Mount, Female-Female; CategoryThe connector; File Size151KB，1 Pages; ManufacturerL-com Global Connectivity

Download Datasheet Parametric View All

MA259-IBM Overview

Rectangular Connector Adapter, 9 Contacts(Side1), 9 Contacts(Side2), Board And Panel Mount, Female-Female

MA259-IBM Parametric

Parameter Name	Attribute value
Maker	L-com Global Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE-FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD AND PANEL
触点数量:侧 1	9
触点数量:侧 2	9
Options	GENERAL PURPOSE
direct connection	YES
Base Number Matches	1

Preview

Download Datasheet

View All

8

7

6

5

4

REV

A

3

DESCRIPTION

INITIAL RELEASE

2

REVISIONS

DATE

1

APPROVED

B.MAZEJKA

12/17/03

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE

PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE

WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.

D

.59

1.91

4X 4-40 THREAD

D

2.18

C

FEMALE 9-PIN

D-SUB CONNECTOR

MOLDED PVC BODY, LIGHT GRAY

FEMALE 25-PIN

D-SUB CONNECTOR

DB25F

PIN-OUT

2

3

4

5

6

8

20

22

45 BEECHWOOD DRIVE

NORTH ANDOVER, MA

01845

PRODUCT DESCRIPTION

DB9F

PIN-OUT

B

1

2

3

4

6

7

8

9

B

A

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

.1

.X

.05

.XX

.XXX .005

CABLE LENGTH TOLERANCE

<300" ±5% >300" ±2%

APPROVALS

DRAWN BY

B.MAZEJKA

CHECKED BY

C.McCORMICK

APPROVED BY

D.PARHAM

DATE

12/17/2003

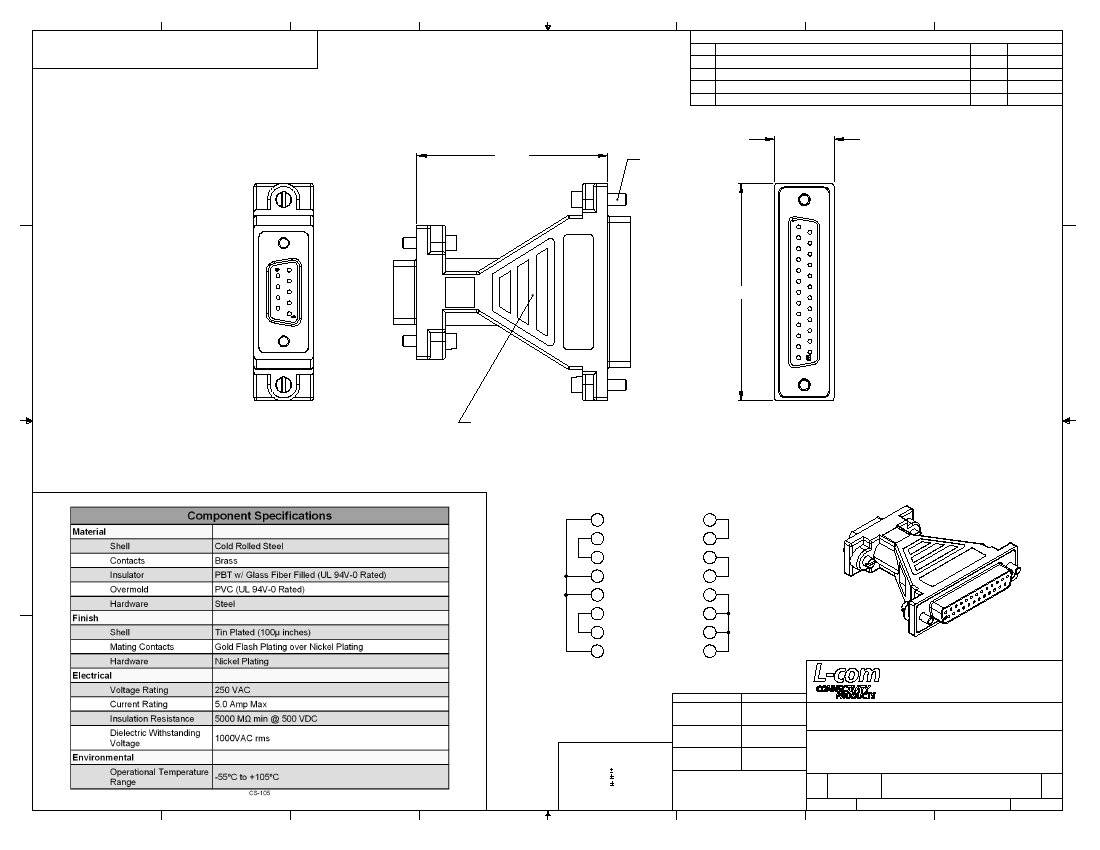

TESTER, SERIAL LOOP-BACK DB25F/DB9F

DRAWING TITLE

A

OUTLINE DRAWING

SIZE

CONFIGURATION DETAILS OF

UNDIMENSIONED FEATURES

MAY VARY

A

43321

SCALE: 1:1

FSCM NO.

DWG. NO.

MA259-IBM-OD1

1

A

REV

CAD FILE: MA259-IBM-OD1.SLDDRW

SHEET 1 OF 1
