108483060003049

Description
Board Euro Connector, 64 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug,
CategoryThe connector    The connector
File Size106KB，5 Pages
ManufacturerAVX
Environmental Compliance
Download Datasheet Parametric View All

108483060003049 Online Shopping

Suppliers Part Number Price MOQ In stock
108483060003049 - - View Buy Now

108483060003049 Overview

Board Euro Connector, 64 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug,

108483060003049 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1900481020
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys ManufacturerAVX
Samacsys Modified On2020-05-05 23:10:34
Other featuresSTANDARD: DIN 41612, TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM
body width0.437 inch
Body/casing typePLUG
Connector typeBOARD EURO CONNECTOR
Contact arrangementS60P4
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
Durability500 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.834 N
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsYES
Installation methodRIGHT ANGLE
Installation typeBOARD
Loaded row nameA,B,C
PCB row number3
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyENDS
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts64
UL Flammability Code94V-0
Evacuation force-minimum value.139 N

Preview

Download Datasheet

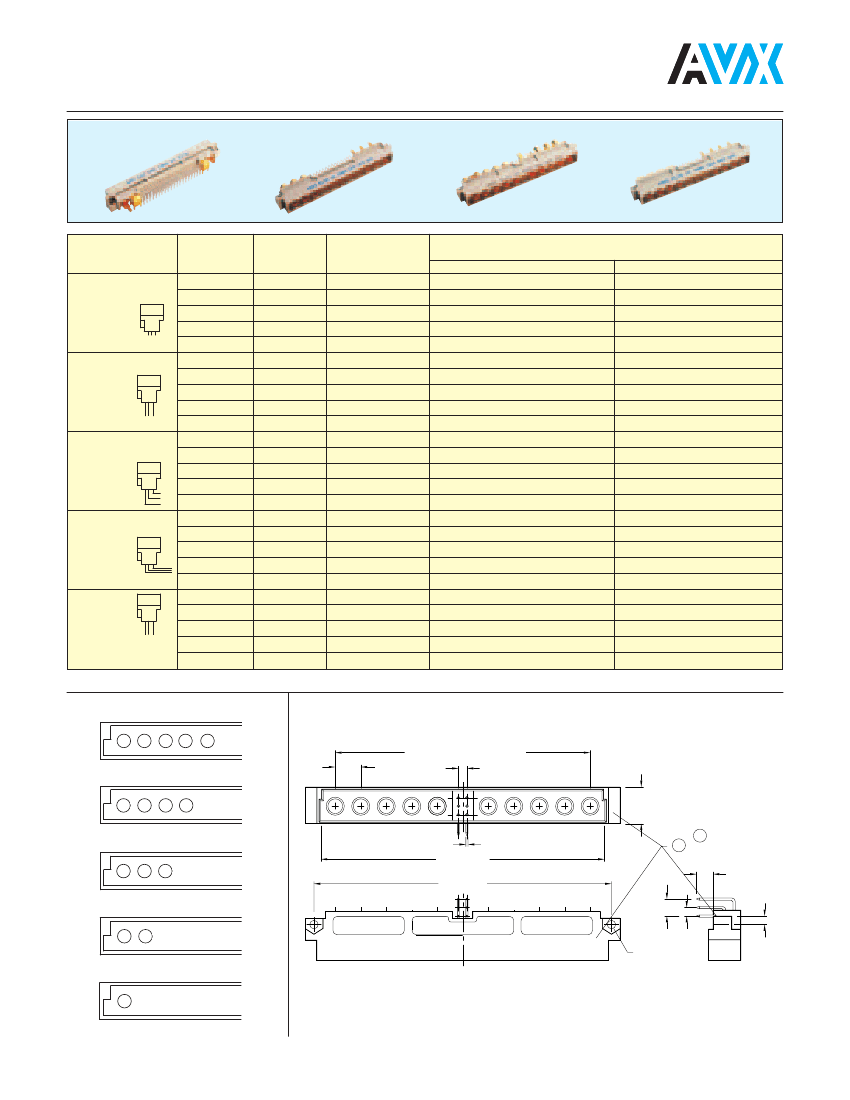

Male Style M
Series 8483 – Fully loaded
Contact Design
and
Termination Length
No. of Cavities No. of Cavities
For Signal
for Special
Contacts
Contacts
Loading Description
6 (3 x 2)
24 (3 x 8)
42 (3 x 14)
10
8
6
4
2
10
8
6
4
2
10
8
6
4
2
10
8
6
4
2
10
8
6
4
2
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
a + b + c fully loaded
Part Number
Performance classes according to DIN 41612
II
10 8483 006 001 025
10 8483 024 001 025
10 8483 042 001 025
10 8483 060 001 025
10 8483 078 001 025
10 8483 006 002 025
10 8483 024 002 025
10 8483 042 002 025
10 8483 060 002 025
10 8483 078 002 025
10 8483 006 003 025
10 8483 024 003 025
10 8483 042 003 025
10 8483 060 003 025
10 8483 078 003 025
10 8483 006 004 025
10 8483 024 004 025
10 8483 042 004 025
10 8483 060 004 025
10 8483 078 004 025
10 8483 006 006 025
10 8483 024 006 025
10 8483 042 006 025
10 8483 060 006 025
10 8483 078 006 025
I
10 8483 006 001 049
10 8483 024 001 049
10 8483 042 001 049
10 8483 060 001 049
10 8483 078 001 049
10 8483 006 002 049
10 8483 024 002 049
10 8483 042 002 049
10 8483 060 002 049
10 8483 078 002 049
10 8483 006 003 049
10 8483 024 003 049
10 8483 042 003 049
10 8483 060 003 049
10 8483 078 003 049
10 8483 006 004 049
10 8483 024 004 049
10 8483 042 004 049
10 8483 060 004 049
10 8483 078 004 049
10 8483 006 006 049
10 8483 024 006 049
10 8483 042 006 049
10 8483 060 006 049
10 8483 078 006 049
3.0 mm (Y)
Straight
60 (3 x 20)
78 (3 x 26)
6 (3 x 2)
24 (3 x 8)
42 (3 x 14)
11.4 mm (Y)
Straight
60 (3 x 20)
78 (3 x 26)
6 (3 x 2)
24 (3 x 8)
42 (3 x 14)
3.0 mm (Y)
Right Angled
60 (3 x 20)
78 (3 x 26)
6 (3 x 2)
24 (3 x 8)
42 (3 x 14)
11.3mm (Y)
Right Angled
60 (3 x 20)
78 (3 x 26)
6 (3 x 2)
24 (3 x 8)
Solder hole
rows a + c 6.1 mm
row b 8.8 mm
42 (3 x 14)
60 (3 x 20)
78 (3 x 26)
NB: Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.
LOADING DESCRIPTION
●
●
●
DIMENSIONS
29.0 [1.140] x 2.54 [0.100] = 73.66 [2.900]
7.62
[0.300]
2.54
[0.100]
c
b
a
10 contacts,
rows a + b + c fully loaded
●
●
●
c
b
a
8 contacts,
rows a + b + c fully loaded
●
●
●
●
●
●
11.1
[0.437]
1
0.60
[0.025]
85.2 [3.350]
5.08
[0.200]
1
PLUG SERIES 8483
c
b
a
3.00
[0.118]
88.9 [3.500]
6 contacts,
rows a + b + c fully loaded
●
●
●
●
●
●
●
●
●
2.54
[0.100]
4 contacts,
rows a + b + c fully loaded
●
●
●
●
●
●
●
●
●
●
●
●
2.60 DIA.
[0.102]
c
b
a

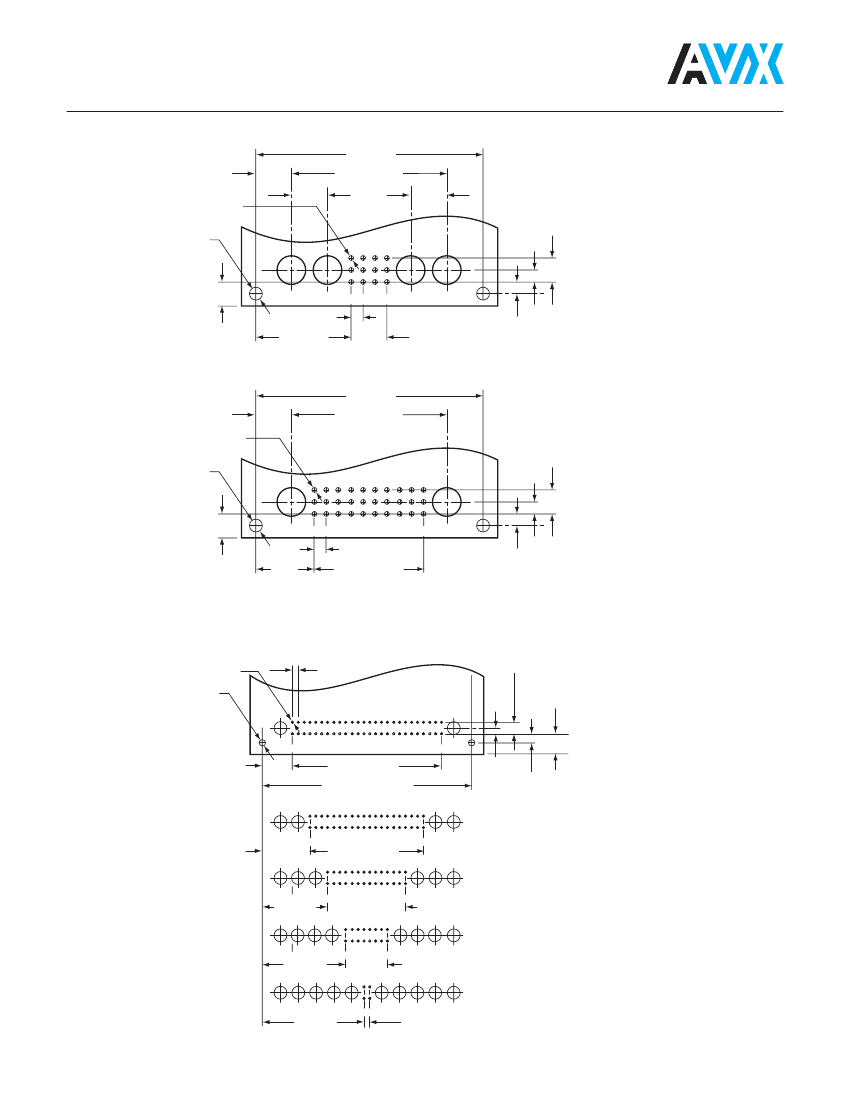

See Page 45 for board layout
2 contacts,
rows a + b + c fully loaded
41
2.54
[0.100]
c
b
a
