51-26-0020 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 51-26-0020

51-26-0020: DescriptionTelecom and Datacom Connector, 130 Contact(s), Female, Right Angle, Solder Terminal, M3x0.5, Receptacle; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

51-26-0020 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51-26-0020	-	-	View	Buy Now

51-26-0020 Overview

Telecom and Datacom Connector, 130 Contact(s), Female, Right Angle, Solder Terminal, M3x0.5, Receptacle

51-26-0020 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LFH
body width	0.668 inch
subject depth	0.69 inch
body length	2.729 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	.5838 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYMER
MIL compliance	NO
Plug contact pitch	0.075 inch
Match contact row spacing	0.075 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M3X0.5
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Shell material	GLASS FILLED POLYMER
Terminal length	0.082 inch
Terminal pitch	1.905 mm
Termination type	SOLDER
Total number of contacts	130
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

High-performance, Low Force Helix terminal with contact

layout .075 x .075"

High cycle life from controlled plating and contact surfaces

Suitable for high-density and high-performance

applications

96-circuit same size as 50-pin standard D-sub for

backshell hardware

M3 threaded inserts for attaching various hardware

options

Surface Mount Compatible

Reference Information

Product Speciﬁcation: PS-70660

Packaging: Tube

UL File No.: E291794

CSA File No.: LR19980

Mates With:

70665 or 71995

Designed In: Inches

Electrical

Voltage: 40V

Current: 1.0A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 1000V

Insulation Resistance: 100 M

Ω

min.

Mechanical

Contact Insertion Force: 84g max.

Mating Force: 60g nom.

Unmating Force: 20g min.

Durability: 5000 cycles

Physical

Housing: Glass-ﬁlled polymer, UL 94V-0

Contact: Beryllium Copper Alloy

Plating:

Terminals—30

" min. Gold over Nickel in contact area,

100

" min. Tin/Lead over Nickel in PC tail area

Shields—100

" min. bright Tin over Copper

Operating Temperature: -20 to +80˚C

1.90mm (.075") Pitch

LFH

™

Matrix 75

Shielded Receptacle

70660/71990

96 and 130 Circuit

Right Angle

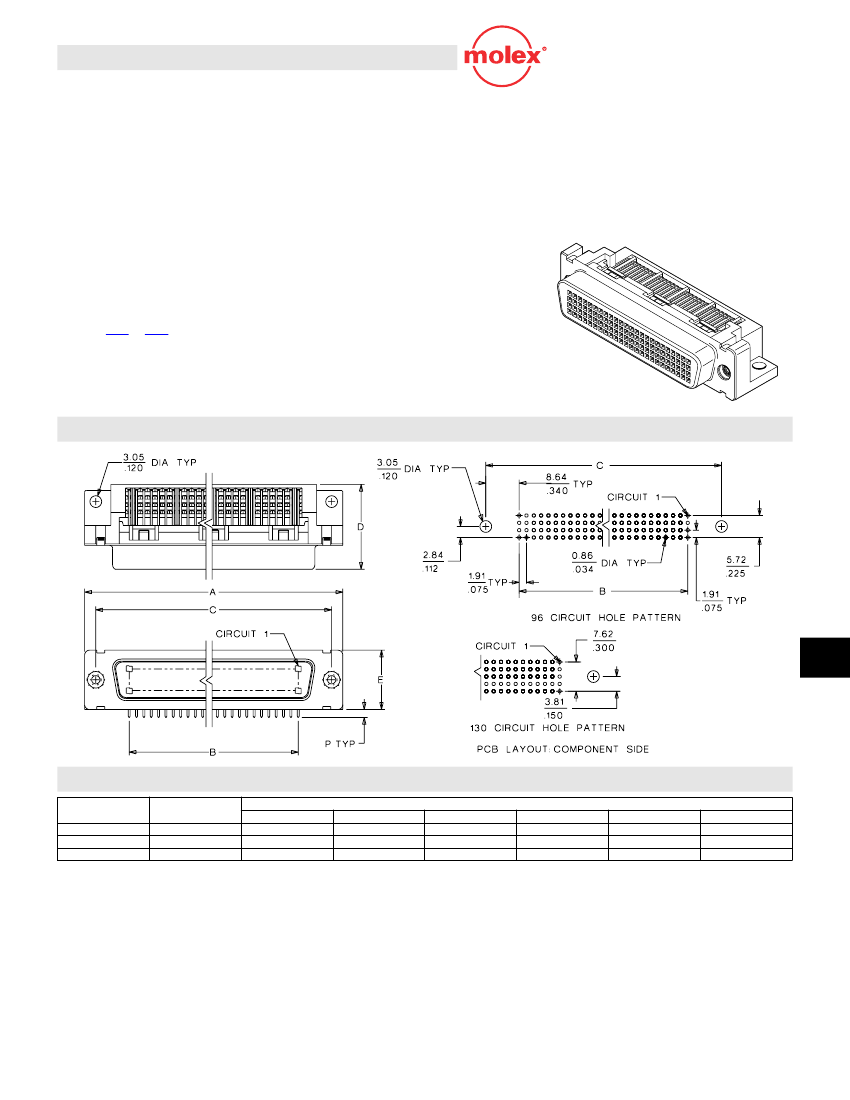

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

130

Order No.

51-26-0000

51-26-0003

51-26-0020

Dimension

66.93 (2.635)

69.32 (2.729)

43.82 (1.725)

47.63 (1.875)

61.11 (2.406)

63.50 (2.500)

21.92 (.863)

23.70 (.933)

15.37 (.605)

16.97 (.668)

2.34 (.092)

3.43 (.135)

2.08 (.082)

MX01

N-117

I/O Connectors
