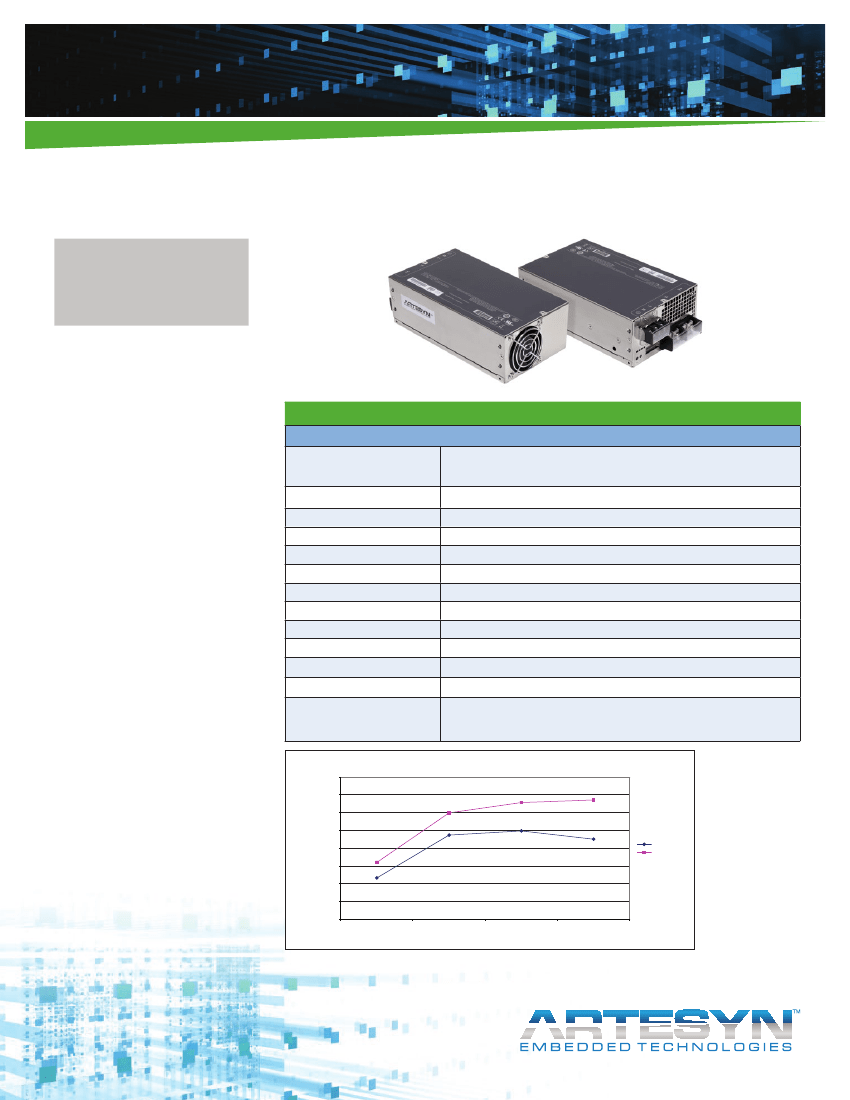

POWER
Data Sheet
Total Power:
600 W
# of Outputs:
Single
Outputs:
12 to 60 V
Optional 5.0 V standby
SPECIAL FEATURES
600 W output power
Low cost
2.4” x 4.5” x 7.5”
7.41 W/cu-in
Industrial/Medical safety
-40 °C to 70 °C with derating
Optional 5 V @ 2 A housekeeping
High efficiency: 89% typical
Variable speed “Smart Fans”
DSP controlled front end
Conformal coat option
± 20% adjustment range
Margin programming
OR-ing FET
Terminal block input option
600 Watt Bulk Front End
LCM600
Electrical Specifications
Input
Input range
85 - 264 Vac (Operating)
115/230 Vac (Nominal) Input through standard IEC connector/
TERMINAL BLOCK
47 - 440 Hz, Nominal 50/60
Internal 10 A fuses, both lines fused
≤ 25 A peak, either hot or cold start
0.99 typical, meets EN61000-3-2
Meets IEC 1000-3-2 requirements
8 A RMS max input current, at 100 Vac
20 ms minimum for main O/P, at full rated load
> 89% at full load
< 300 μA @ 240 Vac
N/A
MOV directly after the fuse
Isolation: PRI-Chassis 2500 Vdc Basic
PRI-SEC 4000 Vac Reinforced 2xMOPP
SEC-Chassis 500 Vdc
LCM600Q Ef ciency Without the 5 Vsb
92.00
90.00
88.00
86.00
Frequency
Input fusing
Inrush current
Power factor
Harmonics
Input current
Hold up time
Efficiency
Leakage current
ON/OFF power switch
Power line transient
Isolation
COMPLIANCE
EMI Class B
EN61000 Immunity
SAFETY
UL/CSA
UL60950-1/CSA C22.2
No. 60950-1
ES60601-1/CSA C22.2
No. 60601-1
EN60950-1
EN60601-1
IEC60950-1
IEC60601-1
GB4943, GB9254
and GB17625
TUV
CB Report
CCC
Ef ciency %
84.00
82.00
80.00
78.00
76.00
25
50
75
100
100 Vac
230 Vac
Loading %
LCM600 Data Sheet
Electrical Specifications
Output
Output rating
Set point
Total regulation range
Rated load
Minimum load
Output noise (PARD)
See ordering information table
± 0.5%
Main output ± 2%
5 Vsb ± 1%
600 W maximum
Main output @ 0.0 A
5 Vsb @ 0.0 A
1% max p-p
50 mV max p-p
85 - 264 Vac
85 - 264 Vac
Combined line/load/transient when measured at output
terminal
Derate linear to 50% from 50 °C to 70 °C
No loss of regulation
Main output
5 Vsb output
Measured with a 0.1 μF Ceramic and 10 μF Tantalum
Capacitor on any output, 20 MHz
No overshoot/undershoot outside the regulation band during
on or off cycle
< 300 µSec
50% load step @ 1 A/µs
Step load valid between 10% to 100% of output rating
Recovery time to within 1% of set point at onset of transient
Up to 10
Protected, no damage to occur
Bounce mode
Compensation up to 500 mV
Standard per safety requirements
To within 10% of all shared outputs
105% to 125%
120% to 170%
125% to 145%
110% to 125%
10 - 15 °C above safe operating area
Analog sharing control
Main output
5 Vsb output
12 V output
5 Vsb output
Both PFC and output converter monitored
For-N option only. Will shutdown output and DC_OK
Output voltage overshoot
Transient response
Max units in parallel
Short circuit protection
Remote sense
Output isolation
Forced load sharing
Overload protection (OCP)
Overvoltage protection (OVP)
Overtemp protection
Fan Fault Protection
Environmental Specifications
Operating temperature
Storage temperature
Humidity
Fan noise
Altitude
Shock
Vibration
-40 °C to +70 °C, linear derating to 50% from 50 °C to 70 °C
-40 °C to +85 °C
10 to 90%, non-condensing. Operating. Conformal coat option available.
< 45 dBA, 80% load at 30 °C “-N” Low Noise Option < 35 dBA, 80% Load at 30 °C
Operating - 16,404.2 feet
Storage - 30,000 feet
MIL-STD-810F 516.5, Procedure I, VI. Storage
MIL-STD-810F 514.5, Cat. 4, 10. Storage
Ordering Information
Model
Number*
Output
Nominal Output
Voltage Set Point
Set Point
Tolerance
Current
Adjustment Range
Min
Max
Output Ripple
P/P (0-50 ˚C)
Max Continuous
Power
Combined Line/
Load Regulation
LCM600L
LCM600N
LCM600Q
LCM600U
12 V
15 V
24 V
36 V
12 V
15 V
24 V
36 V
±0.5%
±0.5%
±0.5%
±0.5%
9.6 - 14.4 V
12.0 - 19.5 V
19.2 - 28.8 V
28.8 - 43.2 V
0A
0A
0A
0A
52 A
44 A
27 A
16.7 A
14 A
120 mV
150 mV
240 mV
240 mV
280 mV
600 W
600 W
600 W
600 W
600 W
2%
2%
2%
2%
2%
LCM600W
48 V
48 V
±0.5%
38.4 - 57.6 V
0A
*Note: Add “-T” for terminal block instead of IEC input
Add “-N” for low noise model on 12 V or 24 V models
Add “-4” for 5 V Standby output
Add “-A” will be automatically added to all orders to denote new Aesthetics style chassis unless otherwise specified
Add “-8” for models with special Constant Current Mode operation
Example: a 24 V with terminal block, low noise and standby with new Aesthetics would be LCM600Q-T-N-4-A
LCM600 Data Sheet

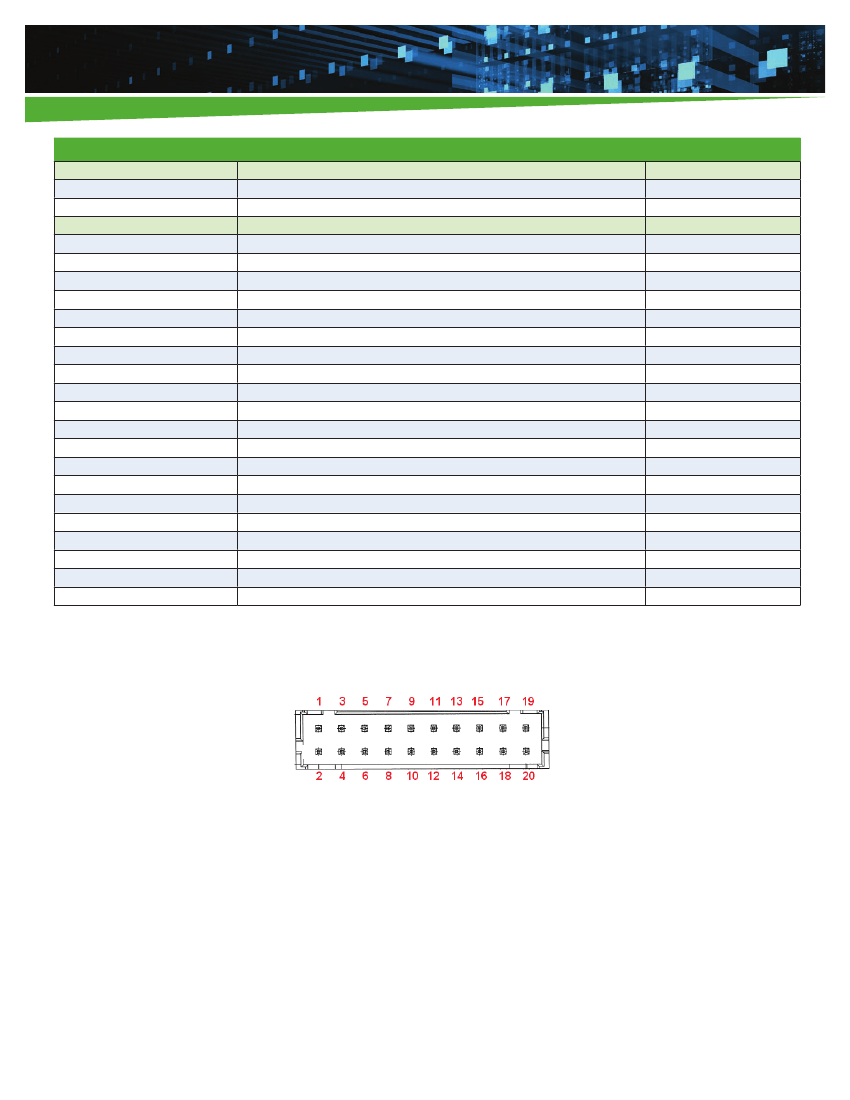

Pin Assignment
Signals
Name Description
Pin Number(s)
+Vout
GND
Signals
Power rail
Power GND
Name Description
SK4
SK5
SK2 Pin Number
A2
-VPROG
A1
-Vsense
ISHARE
A0
SDA1
+VPROG
SCL1
+Vsense
5VSB
GND
5VSB
G_DCOK_C
GPIOA6
G_DCOK_E
GND
G_ACOK_C
INH_EN
G_ACOK_E
Note: Mating connector for SK2 is:
EEPROM Address
Return connection of external supply for Margin Programming
EEPROM Address
Remote Sense Return
Load share voltage
EEPROM Address
Serial Data Signal (I2C)
Positive connection of external supply for Margin Programming
Serial Clock Signal (I2C)
Remote Sense Positive
5V standby
5V standby Return
5V standby
Global DCOK Collector
EEPROM Write Protect
Global DCOK Emitter (GND)
Return Ground for output signal and I2C communication
Global ACOK Collector
Turn Off Main Output
Global ACOK Emitter (GND)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
LANDWIN: PN 2050S2000 Housing and PN 2053T021V Contact
CIVILUX: PN CI0120SD000 Housing and PN CI01TD21PE0 Contact
JST: PN PHDR-20VS housing and PN: SPHD-001T-P0.5
Signal Output Signal Connectors (SK2)
SK2 Mating Connector: JST Part Number PHDR-20VS;
Contact Pins: JST Part Number SPHD-001T-P0.5
LED INDICATORS
Two (2) provided are clearly visible up to a 45 degree offset from vertical with office environment ambient lighting. The status is reflected in
the indicator color.
The DC_OK LED
LED is bicolor. It shall light green if the DC output is within specification, and amber if the output falls out of specification.
The AC_OK LED
LED is green if the AC is within specification and off when out of specification. Note: With 5 V standby, Amber also
indicates that PSU is in standby mode/output off.
CONTROL SIGNALS
AC_OK
Open collector 0.5 V maximum at 10 mA. Both emitter and collector access provided.
DC_OK
Open collector 0.5 V maximum at 10 mA. Both emitter and collector access provided.
DC_OK will de-assert when output is loss due to OCP, OVP, OTP, or Fan Fault (for -N option).
PS_INHIBIT/ENABLE Signal
0.0 - 0.5 V contact closure, output OFF
LCM600 Data Sheet
Ordering Information
LCMXXXXY
Case Size
1-Phase input where XXXX =
600 = 2.4” x 4.5” x 7.5”, 600 W
Blank = IEC connector
T = Terminal Block
Voltage Code Y =
Code
L
N
Q
U
W
12
15
24
36
48
Blank = Standard
N = Low Noise Fan
Blank = No Options
1 = Conformal Coat
4 = 5 V Standby
5 = Opt 1 + 4
Factory Assigned for
Modiefied standards
-
A
Input Termination
-
B
Acoustic Noise
-
C
Option Codes
-
###
Hardware Code

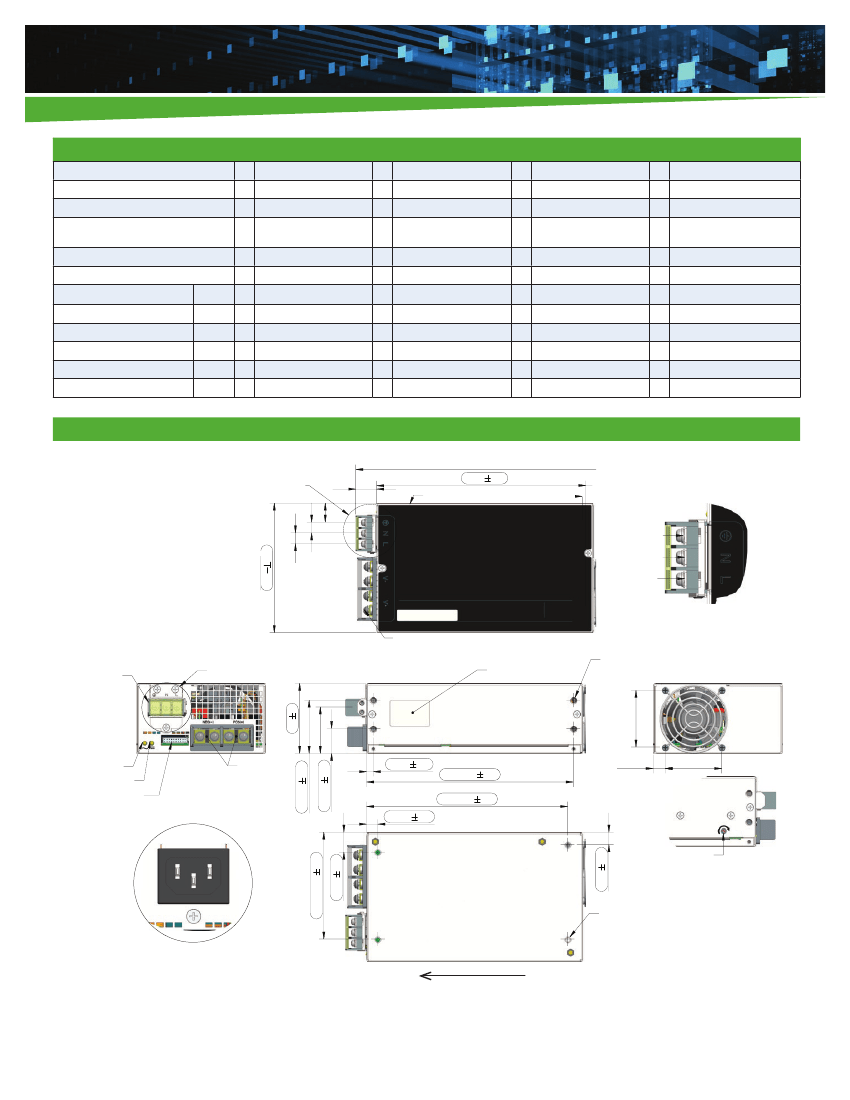

Mechanical Drawings
New Mechanical Reference Drawing:
Weight: 2.84 lbs (1.29 Kg)
MOUNTING LOCATIONS SCREW
PENETRATION DEPTH IS 4.6 mm MAX.
RECOMMENDED SCREW TORQUE:
M3.5 x 0.6P = 6 - 8kgf-cm
M4.0 x 0.7P = 8 - 10kgf-cm
Note 7 RECOMMENDED SCREW TORQUE:
M3.5x0.6P = 6-8kgf-cm
M4.0x0.7P = 8-10kfg-cm
SEE DETAIL A
16.8
(18.5)
(212.2 ref)
190.5 0.5
SEE DETAIL C (TRIMPOT LOCATION)
9.5
114.3 0.5
9.5
GROUND
NEUTRAL
LIVE
Note 8 INPUT: TERMINAL BLOCK TYPE.
M3.5 SCREW TORQUE VALUE OF 12kgf-cm
USING WIRE GAUGE 22-19 (9.5mm CENTERS)
INPUT TERMINAL BLOCK
SEE NOTE 8
DETAIL A
SCALE 1.500
SCREW-MC PHILIP PAN
WITH WASHER M4x8
BRAND LOGO
(8X) MOUNTING LOCATIONS
BOTH SIDES
M4X0.7P THREAD
SEE NOTE 7
SEE DETAIL B
62 1
41
(2X)47 0.5
(2X)22 0.5
LED (AC OK)
LED (DC/OK FAIL)
SK2 SIGNAL
CONNECTOR - 20WAY
SK4 & SK5
(2X)6 0.5
(2X)182.5 0.5
(2X)177.5 0.5
(2X)10.6
50
50
(2X)10 0.5
(2X) 94.45 0.5
17.65 0.5
DETAIL B
AC INLET VERSION
NOTE: OPTIONAL BARRIER STRIP OUTPUT TERMINAL AVAILABLE
OPTIONAL MOLEX TYPE CONNECTOR OUTPUT AVAILABLE
Airflow direction
11.15 0.5
VOLTAGE ADJUSTMENT:
CLOCKWISE - INCREASE VOLTAGE
COUNTER CLOCKWISE - DECREASE VOLTAGE
DETAIL C
(TRIMPOT LOCATION)
(4X) MOUNTING LOCATIONS
M4X0.7P THREAD
SEE NOTE 7
LCM600 Data Sheet

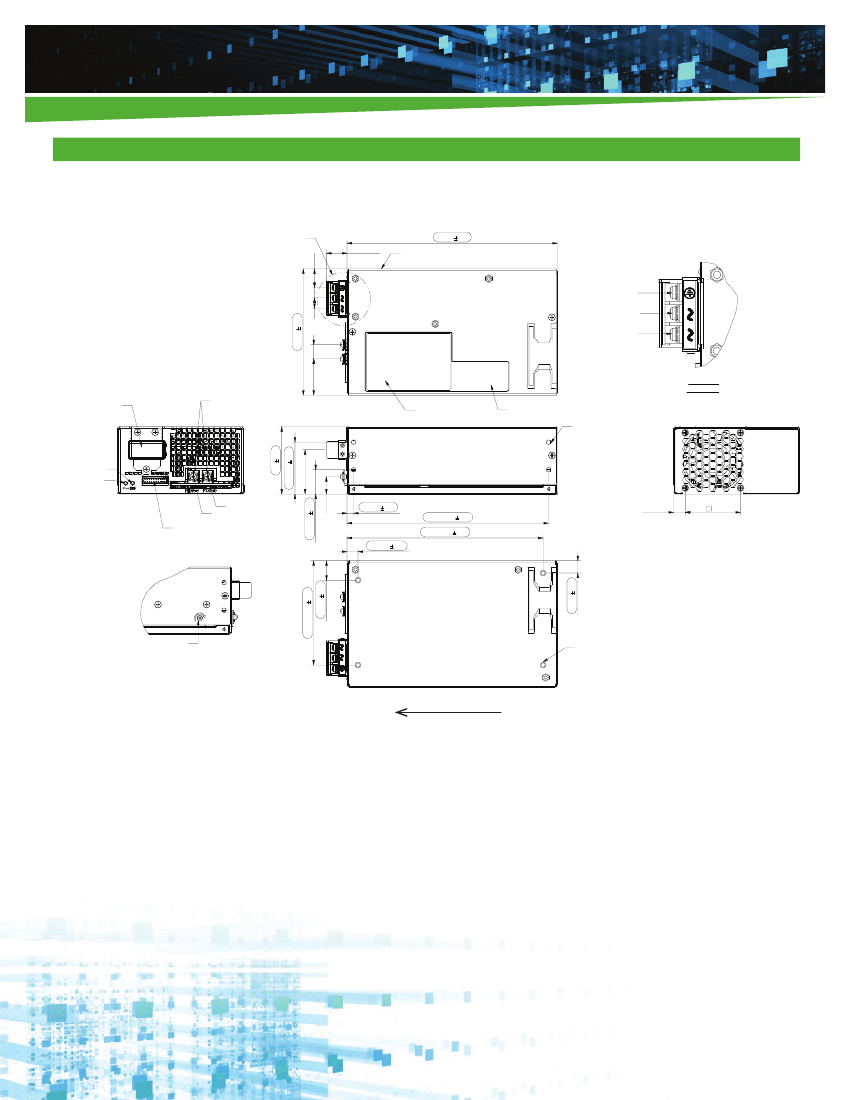

Mechanical Drawings – Terminal Block Input
Old Mechanical Reference Drawing:
Weight: 2.84 lbs (1.29 Kg)
SEE DETAIL A
190,5 0,5
16,8
18,5 REF
SEE DETAIL B (TRIMPOT LOCATION)
Note 7 - RECOMMENDED SCREW TORQUE:
M3.5x0.6P = 6-8kgf-cm
M4.0x0.7P = 8-10kfg-cm
9,5
GROUND
NUETRAL
LIVE
114,3 0,5
32,8
12,8
9,5
DETAIL A
SCALE 8:5
PRODUCT LABEL
PROVISION FOR FUTURE
LABEL REQUIREMENTS
(8X) MOUNTING LOCATIONS
BOTH SIDES
M4X0.7P THREAD
SEE NOTE 7
INPUT TERMINAL BLOCK
SEE NOTE 8
SCREW-MC PHILIP PAN
WITH EXT-T WASHER
M3.5 x P0.6 x 6
61 0,5
(2X)47 0,5
LED (DC/OK FAIL)
LED (AC OK)
POS - SK4
NEG - SK5
40,2
(2X)22 0,5
15,75
(2X)6 0,5
(2X)182,5 0,5
(2X)177,5 0,5
(2X)10 0,5
(2X)10,6
50
SK2 SIGNAL CONNECTOR - 20WAY
VOLTAGE ADJUSTMENT:
CLOCKWISE - INCREASE VOLTAGE
COUNTER CLOCKWISE - DECREASE VOLTAGE
DETAIL B
(TRIMPOT LOCATION)
(2X)94,45 0,5
17,65 0,5
Airflow direction
11,15 0,5
(4X) MOUNTING LOCATIONS
M4X0.7P THREAD
SEE NOTE 7
