MODEL 40
6 mm Single-Turn
Open Frame
Carbon Trimming Potentiometer
RoHS Compliant

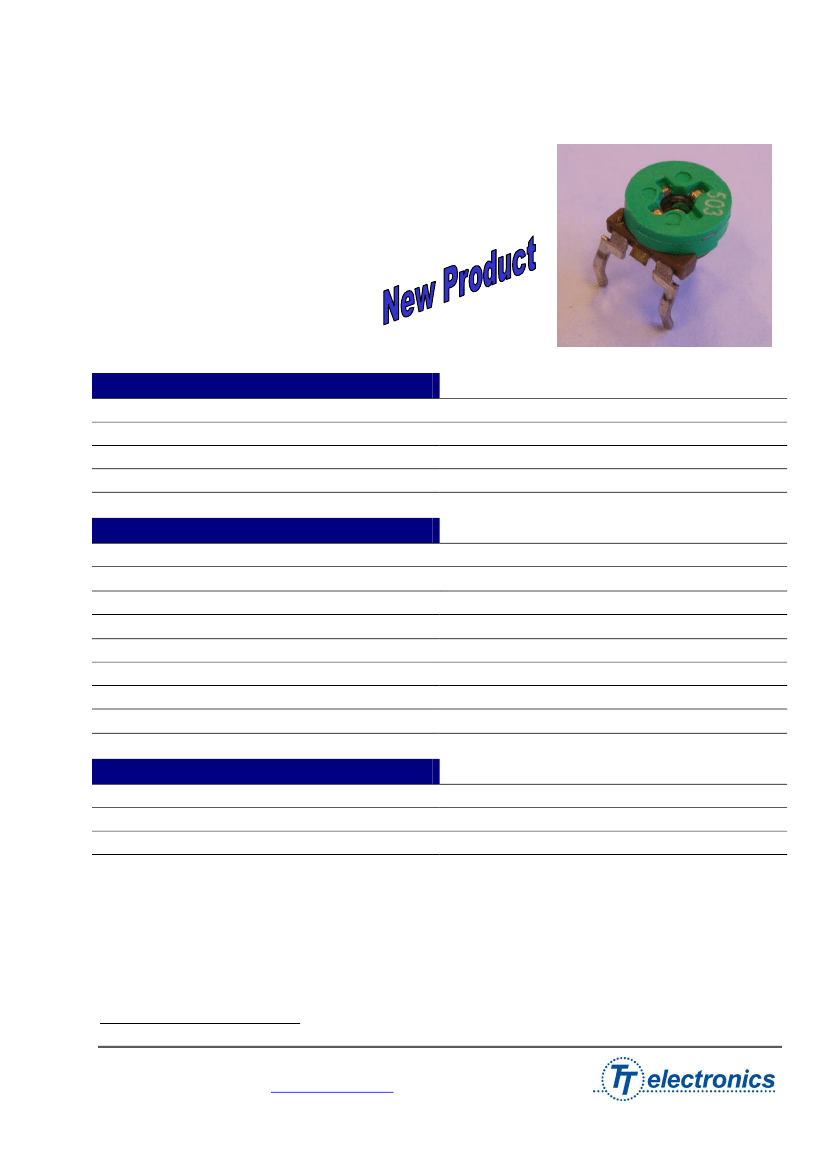

STYLES AVAILABLE
Top Adjust
Side Adjust
Side Adjust (Two Pins)
Side Adjust (3 Pins in-line)
40P
40S
40B
40W
ELECTRICAL
1
Resistance Range
Standard Resistance Tolerance
Input Voltage, Maximum
Power rating, Watts
End Resistance, Maximum
Actual Electrical Travel
Contact Resistance Variation
Temperature Coefficient of Resistance
100 to 1,000,000 Ohms
±
30%
100 V
0.1 @ 50°C
<1K: 30 Ohms Max; > 1K: 5% Max.
200° ±20°
10% Max.
±1000 ppm/°C
MECHANICAL
Torque, Maximum
Weight, Approx.
Wiper Position
2.5 in. oz. Max.
0.01 oz.
Approx. 50%
1
Specifications subject to change without notice.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
September 19, 2006
Website:
www.bitechnologies.com
page 1 of 3
BI technologies
MODEL 40
ENVIRONMENTAL
Operating Temperature Range
Load Life, 0.1W, 500 Hours, 50°C
Resistance to Solder Heat
Aqueous cleaning not recommended
-10°C to +70°C
±20%
∆R
260°C for 3 sec.
ORDERING INFORMATION
2
40 P R10K LF
Model Series
Style P, S, B, W
Std. Package 500 pc/bag
RoHS Compliant Product Code
Resistance Value (see tables below)
CIRCUIT DIAGRAM
STANDARD RESISTANCE VALUES AND MARKING
Resistance
(ohms)
100
200
500
1K
2K
5K
10K
20K
50K
100K
200K
500K
1MEG
Part
Marking
101
201
501
102
202
502
103
203
503
104
204
504
105
2
Contact our customer service for custom designs and features.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
September 19, 2006
Website:
www.bitechnologies.com
page 2 of 3
BI technologies
MODEL 40

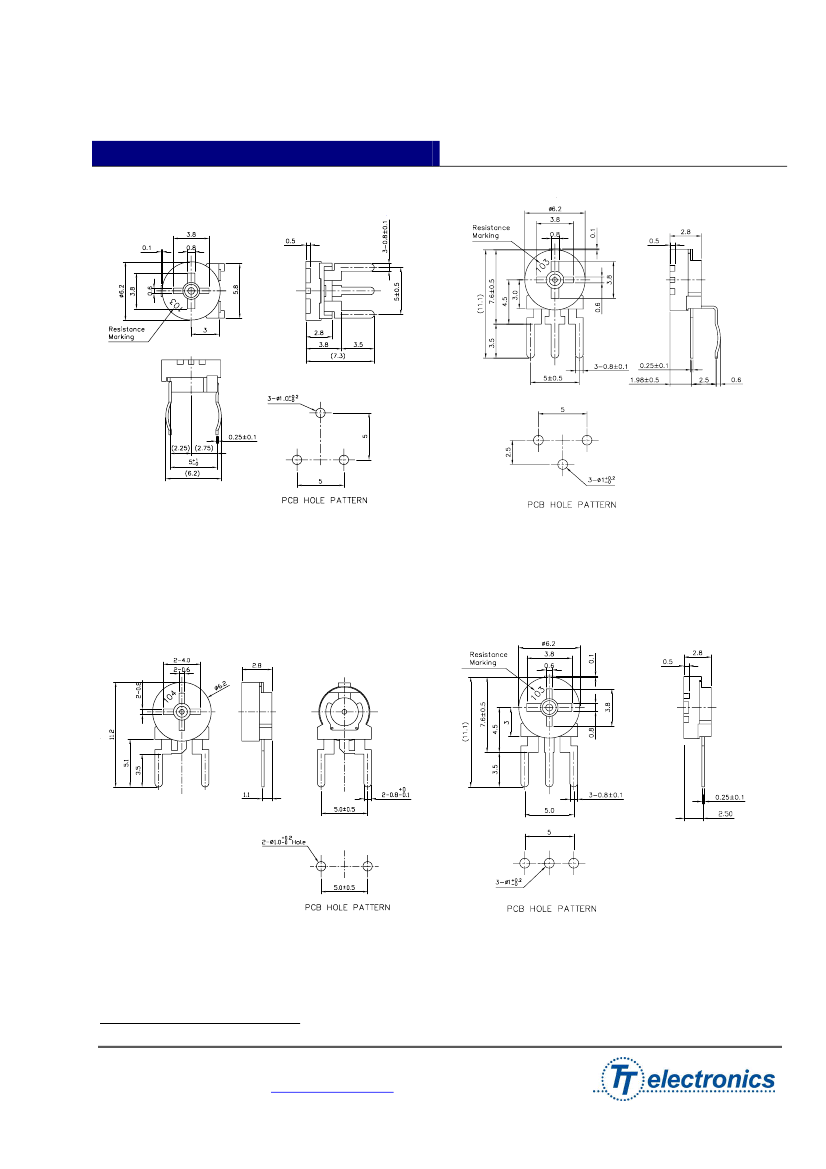

OUTLINE DRAWING
3
Model 40P (Top Adjust)
Model 40S (Side Adjust)
Model 40B (Side Adjust with 2 pins)
Model 40W (Side Adjust with 3 pins in-line)
3
Dimensions are mm
