IPC-7132MB-25ZE Overview

COST-EFFECTIVE ATX/MATX CHASSIS

Preview

Download Datasheet

View All

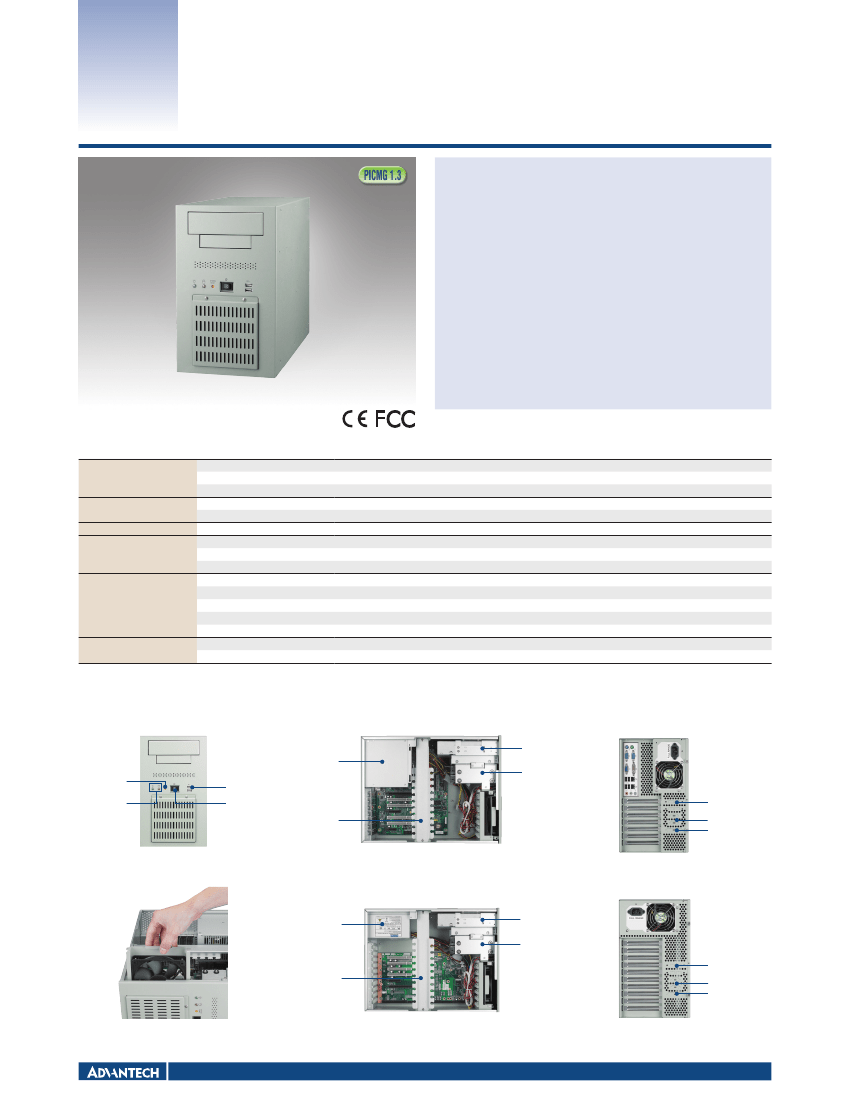

IPC-7132

Cost-effective Wallmount Chassis for

ATX/mATX Motherboard and 10-slot

Backplane

Features

Support ATX/mATX M/B and 10-slot PICMG 1.3 backplane

Shockproof drive bay for one 5.25" ODD and three 3.5" HDDs

Thumb-screw for top cover easy opening

Bidirectional option to mount chassis on wall or workbench

Two front access USB ports

Specifications

Disk Drive Bay

Cooling

Front I/O interface

Miscellaneous

3.5"

5.25"

Fan

Air Filters

USB 2.0

LED Indicators

Control

Rear panel

Temperature

Humidity

Vibration (5-500 Hz)

Shock

Dimensions (W x H x D)

Weight

External

1

1 (12 cm/85 CFM)

Yes

2

Power, HDD

Power Switch, System Reset Button

4x USB, 2x DB-9, 1x LPT port

Operating

0 ~ 40° C (32 ~ 104° F)

10 ~ 85 % @ 40° C, non-condensing

1 Grms

10 G (with 11 ms duration, half sine wave)

200 x 330 x 430 mm (7.9" x 13" x 16.9")

9.96 kg (21.93 lb)

Internal

2

-

Environment

Non-operating

-20 ~ 60° C (-4 ~ 140° F)

10 ~ 95 % @ 40° C, non-condensing

2G

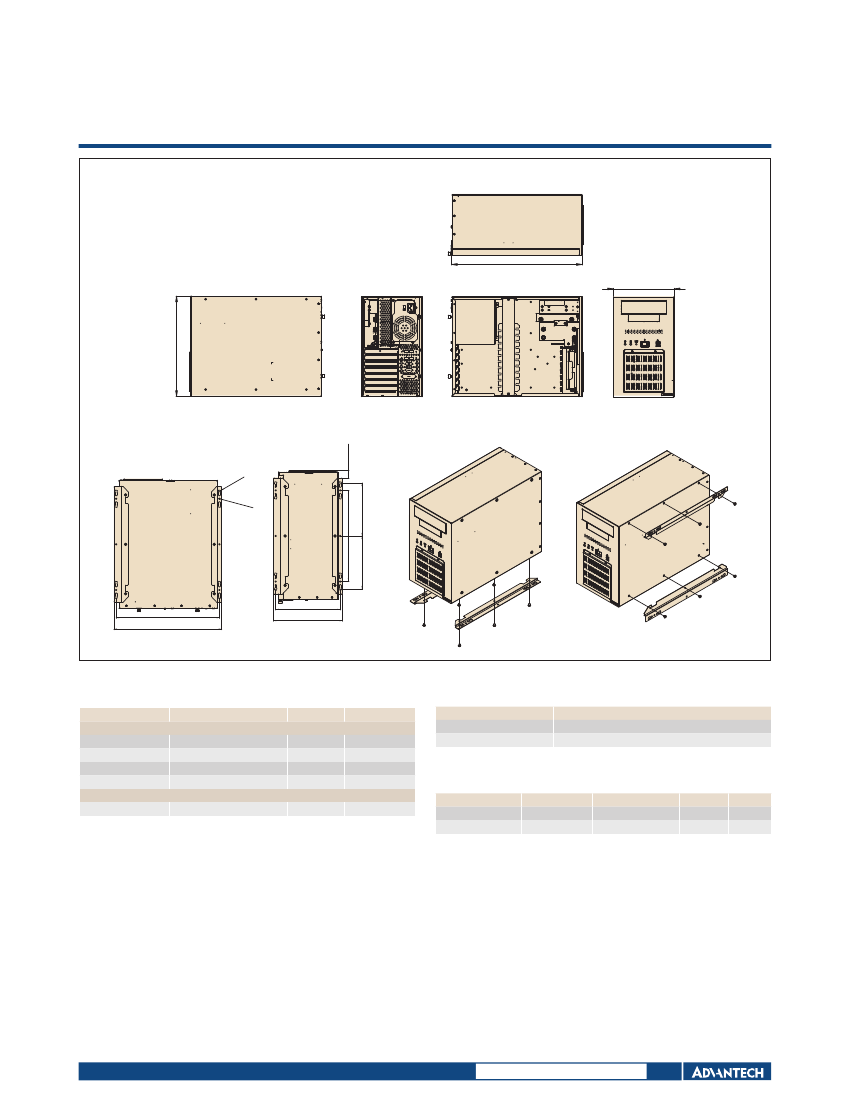

Physical Characteristics

Front View

Power Supply

System reset

button

PWR/HDD

LED

Inside View

5.25" ODD bay

3.5" HDD bay

2x USB ports

Power Switch

hold-down clamp

Rear View

4x USB ports

2x DB-9 ports

1x LPT port

IPC-7132MB

Power Supply

5.25" ODD bay

3.5" HDD bay

4x USB ports

hold-down clamp

2x DB-9 ports

1x LPT port

Easy-to-maintain cooling fan

IPC-7132BP

Industrial Chassis

All product specifications are subject to change without notice

Last updated: 8-Mar-2016
