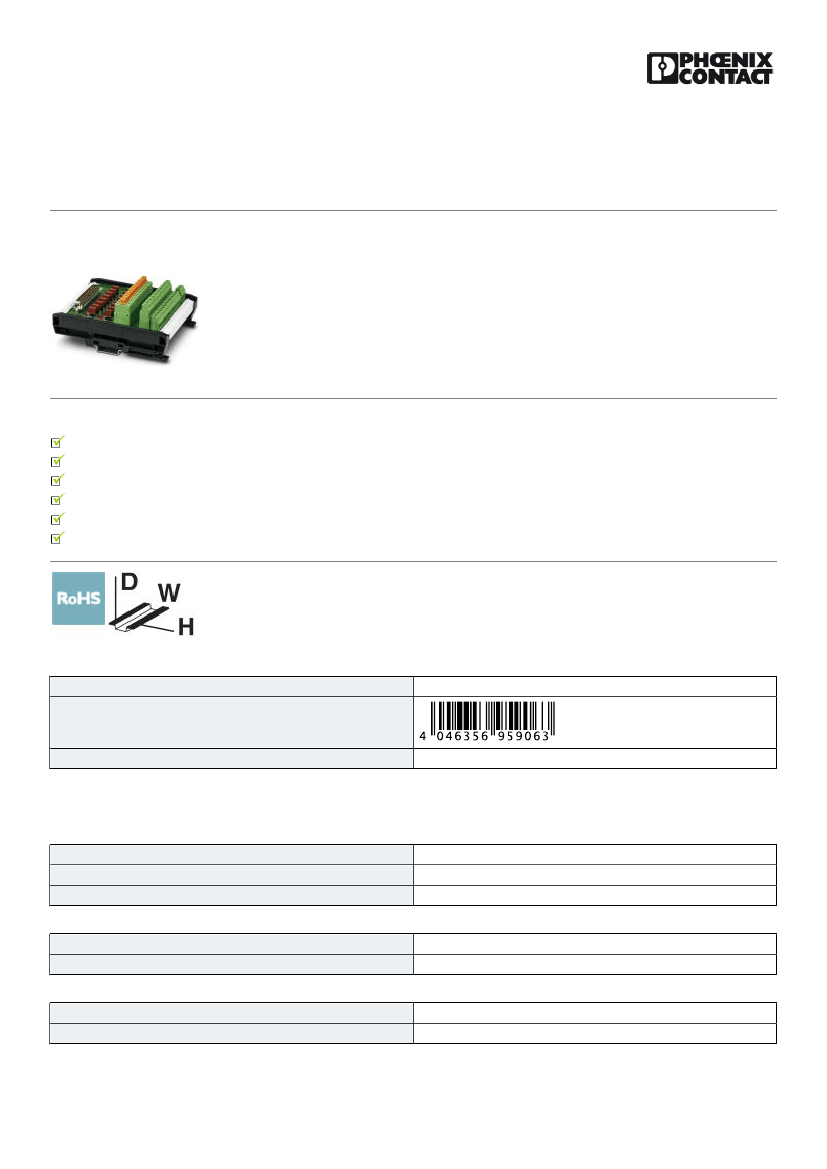

Interface module - UM-D37M/DS/FU/LED/DG/C300/L - 2905244
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
VARIOFACE module intended for use with Honeywell Experion C300 16-channel digital cards:
Picture shows right-hand version
Your advantages
These VARIOFACE modules are used in combination with the relevant front adapters
Per channel pluggable 1 A fusing
UM-PRO housing
DIN rail mounting
LED blown fusing indication
Per channel disconnects with test points
Key Commercial Data
Packing unit
GTIN
GTIN
4046356959063
1 pc
Technical data
Dimensions
Width
Height
Depth
124 mm
142.3 mm
65.6 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-40 °C ... 60 °C
-40 °C ... 75 °C
General
Max. perm. operating voltage
Max. perm. current (per branch)
24 V DC
1 A (fuse limited)
11/20/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/2905244
Interface module - UM-D37M/DS/FU/LED/DG/C300/L - 2905244
Technical data
General
Number of positions
Status display
Mounting position
Assembly instructions
37
No
any
In rows with zero spacing
Connection data for connection 1
Connection name
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Field level
Screw connection with disconnect knife
8 mm
M3
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
Connection data for connection 2
Connection name
Connection method
Number of connections
Number of positions
Controller level
D-SUB pin strip
1
37
Supported controller
Controller
- suitable I/O card
HONEYWELL Experion PKS C300/C-Series
TDIL01 (non-redundant)
TDIL11 (redundant)
TDIL51 (non-redundant)
TDIL61 (redundant)
TDOB01 (non-redundant)
TDOB11 (redundant)
TDOB51 (non-redundant)
TDOB61 (redundant)
Controller
- suitable I/O card
Honeywell Experion LX Series 8
8X-TDILA1
8X-TDILB1
Standards and Regulations
Standards/regulations
DIN EN 50178
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
11/20/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/2905244
Interface module - UM-D37M/DS/FU/LED/DG/C300/L - 2905244
Dimensional drawing
120
1
16
17 18 20
35 36 36
Circuit diagram
GND
GND
X1
1
3
5
7
9
11
13
15
...
2
4
6
8
10
12
14
16
...
142,3
1+ 2+ 3+ 4+ 5+ 6+ 7+ 8+ 9+ 10+ 11+ 12+ 13+ 14+ 15+ 16+
1+
X3
X2
16+
+
1- 16- -
GND
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 238705
cUL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 238705
cULus Recognized
