51770-014LF |
51770-014 |
| Description |

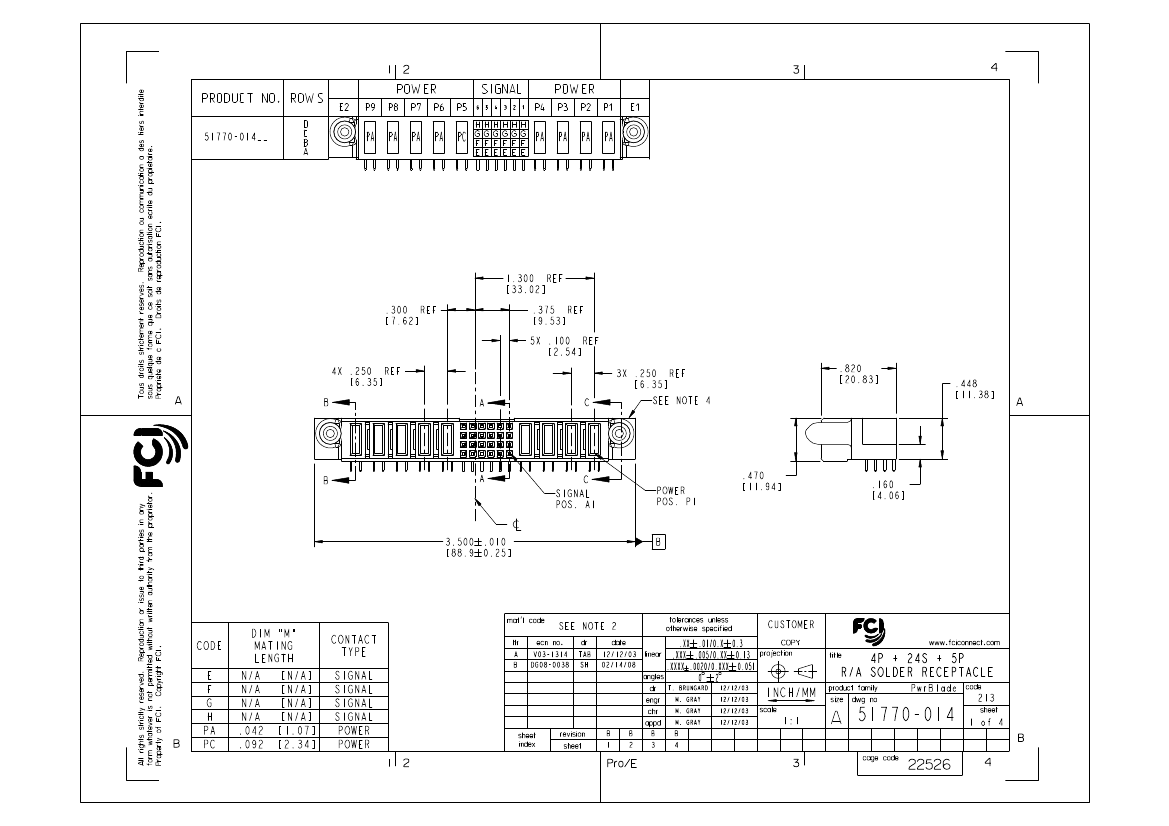

PwrBlade®, Power Supply Connectors, 4P 24S 5P Right Angle Receptacle. |
Board Connector, 33 Contact(s), 4 Row(s), Female, Right Angle, Solder Terminal, Locking, Receptacle |
| Is it Rohs certified? |
conform to |
incompatible |
| Reach Compliance Code |
compliant |
compliant |
| ECCN code |
EAR99 |
EAR99 |

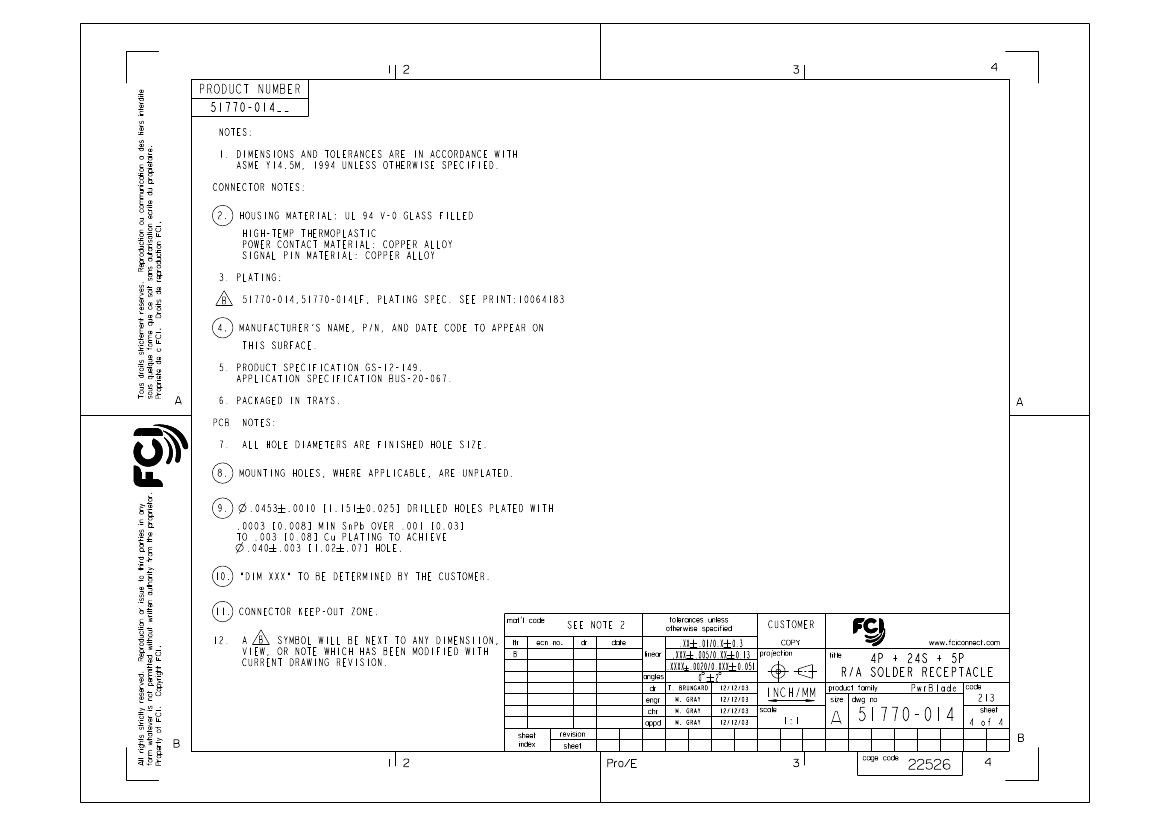

| Other features |
TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM |
TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM |
| body width |
0.47 inch |
0.47 inch |
| subject depth |
0.82 inch |
0.82 inch |
| body length |
3.5 inch |
3.5 inch |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact point gender |
FEMALE |
FEMALE |
| Contact material |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact resistance |
20 mΩ |
20 mΩ |
| Contact style |
HYBRID |
HYBRID |
| DIN compliance |
NO |
NO |
| Dielectric withstand voltage |
2500VDC V |
2500VDC V |
| Durability |
200 Cycles |
200 Cycles |
| Filter function |
NO |
NO |
| IEC compliance |
NO |
NO |
| maximum insertion force |
.973 N |
.973 N |
| Insulation resistance |
500000000 Ω |
500000000 Ω |
| insulator material |
GLASS FILLED POLYETHYLENE |
GLASS FILLED THERMOPLASTIC |
| MIL compliance |
NO |
NO |
| Mixed contacts |
YES |
YES |
| Installation option 1 |
LOCKING |
LOCKING |
| Installation method |
RIGHT ANGLE |
RIGHT ANGLE |
| Installation type |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
| Number of rows loaded |
4 |
4 |
| Maximum operating temperature |
125 °C |
125 °C |
| Minimum operating temperature |
-55 °C |
-55 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
| Rated current (signal) |
3 A |
3 A |
| Guideline |
UL |
UL |

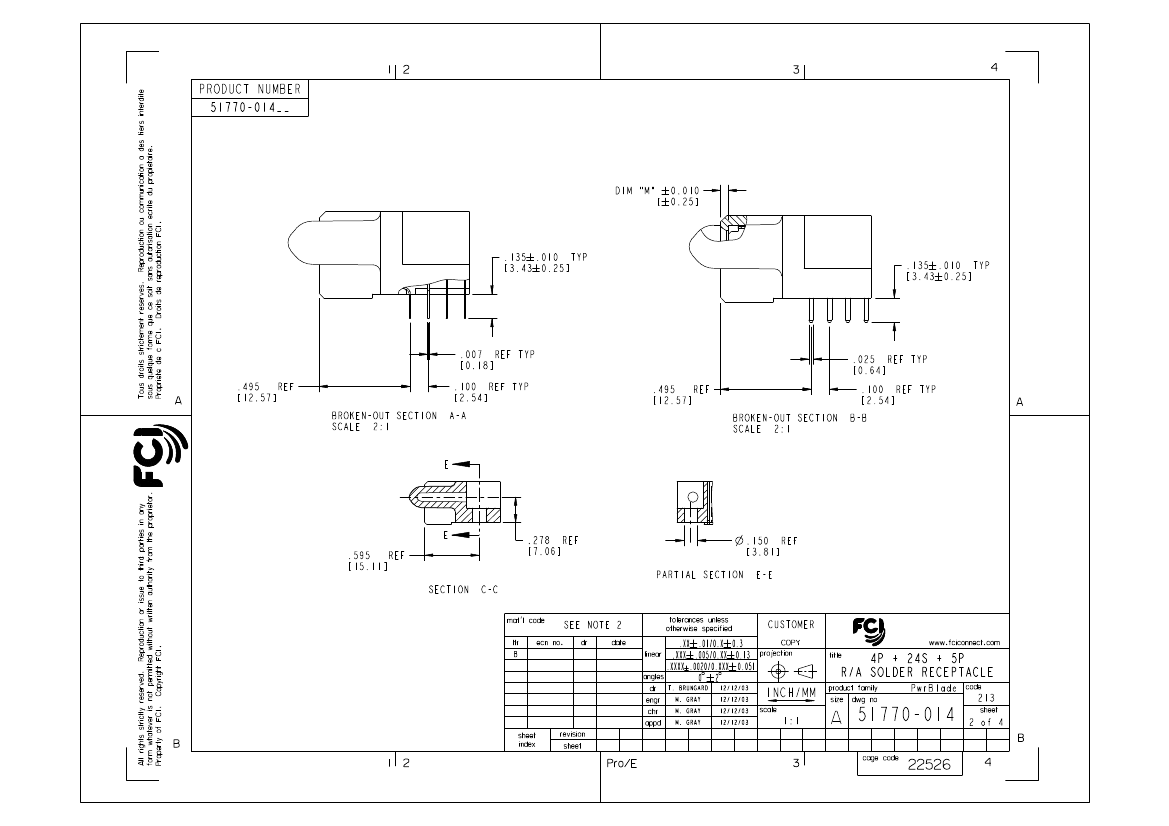

| Terminal length |
0.135 inch |
0.135 inch |

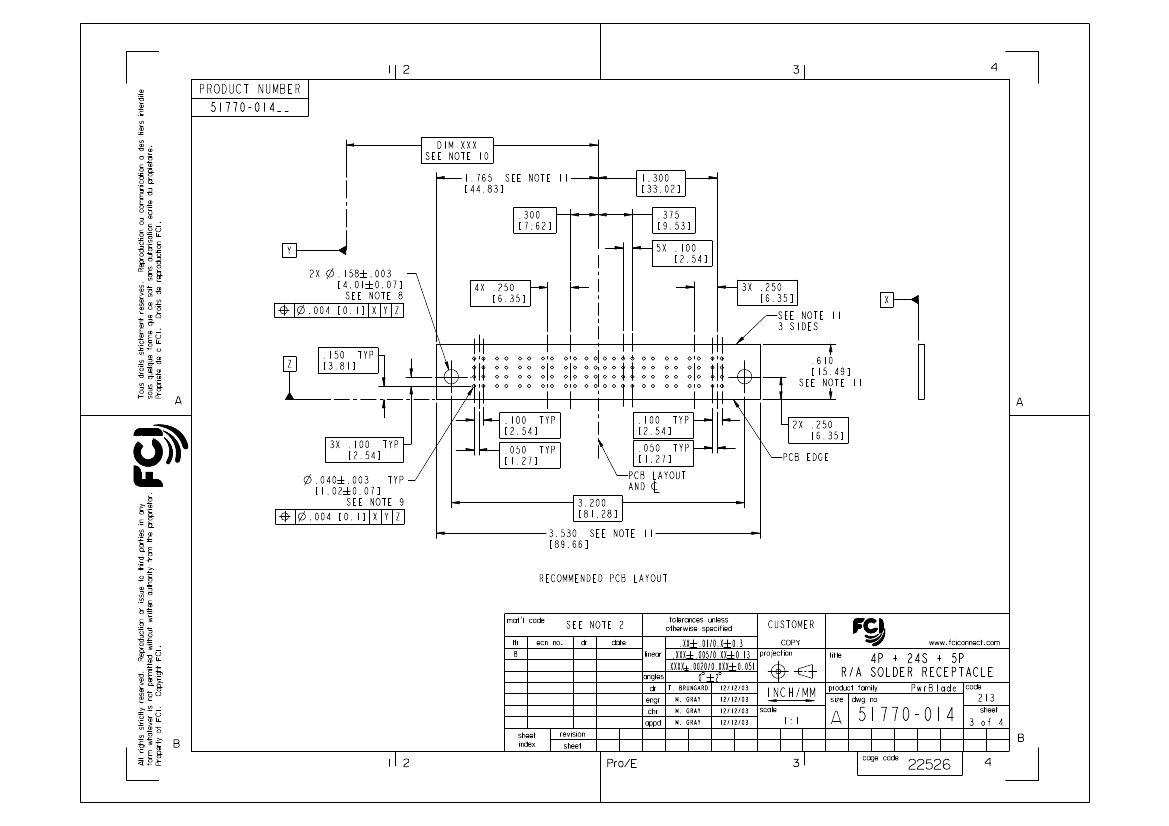

| Terminal pitch |
2.54 mm |
2.54 mm |
| Termination type |
SOLDER |
SOLDER |
| Total number of contacts |
33 |
33 |
| UL Flammability Code |
94V-0 |
94V-0 |
| Evacuation force-minimum value |
.17792 N |
.17792 N |
