500W Slim Type with PFC Switching Supply
UHP-500
series
Bauar t gepruft
Sicherheit
egel ma ge
od
o s
be wac
g
www. tuv.com
ID 2000000000
GB4943
UL60950-1
EN60950-1
IEC60950-1
■
Features
Slim and Low profile (31mm)
Fanless design,500W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
150
%
peak load capability(100ms)
-
20
~+
70
℃
working temperature
Protections: Short circuit / Overload /
Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter (Note.5)
LED indicator for power on
3 years warranty
■
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments
or apparatus
LED display
application
■
Description
UHP-500 series is a 500W single-output slim type power supply with 31mm of low profile design.
Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 4.2V,
5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 95%, that the whole series
operates from -20
℃
~ 70
℃
under air convection without fan. UHP-500 has the complete protection
functions and 5G anti-vibration capability
；
It is complied with the international safety regulations
such as TUV EN60950-1, UL60950-1 and GB4943. UHP-500 series serves as a high performance
power supply solution for various industrial applications.
■
Model Encoding
UHP - 500
- 5
Output Voltage
Blank
R
Rated
wattage
Series name
Type
Blank
R
Enclosed
Buit-in DC OK active signal and redundant function.
Description
Note
In Stock
By request
File Name:UHP-500-SPEC 2018-09-12
500W Slim Type with PFC Switching Supply
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
UHP-500
4.2V
80A
-4.2 UHP-500
5V
80A
400W
200mVp-p
4.5~5.5V
±2.0%
±0.5%
±1.0%
12ms/115VAC
127 ~ 370VDC
-5 UHP-500
12V
41.7A
500.4W
200mVp-p
11.4~12.6V
±1.0%
±0.3%
±0.5%
-12 UHP-500
15V
33.4A
501W
200mVp-p
14.3~15.8V
±1.0%
±0.3%
±0.5%
UHP-500
-15 UHP-500
24V
20.9A
501.6W
240mVp-p
22.8~25.2V
±1.0%
±0.3%
±0.5%
-24 UHP-500
36V
13.9A
500.4W
360mVp-p
34.2~37.8V
±1.0%
±0.3%
±0.5%
series
-48
-36 UHP-500
48V
10.45A
501.6W
360mVp-p
45.6~50.4V
±1.0%
±0.3%
±0.5%
RATED POWER(convection)
336W
RIPPLE & NOISE (max.)
Note.2
200mVp-p
OUTPUT
VOLTAGE ADJ. RANGE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
FREQUENCY RANGE
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION OVER VOLTAGE
OVER TEMPERATURE
FUNCTION
REDUNDANT(Optional)
WORKING TEMP.
WORKING HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
3.6~4.4V
±0.5%
±1.0%
12ms/230VAC
47 ~ 63Hz
VOLTAGE TOLERANCE
Note.3
±2.0%
1000ms, 50ms/230VAC
1000ms,50ms/115VAC at full load
VOLTAGE RANGE N
ote.4
90 ~ 264VAC
PF
≥
0.95/230VAC PF
≥
0.98/115VAC at full load
89%
4.85A/115VAC
<0.75mA / 240VAC
110~140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
4.62 ~ 5.46V
5.75 ~ 6.75V
13.2 ~ 15.6V
16.5 ~ 19.5V
26.4 ~ 31.2V
39.6 ~46.8V
52.8 ~ 62.4V
Protection type :Shut down O/P voltage,re-power on to recover
Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
90%
2.6A/230VAC
60A/230VAC
94%
94%
94.5%
95%
95%
INRUSH CURRENT (Typ.)
Cold start 30A/115VAC
DC OK SIGNAL(Optional)
Contact rating(max.):30Vdc/1A resistive load
For parallel connection protection:For parallel applications, when one PSU can not work , the another one will be
automatically enabled. This can prevent the system crash, and provide the reliability of system
-20 ~ +70
℃
(Refer to “Derating Curve")
20 ~ 90% RH non-condensing
±
0.03%/
℃
(0 ~ 50
℃)
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
UL60950-1,TUV EN60950-1, CCC GB4943, EAC TP TC 004 approved;Design refer to EN60335-1,EN61558-2-16
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
SAFETY & WITHSTAND VOLTAGE
EMC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25
℃
/ 70%RH
(Note.6)
Compliance to EN55032,GB/T9254,Class B, EN61000-3-2,-3, EAC TP TC 020
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS

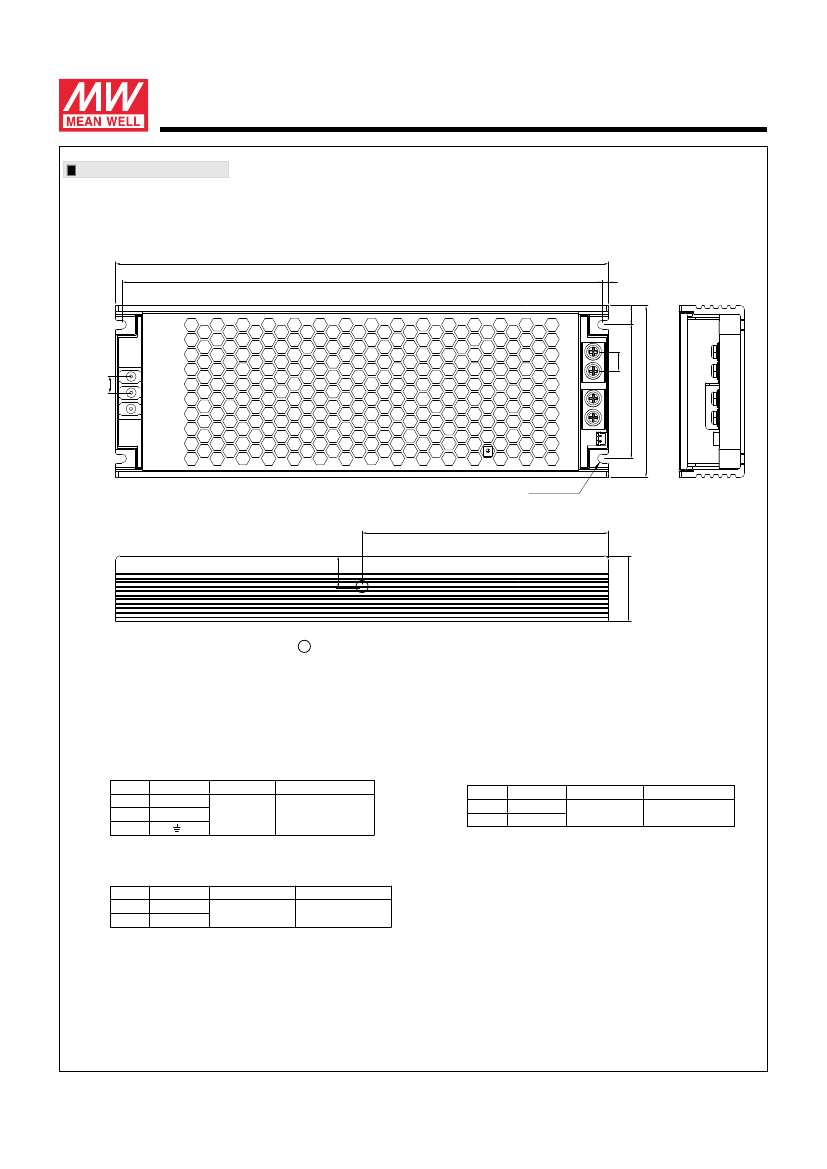

DIMENSION
PACKING
NOTE
Compliance to EN61000-4-2,3,4,5,6,8,11;EN61000-6-2 (EN50082-2), heavy industry level ,criterial A,EAC TP TC 020
168K hrs min.
MIL-HDBK-217F (25
℃
)
232*81*31mm (L*W*H)
0.905kg; 16pcs/15.48kg/0.82CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :
includes set up tolerance,
line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the
derating curve
for more details.
5. The ambient temperature derating of 3.5
℃
/1000m is needed for operating altitude greater than 2000m(6500ft)
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed
that it still meets EMC directives. For guidance on how to perform these EMC tests,
please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
File Name:UHP-500-SPEC 2018-09-12
