2403 260 00041 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Tools and equipment> 2403 260 00041

2403 260 00041: DescriptionSPEAKER 32OHM 40MW TOP PORT 65DB; CategoryTools and equipment; File Size548KB，19 Pages; ManufacturerKnowles; Websitehttp://www.knowles.com; Environmental Compliance

Download Datasheet Parametric View All

2403 260 00041 Overview

SPEAKER 32OHM 40MW TOP PORT 65DB

2403 260 00041 Parametric

Parameter Name	Attribute value
technology	magnetic
type	receiver
Frequency Range	300Hz ~ 10kHz
Frequency - Self-resonance	520Hz
impedance	32 Ohms
Efficiency - dBA	65
Efficiency - Test	1W/1M
Efficiency - type	Sensitivity
Power - Rating	40mW
Power - Max	75mW
port location	top
shape	rectangle
Material - Cone	polyester
Material - Magnet	Nd-Fe-B
Intrusion protection	-
grade	-
Termination	Spring type
size/dimensions	0.394" long x 0.189" wide (10.00mm x 4.80mm)
Height - Installation (maximum)	0.089"（2.25mm）

Preview

Download Datasheet

View All

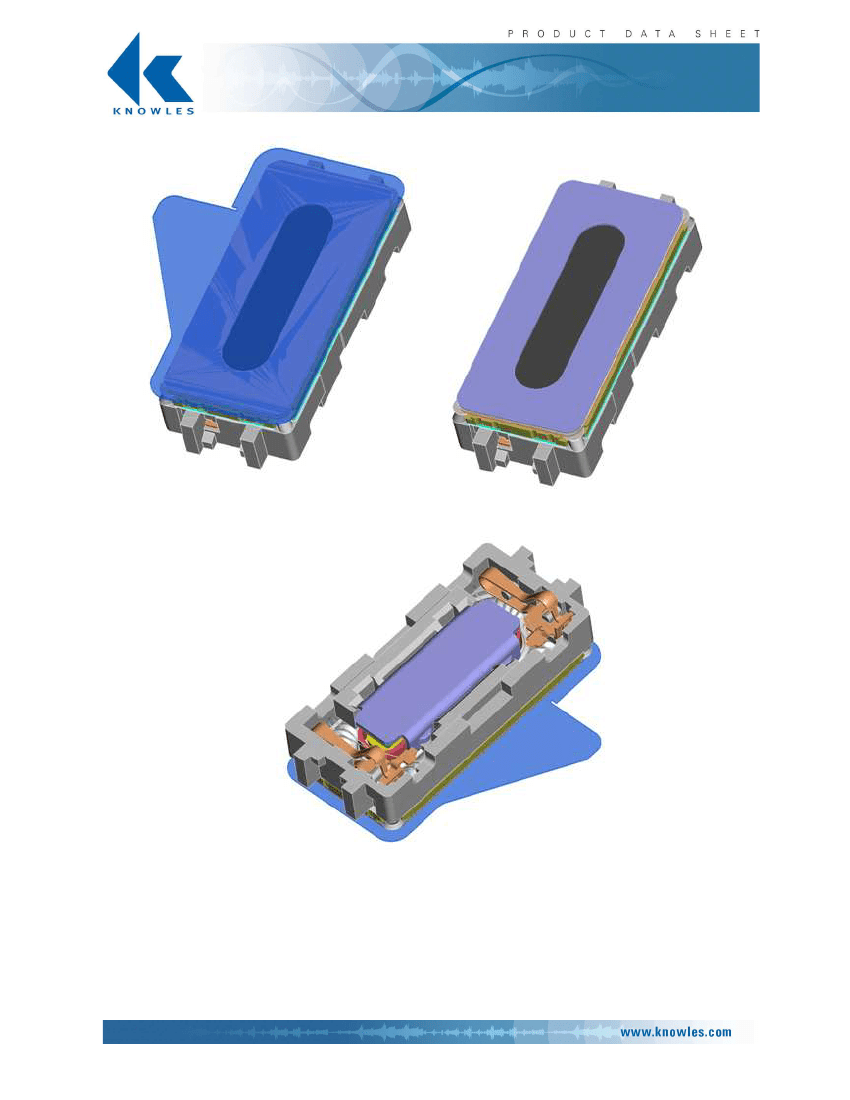

2403 260 00041

RA RECEIVER 10 X 4.8 X 2 MM WITH MESH

Page 1 of 19

2403 260 00041

Contents

Theory of operation ........................................................................................................................ 3

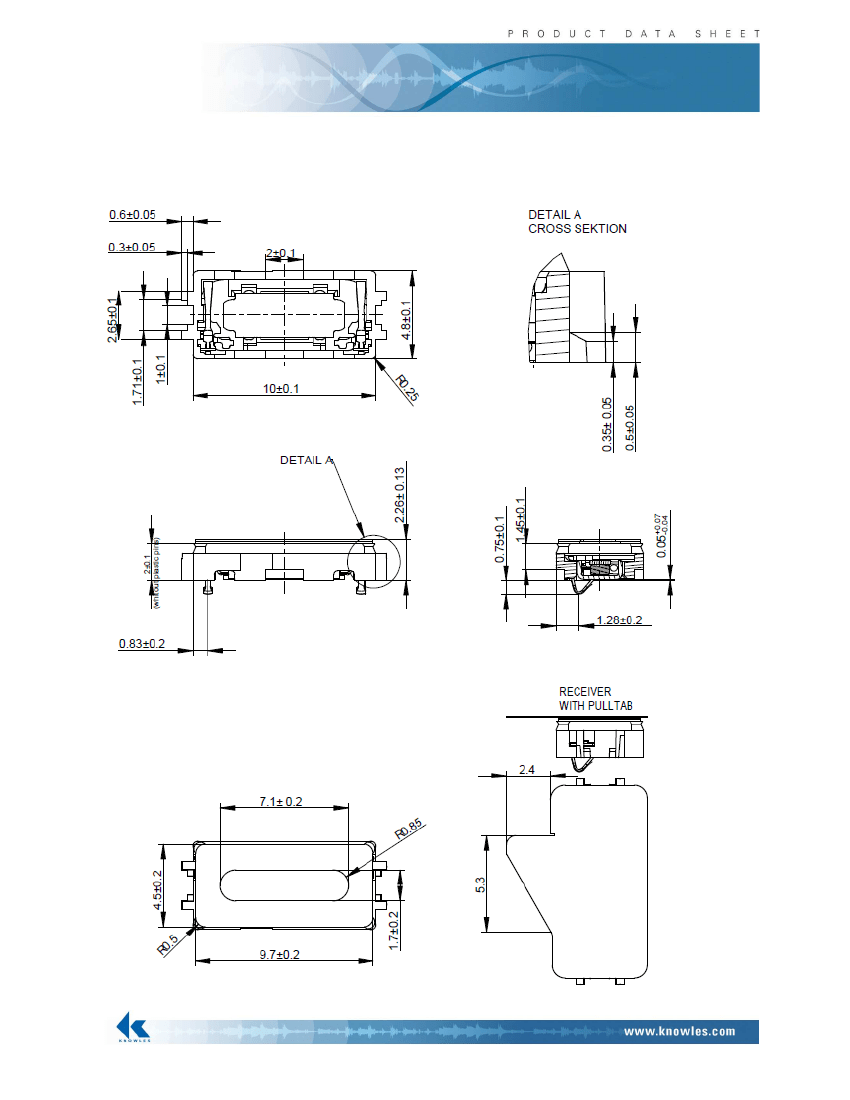

Mechanical Layout and Dimensions ................................................................................................ 4

2.1. Main Dimensions ....................................................................................................................4

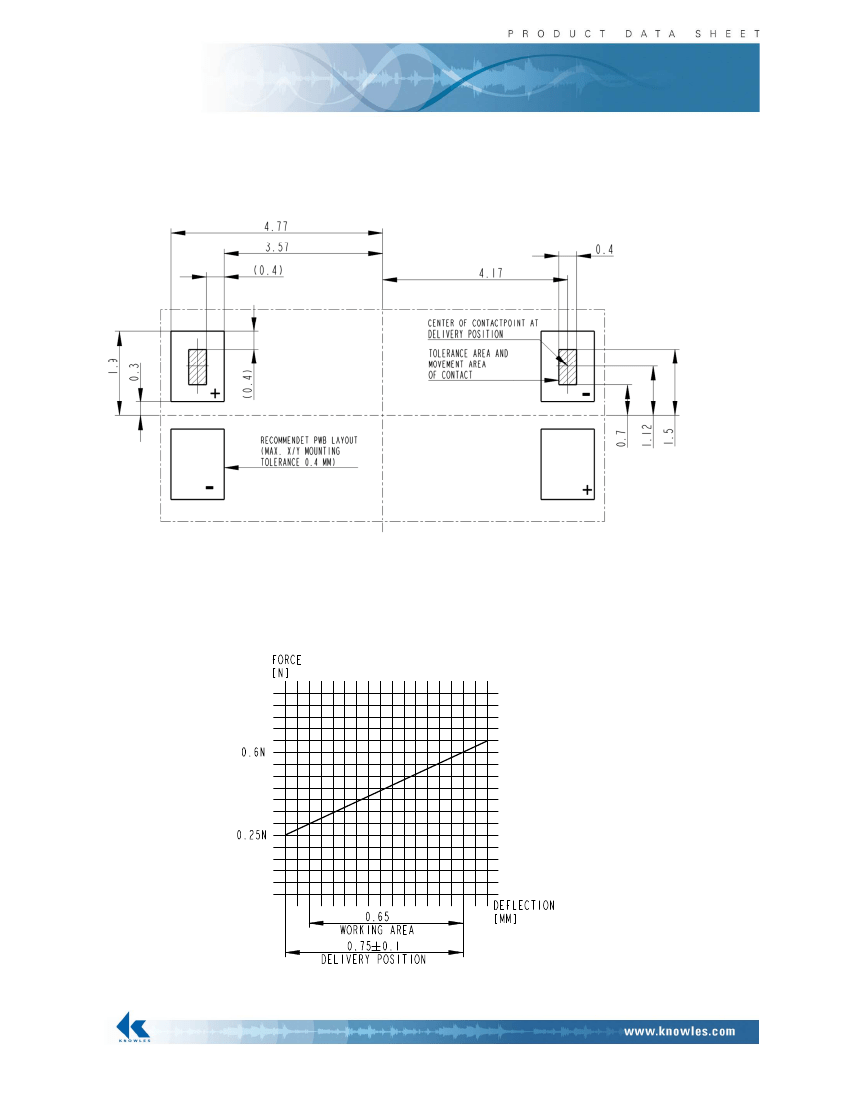

2.2. PWB Layout ............................................................................................................................5

2.3. Spring Force ............................................................................................................................5

2.4. Force on component ...............................................................................................................6

2.5. Part Marking/Labeling.............................................................................................................7

2.6. Material List ............................................................................................................................8

Electrical and Acoustical Specifications ........................................................................................... 9

3.1. Frequency response ................................................................................................................9

3.2. Electro-Acoustic Parameters ................................................................................................. 10

3.3. Power handling ..................................................................................................................... 10

3.4. Measurement setup.............................................................................................................. 11

3.5. Measured Parameters .......................................................................................................... 11

3.6. Measurement adapter .......................................................................................................... 12

Environmental Conditions ............................................................................................................ 13

4.1. Storage ................................................................................................................................. 13

4.2. Transportation ...................................................................................................................... 13

4.3. Functionality ......................................................................................................................... 13

Environmental tests ...................................................................................................................... 14

5.1. Qualification tests ................................................................................................................. 14

5.2. Reliability tests...................................................................................................................... 14

5.3. Sample Size, Sequence .......................................................................................................... 14

5.4. Period of Shelf-Life................................................................................................................ 14

5.5. Testing Procedures ............................................................................................................... 14

Related Documents ...................................................................................................................... 18

Change History ............................................................................................................................. 19

Disclaimer..................................................................................................................................... 19

Release – Revision: E

Page 2 of 19
