Small U-shaped Micro Photoelectric Sensor
■
General terms and conditions ........... F-13
■
Glossary of terms / General precautions......P.1455~ / P.1458~
PM-44
SERIES
PM-54
SERIES
Related Information
Amplifier Built-in
■
Sensor selection guide.................. P.427~
■
Korea’s S-mark.............................. P.1506
Conforming to
EMC Directive
Recognition
Certified
(Some models only)
panasonic.net/id/pidsx/global
PNP output
type available

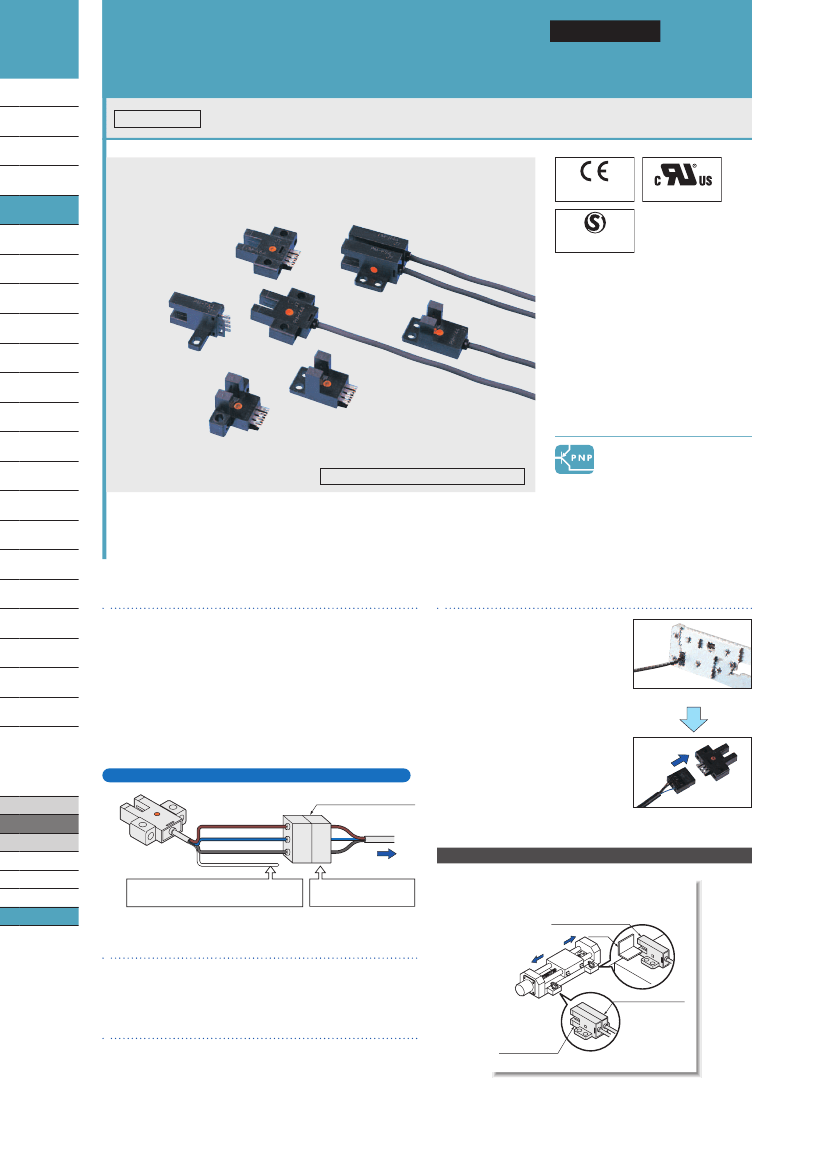

Enables space saving and quick installation!
Equipped with two independent outputs
All models are equipped with two independent outputs
Light-ON and Dark-ON.
Hence, one model suffices even if the output is to be
used differently, depending upon the location of use.
Also, since two independent outputs have been
provided, cumbersome handling of the output conversion
control input, or fear of logic inversion due to a cable
break, is eliminated. The sensor can be connected to the
existing wiring as it is.
Example of connection with a commercial intermediate connector
Quick fitting hook-up connector
Easy to maintain connector
type models are available. Its
exclusive connector is the hook-
up connector.
Since only crimping with
exclusive pliers is to be done,
cumbersome soldering or
insulation is absolutely not
required.
Further, connector attached
cable is also available.
Crimp the connector on the
cable.
Selection
Guide
U-shaped
Convergent
Reflective
+V
0V
Output 1 (Light-ON)
Output 2 (Dark-ON)
Commercial intermediate
connector
Quick connection to the
sensor.
To PLC
APPLICATIONS
Sensing the starting point and
overrun of a moving body
Overrun sensing
Dog
PM-64
PM-24
PM-44/PM-54
Just connect the cable of the used
output (either Light-ON or Dark-ON).
Note: Ensure to insulate the unused output wire.
Connected device side
can be left as it is.
Wide model variety
A wide variety of 12 shapes and 24 models is available.
You may select from this wide range to suit the mounting
conditions.
Starting point sensing
Starting point
and overrun is
sensed using
the dog on the
base.
Meets global requirements
Conforms to Europe’s EMC Directive and obtains UL
Recognition.
The NPN output type with cable (excluding 3 m
9.843 ft
cable length type) has also obtained Korea’s S-
mark certification.
Both, NPN and PNP output models are available.
Overrun sensing
Small U-shaped Micro Photoelectric Sensor
PM-44
SERIES
PM-54
SERIES
444
FIBER
SENSORS
LASER
SENSORS

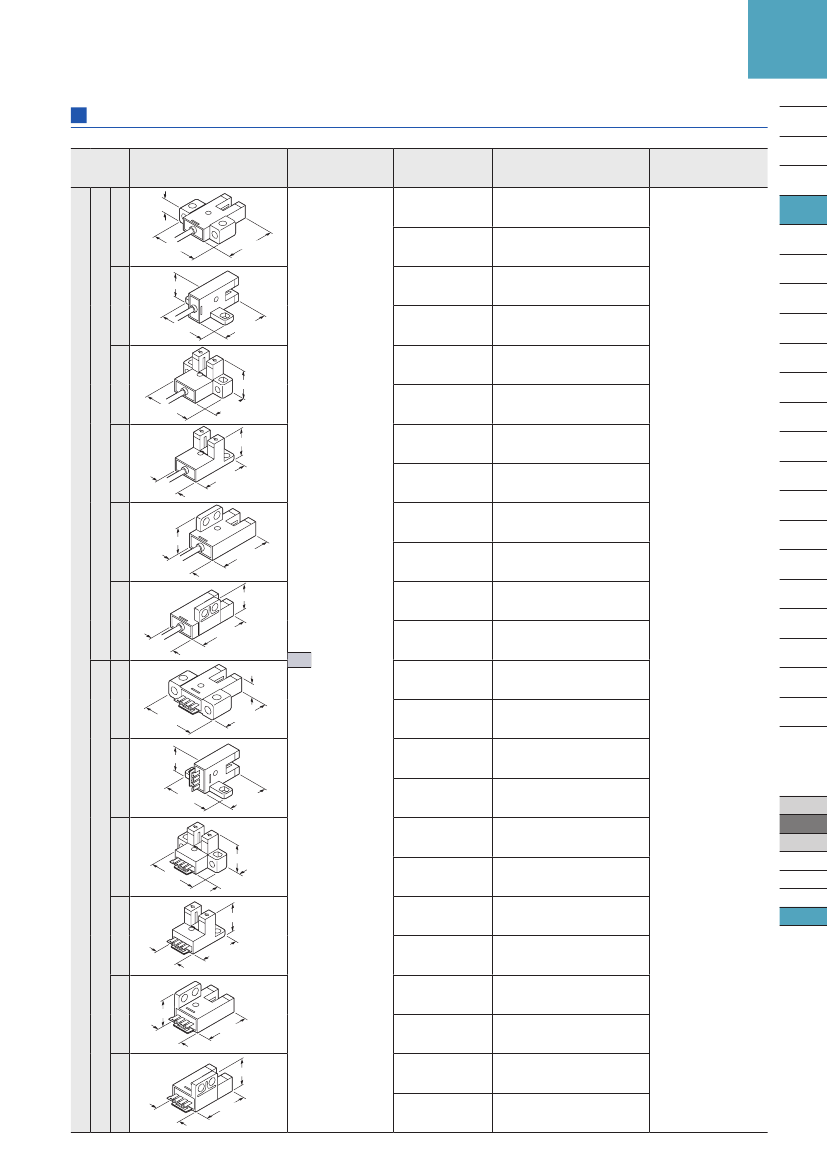

ORDER GUIDE
