LED Light Bar
LBF7130-A0NRA
1/4
1. Part Number:
LBF7130-A0NRA
The LED light bar
Mounted LED dice (bare chip) on substrate by array
1series 30 string
×4series(Area)
/ 1Bar
Aperture : 4 Area (LED: 120 chips)
LCD Light Source
2. Structure:
3. Application:
4. Maximum Conditions (1Bar) : (Ta= 25℃)
Item
Operation Temperature
Storage Temperature
Forward Current (1 chip) *1
Surged Current (1chip)
t
p
=100
μ
s Duty≦1/10
Power Consumption
Junction Temperature
Symbol
T
op
T
st
I
F
I
FSM
P
tot
Tj
MAX
Maximum Condition
-20∼+80
-20∼+80
2.5
5
30
125
Unit
℃
℃
A
A
W
℃
*1) Forward current would be changed by mounting condition (heat radiate condition) to a body.
5. LED Bar (1Bar) Characteristics : (Ta = 25℃)
Item
Forward Voltage
Luminous Flux
Color Temperature
Color Randering
Symbol
VF
Φv
T
cp
duv
Ra
Min.
11
2475
4745
-0.004
Typ.
12.4
2750
5028
0.002
70
Max.
13.8
-
5311
0.008
Unit
V
Lm
K
-
-
Condition
I
F
= 2A
I
F
= 2A
I
F
= 2A
I
F
= 2A
I
F
= 2A
＊Above
Characteristics are initial value of immediate lighting LED .
And it is affected by the condition of LED Bar attached to heat spreader.
＊Tolerance:
VF:±0.2V,
Φ
Ｖ
:±7%, Color Temperature:±100K
DESIGN
CHECK
APPROVAL
DATE:
2012/8/28
A
SPECIFICATION No. Target Spec
REV.
TSZ22111½04½002
PRODUCTS
TYPE
PAGE
LED Light Bar

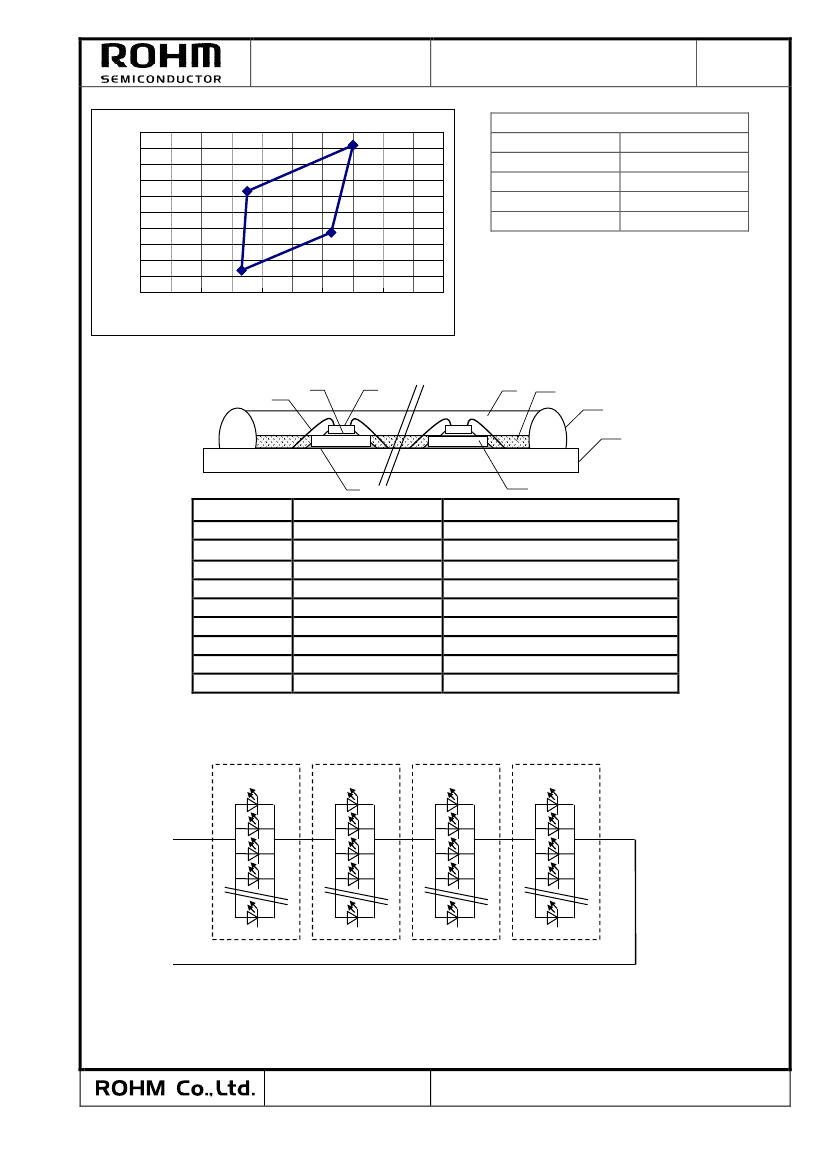

6. Chromaticity diagram (Ta=25℃ , I
F
=2A)
ANSI 5000K SPEC
0.38
0.37
CIE y
0.36
0.35
0.34
0.33
0.32
LBF7130-A0NRA
4745-5311K
½
0.3551
0.3376
0.3366
0.3515
½
0.3760
0.3616
0.3369
0.3487
2/4
Tolerance：±0.005
0.33
0.34
CIE x
0.35
0.36
0.37

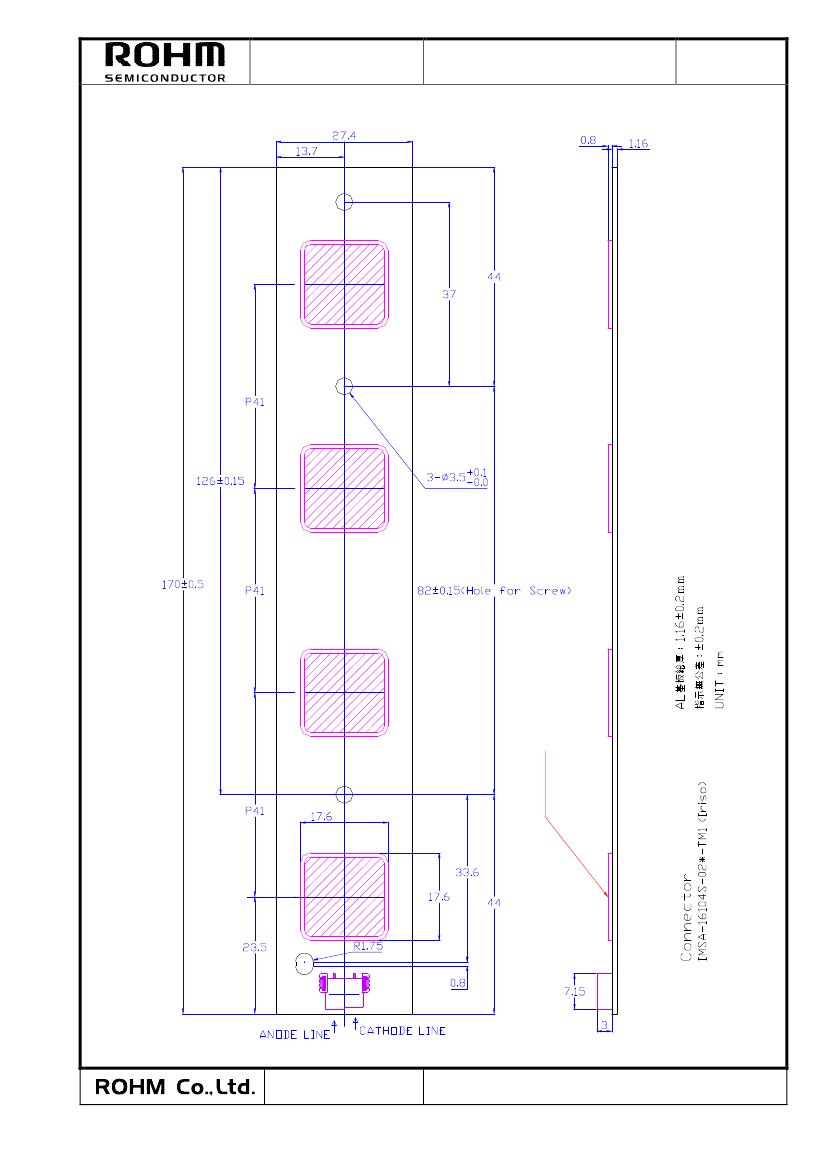

7. Structure
９
6
5
4
3
2
1
8
No
1
2
3
4
5
6
7
8
9
8. Circuit Diagram (1Bar)
1 Aperture(30in1)
30parallel
Parts Name
Substrate
Reflector
White Resin
Resin
LED Die
Die Bond
Sub Mount Substrate
Die Bond
Bonding Wire
7
Material
Al
Silicone Resin
Silicone Resin
Silicone Resin
InGaN on Al
2
O
3
Silicone Resin
Si
Ag
Au
Anode
Cathode
REV.
A
SPECIFICATION No.
Target Spec
TSZ22111½05½002
PRODUCTS
TYPE
PAGE
LED Light Bar

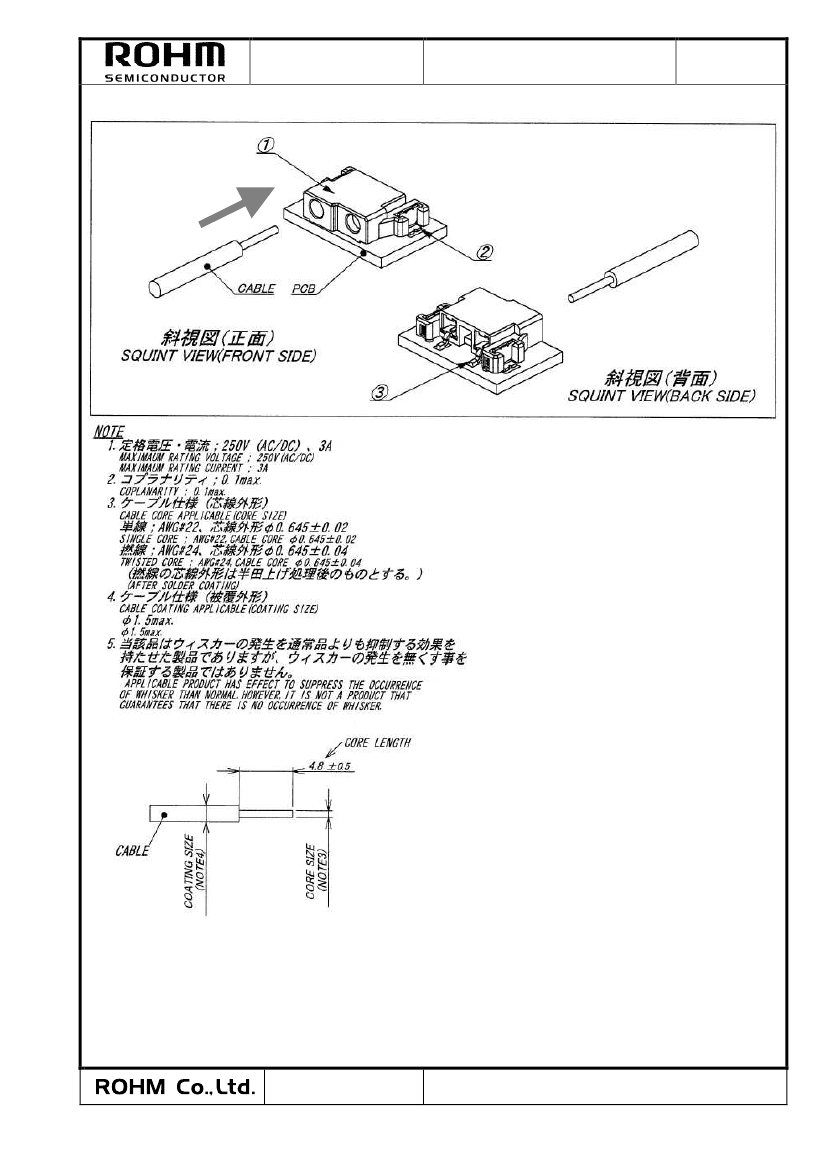

10.Connector
LBF7130-A0NRA
4/4
＊Above
information is quoted form
「Iriso」.・・・IMSA-16104S-02*-TM1
So above information is not covered by warranty.
REV.
A
SPECIFICATION No.
Target Spec
TSZ22111½05½002
