KMM SERIES
KMM
Series
Snap Mount
Downsize
High Voltage
High Ripple
RoHS
Compliant
105 C
Maximum
Temperature
Engineering Bulletin Mar 07
SNAP MOUNT 105 C
KMM

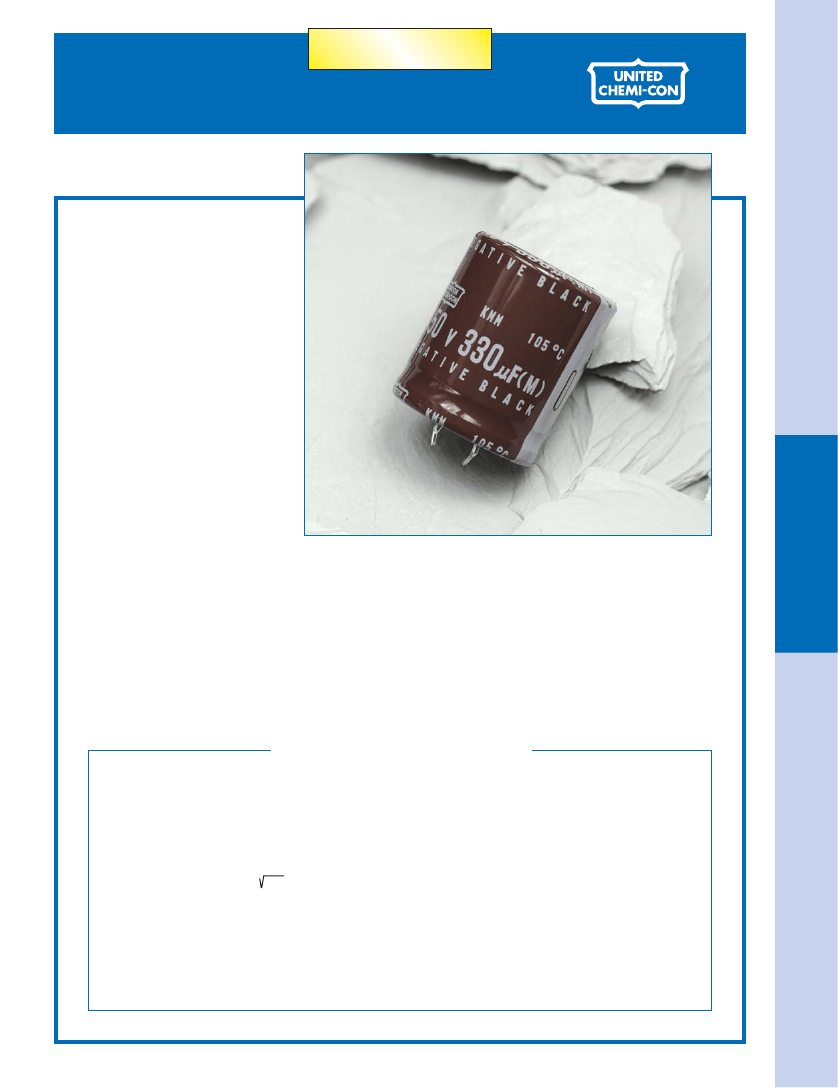

The KMM series is a high voltage, long life snap-in capacitor series that offers downsized versions
of the KMH series. The KMM capacitors have smaller case sizes and an extended rated lifetime
compared to the KMH capacitors. These characteristics plus high ripple current capability make
the KMM capacitors ideal for use in power supply filter circuits. The KMM capacitors are available
in 2 or 4-pin snap-in styles and 4 -pin straight terminals. The KMM series capacitors are RoHS
compliant offering Pb-free construction.
The standard KMM series capacitors are
not
solvent proof. Refer to guidelines and precautions on
the website for usage and installation conditions recommended for United Chemi-Con products.
Summary of Specifications
PC board 2 or 4-pin snap-in; optional 4-pin straight terminals.
Capacitance range: 39 to 3,300µF.
Voltage range: 160 to 450VDC.
Category temperature range: 25 C to 105 C.
Leakage current: 3 CV (µA) maximum after 5 minutes at 20 C.
Standard capacitance tolerance: 20%
Nominal case size (D L): 20 20mm to 35 60mm.
Rated lifetime: 2,000 to 3,000 hours at 105 C with the rated ripple current applied,
depending on case size.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
1/ 12
KMM Series
KMM Specifications - Snap Mount
Item
Category Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
25 to 105 C
160 to 450VDC
39 to 3,300 F
20% ( M ) at
20 C, 120Hz
20 C.
Characteristics
Engineering Bulletin Mar 07
I
≤
3 CV ( A ) after 5 minutes at
At
20 C, 120Hz
160 - 400
0.15
Where I = Max. leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
Dissipation Factor ( Tan )
Rated Voltage ( V )
Tan
( DF ) Max.
420 - 450
0.20
Low Temperature
Characteristics
At 120Hz, impedance ( Z ) ratio between the
the values given below.
Rated Voltage ( V )
Z ( 25 C ) / Z ( 20 C )
160 - 400
4
420 - 450
8
25 C value and
20 C value shall not exceed
Rated Ripple Current Multipliers
Ambient Temperature ( C )
45 C
2.64
60 C
2.23
70 C
2.12
85 C
1.73
105 C
1.00
Frequency (Hz )
SNAP MOUNT 105 C
DC Rated Voltage
160 - 250V
315 - 450V
50Hz
0.81
0.77
120Hz
1.00
1.00
300Hz
1.17
1.16
1kHz
1.32
1.30
10kHz
1.45
1.41
50kHz
1.50
1.43
KMM
Endurance
(Load Life)
The following specifications shall be satisfied when the capacitors are restored to 20 C
after subjecting them to DC voltage for the specified test time at 105 C with the rated ripple
current applied. The sum of the DC voltage and peak AC voltage must not exceed the full
rated voltage of the capacitors.
Case Diameter
Test Time
Ø
20mm
Ø
22mm & Above
2,000 Hours
3,000 Hours
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
200% of initial specified value
Leakage current
:
≤
initial specified value
Shelf Life
The following specifications shall be satisfied when the capacitors are restored to 20 C after
exposing them for 1,000 hours at 105 C without voltage applied. The rated voltage shall be
applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than
48 hours before the measurements.
Capacitance change:
≤
15% of initial measured value
Tan ( DF )
:
≤
150% of initial specified value
Leakage current
:
≤
initial specified value
2 / 12
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
KMM Series

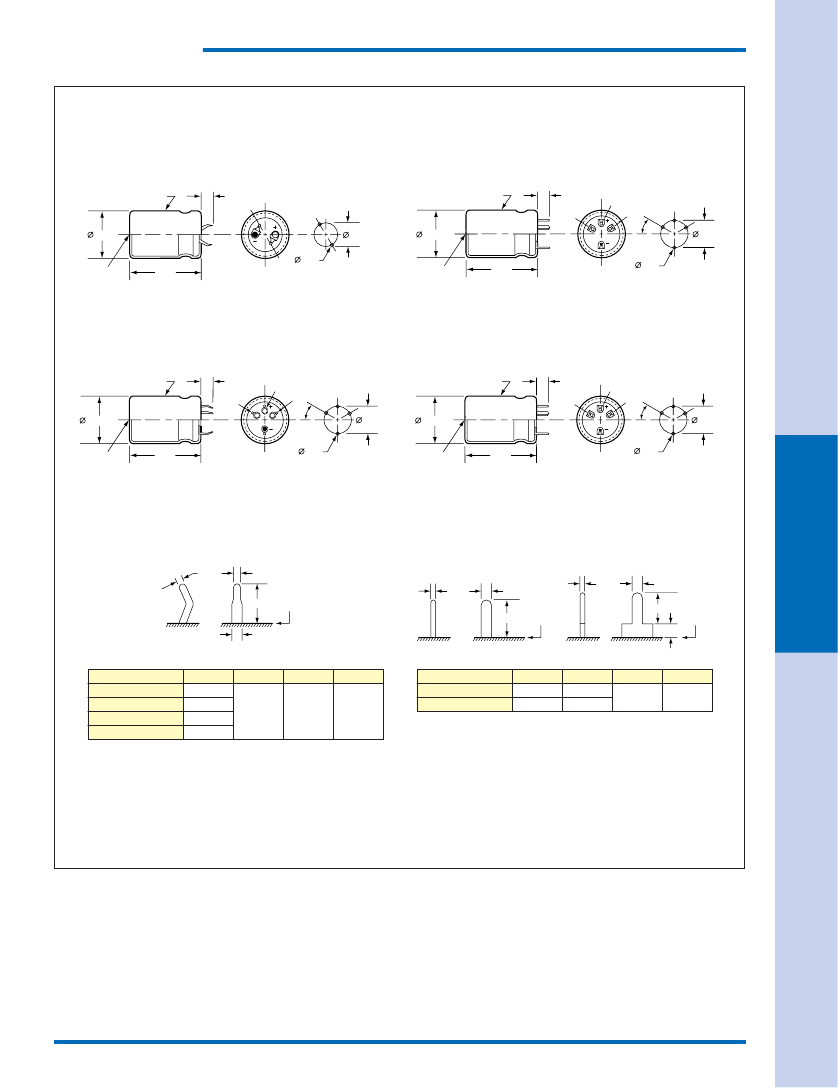

Diagram of Dimensions - Snap Mount
Snap Mount
Types VSN
Ø
20~
Ø
35; VNN
Ø
22~
Ø
35
See
Pin
Detail
Engineering Bulletin Mar 07
Unit: mm
Type VRD
Ø
35
See
Pin
Detail
A
*
Pb-free PVC Sleeve
PC board pin-out
Pb-free PVC Sleeve
B
C
*
PC board pin-out
D 1
2-2x
10
D35 1
30°
22.5
**
Vent
L
2
**
Vent
L
2
2-4x
Type VND
Ø
35
See
Pin
Detail
A
*
D35 1
Type VQD
Ø
35
See
Pin
Detail
A
*
30°
22.5
D35 1
Pb-free PVC Sleeve
B
C
*
PC board pin-out
Pb-free PVC Sleeve
B
C
*
PC board pin-out
30°
22.5
**
Vent
L
2
2-4x
**
Vent
L
2
2-4x
SNAP MOUNT 105 C
KMM
VS & VN Pin Dimensions
VR & VQ Pin Dimensions
VR Straight Pin
VQ Standoff Pin
W
1
Edge
of can
W
P
P
1
Edge
of can
W
2
W
1
Edge
of can
W
1
W
P
W
P
Type
VSN
Ø
20 -
Ø
30
VSN
Ø
35
VNN
Ø
22 -
Ø
35
VND
Ø
35
P
4.0
3.5
5.8
5.8
0.5
0.5
1.0
1.0
W
W
1
W
2
1.5
0.2
1.0
1.0
Type
Straight Pin (VR)
Standoff Pin (VQ)
P
5.50 1.0
3.75 1.0
P
1
—
2.0 max.
W
1.5
0.1
W
1
0.7
CAUTION:
*
Use the blank terminals for mechanical support only. The blank terminals must not be connected to a solder trace on the
PC board, but be electrically isolated from the negative or positive terminal.
**
Vent may be located either on the bottom or side of the can.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
3 / 12
KMM Series
Part Numbering System for KMM Series
18 Fields
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Engineering Bulletin Mar 07
When ordering, always specify complete 18-field global part number.
E K MM 4 5 1 V S N 3 3 1 M A 4 0 T
9
8
7
SNAP MOUNT 105 C
6
KMM
Supplement Code.
Field 18.
All construction options listed have Sn100% terminal plating.
S = PET sleeve without end disk.
W = PET sleeve with end disk.
M = Pb-free PVC sleeve without end disk.
T = Pb-free PVC sleeve with end disk.
Case Size.
Fields 15, 16 and 17.
The single letter diameter code is inserted in field 15.
N =
Ø
20mm
P =
Ø
22mm
Q =
Ø
25.4mm
R =
Ø
30mm
A =
Ø
35mm
The double digit length code is inserted in fields 16 and 17.
20 = 20mm
25 = 25mm
30 = 30mm
35 = 35mm
40 = 40mm
45 = 45mm
50 = 50mm
60 = 60mm
Capacitance Tolerance.
Field 14.
M = 20%
Capacitance.
Fields 11, 12 and 13.
Expressed in Microfarads. The first two digits are significant
figures inserted in fields 11 and 12, and the third digit inserted
in field 13 indicates the number of zeros for capacitance of
10 F or more. R indicates the decimal point for capacitance
less than 10 F (e.g. 3R3 = 3.3 F; 330 = 33 F; 331 = 330 F;
332 = 3,300 F; 333 = 33,000 F ).
Dummy Terminals.
Field 10.
N = No dummy terminals.
D = 2 dummy terminals.
Terminal Type.
Fields 8 and 9.
VS = Snap-in pins, 4.0mm in length, 3.5mm for
Ø
35 only.
VN = Snap-in pins, 5.8mm in length.
VR = Straight pins.
VQ = Straight standoff pins.
DC Rated Voltage.
Fields 5, 6 and 7.
Expressed in Volts. The first two digits are significant figures
inserted in fields 5 and 6, and the third digit inserted in field 7
indicates the number of zeros for rated voltage of 10VDC or
more. R indicates the decimal point for rated voltage less than
10VDC (e.g. 4R5 = 4.5VDC; 450 = 45VDC; 451 = 450VDC).
Rule Exception: Coding for rated voltage 315VDC = 3B1.
Series Name.
Fields 2, 3 and 4.
Enter the 3-letter/digit series name in fields 2, 3 and 4. If the
series name is only 2 letters/digits, place a dash in field 4.
For a series name with more than 3 letters/digits, refer to the
individual series for the appropriate 3-field series name.
Capacitor Type.
Field 1.
Aluminum Electrolytic Capacitor (Polar).
5
4
3
2
1
4 / 12
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
KMM Series
Standard Voltage Ratings - Snap Mount
Rated
Voltage
(WVDC)
Capacitance
(µF )
Global
Part Number
†
Nominal
Case Size*
D L ( mm )
Case
Size
Code
Engineering Bulletin Mar 07
Maximum ESR
(
Ω
) at
20 C, 120Hz
Rated
Ripple Current
(A rms) at
105 C, 120Hz
0.68
0.85
1.1
1.2
1.3
1.34
1.5
1.7
0.81
1.2
1.3
1.55
1.67
1.82
2.04
2.25
0.98
1.02
1.26
1.55
1.67
1.82
2.04
2.25
2.49
2.97
1.25
1.3
1.67
1.82
2.04
2.25
2.49
2.84
3.32
3.86
1.46
1.51
2.04
2.25
2.49
2.84
3.0
3.5
4.0
4.63
0.62
0.77
1.0
1.1
1.2
1.3
1.4
1.55
1.75
0.8
1.0
1.2
160 Volts
200 Volts Surge
180
220
270
330
390
470
560
680
220
330
390
470
560
680
820
1,000
270
330
390
470
560
680
820
1,000
1,200
1,500
390
470
560
680
820
1,000
1,200
1,500
1,800
2,200
560
680
820
1,000
1,200
1,500
1,800
2,200
2,700
3,300
150
180
220
270
330
390
470
560
680
180
270
330
EKMM161VSN181MN20T
EKMM161VSN221MN25T
EKMM161VSN271MN25T
EKMM161VSN331MN30T
EKMM161VSN391MN30T
EKMM161VSN471MN35T
EKMM161VSN561MN40T
EKMM161VSN681MN45T
EKMM161VSN221MP20T
EKMM161VSN331MP25T
EKMM161VSN391MP30T
EKMM161VSN471MP30T
EKMM161VSN561MP35T
EKMM161VSN681MP40T
EKMM161VSN821MP45T
EKMM161VSN102MP50T
EKMM161VSN271MQ20T
EKMM161VSN331MQ20T
EKMM161VSN391MQ25T
EKMM161VSN471MQ25T
EKMM161VSN561MQ30T
EKMM161VSN681MQ30T
EKMM161VSN821MQ35T
EKMM161VSN102MQ40T
EKMM161VSN122MQ45T
EKMM161VSN152MQ60T
EKMM161VSN391MR20T
EKMM161VSN471MR20T
EKMM161VSN561MR25T
EKMM161VSN681MR25T
EKMM161VSN821MR30T
EKMM161VSN102MR30T
EKMM161VSN122MR35T
EKMM161VSN152MR40T
EKMM161VSN182MR45T
EKMM161VSN222MR60T
EKMM161VSN561MA20T
EKMM161VSN681MA20T
EKMM161VSN821MA25T
EKMM161VSN102MA25T
EKMM161VSN122MA30T
EKMM161VSN152MA35T
EKMM161VSN182MA35T
EKMM161VSN222MA45T
EKMM161VSN272MA50T
EKMM161VSN332MA60T
EKMM181VSN151MP20T
EKMM181VSN181MN25T
EKMM181VSN221MN25T
EKMM181VSN271MN30T
EKMM181VSN331MN30T
EKMM181VSN391MN35T
EKMM181VSN471MN40T
EKMM181VSN561MN45T
EKMM181VSN681MN50T
EKMM181VSN181MP20T
EKMM181VSN271MP25T
EKMM181VSN331MP30T
20
20
20
20
20
20
20
20
22
22
22
22
22
22
22
22
25.4
25.4
25.4
25.4
25.4
25.4
25.4
25.4
25.4
25.4
30
30
30
30
30
30
30
30
30
30
35
35
35
35
35
35
35
35
35
35
20
20
20
20
20
20
20
20
20
22
22
22
20
25
25
30
30
35
40
45
20
25
30
30
35
40
45
50
20
20
25
25
30
30
35
40
45
60
20
20
25
25
30
30
35
40
45
60
20
20
25
25
30
35
35
45
50
60
20
25
25
30
30
35
40
45
50
20
25
30
N20
N25
N25
N30
N30
N35
N40
N45
P20
P25
P30
P30
P35
P40
P45
P50
Q20
Q20
Q25
Q25
Q30
Q30
Q35
Q40
Q45
Q60
R20
R20
R25
R25
R30
R30
R35
R40
R45
R60
A20
A20
A25
A25
A30
A35
A35
A45
A50
A60
N20
N25
N25
N30
N30
N35
N40
N45
N50
P20
P25
P30
1.381
1.13
0.921
0.753
0.638
0.529
0.444
0.366
1.13
0.753
0.638
0.529
0.444
0.366
0.303
0.249
0.921
0.753
0.638
0.529
0.444
0.366
0.303
0.249
0.207
0.166
0.638
0.529
0.444
0.366
0.303
0.249
0.207
0.166
0.138
0.113
0.444
0.366
0.303
0.249
0.207
0.166
0.138
0.113
0.092
0.075
1.658
1.381
1.13
0.921
0.753
0.638
0.529
0.444
0.366
1.381
0.921
0.753
SNAP MOUNT 105 C
KMM
180 Volts
225 Volts Surge
†
For terminal and construction options, refer to the part numbering system for descriptions and codes.
*
Refer to diagram of dimensions for detailed case size specifications.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
5 / 12
京公网安备 11010802033920号
EEWORLD
