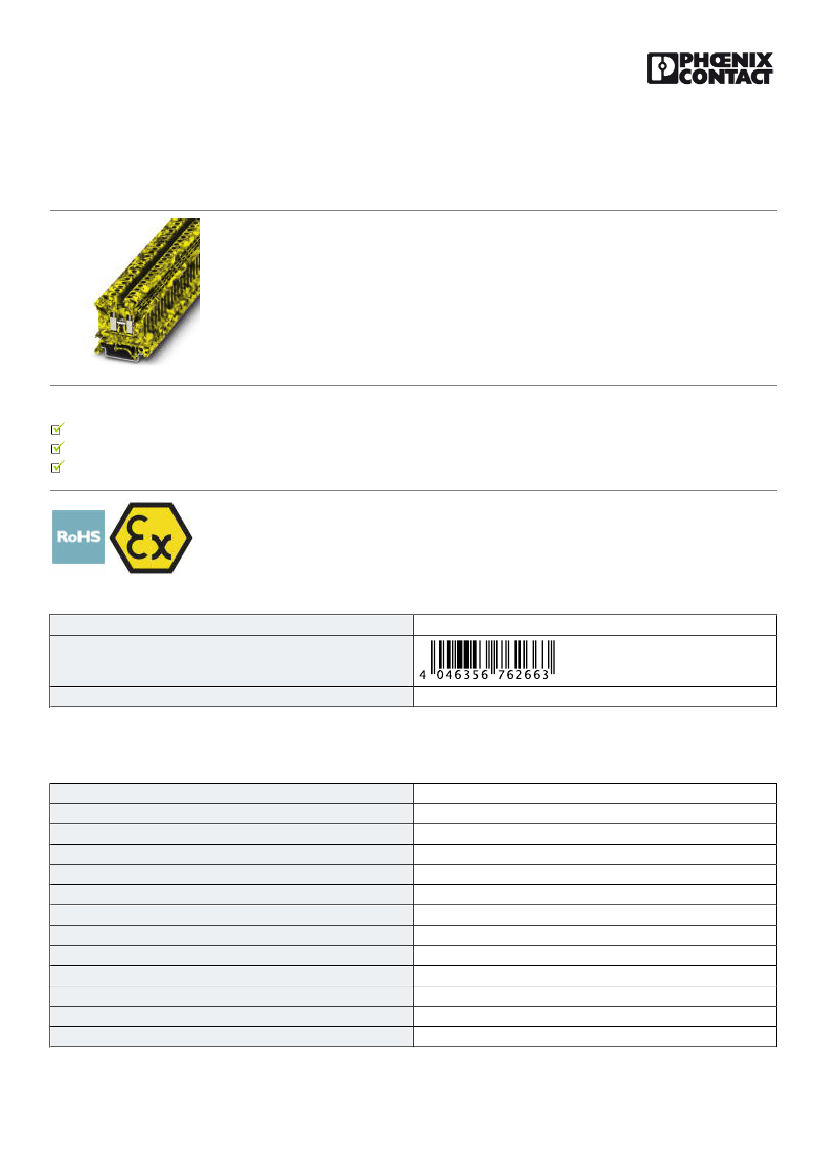

Feed-through terminal block - UK 5 N-FE - 3048264
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Screw
connection, number of connections: 2, cross section:0.2 mm² - 6 mm², AWG: 24 - 10, width: 6.2 mm, color:
black/yellow, mounting type: NS 35/7,5, NS 35/15, NS 32
Your advantages
Universal foot which can be used on NS 35... and NS 32... DIN rails
The UK universal screw terminal block series has the typical features which are decisive for practical applications
Potential distribution via fixed bridges in the terminal center or insertion bridges in the clamping space
Key Commercial Data
Packing unit
GTIN
GTIN
4046356762663
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
1
2
1
4 mm²
black/yellow
PA
V0
8 kV
3
III
I
1.02 W
41 A (with 6 mm² conductor cross section)
11/20/2018 Page 1 / 7
https://www.phoenixcontact.com/pi/products/3048264
Feed-through terminal block - UK 5 N-FE - 3048264
Technical data
General
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
32 A
800 V
Yes
IEC 60529:2001-02
guaranteed
guaranteed
Test passed
9.8 kV
Test passed
2 kV
Test passed
Test passed
10 rpm
135
0.2 mm² / 0.2 kg
4 mm² / 0.9 kg
6 mm / 1.4 kg
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Test passed
0.2 mm²
10 N
4 mm²
60 N
6 mm²
80 N
Test passed
NS 32/NS 35
5N
Test passed
≤ 3.2 mV
Test passed
Test passed
4 mm²
0.48 kA
Test passed
30 s
130 °C
125 °C
-60 °C
Test passed
11/20/2018 Page 2 / 7
2
https://www.phoenixcontact.com/pi/products/3048264
Feed-through terminal block - UK 5 N-FE - 3048264
Technical data
General
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
6.2 mm
1.8 mm
42.5 mm
47 mm
54.5 mm
52 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
Screw connection
IEC 60947-7-1
0.2 mm²
6 mm²
24
10
0.2 mm²
4 mm²
24
12
0.25 mm²
0.25 mm²
2.5 mm²
4 mm²
4 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
11/20/2018 Page 3 / 7
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
https://www.phoenixcontact.com/pi/products/3048264
Feed-through terminal block - UK 5 N-FE - 3048264
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
0.5 mm²
2.5 mm²
0.25 mm²
1.5 mm²
IEC/EN 60079-7
0.2 mm²
6 mm²
24
10
0.2 mm²
4 mm²
8 mm
A4
M3
0.6 Nm
0.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CSA
IEC 60947-7-1
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
11/20/2018 Page 4 / 7
https://www.phoenixcontact.com/pi/products/3048264
Feed-through terminal block - UK 5 N-FE - 3048264
Approvals
Approvals
Approvals
DNV GL / LR / CSA / PRS / LR / KR / NK / UL Recognized / KEMA-KEUR / cUL Recognized / EAC / cULus Recognized
Ex Approvals
IECEx / ATEX / UL Recognized / cUL Recognized / EAC Ex / cULus Recognized
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE00001CT
LR
http://www.lr.org/en
96/20013
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
13631
600 V
30 A
28-10
PRS
10
http://www.prs.pl/
TE/1824/880590/09
LR
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.lr.org/en
96/20013
800 V
57 A
KR
http://www.krs.co.kr/eng/main/main.aspx
HMB17372-EL001
11/20/2018 Page 5 / 7
