0213002. Overview

Axial Lead and Cartridge Fuses - Designed to IEC Standard

0213002. Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknow
ECCN code	EAR99
Fusing characteristics	TIME LAG
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	92 J
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK; TAPE AND REEL
physical size	5.2mm x 20mm
Rated breaking capacity	35 A
Rated current	2 A
Rated voltage (AC)	250 V
Guideline	CCC; CE; CSA; IEC; PSE; SEMKO; UL
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP

Preview

Download Datasheet

View All

Axial Lead and Cartridge Fuses

Designed to IEC Standard

RoHS

5 x 20 mm

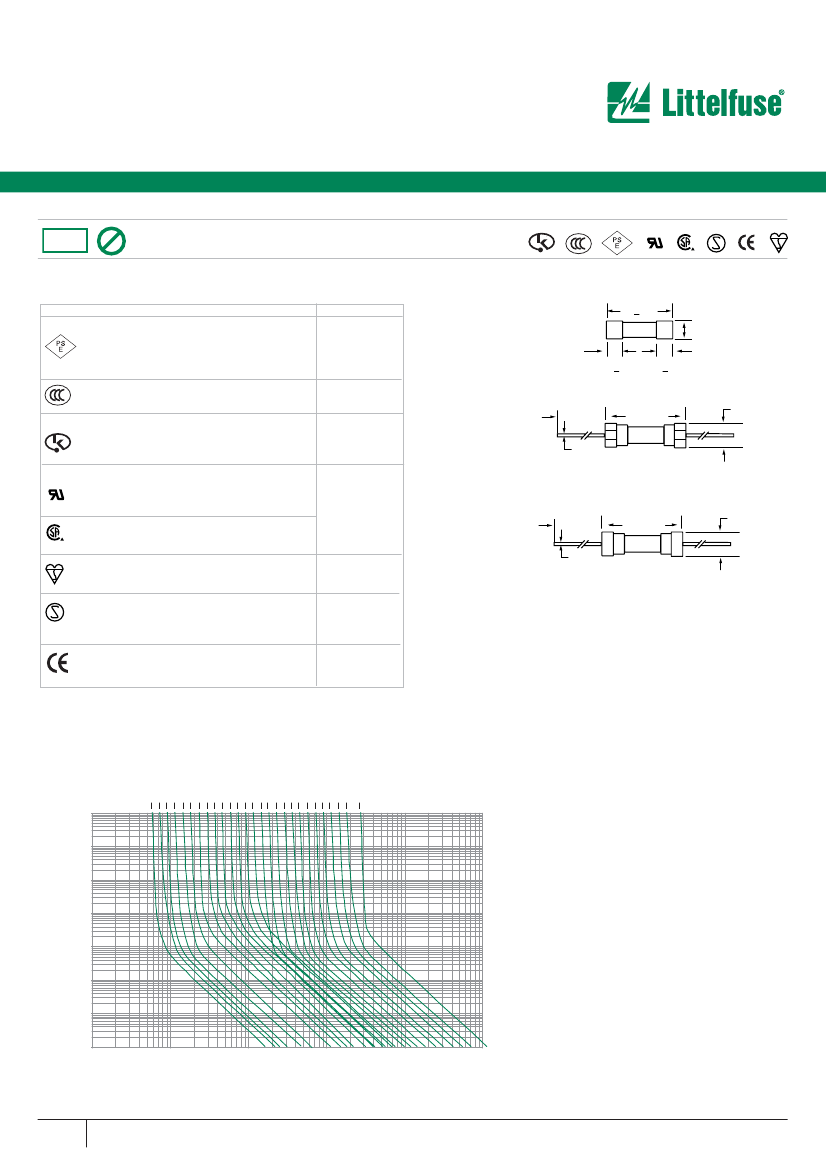

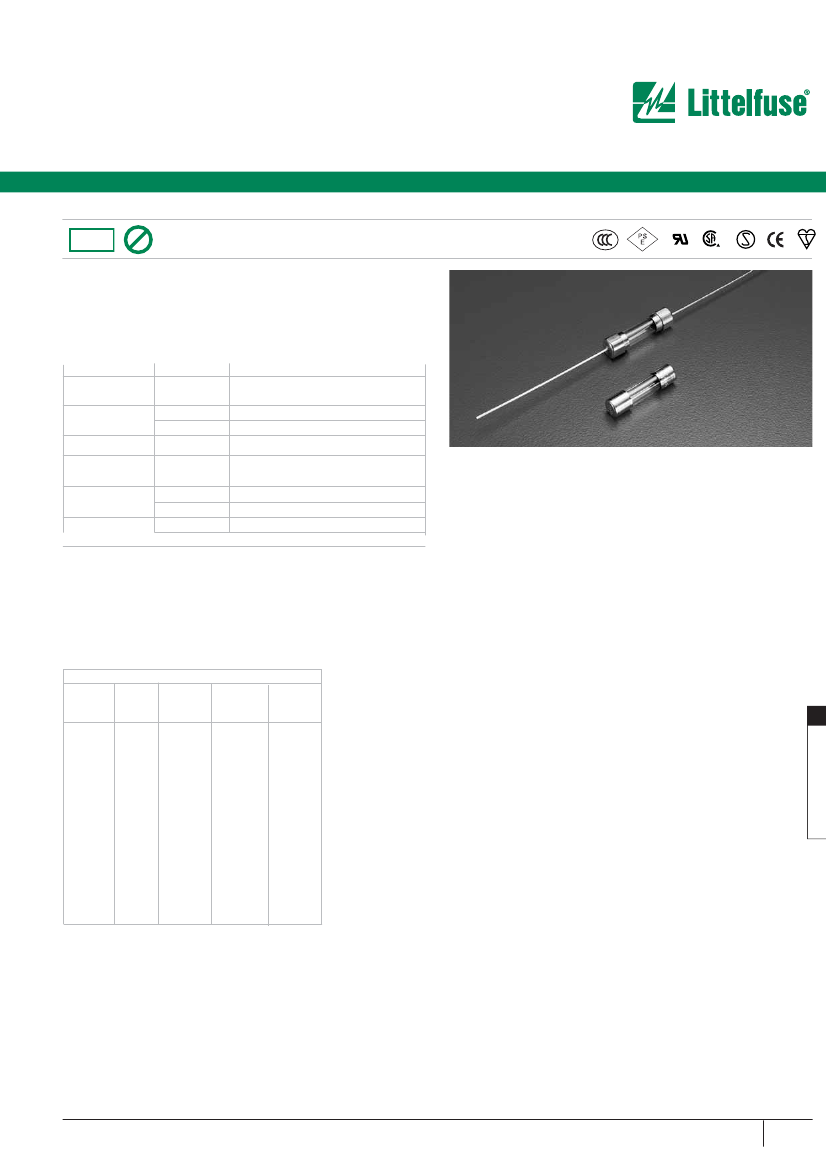

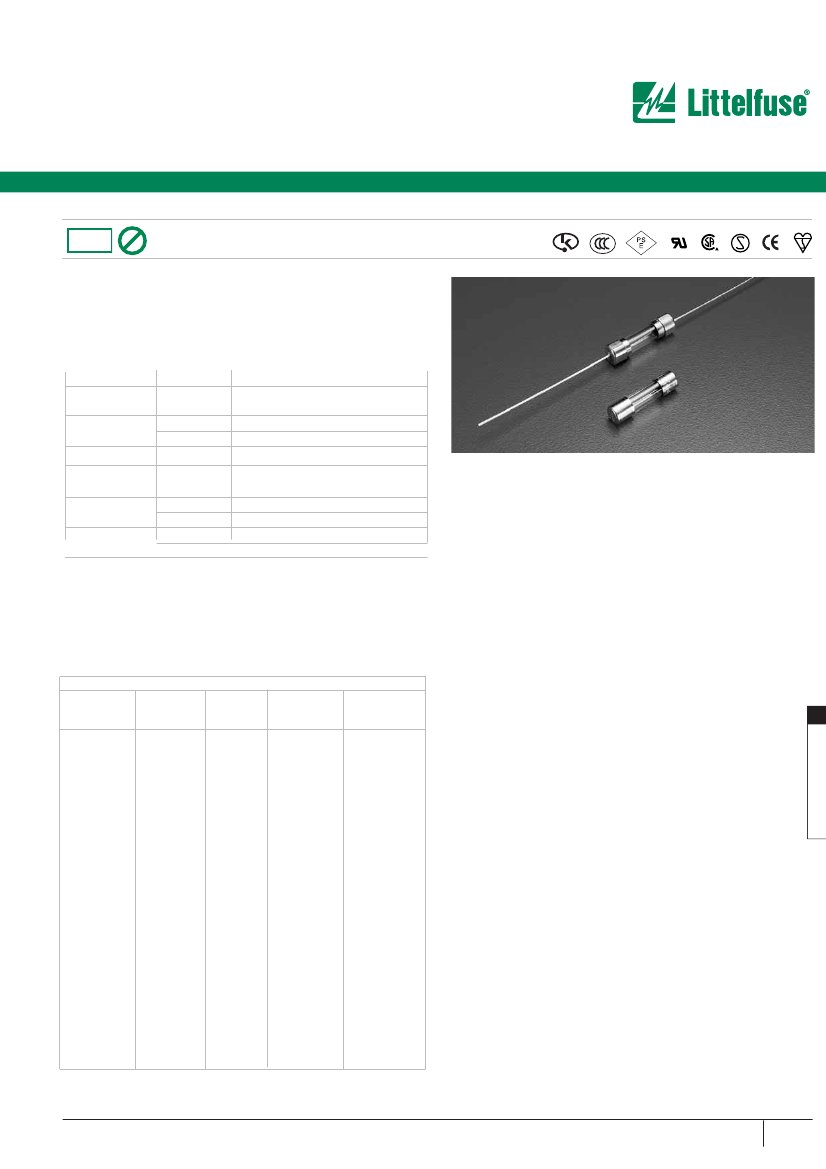

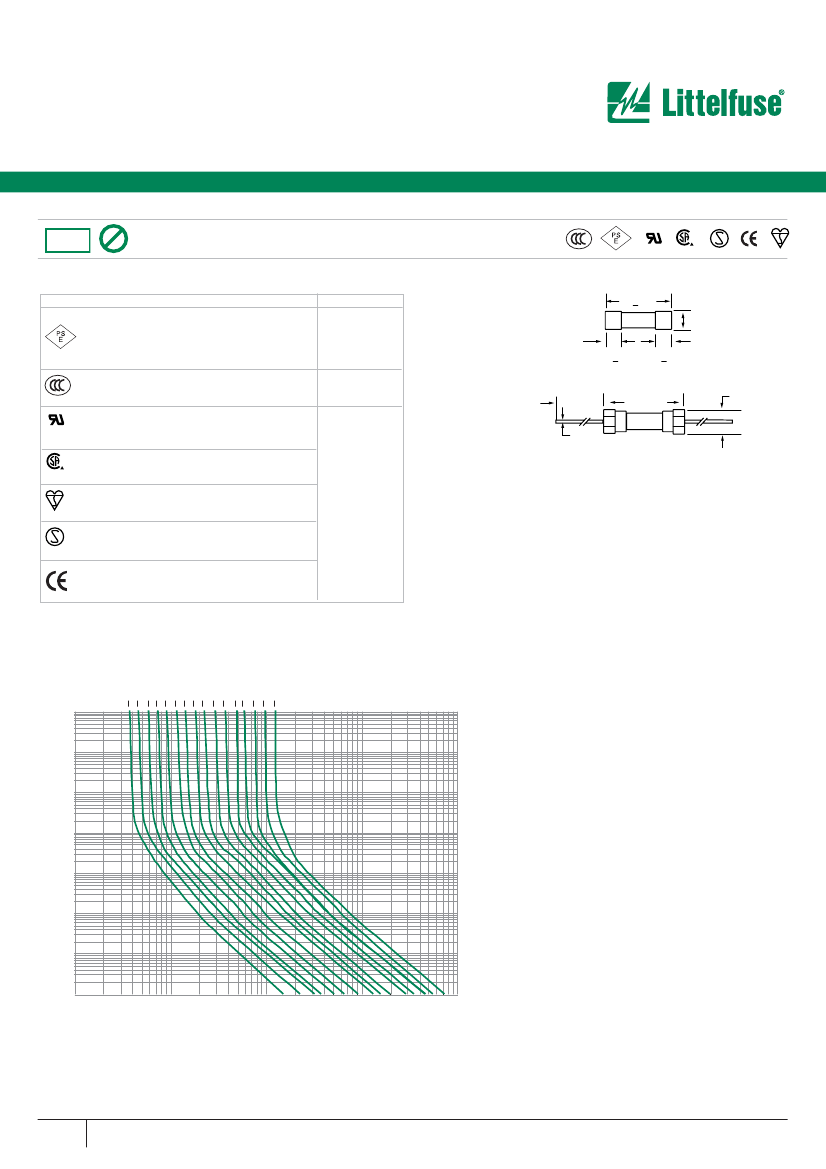

Time Lag Fuse (Slo-Blo ) Fuse 213 Series

• Designed to International (IEC) Standards for use globally.

• Meets the IEC 60127-2, Sheet 3 specification for Time Lag Fuses.

• Available in Cartridge and Axial Lead Form.

• Available in ratings of 0.200 to 6.3 amperes.

•

RoHS compliant and Lead-Free version available, add XP suffix to

standard catalog number

ELECTRICAL CHARACTERISTICS (213 Series):

% of Ampere

Rating

150%

210%

275%

400%

1000%

Ampere

Rating

.032 – 6.3

8 - 15

.032 – 15

.032 – .100

.125 – 15

.032 – .100

.125 – 15

.032 – .100

.125 – 15

Opening

Time

60 minutes,

Minimum

30 minutes,

Minimum

2 minutes,

Maximum

0.2 sec.,

Min.;

10 sec.

Max.

0.6 sec.,

Min.;

10 sec.

Max.

.04 sec.,

Min.;

3 sec.

Max.

.15 sec.,

Min.;

3 sec.

Max.

.01 sec.,

Min.;

0.3 sec.

Max.

0.02 sec.,

Min.;

0.3 sec.

Max.

ENVIRONMENTAL SPECIFICATIONS:

Operating temperature:

-55˚C to 125˚C

Thermal Shock:

MIL-STD-202F Method 107G, Test Condition B: (5

cycles –65°C to +125°C)

Vibration:

MIL-STD-202F Method 201A

Humidity:

MIL-STD-202F Method 103B, Test Condition A. high relative

humidity (95%) and elevated temperature (40°C) for 240 hours.

Salt Spray:

MIL-STD-202F Method 101D, Test Condition B

INTERRUPTING RATINGS:

35 amperes or 10 x rated current;

(whichever is greater) to a maximum 100A @ 250 VAC, unity power factor.

PHYSICAL SPECIFICATIONS:

Material:

Body: Glass

Cap: Nickel Plated Brass

Leads: Tin Plated Copper

Terminal Strength

MIL-STD-202F Method 211A,

Test Condition A

Solderability:

Reference IEC 60127 Second Edition 2003-01 Annex A

Product Marking:

Cap 1: current and voltage rating.

Cap 2: Agency approval markings.

Packaging:

Available in Bulk (v=5, H=100, M=1000 pcs/pkg) or on

Tape/Reel (MRET1=1000 pcs/reel).

ORDERING INFORMATION:

RoHS compliant and Lead-Free version available, add XP suffix to

standard catalog number

213 Surge Withstand

Cartridge

Catalog

Number

Ampere

Rating

Voltage

Rating

Nominal

Resistance

Cold Ohms

Nominal

Melting

t A

Sec.

AXIAL LEAD AND

0213.200

0213.250

0213.315

0213.400

0213.500

0213.630

0213.800

0213

001

0213

1.25

0213

01.6

0213

002.

0213

02.5

0213

3.15

0213

004

0213

005.

0213

06.3

.200

.250

.315

.400

.500

.630

.800

1.25

1.6

2.5

3.15

6.3

250

1.60

1.05

0.848

0.535

0.370

0.275

0.165

0.117

0.081

0.055

0.044

0.030

0.022

0.017

0.011

0.008

0.350

0.555

1.14

1.35

2.90

4.80

9.42

19.20

27.15

44.2

92.7

138.0

226.5

202

314

600

w w w. l i t t e l f u s e . c o m

411
