3KP SERIES
GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE - 5.0 TO 180 Volts
3000Watts Peak Pulse Power
3KP
PART NUMBER
UNI-POLAR BI-POLAR
3KP5.0A
3KP6.0A
3KP6.5A
3KP7.0A
3KP7.5A
3KP8.0A
3KP8.5A
3KP9.0A
3KP10A
3KP11A
3KP12A
3KP13A
3KP14A
3KP15A
3KP16A
3KP17A
3KP18A
3KP20A
3KP22A
3KP24A
3KP26A
3KP28A
3KP30A
3KP33A
3KP36A
3KP40A
3KP43A
3KP45A
3KP48A
3KP51A
3KP54A
3KP58A
3KP60A
3KP64A
3KP70A
3KP75A
3KP78A
3KP85A
3KP90A
3KP100A
3KP110A
3KP120A
3KP130A
3KP150A
3KP160A
3KP170A
3KP180A
3KP5.0CA
3KP6.0CA
3KP6.5CA
3KP7.0CA
3KP7.5CA
3KP8.0CA
3KP8.5CA
3KP9.0CA
3KP10CA
3KP11CA
3KP12CA
3KP13CA
3KP14CA
3KP15CA
3KP16CA
3KP17CA
3KP18CA
3KP20CA
3KP22CA
3KP24CA
3KP26CA
3KP28CA
3KP30CA
3KP33CA
3KP36CA
3KP40CA
3KP43CA
3KP45CA
3KP48CA
3KP51CA
3KP54CA
3KP58CA
3KP60CA
3KP64CA
3KP70CA
3KP75CA
3KP78CA
3KP85CA
3KP90CA
3KP100CA
3KP110CA
3KP120CA
3KP130CA
3KP150CA
3KP160CA
3KP170CA
3KP180CA
REVERSE BREAKDOWN BREAKDOWN TEST MAXIMUM
REVERSE
PEAK
VOLTAGE
STAND-
VOLTAGE CURRENT CLAMPING PULSE LEAKAGE
OFF
V
BR
(V)
V
BR
(V)
I
T
(mA) VOLTAGE CURRENT @ V
RWM
VOLTAGE
@Ipp Vc(V) Ipp (A)
MIN.@I
T
MAX.@I
T
I
R
(µA)
V
RWM
(V)
5.0
6.40
7.00
50
9.2
326.1
5000
6.0
6.67
7.37
50
10.3
291.3
5000
6.5
7.22
7.98
50
11.2
267.9
2000
7.0
7.78
8.60
50
12.0
250.0
1000
7.5
8.33
9.21
5
12.9
232.6
250
8.0
8.89
9.83
5
13.6
220.6
150
8.5
9.44
10.40
5
14.4
208.3
50
9.0
10.00
11.10
5
15.4
194.8
20
10.0
11.10
12.30
5
17.0
176.5
15
11.0
12.20
13.50
5
18.2
164.8
10
12.0
13.30
14.70
5
19.9
150.8
10
13.0
14.40
15.90
5
21.5
139.5
10
14.0
15.60
17.20
5
23.2
129.3
10
15.0
16.70
18.50
5
24.4
123.0
10
16.0
17.80
19.70
5
26.0
115.4
10
17.0
18.90
20.90
5
27.6
108.7
10
18.0
20.00
22.10
5
29.2
102.7
10
20.0
22.20
24.50
5
32.4
92.6
10
22.0
24.40
26.90
5
35.5
84.5
10
24.0
26.70
29.50
5
38.9
77.1
10
26.0
28.90
31.90
5
42.1
71.3
10
28.0
31.10
34.40
5
45.4
66.1
10
30.0
33.30
36.80
5
48.4
62.0
10
33.0
36.70
40.60
5
53.3
56.3
10
36.0
40.00
44.20
5
58.1
51.6
10
40.0
44.40
49.10
5
64.5
46.5
10
43.0
47.80
52.80
5
69.4
43.2
10
45.0
50.00
55.30
5
72.7
41.3
10
48.0
53.30
58.90
5
77.4
38.8
10
51.0
56.70
62.70
5
82.4
36.4
10
54.0
60.00
66.30
5
87.1
34.4
10
58.0
64.40
71.20
5
93.6
32.1
10
60.0
66.70
73.70
5
96.8
31.0
10
64.0
71.10
78.60
5
103.0
29.1
10
70.0
77.80
86.00
5
113.0
26.5
10
75.0
83.30
92.10
5
121.0
24.8
10
78.0
86.70
95.80
5
126.0
23.8
10
85.0
94.40
104.00
5
137.0
21.9
10
90.0
100.00
111.00
5
146.0
20.5
10
100.0
111.00
123.00
5
162.0
18.5
10
110.0
122.00
135.00
5
177.0
16.9
10
120.0
133.00
147.00
5
193.0
15.5
10
130.0
144.00
159.00
5
209.0
14.4
10
150.0
167.00
185.00
5
243.0
12.3
10
160.0
178.00
197.00
5
259.0
11.6
10
170.0
189.00
209.00
5
275.0
10.9
10
180.0
200.00
233.00
5
289.0
10.4
10
For bidirectional type having Vrwm of 10 volts and less, the IR limit is double.
For parts without A , the V
BR
is + 10%
3KP SERIES
GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE-5.0 TO 180 Volts
3000 watt Peak Pulse Power
FEATURES
Plastic package has Underwriters Laboratory
Flammability Classification 94V-O
Glass passivated junction
3000W Peak Pulse Power capability on 10/1000µs waveform
Excellent clamping capability
Repetition rate (duty cycle):0.05%
Low incremental surge resistance
Fast response time: typically less than 1.0ps from 0 Volts to V(BR)
Typical IR less than 1mA above 10V
High temperature soldering guaranteed: 265°C/10 seconds/.375"
,(9.5mm) lead length, 5lbs., (2.3kg) tension

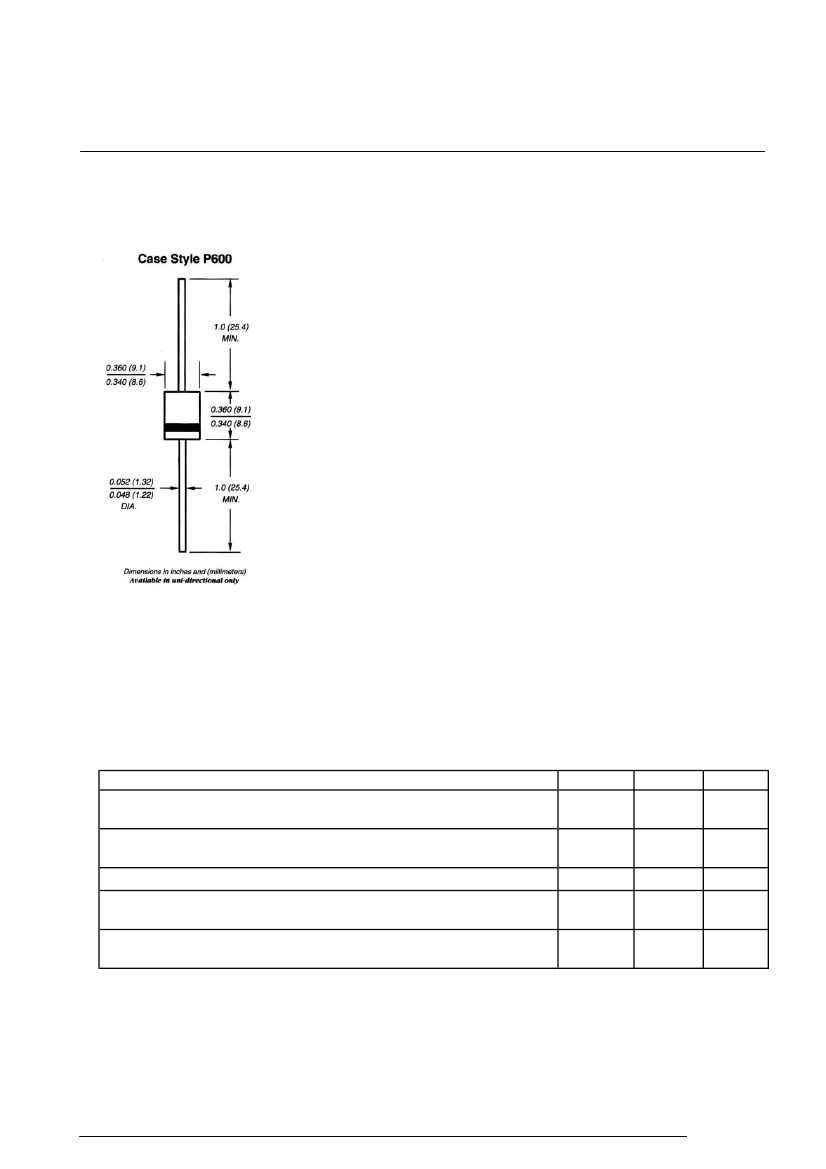

MECHANICAL DATA
Case:
Molded plastic over glass passivated junction
Terminal:
Plated Axial leads, solderable per MIL-STD-750, Method 2026
Polarity:
Color band denotes positive end (cathode) except Bipolar
Mounting Position
: Any
Weight:
0.07ounce, 2.1gram
DEVICES FOR BIPOLAR APPLICATION
For Bidirectional use C or CA Suffix for types 3KP5.0 thru types 3KP180 (e.g. 3KP5.0C , 3KP180CA)
Electrical characteristics apply in both directions
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
SYMBOL VALUE UNITS
Minimum
P
PPM
Peak Pulse Power Dissipation on 10/1000 s waveform (Note 1,FIG.1)
Watts
3000
SEE
I
PPM
Peak Pulse Current of on 10/1000 s waveform (Note 1,FIG.3)
Amps
TABLE 1
Steady State Power Dissipation at T
L
= 75
, Lead lengths.375",(9.5mm) (Note 2)
P
M(AV)
8
Watts
Peak Forward Surge Current,8.3ms Single Half Sine-Wave
Superimposed on Rated Load,(JEDEC Method) (Note 3)
Operating junction and Storage Temperature Range
RATING
I
FSM
T
J
, T
STG
400
-55 to +
175
Amps
Notes :
1.Non-repetitive current pulse , per Fig. 3 and derated above T
A
= 25
per Fig. 2 .
2.Mounted on Copper Pad area of 1.6×1.6" (40×40mm) per Fig. 5.
3.8.3ms single half sine-wave , or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.
3KP SERIES

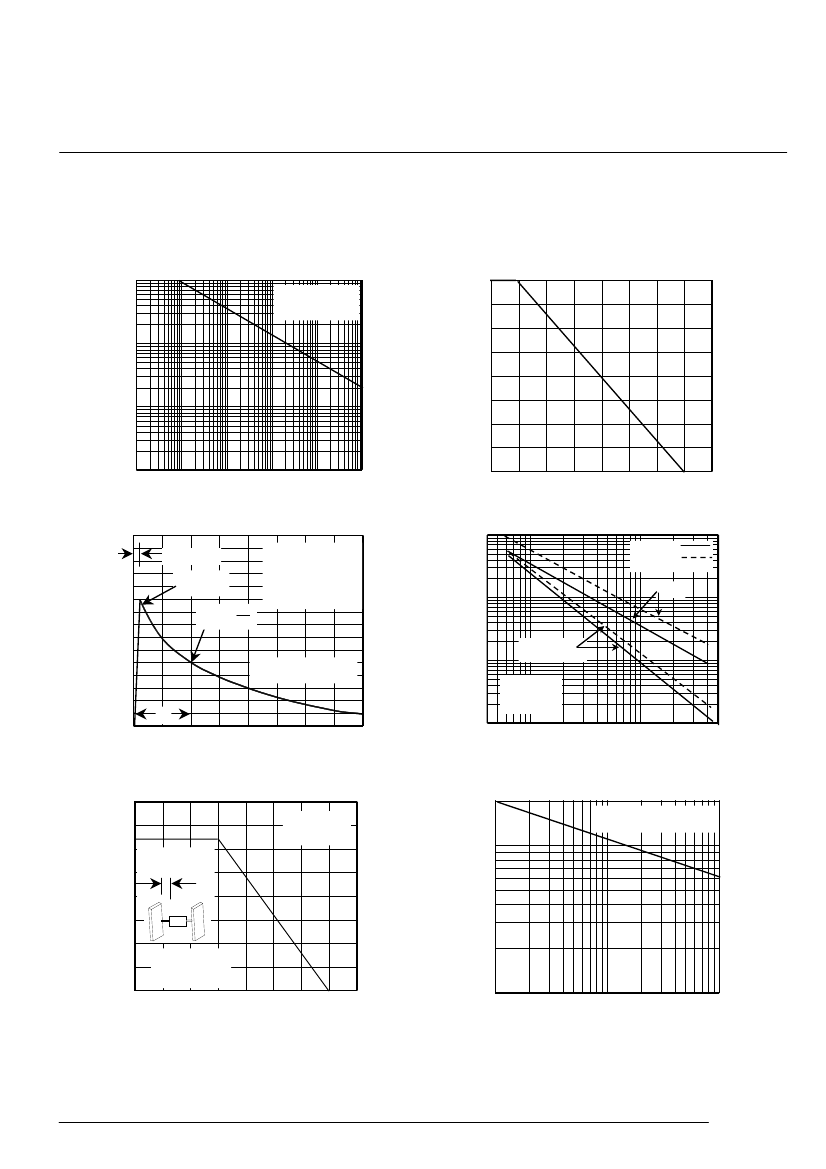

RATINGS AND CHARACTERISTIC CURVES 3KP SERIES
Ratings and
Characteristic Curves
(T
A
=25
unless otherwise noted)
Fig. 1 - Peak Pulse Power Rating Curve
100
100
Fig.2 - Pulse Derating Curve
87.5
75
62.5
50
37.5
25
12.5
P
PP
M
-Peak Pulse Power (kW)
10
1
0.1
Peak Pulse Power (P
PP
)
or Current (I
PP
)
Derating in Percentage,%
10ms
Non-repetitive pulse
waveform shown in
Fig.3 T
A
= 25°C
0
0.1µs
1.0µs
10µs
100µs
1.0ms
0
25
50
75
100
125
150
175
200
t
d
- Pulse Width (sec.)
T
A
- Ambient Temperature (°C)
Fig. 4 - Typical Junction Capacitance
10000
Unidirectional
Bidirectional
Fig.3 - Pulse Waveform
150
10000
I
PPM
- Peak Pulse Current,% I
RSM
t
r
= 10µsec.
Peak Value
I
PPM
100
Half Value- I
PPM
2
T
J
= 25°C
Pulse Width(td)is defined
as the point where the
peak current decays to
50% of I
PPM
1000
C
J
- Capacitance (pF)
V
R
= 0
1000
50
10/1000µsec.Waveform
as defined by R.E.A.
100
V
R
= Rated
Stand-off Voltage
100
f = 1MHz
Vsig = 50mVp-p
T
J =
25°C
1000
td
0
0
1.0
2.0
10
3.0
3.0
4.0
10
1
5
10
10
100
500
1000
4.0
t - Time(ms)
Fig. 5 - Steady State Power
Derating Curve
8.0
200
VWM - Reverse Stand-Off Voltage (V)
Fig.6 - Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
I
FSM
-Peak Forward Surge Current (A)
8.3ms Single Half Sine-Wave
(JEDEC Method)T
J
=T
J
max.
100
7.0
P
M(AV)
,Steady State Power
Dissipation (W)
60Hz
Resistive or
Inductive Load
L=0.375" (9.5mm)
Lead Lengths
6.0
5.0
4.0
3.0
2.0
1.0
1.6x1.6x.040"
(40x40x1mm)
Copper Heat Sinks
0
10
0
25
50
75
100
125
150
175
200
1
10
100
T
L
- Lead Temperature (°C)
Number of Cycles at 60 Hz
