426C-430SSB-KP Overview

WEDGELOCK 4.30" ANODIZE

426C-430SSB-KP Parametric

Parameter Name	Attribute value
Accessory type	wedge lock
Supporting products/related products	PCB installation

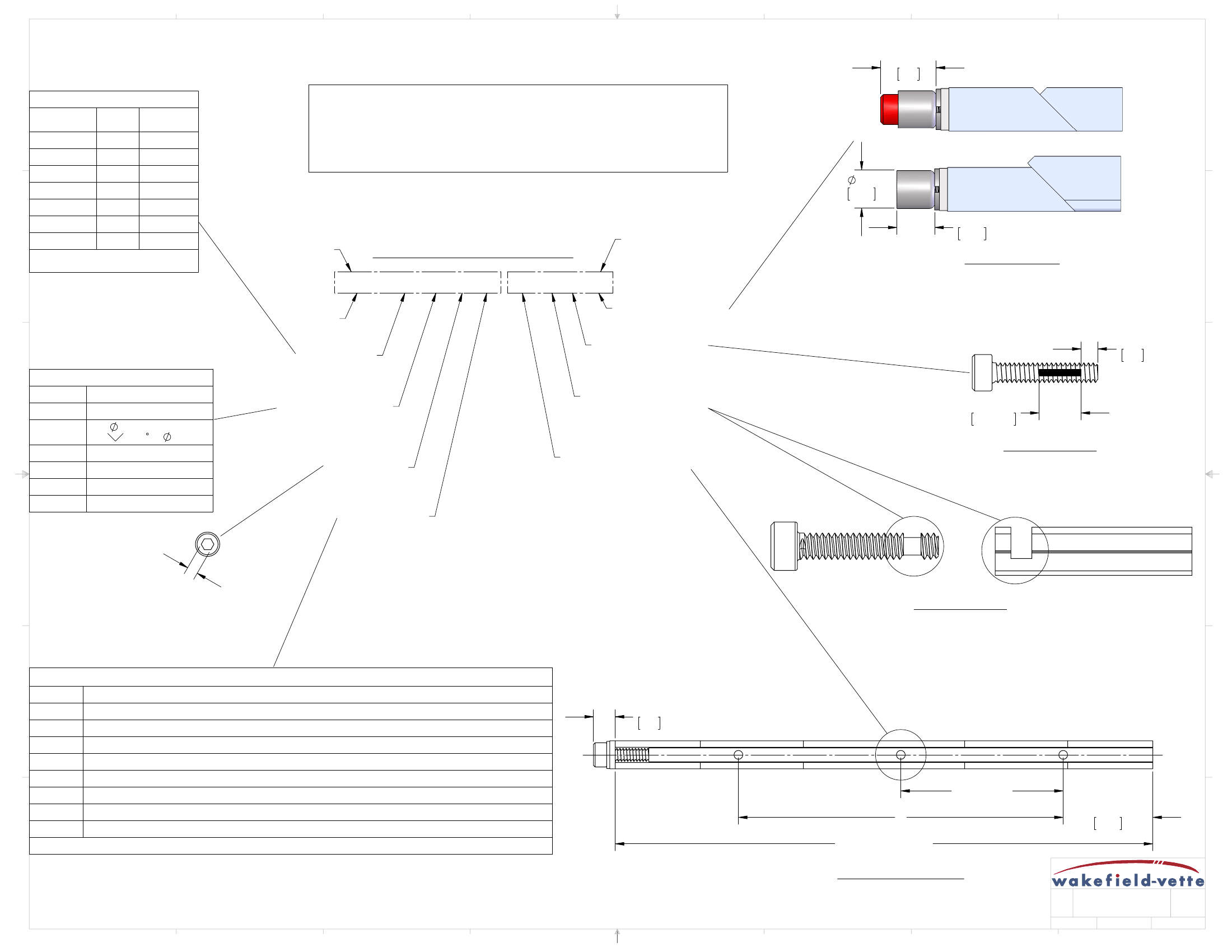

Preview

Download Datasheet

View All

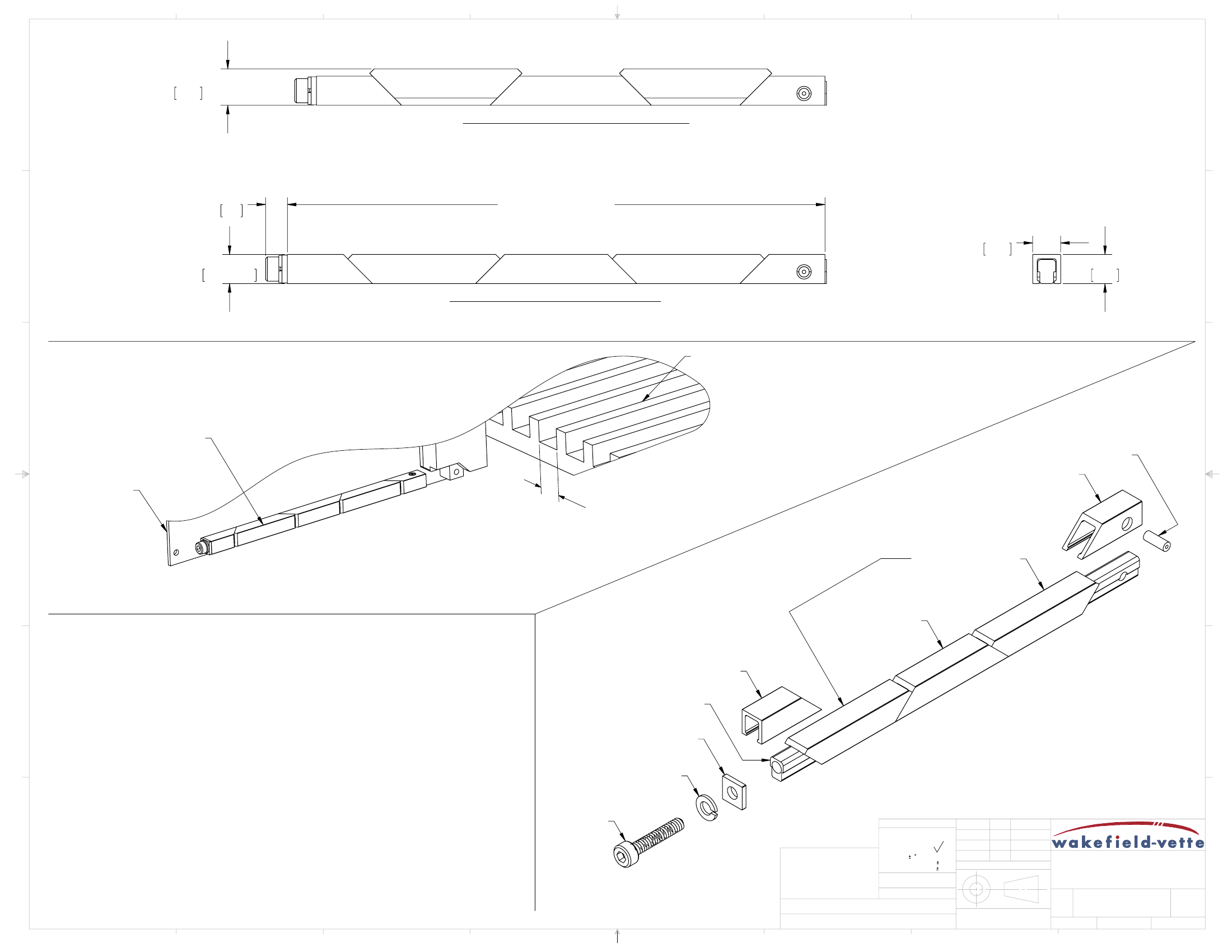

.325 EXPANDED MIN

8.26

VIEW OF ASSEMBLY EXPANDED

.19

4.9

ASSY LENGTH

(SEE P/N CODE SHEET 2)

.250

6.35

.270 MAX

6.86 MAX

VIEW OF ASSEMBLY RELAXED

.260

6.60

COLD PLATE

SERIES 426C WEDGLOCK

ROLL PIN

REAR WEDGE

PC BOARD

RECOMMENDED GAP:

.300 [7.62] + PC BOARD THICKNESS

INTERMEDIATE WEDGE

CENTER WEDGE

•

FEATURES

DESIGNED FOR HEAVY SHOCK AND VIBRATION.

UNIFORM CLAMPING FORCE AND HIGH THERMAL TRANSFER.

NARROW WIDTH FOR MAXIMUM PCB COMPONENT AREA.

LOW PROFILE DESIGN ALLOWS FOR DECREASED SLOT PITCH.

CAPTIVATED REAR WEDGE.

LIGHT WEIGHT = ASSEMBLY LENGTH X .085 OZ [2.41 G] OR [.95 G/CM].

SPECIAL LENGTHS, FINISH, AND OTHER DESIGN OPTIONS AVAILABLE

UPON REQUEST.

FRONT WEDGE

MOUNTING BAR

FLAT WASHER

LOCK WASHER

MATERIAL

MOUNTING BAR AND WEDGES: ALUMINUM 6063-T6.

ALL OTHER HARDWARE: 18-8 STAINLESS STEEL, PASSIVATED.

PARTS ARE SHIPPED AS COMPLETE ASSEMBLY IN RELAXED STATE EXCEPT

FOR RIVET MOUNT OPTION.

RECOMMENDED DRIVE SCREW TORQUE IS 6 IN-LBS [68 N-CM].

DRIVE SCREW

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

WAKEFIELD-VETTE. ANY REPRODUCTION IN

PART OR AS A WHOLE WITHOUT THE

WRITTEN PERMISSION OF WAKEFIELD-VETTE

IS PROHIBITED.

MATERIAL

FINISH

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES

TOLERANCES:

MACHINED SURFACES

ANGULAR

TWO PLACE DECIMAL

.02

THREE PLACE DECIMAL .005

INTERPRET GEOMETRIC

TOLERANCING PER: ASME Y-14.5M

NAME

DRAWN

CHECKED

APPR.

DATE

RSB

5 FEB 2013

TITLE:

THIRD ANGLE PROJECTION

WEDGELOCK DATASHEET

.260 X .250 PROFILE

DWG. NO.

DO NOT SCALE DRAWING

SIZE

SEE PART DETAILS

CAGE CODE

SEE FINISH TABLE

3E7UB

SCALE: NONE

426C-DS

08/13

REV

SHEET 1 OF 2
