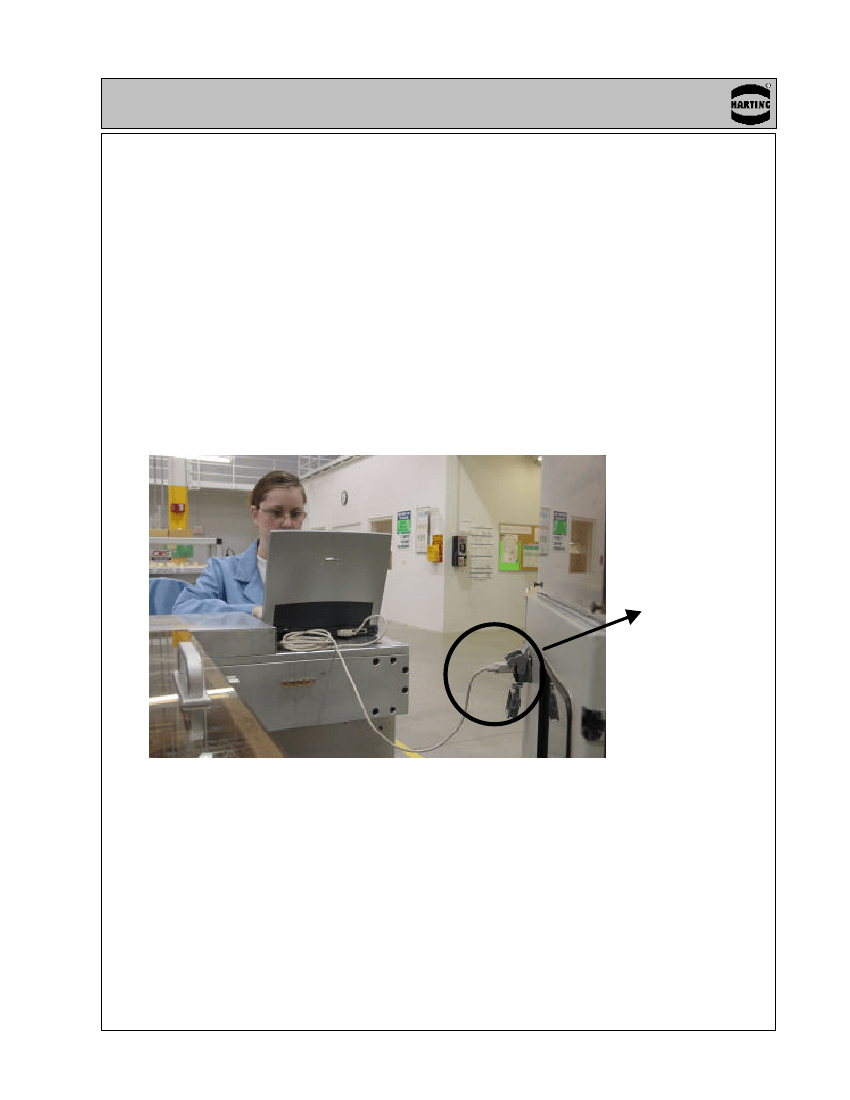

HAN
®
Port
HAN
®
Port is an interface that provides a convenient and environmentally
protected method of accessing the network ports.
Features & Benefits:
•
•
•
•
•
•
HAN
®
Port typically mounts on the outside of an enclosure.
HAN
®
Port maintains the NEMA 12/4 integrity of control systems.
HAN
®
Port provides safety and convenience to programmers and trouble-shooters.
HAN
®
Port protects control devices from unwanted substances, such as dust, dirt, oil,
chemicals, etc.
HAN
®
Port is UL recognized (UR), CSA, and CE certified.
HAN
®
Port is available in 3 different termination styles, i.e. PC boards with terminal
blocks, complete cable extension solutions, and bulk-head (pass-thru) connectors.
HAN
®
Port
HAN
®
Port is the solution to meet new electrical safety requirements specified by the
National Fire Protection Agency (70E Standard). The new standard, which is currently
in draft form, requires employees who are within four feet of live (exposed) 50 to 600
volts to wear the following protective clothing:
•
Safety Glasses
•
Face Shield
•
Flame Resistant Clothing
•
Hand and Arm Protection (Gloves)
Given the stringent requirements, HAN
®
Port allows users to maintain convenience,
safety, and efficiency.
-1-

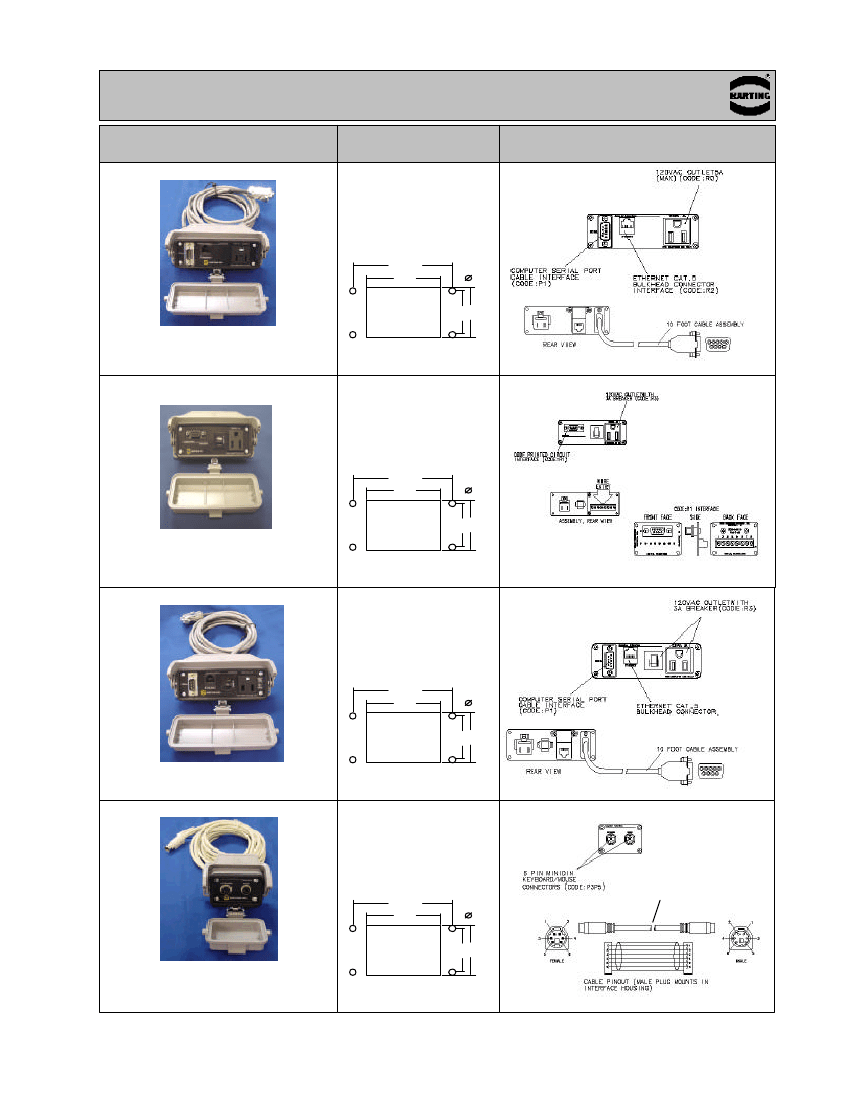

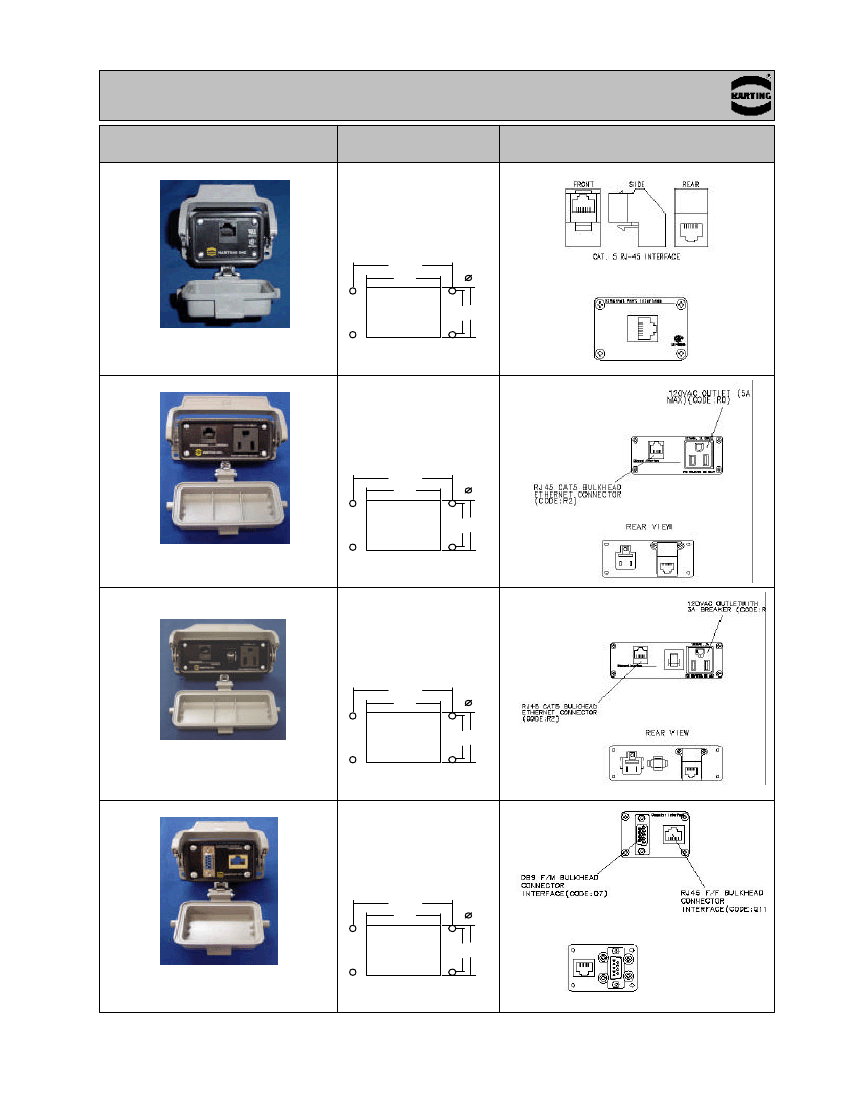

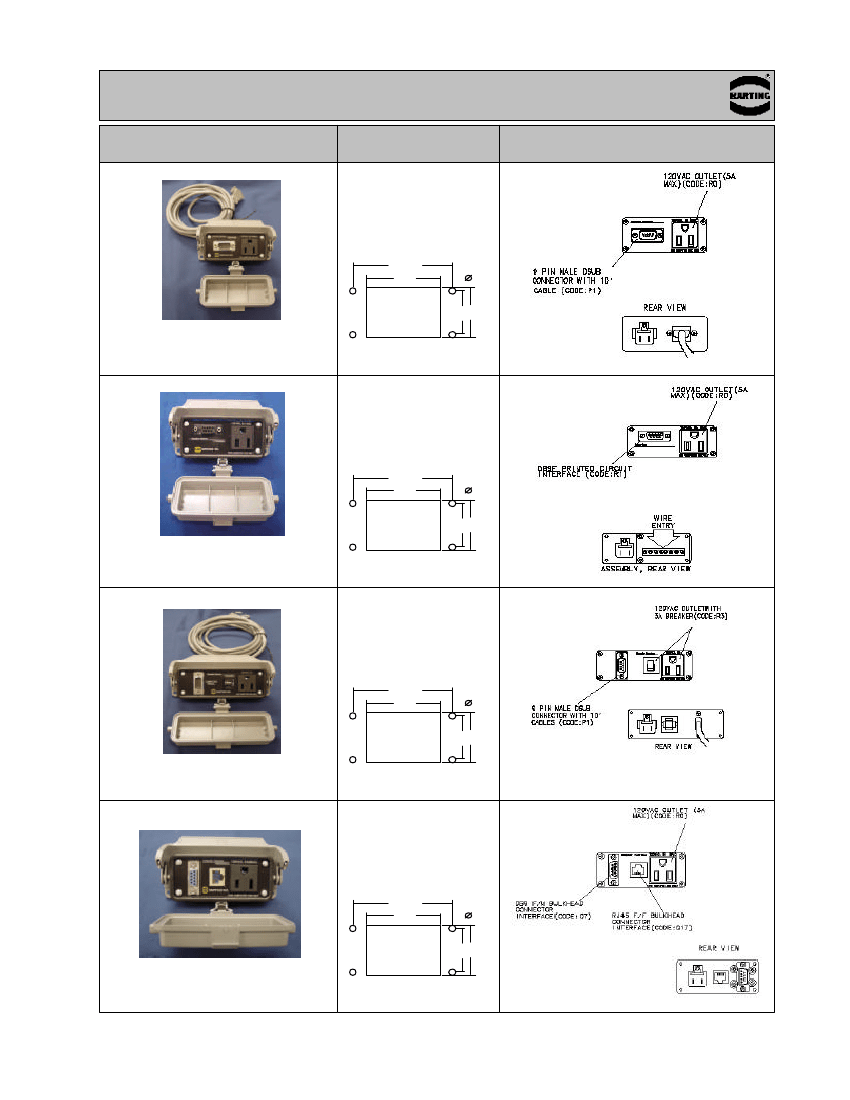

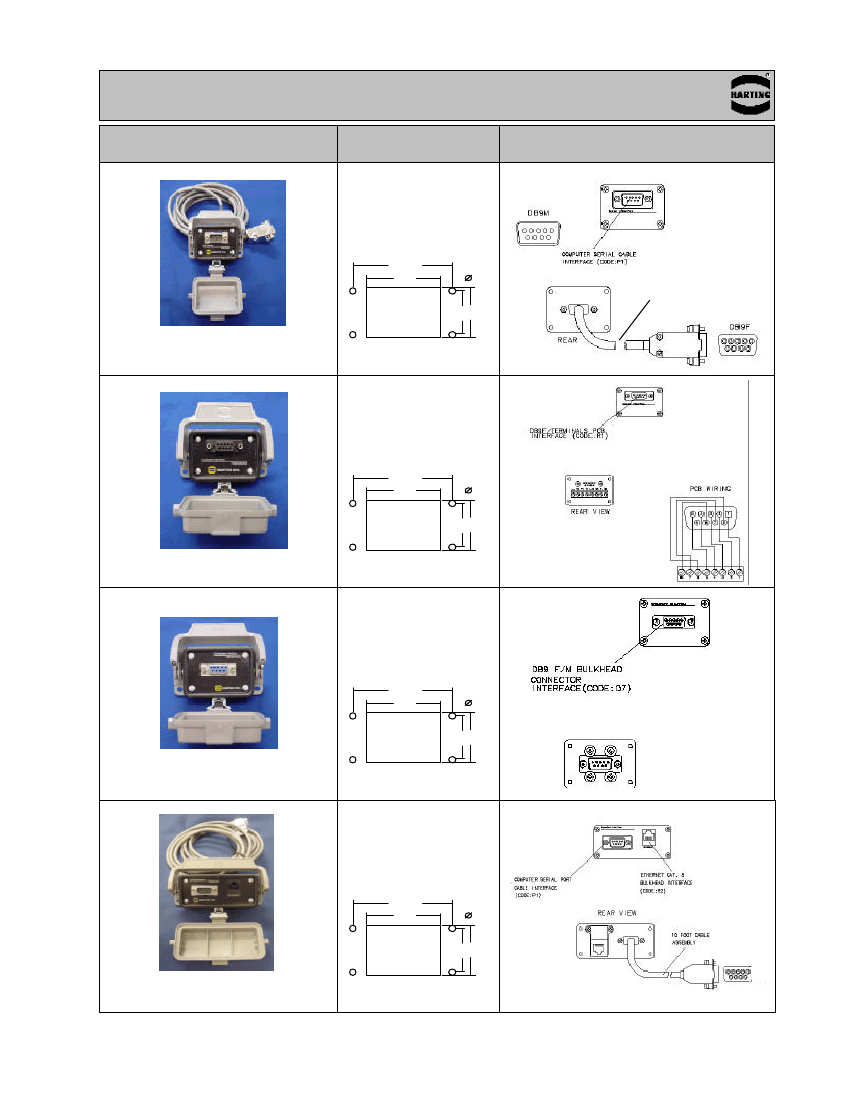

HAN Port
Description
Part Number
Panel Cutout
®
Drawing
73 55 040 0901
2.76
2.16
.17
1.26
HAN
®
Prog Port RJ45
(Dimensions are in inches)
73 55 040 0914
4.05
3.49
.17
1.26
HAN
®
Prog Port RJ45 120VAC
(Dimensions are in inches)
73 55 040 0915
5.12
4.53
.17
1.26
HAN
®
Prog Port RJ45 120VAC 3A
(Dimensions are in inches)
73 55 040 0903
2.76
2.16
.17
1.26
HAN
®
Prog Port DB9F/M RJ45
(Dimensions are in inches)
-2-
1.52
1.52
1.52
1.52
HAN Port
Description
Part Number
Panel Cutout
®
Drawing
73 55 040 0905
2.76
2.16
.17
10 FOOT CABLE ASSEMBLY
1.26
1.52
.17
1.52
.17
1.52
HAN
®
Prog Port DB9M
(Dimensions are in inches)
73 55 040 0902
2.76
2.16
HAN
®
Prog Port DB9F Terminal Blk
(Dimensions are in inches)
73 55 040 0904
2.76
2.16
1.26
1.26
HAN Prog Port DB9F/M
®
Rear View
(Dimensions are in inches)
73 55 040 0907
4.05
3.49
.17
1.26
HAN
®
Prog Port DB9M RJ45
(Dimensions are in inches)
-3-
1.52
DB9
FEMALE
HAN Port
Description
Part Number
Panel Cutout
®
Drawing
73 55 040 0908
4.05
3.49
.17
1.26
HAN
®
Prog Port DB9M 120VAC
(Dimensions are in inches)
73 55 040 0913
4.05
3.49
.17
1.26
HAN Prog Port DB9F Terminal Blk 120VAC
®
(Dimensions are in inches)
73 55 040 0923
5.12
4.53
.17
1.26
HAN
®
Prog Port DB9M 120VAC 3A
(Dimensions are in inches)
73 55 040 0912
4.05
3.49
.17
1.26
HAN
®
Prog Port DB9F/M RJ45 120VAC
(Dimensions are in inches)
-4-
1.52
1.52
1.52
1.52
HAN Port
Description
Part Number
Panel Cutout
®
Drawing
73 55 040 0921
5.12
4.53
.17
1.26
1.52
HAN
®
Prog Port DB9M RJ45 120VAC
(Dimensions are in inches)
DB9
FEMALE
73 55 040 0916
4.05
3.49
.17
1.26
HAN
®
Prog Port DB9F Terminal Blk
120VAC 3A
(Dimensions are in inches)
73 55 040 0920
5.12
4.53
.17
1.26
1.52
1.52
HAN Prog Port DB9M RJ45 120VAC 3A
®
DB9
FEMALE
(Dimensions are in inches)
73 55 040 0906
6 FOOT CABLE ASSEMBLEY
2.76
2.16
.17
1.26
HAN
®
Prog Port 2x6 Pin Mini Din
(Dimensions are in inches)
-5-
1.52
