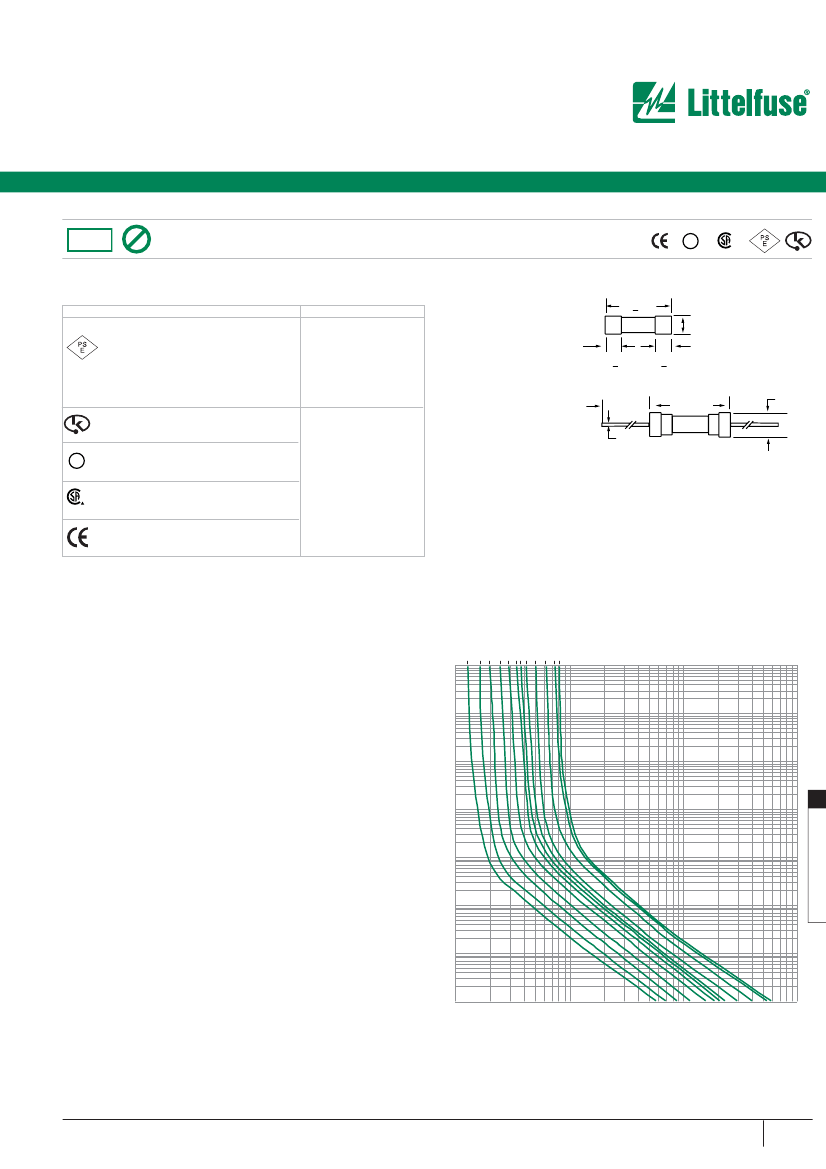

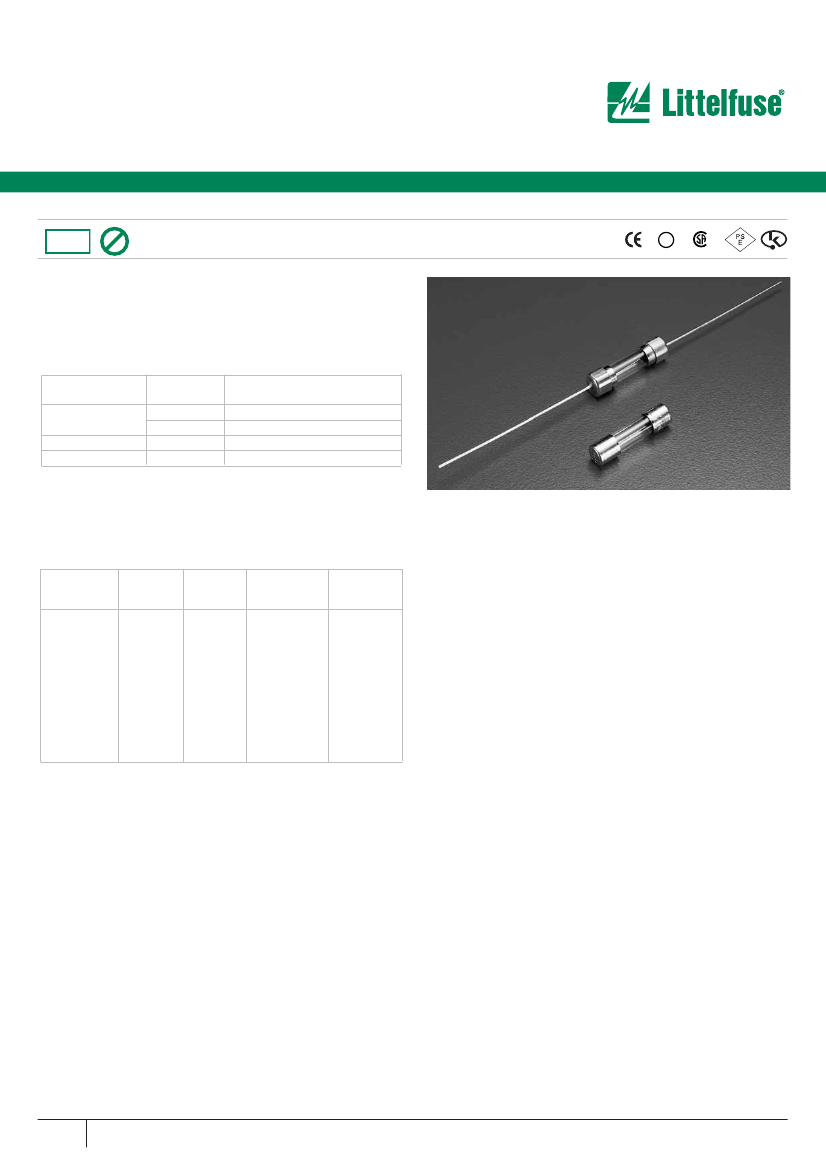

Axial Lead and Cartridge Fuses
Designed to UL/CSA Standards
RoHS
Pb
5 x 20 mm
Medium-Acting Fuse 233 Series
UL
®
®
• Designed to UL/ CSA/ANCE 248 Standard.
• Available in Cartridge, Axial and Radial Lead Format.
• Available in ratings of 1A to 10A.
•
RoHS compliant and Lead-Free version available, add XP suffix to
standard catalog number
ELECTRICAL CHARACTERISTICS:
% of Ampere
Rating
100%
135%
200%
Ampere
Rating
1–3.5
4–10
1–10
1–10
Opening
Time
4 hours,
Minimum
1 hour,
Minimum
3 sec.,
Min.;
1 hour
Max.
0.4 sec.,
Min.;
4 sec.,
Max.
INTERRUPTING RATING:
10,000 amperes at 125 VAC, 0.7-0.8 power factor
ORDERING INFORMATION:
RoHS compliant and Lead-Free version available, add XP suffix to
standard catalog number
Catalog
Number
0233
001
0233
1.25
0233
01.6
0233
002.
0233
02.5
0233
003.
0233
3.15
0233
03.5
0233
004.
0233
005.
0233
006.
0233
06.3
Ampere
Rating
1
1.25
1.6
2
2.5
3
3.15
3.5
4
5
6
6.3
Voltage
Rating
125
125
125
125
125
125
125
125
125
125
125
125
Nominal
Resistance
Cold Ohms
0.18
0.13
0.088
0.068
0.052
0.043
0.038
0.034
0.032
0.022
0.018
0.017
Nominal
Melting
I
2
t A
2
Sec
2.03
3.48
6.31
10.2
17.5
27.0
30.6
37.3
53.0
92.4
135
156
ENVIRONMENTAL SPECIFICATIONS:
Operating temperature:
-55˚C to 125˚C
Thermal Shock:
MIL-STD-202F Method 107G, Test Condition B: (5
cycles –65°C to +125°C)
Vibration:
MIL-STD-202F Method 201A
Humidity:
MIL-STD-202F Method 103B, Test Condition A. high relative
humidity (95%) and elevated temperature (40°C) for 240 hours.
Salt Spray:
MIL-STD-202F Method 101D, Test Condition B
PHYSICAL SPECIFICATIONS:
Material:
Body: Glass
Cap: Nickel Plated Brass
Leads: Tin Plated Copper
Terminal Strength:
MIL-STD-202F Method 211A,
Test Condition A
Solderability:
Reference IEC 60127 Second Edition 2003-01 Annex A
Product Marking:
Cap 1: current and voltage rating.
Cap 2: Agency approval markings.
Packaging:
Available in Bulk (v=5, H=100, M=1000 pcs/pkg) or on
Tape/Reel (MRET1=1000 pcs/reel).
426
w w w. l i t t e l f u s e . c o m
Axial Lead and Cartridge Fuses
Designed to UL/CSA Standards
RoHS
Pb
5 x 20 mm
Medium-Acting Fuse 233 Series
Agency Approvals
Ampere Range
C
I
D
J
1A – 5A 125V 10000A
6A & 6.3A 125V 500A
1A – 5A 125V 10000A
6A & 6.3A 125V 500A
UL
®
®
Agency Approvals
0233
000
1
20+0.5
5.2+0.1
-0.2
5.1+0.6
5.1+0.6
Certificate No. Cartridge
NBK280602-E10480
NBK290502-E10480
Leaded
NBK280602-E10480
NBK290502-E10480
Certificate No. SU05001-2010
Listed File No.
Guide No.
File No.
Cert. Class No.
E10480
JDYX
029862
LR1422-01
0233000XE
2
40
22.5 MAX
5.8 MAX
.65*
UL
®
1A – 6.3A
Notes:
* Ratings above 6.3A
have 0.8 mm dia lead
1 For RoHS compliant parts
add suffix 'XP'
2 For RoHS compliant parts
add suffix 'P'
All dimensions in mm
®
Average Time Current Curves
1.25A
1.6A
2A
2.5A
3A
3.15A
3.5A
4A
5A
6A
6.3A
1A
10000
1000
100
TIME IN SECONDS
10
11
AXIAL LEAD AND
1
10
CURRENT IN AMPERES
100
1000
1
0.1
0.01
0.001
w w w. l i t t e l f u s e . c o m
427
