3EZ11 THRU 3EZ200
GLASS PASSIVATED JUNCTION SILICON ZENER DIODE
VOLTAGE - 11 TO 200 Volts Power - 3.0 Watts
FEATURES
l
l
l
l
l
l
l
l
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
Typical I
D
less than 1 A above 11V
High temperature soldering :

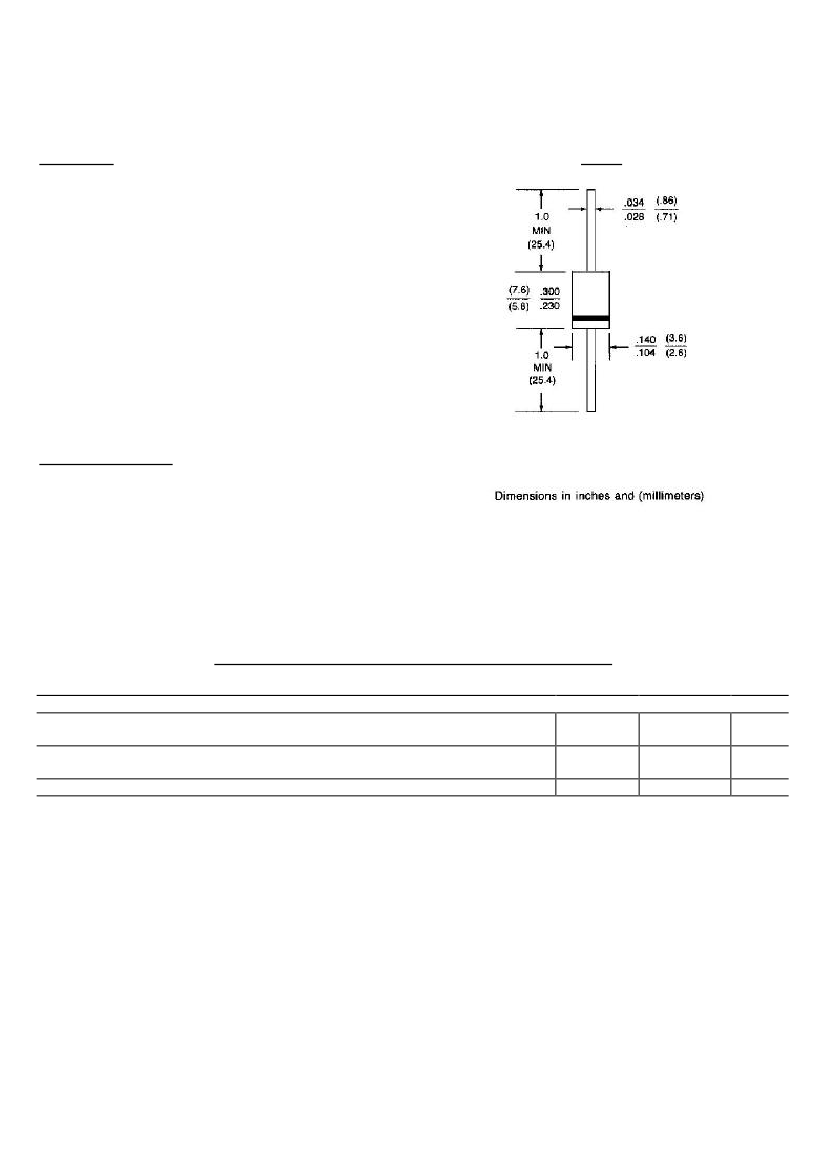

DO-15
260 /10 seconds at terminals
Plastic package has Underwriters Laboratory
Flammability Classification 94V-O
MECHANICAL DATA
Case: JEDEC DO-15, Molded plastic over passivated junction
Terminals: Solder plated, solderable per MIL-STD-750,
method 2026
Polarity: Color band denotes positive end (cathode)
Standard Packaging: 52mm tape
Weight: 0.015 ounce, 0.04 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Peak Pulse Power Dissipation (Note A)
Derate above 75
Peak forward Surge Current 8.3ms single half sine-wave superimposed on rated
load(JEDEC Method) (Note B)
Operating Junction and Storage Temperature Range
NOTES:
A. Mounted on 5.0mm
2
(.013mm thick) land areas.
B. Measured on 8.3ms, single half sine-wave or equivalent square wave, duty cycle = 4 pulses
per minute maximum.
SYMBOL
P
D
I
FSM
T
J
,T
STG
VALUE
3
24
15
-55 to +150
UNITS
Watts
mW/
Amps
3EZ11 THRU 3EZ200
ELECTRICAL CHARACTERISTICS (T
A
=25 unless otherwise noted) V
F
=1.2 V max , I
F
=500 mA for all types
Type No. Nominal Zener
Test
(Note 1.) Voltage Vz @ I
ZT
current Maximum Zener Impedance (Note 3.)
I
ZT
volts
Z
ZT
@ I
ZT
Z
Zk
@ I
ZK
I
ZK
mA
(Note 2.)
Ohms
Ohms
mA
Leakage Current
I
R
A Max @
V
R
Volts
Maximum Zener
Current
I
ZM
Madc
225
246
208
193
180
169
150
159
142
135
123
112
100
96
90
82
75
69
63
57
53
48
44
40
36
33
30
27
25
22
21
19
18
17
16
15
14
13
Surge Current
@ T
A
= 25
ir - mA
(Note 4.)
1.82
1.66
1.54
1.43
1.33
1.25
1.18
1.11
1.05
1
0.91
0.83
0.74
0.71
0.67
0.61
0.56
0.51
0.45
0.42
0.39
0.36
0.32
0.29
0.27
0.24
0.22
0.2
0.18
0.16
0.15
0.14
0.13
0.12
0.12
0.11
0.1
0.1
3EZ11
3EZ12
3EZ13
3EZ14
3EZ15
3EZ16
3EZ17
3EZ18
3EZ19
3EZ20
3EZ22
3EZ24
3EZ27
3EZ28
3EZ30
3EZ33
3EZ36
3EZ39
3EZ43
3EZ47
3EZ51
3EZ56
3EZ62
3EZ68
3EZ75
3EZ82
3EZ91
3EZ100
3EZ110
3EZ120
3EZ130
3EZ140
3EZ150
3EZ160
3EZ170
3EZ180
3EZ190
3EZ200
11
12
13
14
15
16
17
18
19
20
22
24
27
28
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
140
150
160
170
180
190
200
68
63
58
53
50
47
44
42
40
37
34
31
28
27
25
23
21
19
17
16
15
13
12
11
10
9.1
8.2
7.5
6.8
6.3
5.8
5.3
5
4.7
4.4
4.2
4
3.7
4
4.5
4.5
5
5.5
5.5
6
6
7
7
8
9
10
12
16
20
22
28
33
38
45
50
55
70
85
95
115
160
225
300
375
475
550
625
650
700
800
875
700
700
700
700
700
700
750
750
750
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
4000
4500
5000
5000
6000
6500
7000
7000
8000
8000
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
8.4
9.1
9.9
10.6
11.4
12.2
13
13.7
14.4
15.2
16.7
18.2
20.6
21
22.5
25.1
27.4
29.7
32.7
35.6
38.8
42.6
47.1
51.7
56
62.2
69.2
76
83.6
91.2
98.8
106.4
114
121.6
130.4
136.8
144.8
152
NOTES:
1. TOLERANCES - Suffix indicates 5% tolerance any other tolerance will be considered as a special device.
2. ZENER VOLTAGE (Vz) MEASUREMENT - guarantees the zener voltage when measured at 40 ms
±
10ms
from the diode body, and an ambient temperature of 25 ( 8 , -2 ).
3.ZENER IMPEDANCE (Zz) DERIVATION - The zener impedance is derived from the 60 cycle ac voltage,
which results when an ac current having an rms falue equal to 10% of the dc zener current (I
ZT
or I
ZK
) is
superimposed on I
ZT
or I
ZK
.
4. SURGE CURRENT (Ir) NON-REPETITIVE - The rating listed in the electrical characteristics table is
maximum peak, non-repetitive, reverse surge current of 1/2 square wave or equivalent sine wave pulse
of 1/120 second duration superimposed on the test current, I
ZT
, per JEDEC standards, however, actual
device capability is as described in Figure 3.

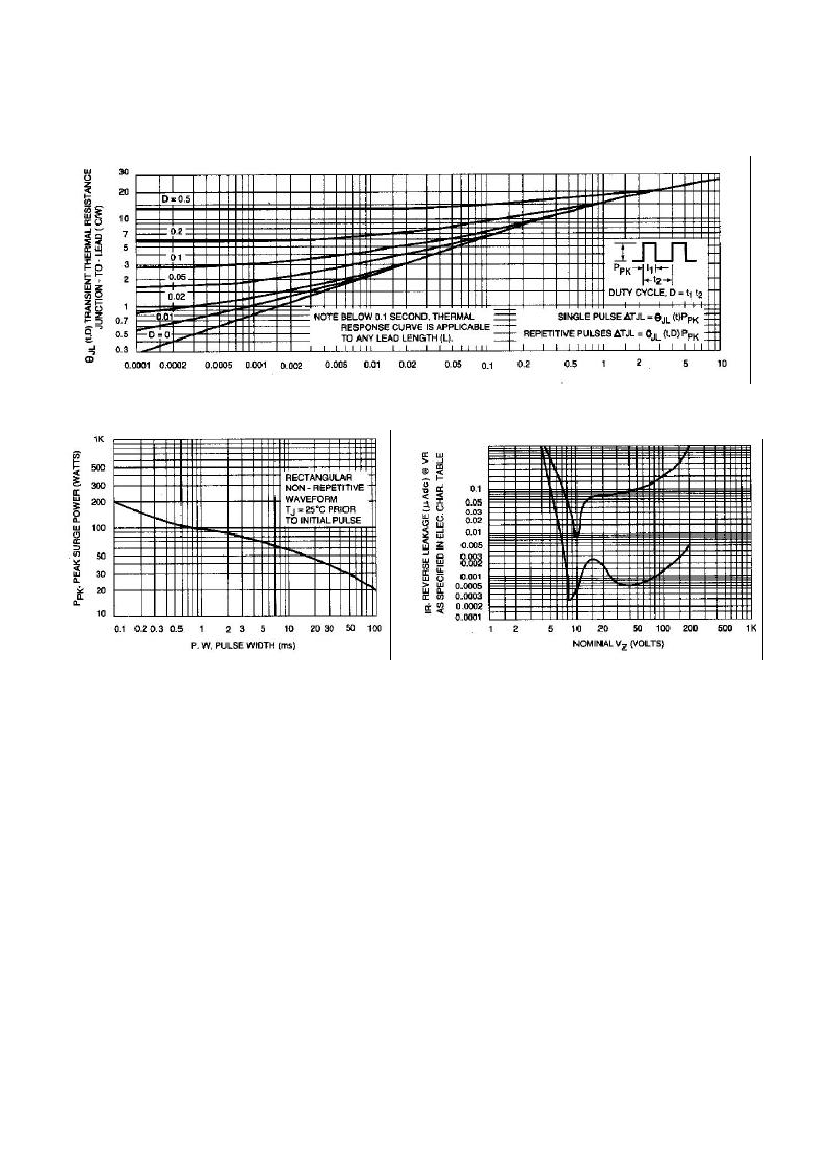

RATING AND CHARACTERISTICS CURVES
3EZ11 THRU 3EZ200
Fig. 2-TYPICAL THERMAL RESPONSE L
Fig. 3-MAXIMUM SURGE POWER
Fig. 4-TYPICAL REVERSE LEAKAGE
APPLICATION NOTE:
Since the actual voltage available from a given zener
diode is temperature dependent, it is necessary to
determine junction temperature under any set of
operating conditions in order to calculate its value. The
following procedure is recommended:
Lead Temperature, T
L
, should be determined from:
TL =
LA
LA
P
D
The temperature of the lead can also be measured using
a thermocouple placed on the lead as close as possible
to the tie point. The thermal mass connected to the tie
point is normally large enough so that it will not
significantly respond to heat surges generated in the
diode as a result of pulsed operation once steady-state
conditions are achieved. Using the measured value of
T
L
, the junction temperature may be determined by:
T
J
= T
L
+ T
JL
T
JL
is the increase in junction temperature above the
lead temperature and may be found from Figure 2 for a
train of power pulses or from Figure 10 for dc power.
T
JL
=
LA
P
D
+ T
A
is the lead-to-ambient thermal resistance ( /W)
LA
and P
D
is the power dissipation. The value for
will
vary and depends on the device mounting method.
LA
is generally 30-40 /W for the various chips and
tie points in common use and for printed circuit board
wiring.
For worst-case design, using expected limits of Iz, limits
of P
D
and the extremes of T
J
( T
JL
) may be estimated.
Changes in voltage, Vz, can then be found from:
V=
VZ
VZ
excursions as low as possible.
Data of Figure 2 should not be used to compute surge
capability. Surge limitations are given in Figure 3. They
are lower than would be expected by considering only
junction temperature, as current crowding effects cause
temperatures to be extremely high in small spots
resulting in device degradation should the limits of Figure
3 be exceeded.
T
J
, the zener voltage temperature coefficient, is
found from Figures 5 and 6.
Under high power-pulse operation, the zener voltage
will vary with time and may also be affected significantly
be the zener resistance. For best regulation, keep current

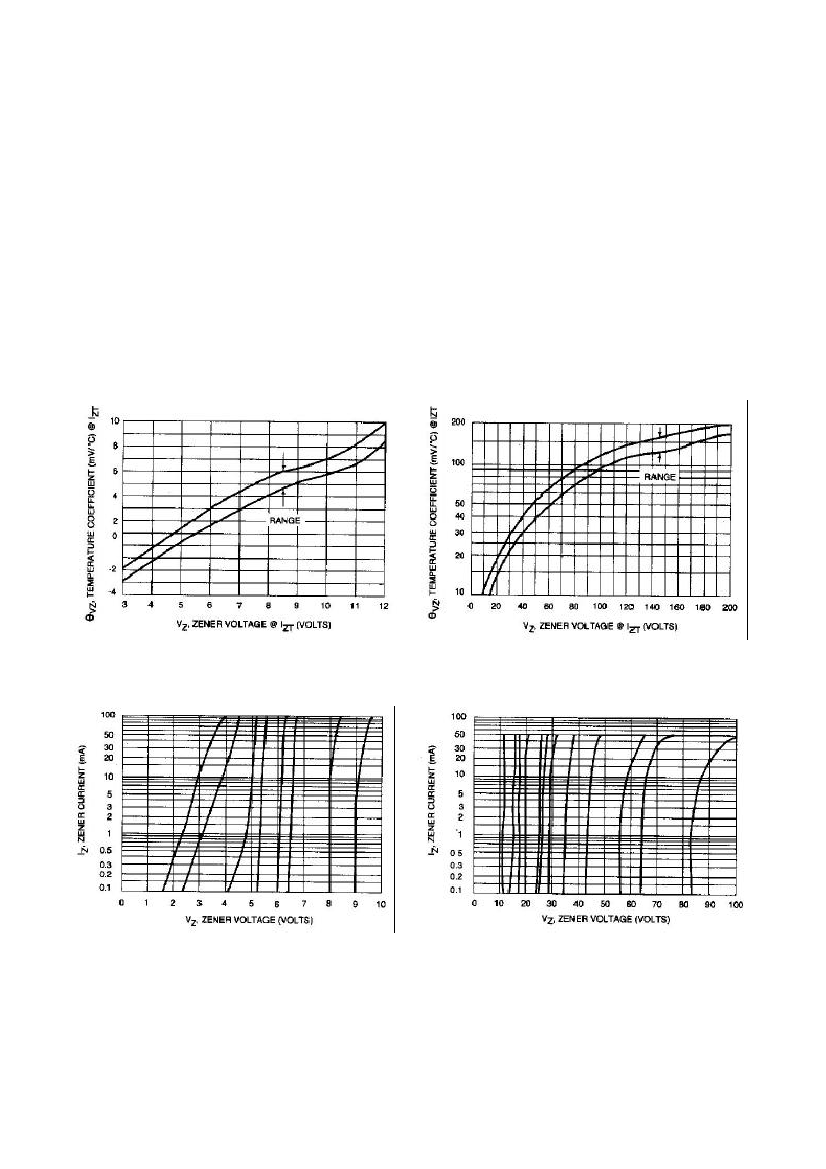

RATING AND CHARACTERISTICS CURVES
3EZ11 THRU 3EZ200
TEMPERATURE COEFFICIENT REAGES
(90% of the Units are int he Ranges Indicated)
Fig. 5-UNITS TO 12 VOLTS
Fig. 6-UNITS 10 TO 200 VOLTS
Fig. 7-V
Z
= 3.9 THRU 10 VOLTS
Fig. 8- V
Z
= 12 THRU 82 VOLTS

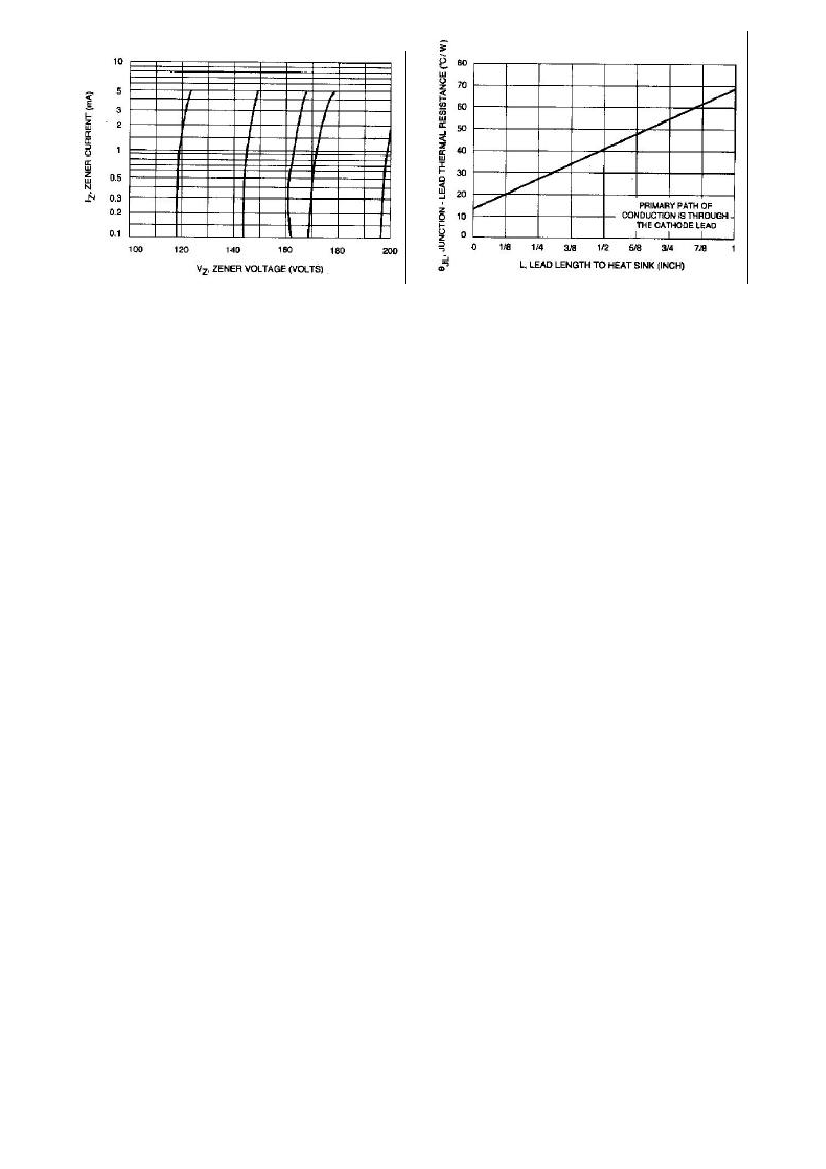

Fig. 9-V
Z
= 100 THRU 200 VOLTS
Fig. 10-TYPICAL THERMAL RESISTANCE
