3EZ18D10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 3EZ18D10

3EZ18D10: Description18 V, 1.25 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-204AL; CategoryDiscrete semiconductor diode; File Size36KB，3 Pages; ManufacturerEIC [EIC discrete Semiconductors]; Environmental Compliance

Download Datasheet Parametric View All

3EZ18D10 Overview

18 V, 1.25 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-204AL

3EZ18D10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	6 Ω
Number of components	1
Maximum operating temperature	175 °C
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	3 W
Nominal reference voltage	18 V
surface mount	NO
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	10%
Working test current	42 mA
Base Number Matches	1

Preview

Download Datasheet

View All

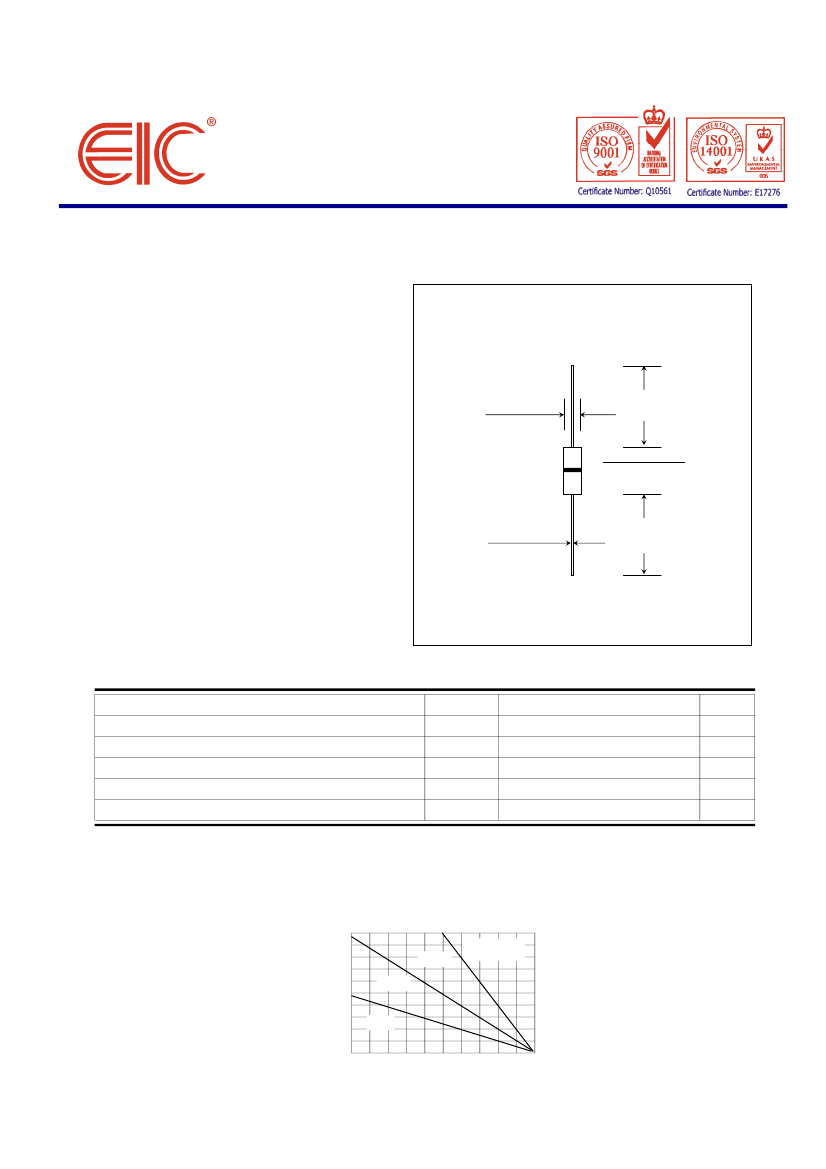

3EZ3.9D10 Series

: 3.9 - 400 Volts

: 3 Watts

FEATURES :

* Complete Voltage Range 3.9 to 400 Volts

* High peak reverse power dissipation

* High reliability

* Low leakage current

* Pb / RoHS Free

SILICON ZENER DIODES

DO - 41

0.107 (2.7)

0.080 (2.0)

1.00 (25.4)

MIN.

0.205 (5.2)

0.166 (4.2)

MECHANICAL DATA

* Case : DO-41 Molded plastic

* Epoxy : UL94V-O rate flame retardant

* Lead : Axial lead solderable per MIL-STD-202,

method 208 guaranteed

* Polarity : Color band denotes cathode end

* Mounting position : Any

* Weight : 0.339 gram

0.034 (0.86)

0.028 (0.71)

1.00 (25.4)

MIN.

Dimensions in inches and ( millimeters )

MAXIMUM RATINGS

Rating at 25

C ambient temperature unless otherwise specified

Rating

DC Power Dissipation at T

= 75

°C

(Note1)

Maximum Forward Voltage at I

= 200 mA

Maximum Thermal Resistance Junction to Ambient Air (Note2)

Junction Temperature Range

Storage Temperature Range

Symbol

RθJA

Value

3.0

1.5

- 55 to + 175

Unit

K/W

°C

Note :

(1) T

= Lead temperature at 3/8 " (9.5mm) from body

(2) Valid provided that leads are kept at ambient temperature at a distance of 10 mm from case.

Fig. 1 Power Temperature Derating Curve

, MAXIMUM DISSIPATION

(WATTS)

L = 1"

L = 3/8"

L = LEAD LENGTH

TO HEAT SINK

L = 1/8"

Rev. 02 : April 1, 2005

120

160

200

LEAD TEMPERATURE (

Page 1 of 3

Rev. 02 : April 1, 2005
