V10 Array
®
Product Data Sheet DS42
BXRE-27x1000
|
30x1000
|
40x1000
|
50x1000
Introduction
The V Series
™
LED Array products deliver high quality light in a compact and cost-effective solid-state lighting package.
These Chip-on-Board (CoB) arrays can be efficiently driven at twice the nominal drive current, enabling design flexibility
not previously possible. This high flux density light source is designed to support a wide range of high quality, low cost
directional luminaires and replacement lamps for commercial and residential applications.
The V10 LED Array is available in a variety of electrical, CCT and CRI combinations providing substantial design flexibility
and energy efficiencies.
Lighting system designs incorporating these LED Arrays deliver comparable performance to 26 Watt compact
fluorescent and 150 Watt incandescent and halogen based luminaires, delivering increased system level efficacy and
longer service life. Typical applications include, but are not limited to, replacement lamps, task, accent, spot, track,
down light, wide area, security, and wall pack.
Features
Benefits
• Market leading efficacy of 130 lm/W typical
• Compact high flux density light source
• Uniform high quality illumination
• Minimum 70, 80 and 90 CRI options
• Streamlined thermal path
• Energy Star / ANSI compliant color binning
structure with 3SDCM and 4SDCM options
• More energy efficient than incandescent, halogen
and fluorescent lamps
• Low voltage DC operation
• Instant light with unlimited dimming
• Enhanced optical control
• Clean white light without pixilation
• High quality true color reproduction
• Significantly reduced thermal resistance and
increased operating temperatures
• Uniform consistent white light
• Lower operating costs
• Easy to use with daylight and motion detectors to
enable increased energy savings
• Reduced maintenance costs
• Environmentally friendly, no disposal issue
V Series
Contents
Product Feature Map
Product Nomenclature
Product Selection Guide
Performance at Commonly Used Drive Currents
Flux & Electrical Characteristics
Absolute Maximum Ratings
Performance Curves
Typical Radiation Pattern
Typical Color Spectrum
Mechanical Dimensions
Color Binning Information
Packaging
Design Resources
Precautions
Disclaimers
About Bridgelux
2
2
3
4
6
7
8
12
13
14
15
16
18
18
18
19
1

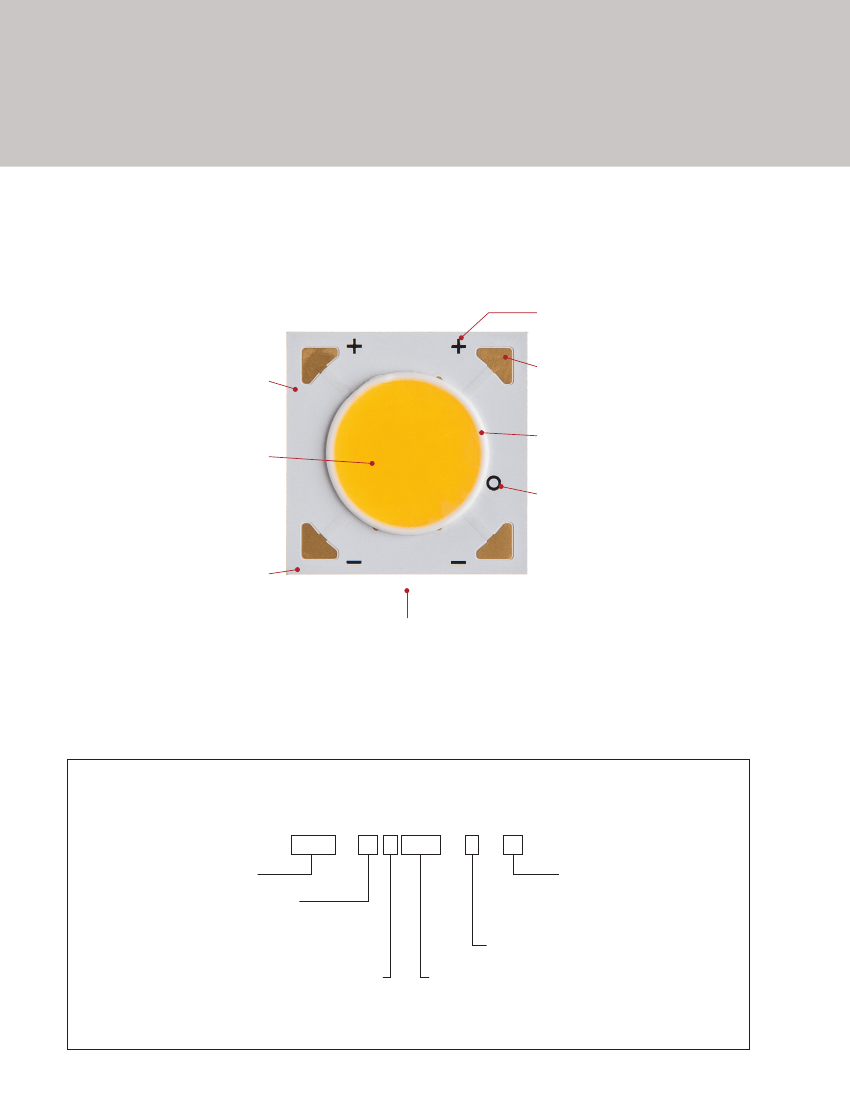

Product Feature Map
Bridgelux arrays are fully engineered devices that
provide consistent thermal and optical performance on
an engineered mechanical platform. The V Series arrays
are the most compact chip-on-board devices across
all of Bridgelux’s LED Array products. The arrays
incorporate several features to simplify design integration
and assembly.
Polarity symbols
Fully engineered substrate
for consistent thermal, mechanical
and optical properties
Solder Pads
White ring around LES
Yellow phosphor Light
Emitting Surface (LES)
Case Temperature (T
c
) Measurement Point
Designed to comply with global
safety standards for creepage
and clearance distances
Note: Part number and lot codes are scribed on back of array
Product Nomenclature
The part number designation for Bridgelux V Series LED arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
– 12
– 13 14
BXRE – 30 E 1000 – B – 23
Product Family
Nominal CCT
27 = 2,700K
30 = 3,000K
40 = 4,000K
50 = 5,000K
Minimum CRI
C = 70 CRI
E = 80 CRI
G = 90 CRI
CCT Bin Options
23 = 3 SDCM
24 = 4 SDCM
Array Configuration
Nominal Flux
1000 = 1000lm
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Nominal CCT
1
(K)
2700
2700
3000
3000
4000
4000
5000
5000
5000
Nominal Drive
Current
3
(mA)
350
350
350
350
350
350
350
350
350
Typical Pulsed
Flux
4,5,6
T
c
= 25ºC
(lm)
1150
890
1200
950
1280
1070
1330
1257
1106
Minimum
Pulsed Flux
6,7
T
c
= 25ºC
(lm)
1047
825
1080
866
1158
989
1230
1173
1010
Typical V
f
(V)
26.5
26.5
26.5
26.5
26.5
26.5
26.5
26.5
26.5
Typical
Power
(W)
9.3
9.3
9.3
9.3
9.3
9.3
9.3
9.3
9.3
Typical
Efficacy
(lm/W)
124
96
129
102
138
115
143
136
119
Part Number
CRI
2
BXRE-27E1000-B-2x
BXRE-27G1000-B-2x
BXRE-30E1000-B-2x
BXRE-30G1000-B-2x
BXRE-40E1000-B-2x
BXRE-40G1000-B-2x
BXRE-50C1000-B-24
BXRE-50E1000-B-24
BXRE-50G1000-B-24
80
90
80
90
80
90
70
80
90
Table 2:
Selection Guide, Stabilized DC Performance (T
c
= 85°C)
8,9
Nominal CCT
1
(K)
2700
2700
3000
3000
4000
4000
5000
5000
5000
Nominal Drive
Current
3
(mA)
350
350
350
350
350
350
350
350
350
Typical DC Flux
T
c
= 85ºC
(lm)
1022
791
1075
851
1147
959
1154
1090
959
Minimum DC
Flux
10
T
c
= 85ºC
(lm)
931
733
967
776
1038
886
1067
1017
876
Typical V
f
(V)
25.7
25.7
25.7
25.7
25.7
25.7
25.7
25.7
25.7
Typical
Power
(W)
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
Typical
Efficacy
(lm/W)
114
88
120
95
128
107
128
121
107
Part Number
CRI
2
BXRE-27E1000-B-2x
BXRE-27G1000-B-2x
BXRE-30E1000-B-2x
BXRE-30G1000-B-2x
BXRE-40E1000-B-2x
BXRE-40G1000-B-2x
BXRE-50C1000-B-24
BXRE-50E1000-B-24
BXRE-50G1000-B-24
Notes for Tables 1 & 2:
80
90
80
90
80
90
70
80
90
1. Nominal CCT as defined by ANSI C78.377-2011.
2. CRI Values are minimums. Minimum R9 value for 80 CRI products is 0, the minimum R9 values for 90 CRI products is 50.
3. Drive current is referred to as nominal drive current.
4. Products tested under pulsed condition (10ms pulse width) at nominal test current where T
j
(junction temperature) = T
c
(case temperature) = 25°C.
5. Typical performance values are provided as a reference only and are not a guarantee of performance.
6. Bridgelux maintains a ±7% tolerance on flux measurements.
7. Minimum flux values at nominal test current are guaranteed by 100% test.
8. Typical stabilized DC performance values are provided as reference only and are not a guarantee of performance.
9. Typical performance is estimated based on operation under DC (direct current) with LED array mounted onto a heat sink with thermal interface
material and the case temperature maintained at 85°C. Based on Bridgelux test setup, values may vary depending on the thermal design of the
luminaire and/or the exposed environment to which the product is subjected.
10. Minimum flux values at elevated temperatures are provided for reference only and are not guaranteed by 100% production testing. Based on Bridgelux
test setup, values may vary depending on the thermal design of the luminaire and/or the exposed environment to which the product is subjected.
3
