02341.25: DescriptionAxial Lead and Cartridge Fuses - Designed to UL/CSA Standards; CategoryCircuit protection Circuit protection; File Size155KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

02341.25 Overview

Axial Lead and Cartridge Fuses - Designed to UL/CSA Standards

02341.25 Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PRE-ARCING TIME: OPEN WITHIN 0.4 SEC. AT 200% RATED CURRENT
Fusing characteristics	MEDIUM
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	3 J
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK; TAPE AND REEL
physical size	5.2mm x 20mm
Rated breaking capacity	100 A
Rated current	1.25 A
Rated voltage (AC)	250 V
Guideline	CE; CSA; KTL; PSE; UL
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP

Preview

Download Datasheet

View All

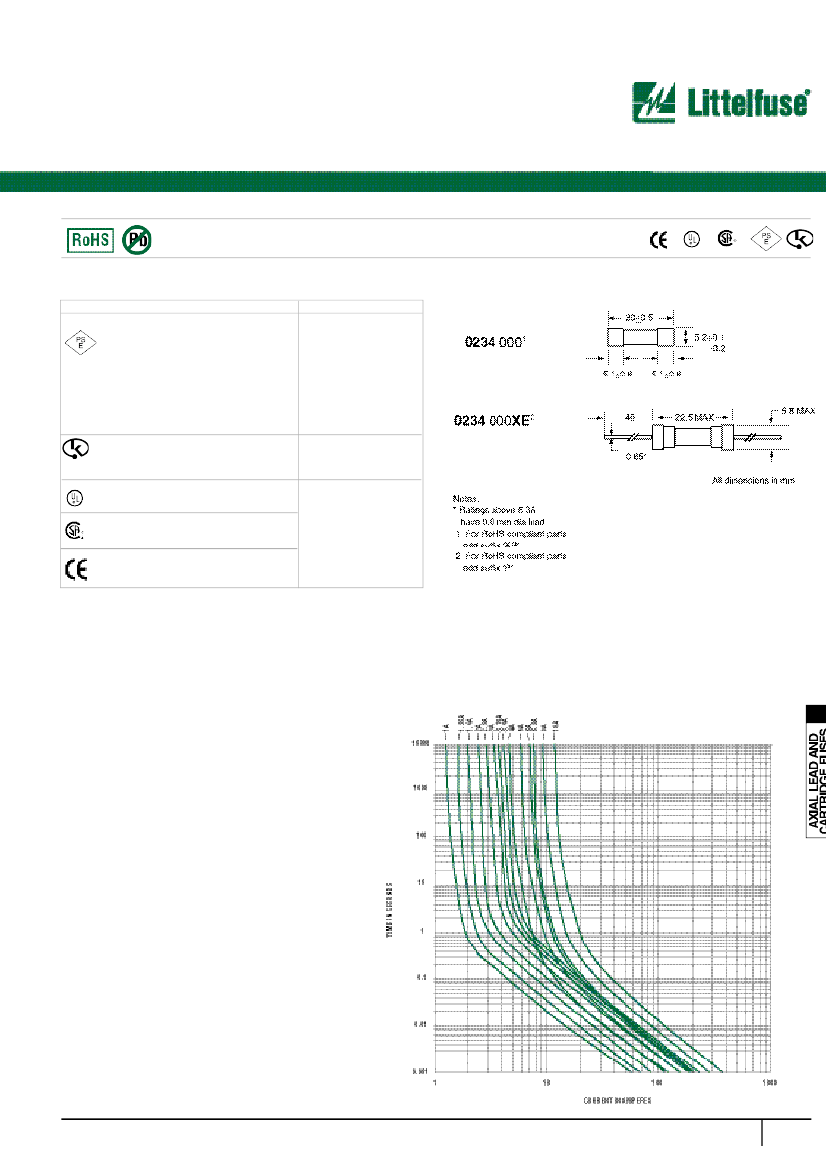

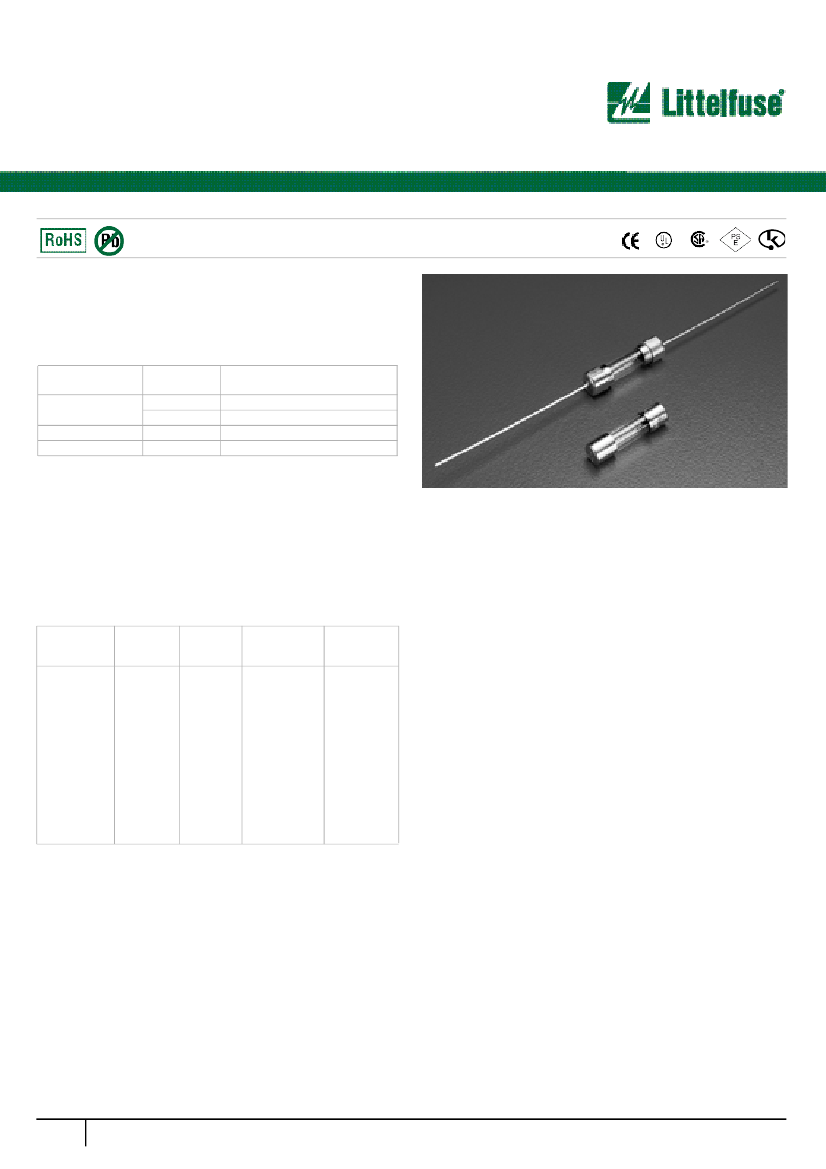

Axial Lead and Cartridge Fuses

Designed to UL/CSA Standards

5 x 20 mm

Medium-Acting Fuse 234 Series

• Designed to UL/ CSA/ANCE 248 Standard.

• Available in Cartridge, Axial and Radial Lead Format.

• Available in ratings of 1A to 10A.

•

RoHS compliant and Lead-Free version available, add XP suffix to

standard catalog number

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

110%

135%

200%

Ampere

Rating

1–3.5

4–10

1–10

Opening

Time

4 hours,

Minimum

1 hour,

Minimum

3 sec.,

Min.;

1 hour

Max.

0.4 sec.,

Min.;

4 sec.,

Max.

INTERRUPTING RATING:

1A

1.25-3.5A

4A-10A

35 amperes at 250 VAC 0.7-0.8 power factor

10,000 amperes at 125 VAC, 0.7-0.8 power factor

100 amperes at 250 VAC, 0.7-0.8 power factor

10,000 amperes at 125 VAC, 0.7-0.8 power factor

200 amperes at 250 VAC, 0.7-0.8 power factor

ENVIRONMENTAL SPECIFICATIONS:

Operating temperature:

-55˚C to 125˚C

Thermal Shock:

MIL-STD-202F Method 107G, Test Condition B: (5

cycles –65°C to +125°C)

Vibration:

MIL-STD-202F Method 201A

Humidity:

MIL-STD-202F Method 103B, Test Condition A. high relative

humidity (95%) and elevated temperature (40°C) for 240 hours.

Salt Spray:

MIL-STD-202F Method 101D, Test Condition B

ORDERING INFORMATION:

RoHS compliant and Lead-Free version available, add XP suffix to

standard catalog number

Catalog

Number

0234

001

0234

1.25

0234

01.6

0234

002.

0234

02.5

0234

003.

0234

3.15

0234

03.5

0234

004.

0234

005.

0234

006.

0234

06.3

0234

008.

0234

010.

Ampere

Rating

1

1.25

1.6

2

2.5

3

3.15

3.5

4

5

6

6.3

8

10

Voltage

Rating

250

Nominal

Resistance

Cold Ohms

0.18

0.13

0.088

0.068

0.052

0.043

0.038

0.034

0.032

0.022

0.018

0.017

0.013

0.010

Nominal

Melting

I

2

t A

2

Sec

2.03

3.48

6.31

10.2

17.5

27.0

30.6

37.3

10.7

21.2

33.9

38.7

82.9

133

PHYSICAL SPECIFICATIONS:

Material:

Body: Glass(1A-3.5A), Ceramic(4A-10A)

Cap: Nickel Plated Brass

Leads: Tin Plated Copper

Filter: Sand (4A – 10A)

Terminal Strength:

MIL-STD-202F Method 211A,

Test Condition A

Solderability:

Reference IEC 60127 Second Edition 2003-01 Annex A

Terminal strength:

MIL-STD-202F Method 211A, Test Condition A

Product Marking:

Cap 1: current and voltage rating.

Cap 2: Agency approval markings.

Packaging:

Available in Bulk (v=5, H=100, M=1000 pcs/pkg) or on

Tape/Reel (MRET1=1000 pcs/reel).

428

w w w. l i t t e l f u s e. c o m
