02981001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 02981001

02981001: Description6.3 MM AUDIO CONNECTOR, PLUG; CategoryThe connector; File Size49KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

02981001 Overview

6.3 MM AUDIO CONNECTOR, PLUG

02981001 Parametric

Parameter Name	Attribute value
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Shell style	PLUG
Manufacturer Series
Connection Type	6.3 MM AUDIO
Installation type	CABLE
Number of poles	3
Number of ports	1
Terminal type	SOLDER LUG

Preview

Download Datasheet

View All

Blade Terminal & Special Purpose Fuses

Low Voltage

RoHS

MEGA

Slo-Blo

Fuse

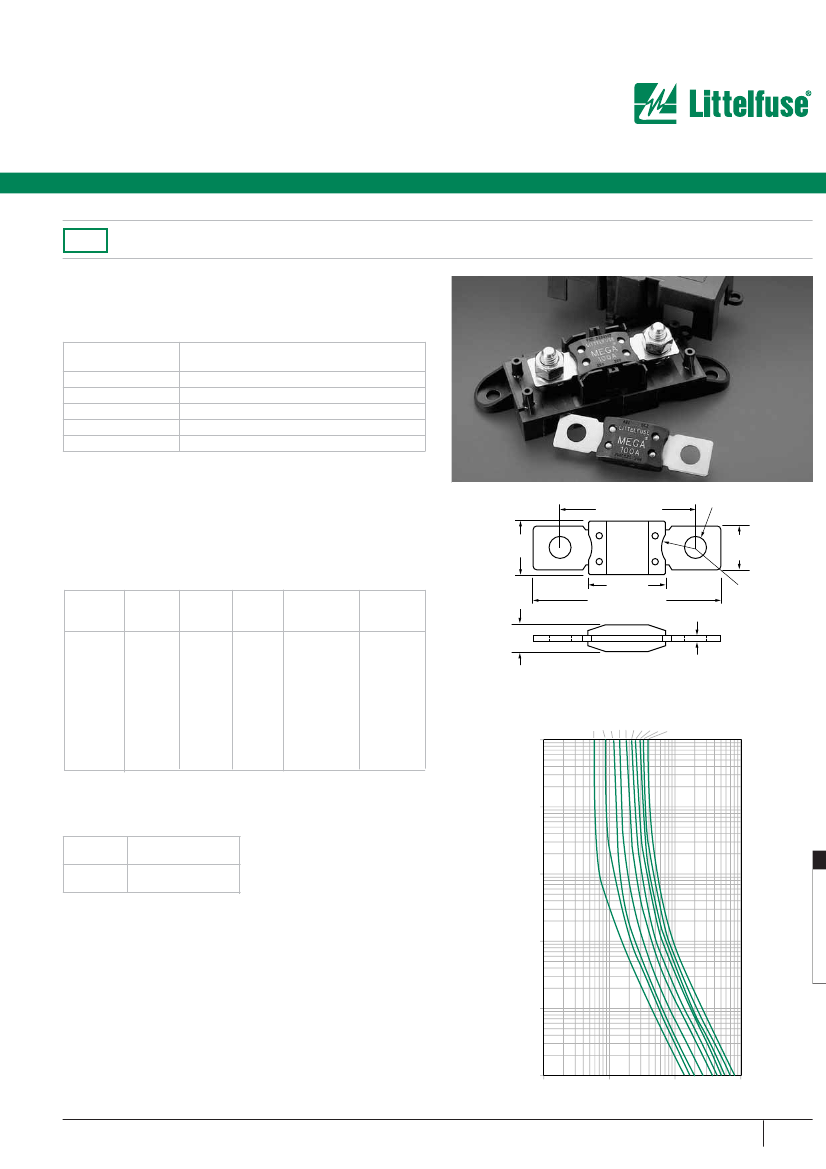

Designed for high current circuit protection up to 250

amperes. Ideal for battery and UPS systems requiring

ultra-high current protection.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

135%

200%

350%

600%

Opening

Time

4 Hours,

Minimum

120 sec.,

Min.;

1800 sec.,

Max.

1 sec.,

Min.;

15 sec.,

Max.

0.3 sec.,

Min.;

5 sec.,

Max.

0.1 sec.,

Min.;

1 sec.,

Max.

PHYSICAL SPECIFICATIONS:

Materials:

Body: Plastic

Terminations: Copper

PATENTED

INTERRUPTING RATING:

2000A @ 32 VDC

50.8 (2.0")

19.05 (.75")

(1.15")

68.58 (2.70")

10.67 (.42")

8.64 (.34")

16.26 (.64")

11.94 (.47")

1.02 (.04")

ORDERING INFORMATION:

Catalog

Number

298

040

298

060

298

080

298

100

298

125

298

150

298

175

298

200

298

225

298

250

Ampere

Rating

(A)

100

125

150

175

200

225

250

Voltage

Rating

(VDC)

Stamp

Color

Code

TBD

Yellow

Green

Orange

White

Blue

Tan

Pink

Nominal Cold

Resistance

(milliOhms)

TBD

0.55

0.43

0.35

0.27

0.26

0.23

0.19

Minimum

Melting I

Sec.)

TBD

31100

57800

100000

168000

204000

257000

389000

Average Time Current Curves

40A

60A

80A

100A

125A

150A

175A

200A

225A

250A

1000

100

MEGA

Fuse Holder

ORDERING INFORMATION:

Catalog

Number

0298

1001

0298

2001

Version

Single Holder Assembly

Dual Holder Assembly

TIME IN SECONDS

0.1

0.01

100

1000

10000

CURRENT IN AMPERES

w w w. l i t t e l f u s e . c o m

455

BLADE TERMINAL AND

02981001 Related Products

	02981001	02982001	298040	298175	298225
Description	6.3 MM AUDIO CONNECTOR, PLUG	6.3 MM AUDIO CONNECTOR, PLUG	SLOW BLOW ELECTRIC FUSE, 40A, 32VDC, 2000A (IR), INLINE/HOLDER	SLOW BLOW ELECTRIC FUSE, 175A, 32VDC, 2000A (IR), INLINE/HOLDER	SLOW BLOW ELECTRIC FUSE, 225A, 32VDC, 2000A (IR), INLINE/HOLDER
package instruction	-	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	-	-	unknow	unknow	unknow
ECCN code	-	-	EAR99	EAR99	EAR99
Other features	-	-	RATED BREAKING CAPACITY AT 32 VDC: 2000A	RATED BREAKING CAPACITY AT 32 VDC: 2000A	RATED BREAKING CAPACITY AT 32 VDC: 2000A
Fusing characteristics	-	-	SLOW	SLOW	SLOW
body width	-	-	19.05 mm	19.05 mm	19.05 mm
body height	-	-	10.67 mm	10.67 mm	10.67 mm
Body length or diameter	-	-	29.21 mm	29.21 mm	29.21 mm
Circuit protection type	-	-	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Installation features	-	-	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
physical size	-	-	29.21mm x 19.05mm x 10.67mm	29.21mm x 19.05mm x 10.67mm	29.21mm x 19.05mm x 10.67mm
Rated breaking capacity	-	-	2000 A	2000 A	2000 A
Rated current	-	-	40 A	175 A	225 A
Rated voltage (DC)	-	-	32 V	32 V	32 V
surface mount	-	-	NO	NO	NO
Terminal shape	-	-	TAB/BLADE	TAB/BLADE	TAB/BLADE
Base Number Matches	-	-	1	1	1
