MS46-20-435-Q1-X Overview

SPARE TRANSMITTER

Preview

Download Datasheet

View All

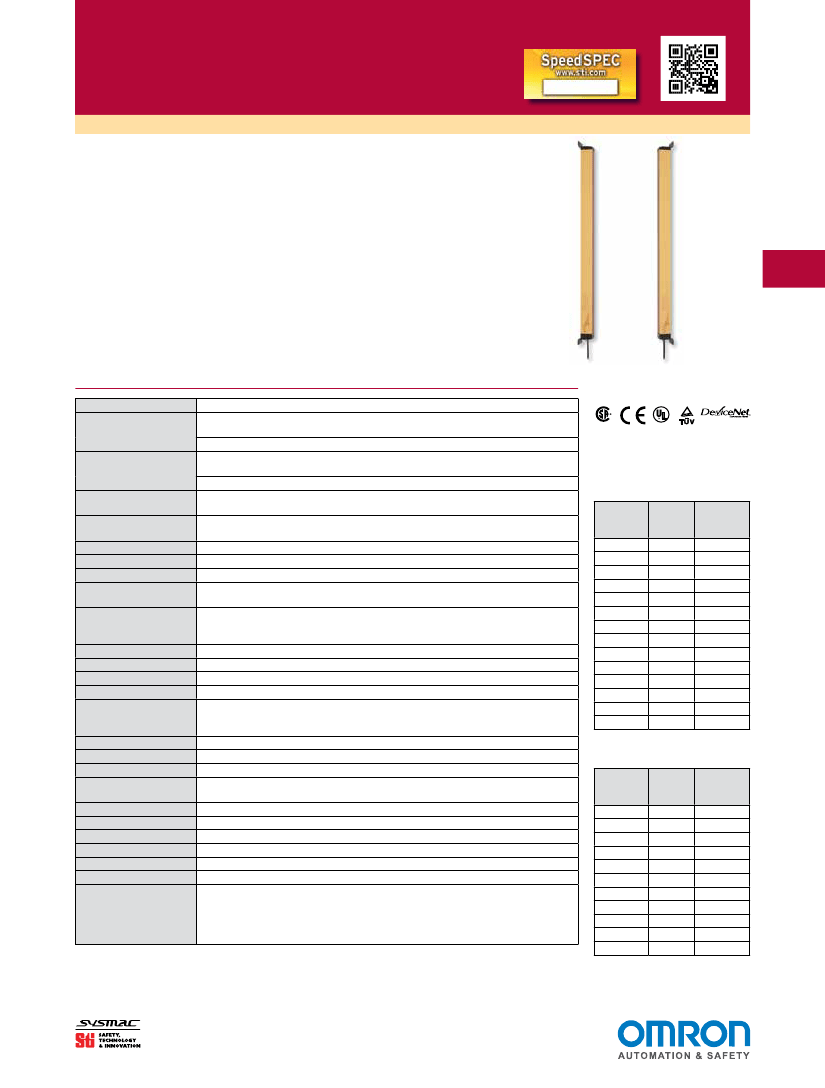

Safety Light Curtains

MS4600

MiniSafe

Light Curtains

• Resolution: 14 mm (0.55 in.), 19 mm (0.75 in.) or 30 mm (1.18 in.) resolution

• Range: 7.5 m (25 ft.) range for the 14 mm resolution, 20 m (65 ft.) range for the

19 and 30 mm resolutions

• Protected Heights: 14 mm and 19 mm resolutions from 263 to 1393 mm (10 to

55 in.); or 30 mm resolution from 351 to 2095 mm (14 to 83 in.)

• Compact size —35 x 50 mm (1.4 x 2 in.)

• No cable required between transmitter and receiver

• Individual Beam Indicators

MS4600

For full product information, visit www.sti.com. Use the SpeedSpec Code or scan the QR Code for quick access to the specific web page.

Rev. 6.13

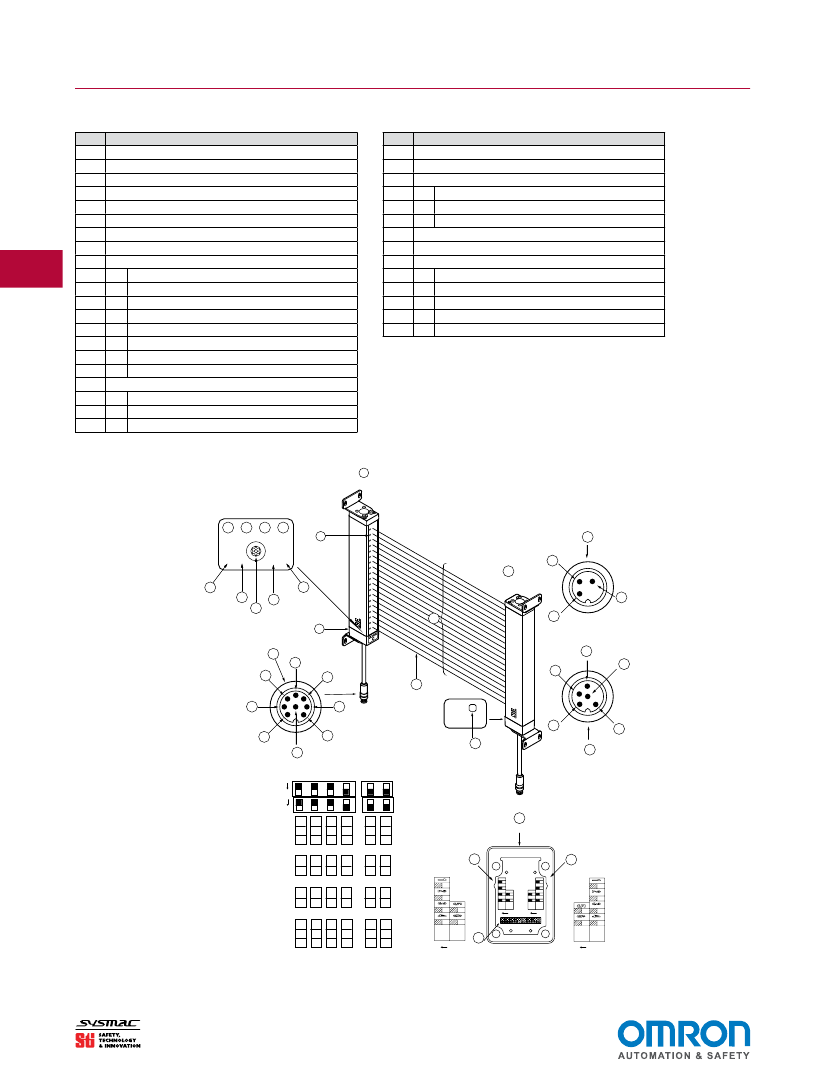

Specifications for Transmitter and Receiver

Performance

Protected Height:

14 and 19 mm — 263 to 1393 mm in 86 mm increments

(10.3 to 54.5 inches in 3.4 inch increments)

30 mm — 350 to 2090 mm (13.8 to 82.6 in.)

MS46SR: 0.3 to 7.5 m (1 to 25 ft.) for 14 mm resolution

0.3 to 9 m (1 to 30 ft.) for 19 mm and 30 mm resolutions

MS46LR: 0.3 to 20 m (1 to 65 ft.)/Not available with 14 mm resolution

14 mm (0.55 in.), 19 mm (0.75 in.) or 30 mm (1.18 in.). Use of Exact Channel Select

and/or Floating Blanking may increase this value.

See tables at right

24 VDC ± 20%

14 watts (without load on the outputs)

Two PNP outputs sourcing 500 mA max @ V

(see note 1). Short circuit protected.

One NPN output sinking 100 mA max @ V

or one PNP output sourcing 100 mA @ V

(see notes 1 and 2)

24 VDC ± 20%. The rating depends on the current requirements of the loads

attached to the outputs (see note 3). The power supply must meet the requirements

of IEC 60204-1 and 61496-1. STI part number 42992 or equivalent.

50 mA steady state @ 24 VDC

N.C. or N.O. momentary contact (20 mA consumption)

±2.5° maximum, transmitter and receiver at operating range greater than 3 m (9.8 ft.).

GaAlAs Light Emitting Diode, 850 nm

Transmitter: Power applied (Yellow)

Receiver: Machine Stop (Red), Machine Run (Green),

Interlock or Alarm Indicator (Yellow), Blanking Indicator (Amber)

Polyurethane powder-painted aluminum

Optional cables are available in 10, 15, 30 and 50 m lengths

Receiver: 8-pin

Transmitter: 3-pin standard, 5-pin with MTS

File No. LR90200

Operating Range

Resolution:

Response Time (varies

by protected height):

Input Voltage (V

Input Power:

Safety Output Ratings:

Auxiliary (Non-Safety)

Output Ratings:

Power Supply:

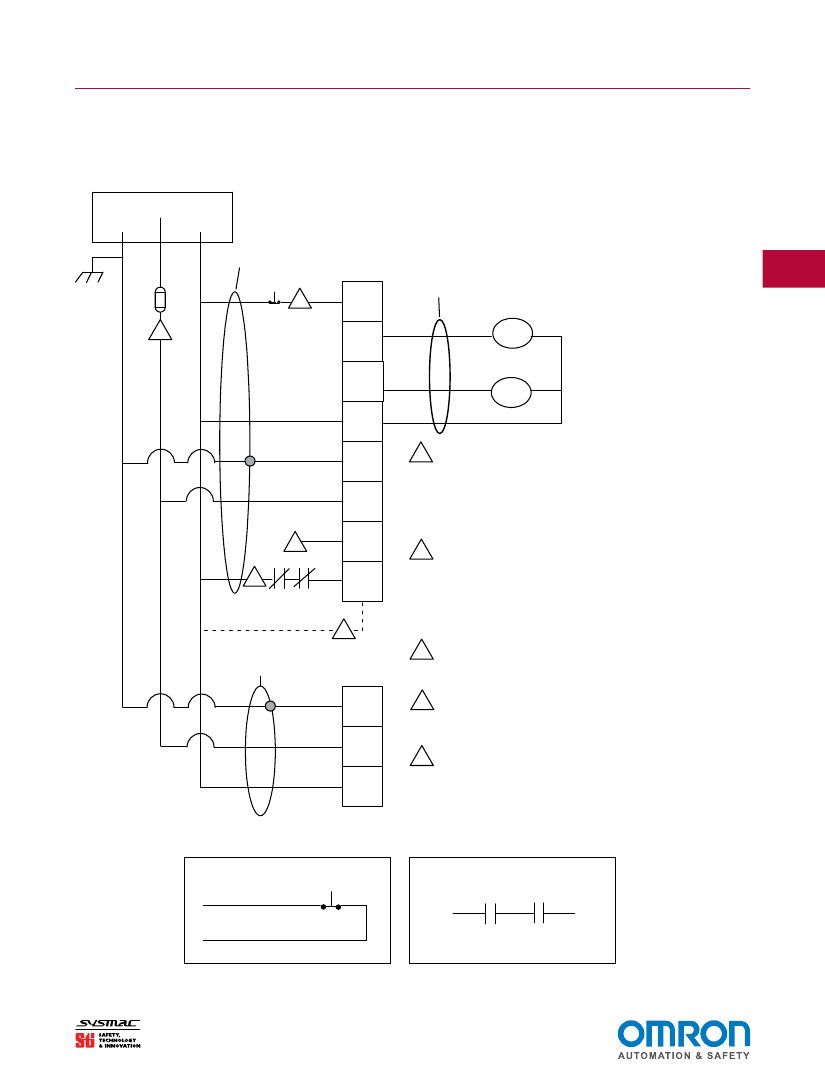

MPCE Monitoring Circuit:

Start/Restart Input:

Effective Aperture Angle:

Light Source:

Indicators

Response Times for Systems

with 14 mm and 20 mm

Resolutions

Protected

Response

Height

No. of

Time

(mm/in.)

Beams (seconds)

263/10.4

<0.016

350/13.8

<0.017

437/17.2

<0.019

524/20.6

<0.021

611/24.1

<0.023

698/27.5

<0.025

785/30.9

<0.027

872/34.3

<0.031

959/37.7

<0.033

1046/41.2

<0.035

1133/44.6

104

<0.035

1220/48.0

112

<0.037

1306/51.4

120

<0.039

1393/54.9

128

<0.040

Response Times for Systems

with 30 mm Resolutions

Protected

Response

Height

No. of

Time

(mm/in.)

Beams (seconds)

350/13.8

<0.014

524/20.6

<0.016

698/27.5

<0.017

872/34.3

<0.019

1046/41.2

<0.021

1220/48.0

<0.023

1393/54.9

<0.025

1570/61.8

<0.027

1741/68.6

<0.029

1915/75.4

<0.031

2090/82.3

<0.033

NEMA 4, 12; IP65

0 to 55°C (32 to 131°F)

95% maximum, non-condensing

5-60 Hz maximum on all three axis

10 g for 0.016 seconds, 1,000 shocks for each axis on two axis

ESPE Type 4 (IEC 61496-1/ -2)

Category 4 / PL e (EN ISO 13849-1)

SIL3 / SIL3 CL3 (IEC 61508 / EN 62061)

UL508, UL1998, CAN/CSA-C22.2 No. 14, CAN/CSA-C22.2 No. 0.8,

CAN/CSA-C22.2 No 0, CAN/CSA-C22.2 No 205

Specifications are subject to change without notice.

Note 1: Voltage available at the outputs is equal to V

- 2.0 VDC.

Note 2: Total current required by the two solid-state outputs and the aux. output should not exceed 1.1 A.

Note 3: Total system current requirement is the sum of the transmitter 285 mA and receiver 1.4 A max. (Receiver

300 mA + OSSD1 load + OSSD2 load + Aux. output load)

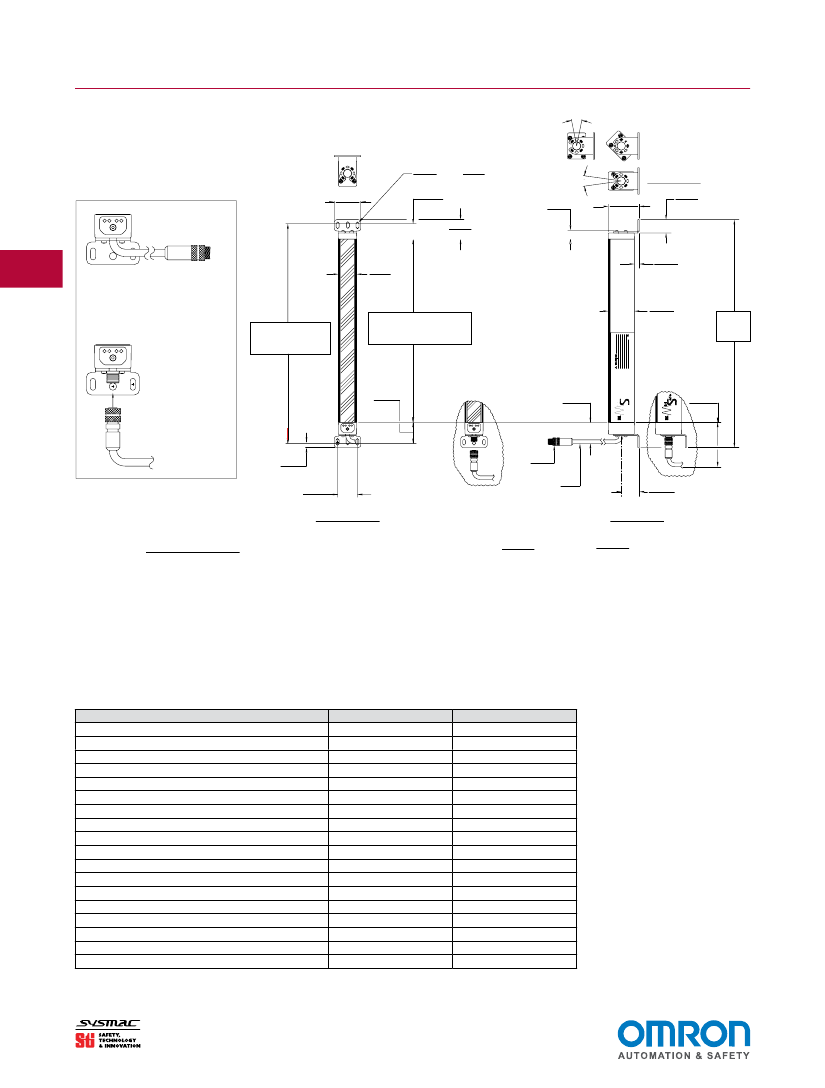

Mechanical

Enclosure:

Cable Length:

Cable Connections

(M12):

Environmental

Protection Rating:

Operating Temperature:

Relative Humidity:

Vibration:

Shock:

Approvals

www.sti.com/info
