Inventek Systems eS-WiFi ISM43362-M3G-EVB Quick Start Guide – Rev. 2
Installing the Inventek Systems ISM43362-M3G-EVB Evaluation Board
1.
BEFORE you plug the board into your computer download and
install the eS-WiFi PC demo software and Drivers:
http://www.inventeksys.com/wp-
content/uploads/Inventek_Systems_eS-
WiFiDemo_v1.4_b2.zip
2.
3.
4.
Save the eS-Wifi Demo.zip.
Unzip.
Run as Administrator.
a. The board has two com ports.
USB-JTAG and Broadcom USB serial port

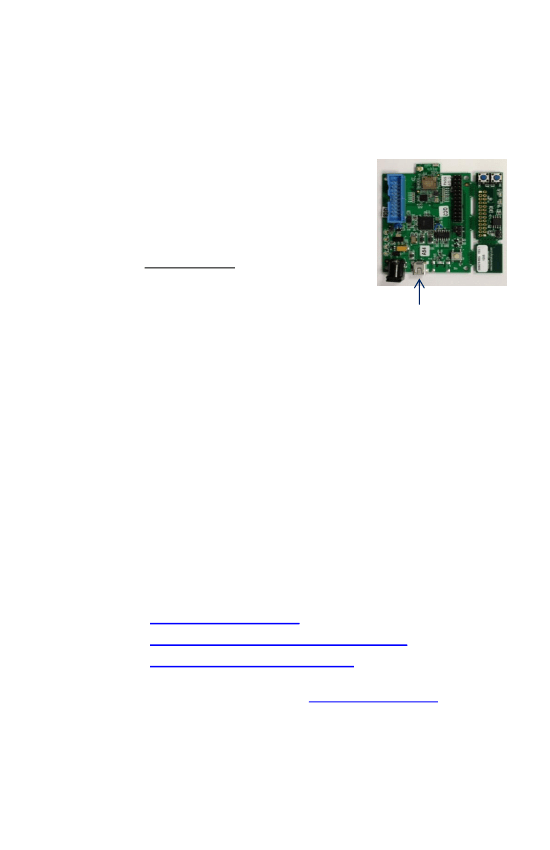

b. Use the Broadcom USB serial port as indicated by the
arrow in the above photo of the EVB.
The ISM43362-M3G-EVB connects to the PC with a USB cable. The USB
interface provides +5V power as well as individual programming and
UART interfaces to the STM32F205 host processor (on the ISM43362-
M3G-L44 module).
The USB driver for the ISM43362-M3G-EVB Evaluation Board is provided
in the above download. Once you install the above software you can
select Menu>Install Drivers on the eS-WiFi Demo to pre-install the
drivers then plug-in the board.
Open the following documents to start testing:
a.
EVB_Users_Manual.pdf
b.
AT Command Set Quick Reference Guide
c.
AT Command Set User’s Manual
We recommend that you use the eS-WiFi
Demo Software Help,
that will
explain the driver installation. (Manual installation instructions are also
shown in the appendix of this document.)
Inventek Systems eS-WiFi ISM43362-M3G-EVB Quick Start Guide – Rev. 2
5. Use the eS-WiFi demo software setup menu to configure the
UART. (Setup – Serial Port – Configure/Open)
a. Identify serial Com port from Device Manager , e.g.
COM22
b. Set Baud rate to 115,200
c. 8 Data bits, 1 Stop bit , Parity None, and Flow control
None
(The other option is to use a terminal program such as Hyper-
terminal, PuTTY (http://putty.org) or similar program on your PC.)
Inventek Systems eS-WiFi ISM43362-M3G-EVB Quick Start Guide – Rev. 2

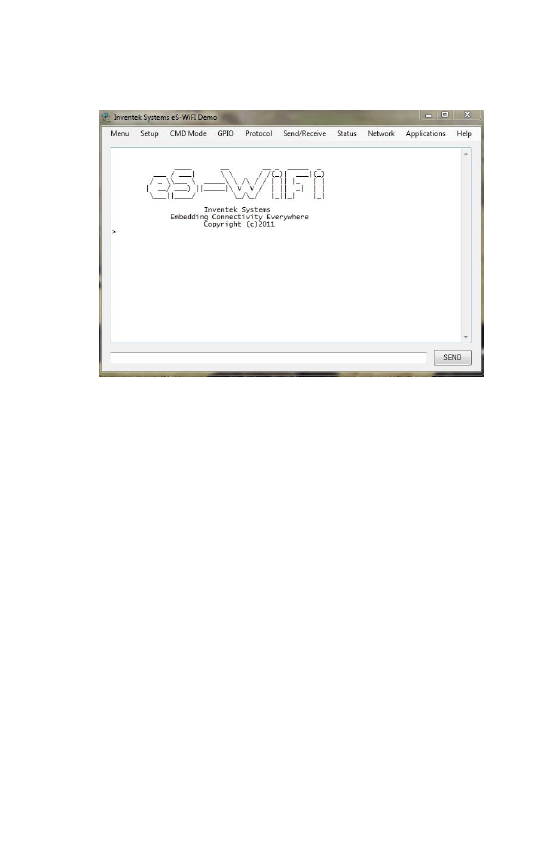

6. Press the reset button on the ISM43362-M3G-EVB evaluation
board and the following will appear:
7. The AT Command interpreter is loaded on the ISM43362-M3G-
EVB.
Type ? to view the available commands.
8. For additional information refer to the following documentation
from Inventek Systems:
ISM43362-M3G-EVB Evaluation Board Specification
AT Command set
eS-WiFi Demo software (includes EVB Drivers)
EVB Users Guide
Quick Start Guide
OrCAD Schematic Symbol
PADS Land Pattern
ISM43362-M3G-L44 Functional Specification
FCC Test Report
NDA/ SLA documents
Inventek Systems eS-WiFi ISM43362-M3G-EVB Quick Start Guide – Rev. 2
Appendix: Manual Installation Instructions:
NOTE: Driver installation occurs in THREE stages, each stage is described
in the following text.

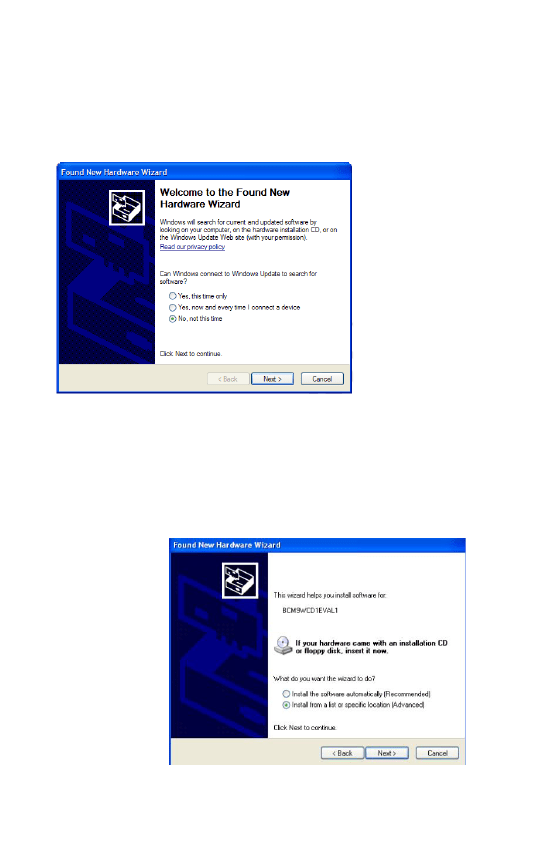

Plug the ISM43362-M3G-EVB into the development PC. The Found New
Hardware Wizard window appears.
Now perform the follow actions:
Select the checkbox : No, not this time
Click Next.
