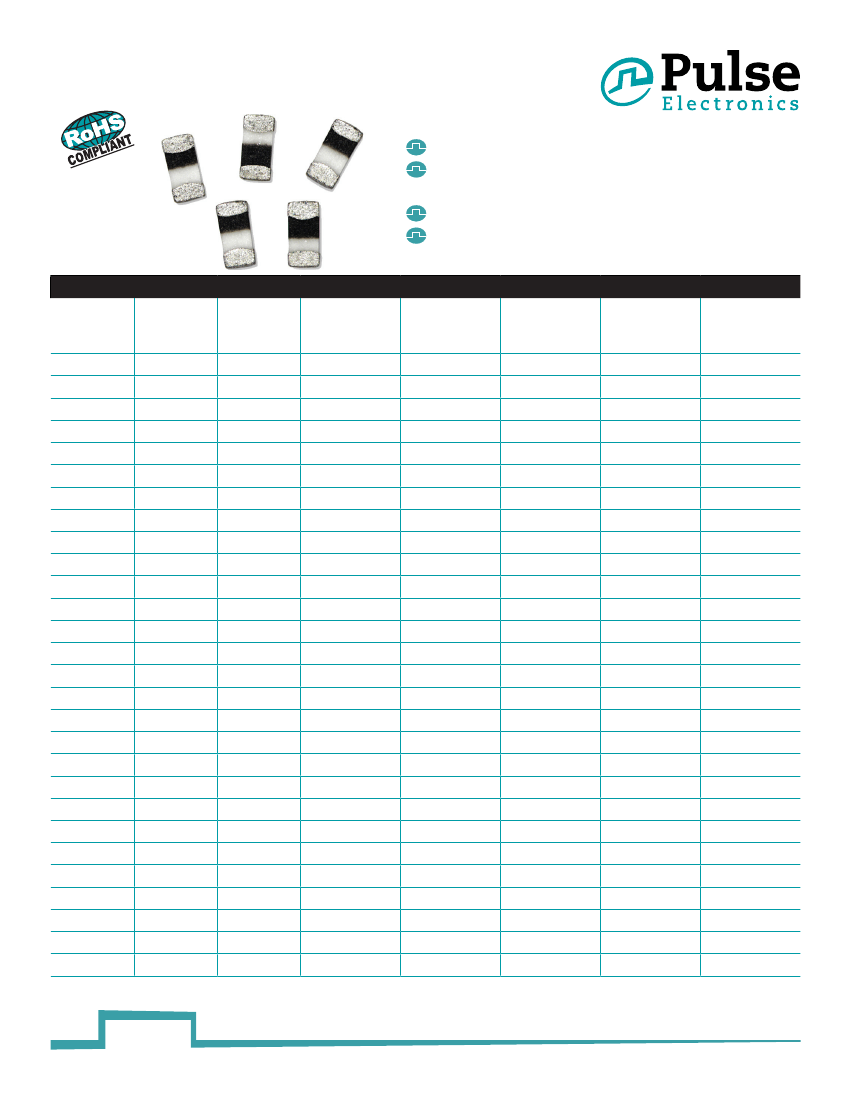

1. Inductance measured using a HP4286A RF Impedance Analyzer. (Please note
that inductance information is not stamped on part, because of the extremely
small size).
2. Q measured using a HP4291A RF Impedance Analyzer with a HP16193A Test
Fixture.
3. SRF measured using a HP8753C Network Analyzer.
4. RDC measured using a Valhalla Scientific model 4100 ATC Digital Ohm meter.
5. Based on a 15°C maximum temperature rise.
Mechanical
0201CC Series
0.006±0.002
0.15±0.05
0.80
0.012±0.001
0.3±0.03
0.30
0.024±0.001
0.60±0.03
0.012±0.001
0.3±0.03
Dimensions:
Inches
mm
0.30
( Unit in mm )
Unless otherwise specified,
all tolerances are
±
.010
0,25
USA 858 674 8100
2
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
WC705.B (12/14)
pulseelectronics.com
Super High Frequency Ceramic
RF Chip Inductors - 0603CC Series

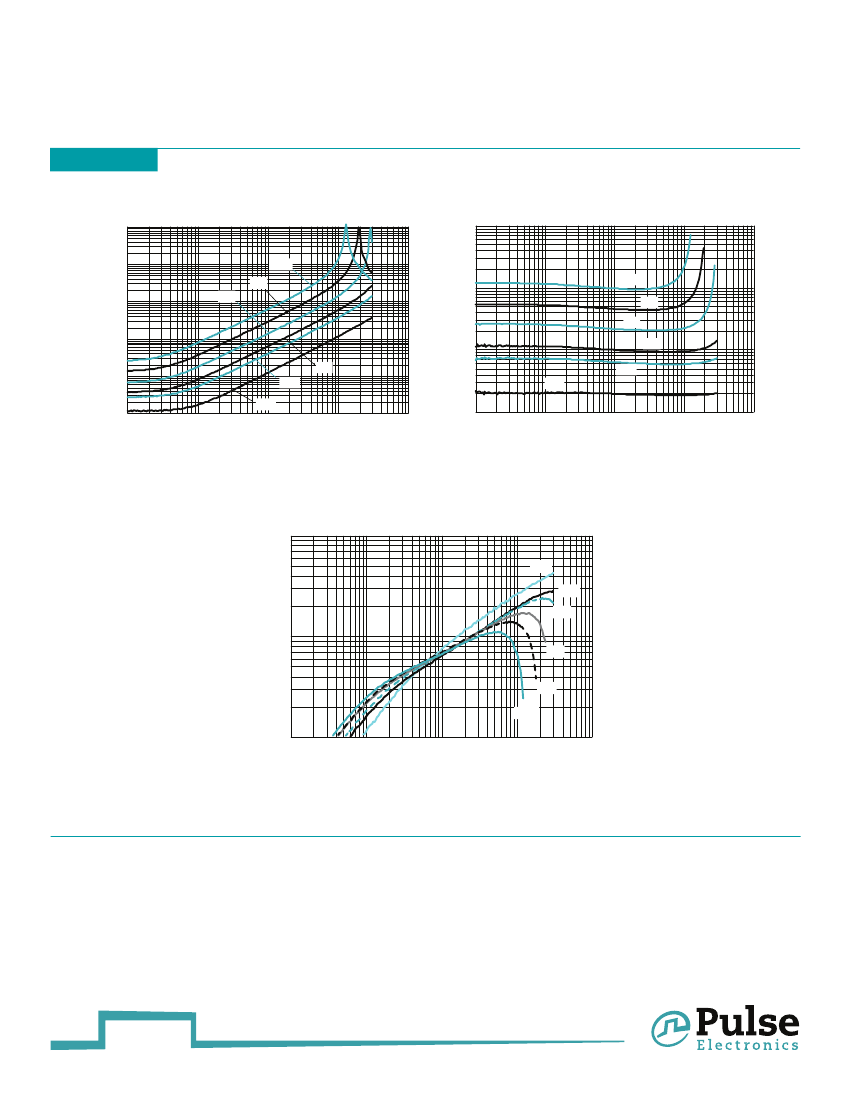

Characteristic Graphs
0201CC SERIES
Impedance v.s. Frequency Characteristics
10000
Inductance v.s. Frequency Characteristics
1000
IMPEDANCE(Ohm)
INDUCTANCE(nH)
1000
47n
22n
100n
100
100n
47n
22n
100
10
10n
6.8n
2.2n
10
6.8n
2.2n
10n
1
0.1
1
10
1
1000
10000
100
1
10
100
1000
10000
FREQUENCY(MHz)
FREQUENCY(MHz)
Q v.s. Frequency Characteristics
100
2.2n
6.8n
10n
10
22n
47n
100n
Q
1
1
10
100
1000
10000
FREQUENCY(MHz)
For More Information
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Pulse China Headquarters
Pulse North China
Pulse South Asia
Pulse North Asia
B402, Shenzhen Academy of
Room 2704/2705
135 Joo Seng Road
3F, No. 198
Aerospace Technology Bldg.
Super Ocean Finance Ctr.
#03-02
Zhongyuan Road
10th Kejinan Road
2067 Yan An Road West
PM Industrial Bldg.
Zhongli City
High-Tech Zone
Shanghai 200336
Singapore 368363
Taoyuan County 320
Nanshan District
China
Taiwan R. O. C.
Shenzhen, PR China 518057
Tel: 886 3 4356768
Tel: 858 674 8100
Tel: 49 7032 7806 0
Tel: 86 755 33966678
Tel: 86 21 62787060
Tel: 65 6287 8998
Fax: 886 3 4356823 (Pulse)
Fax: 858 674 8262
Fax: 49 7032 7806 12
Fax: 86 755 33966700
Fax: 86 2162786973
Fax: 65 6287 8998
Fax: 886 3 4356820 (FRE)
