GP2Y0AH01K0F
GP2Y0AH01K0F
High-precision Displacement
Sensor Unit
Measuring distance: 4.5 to 6.0 mm
Analog output type
■
Description
■Agency
approvals/Compliance
1. Compliant with RoHS directive(2002/95/EC)
2.
Content status of six substances specified in
“ Management Methods for Control of Pollution Caused
by Electronic Information Products Regulation ”
(popular name :
China RoHS)
(Chinese :
电子信息产品污染控制管理办法)
; refer to page 7

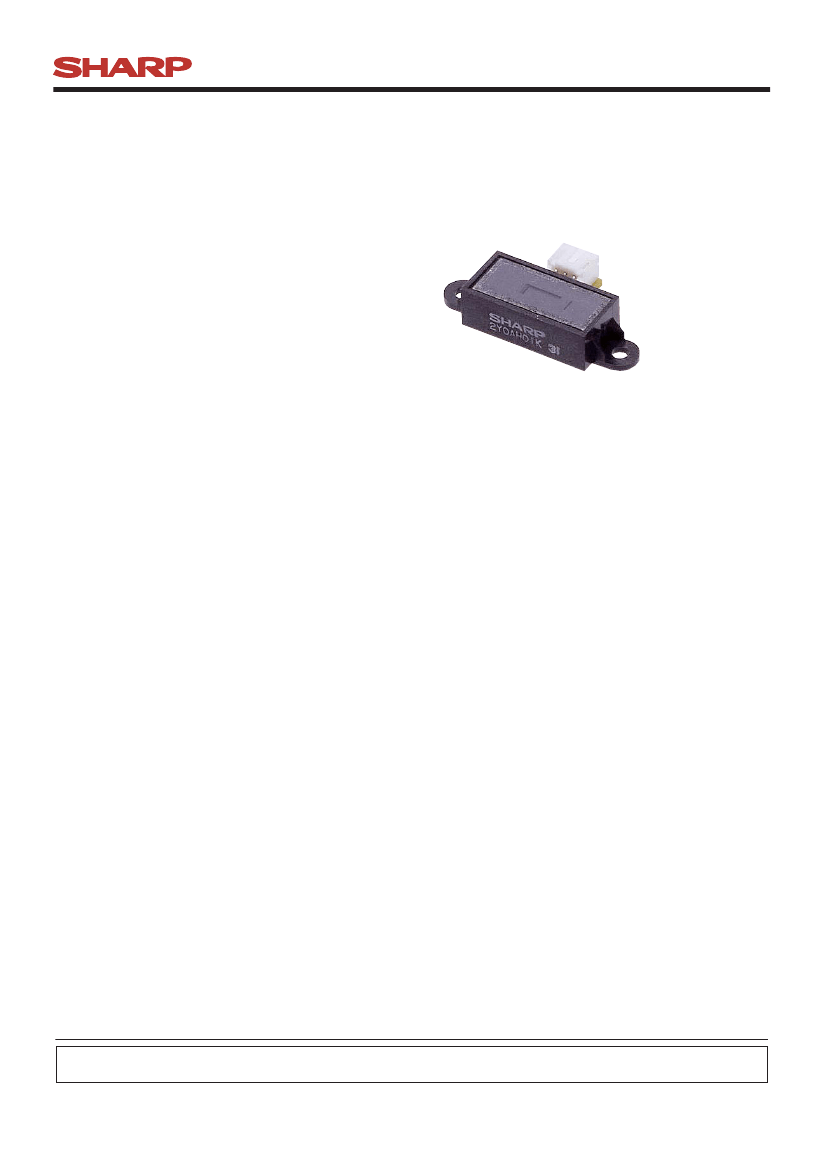

GP2Y0AH01K0F
is a distance measuring sensor unit,
composed of an integrated combination of PSD
(position sensitive detector) , IRED (infrared emitting
diode) and signal processing circuit.
The variety of the reflectivity of the object, the
environmental temperature and the operating duration
are not influenced easily to the distance detection
because of adopting the triangulation method.
This device outputs the voltage corresponding to the
detection distance. So this sensor can also be used as
a proximity sensor.
■Applications
1. Copier
2. Multi-function equipment
3. Laser beam printer
■Features
1. High-accuracy type
Distance measuring range : 4.5 to 6.0 mm
2. Analog output type
3. Package size : 27×21.2×8.5 mm
4. Consumption current : Typ. 20 mA
5. Supply voltage : 4.5 to 5.5 V
6. Resolution : 50μm
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
Sheet No.: E4-A00401EN
Date Mar.01.2007
1
©SHARP Corporation
GP2Y0AH01K0F

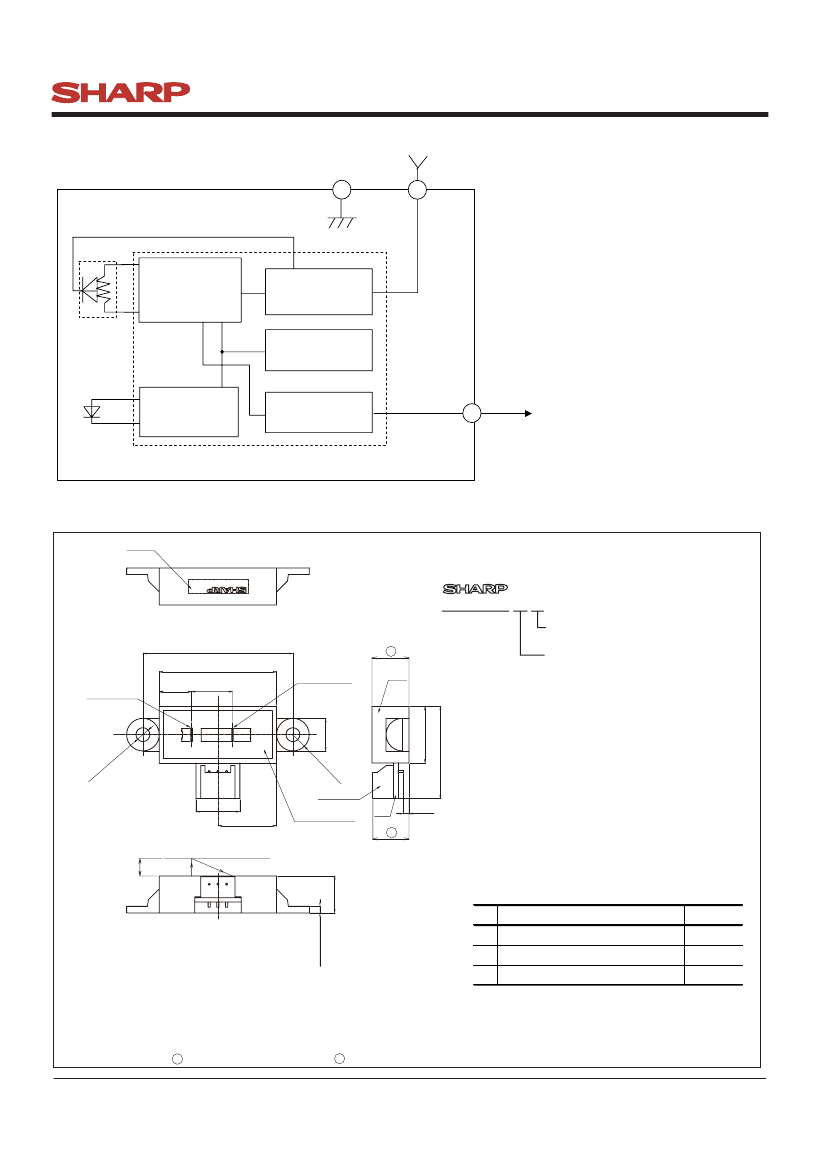

■Block
diagram
②
GND
③
V
CC
Signal
processing circuit
PSD
Voltage regulator
Oscillation circuit
LED drive circuit
LED
Output circuit
①
V
O
Distance measuring IC
■Outline
Dimensions
Stamp
(Unit : mm)
Stamp (Example)
34.5
27
*7.45
Light emitter slit
*9.4
Light receiving slit
2-7.5
13
3
3
2
3.2
-Ø
ho
le
(Note 4)
PCB
(1.3)
10.1
13.5
Connector
Surface:
Dustproof filter
A
Distance to
reflective
object
Reflective object
(Note 5)
①
③
8.5±0.15
21.2
Connector :
J.S.T.TRADING COMPANY, LTD.
S3B-PH
Note 1 : * marked dimensions are the width between the body edge
and the center of light emitting slit, and the width between
the slit centers of light emitting and light receiving slits.
Note 2 : Unspecified tolerance shall be ± 0.3 mm.
Note 3 : Dimensions in parenthesis are shown for reference
Note 4 : Do not touch the lead pins of connector at mounting.
Note 5 : Dimension of
A
may be larger than dimension of
B
.
2-1.5±0.15
2Y0AH01 F
27
2Y0AH01 F
Model name
2 7
Production month : Jan. to Sep. ; 1 to 9
Oct. ; X, Nov. ; Y, Dec. ; Z
Production year : Last digit of prod. year
B
Case
R
2-
7
3.
5
Terminal
①
Output terminal voltage
②
Ground
③
Supply voltage
Symbol
V
O
GND
V
CC
Product mass : approx. 3.0g
Sheet No.: E4-A00401EN
2
GP2Y0AH01K0F
■Absolute
Maximum Ratings
Parameter
Supply voltage
Output terminal voltage
Operating temperature
Storage temperature
Symbol
V
CC
V
O
T
opr
T
stg
(T
a
=25℃,V
CC
=5V)
Rating
-0.3 to +7
-0.3 to V
CC
+0.3
-10 to +60
-40 to +70
Unit
V
V
℃
℃
■Electro-optical
Characteristics
Parameter
Average supply current
Distance measuring
Output voltage
Output voltage differential
Symbol
I
CC
ΔL
V
O
ΔV
O
Conditions
(Note 1)
(Note 1)
L=6.0mm (Note 1)
Output voltage difference between
L=4.5mm and L=6.0mm (Note 1)
MIN.
―
4.5
0.35
1.45
(T
a
=25℃,V
CC
=5V)
TYP.
20
―
0.5
1.70
MAX.
40
6.0
0.65
2.0
Unit
mA
mm
V
V
* L : Distance to reflective object
Note 1 : Using reflective object : White paper (Made by Kodak Co., Ltd. gray cards R-27・white face, reflectance; 90%)
■Recommended
operating conditions
Parameter
Supply voltage
Symbol
V
CC
Rating
4.5 to 5.5
Unit
V
Sheet No.: E4-A00401EN
3
