AN4240-02-R-HA datasheet, PDF - EEWORLD Datasheet

AN4240-02-R-HA: DescriptionLED ACRICH WARM WHITE 3000K 2SMD; CategoryLED optoelectronic/LED; File Size258KB，14 Pages; ManufacturerSeoul Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

AN4240-02-R-HA Overview

LED ACRICH WARM WHITE 3000K 2SMD

Parameter Name	Attribute value
color	white, warm color
CCT（K）	3000K
Flux, current at 85°C - Test	-
Flux, current at 25°C - Test	50 lm (standard)
Current - Test	20mA
Voltage - Forward (Vf) (Typical)	55VAC
Lumens/Watt at different test currents	-
CRI (high color rendering index)	85 (standard)
Current - maximum	-
perspective	134°
Installation type	surface mount

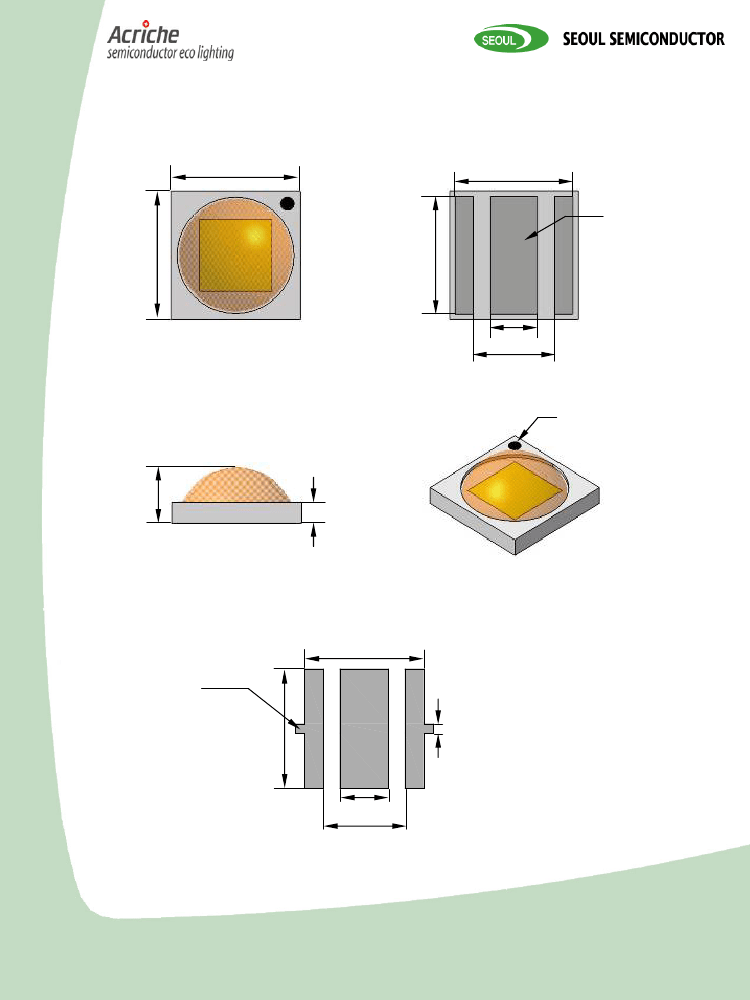

Package/casing	2828 (7070 metric)
Supplier device packaging	-
size/dimensions	0.276" long x 0.276" wide (7.00mm x 7.00mm)
Height - Installation (maximum)	0.124"（3.15mm）
Package thermal resistance	10°C/W

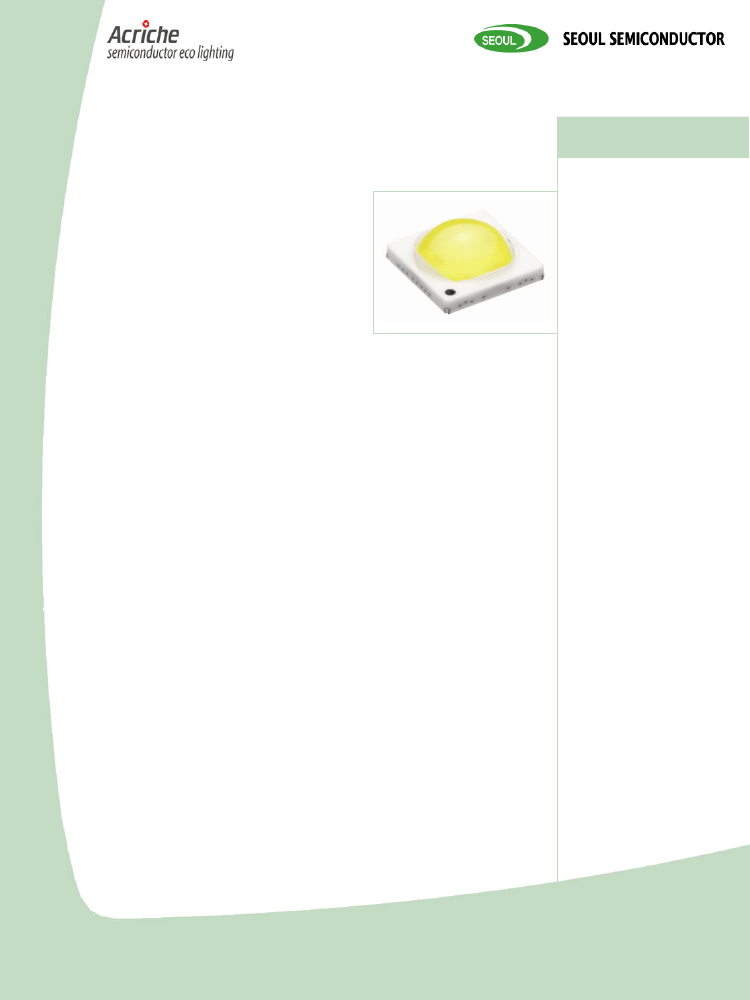

Z-Power LED X10490

Technical Data Sheet

Specification

AX42XX

SSC

Drawn

Approval

Customer

Approval

Rev. 03

September 2010

www.acriche.com

서식번호 : SSC-QP-7-07-25 (Rev.00)

	AN4240-02-R-HA	AN4240-02-R-GA	AN4240-02-R-FA	AN4240
Description	LED ACRICH WARM WHITE 3000K 2SMD	LED ACRICH WARM WHITE 3000K 2SMD	LED ACRICH WARM WHITE 3000K 2SMD	LED ACRICH WARM WHITE 3000K SMD
color	white, warm color	white, warm color	white, warm color	WARM WHITE
perspective	134°	134°	134°	134 deg
CCT（K）	3000K	3000K	3000K	-
Flux, current at 25°C - Test	50 lm (standard)	50 lm (standard)	50 lm (standard)	-
Current - Test	20mA	20mA	20mA	-
Voltage - Forward (Vf) (Typical)	55VAC	55VAC	55VAC	-
CRI (high color rendering index)	85 (standard)	85 (standard)	85 (standard)	-
Installation type	surface mount	surface mount	surface mount	-
Package/casing	2828 (7070 metric)	2828 (7070 metric)	2828 (7070 metric)	-
size/dimensions	0.276" long x 0.276" wide (7.00mm x 7.00mm)	0.276" long x 0.276" wide (7.00mm x 7.00mm)	0.276" long x 0.276" wide (7.00mm x 7.00mm)	-
Height - Installation (maximum)	0.124"（3.15mm）	0.124"（3.15mm）	0.124"（3.15mm）	-
Package thermal resistance	10°C/W	10°C/W	10°C/W	-
