369SNS-1667Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 369SNS-1667Z

369SNS-1667Z: DescriptionUNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR; CategoryPassive components inductor; File Size26KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

369SNS-1667Z Overview

UNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR

369SNS-1667Z Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TOKO, INC.
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum inductance(L)	5.6 µH
Nominal inductance(L)	5.6 µH
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Manufacturer's serial number	5KM
Number of functions	1
Number of terminals	4
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	NO
special characteristics	INDUCTANCE IS ADJUSTABLE OVER 5% FROM NOMINAL
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Test frequency	7.96 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

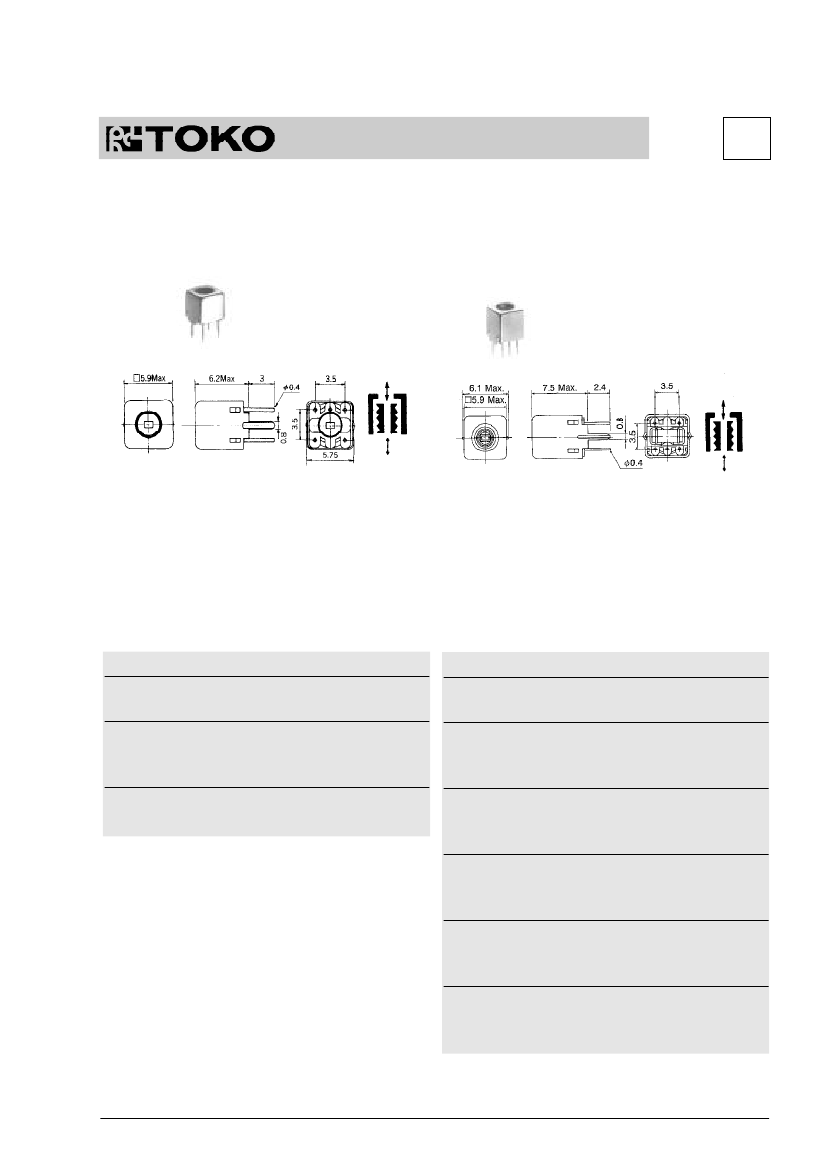

TYPE

Variable Coils

5KM

5mm TYPE 5KM

Frequency Range:

30-150MHz

Inductance Range:

0.05-10µH

Temperature Coefficient:

TC (L) 80±120ppm/°C

TC (F) 0±120ppm/°C

Internal Capacitance Value:

5-56pF

5mm TYPE 5K

Frequency Range:

30-150MHz

Inductance Range:

0.08-1.0µH

Temperature Coefficient:

220±150ppm/°C

Unit: mm

Features

• The dual, closely spaced slots on the bobbin produces

high Q, tight tolerances, stable winding impedance,

low distributed capacitance, and added stability in

humid conditions.

Features

• Available with internal capacitor.

• Spiral wound with high number of closely spaced slots on

form, to yields low distributed capacitance, low temperature

coefficient, and added stability in humid conditions.

STANDARD COILS SELECTION GUIDE

TYPE 5K

TOKO

Part

Number

294SN-T1008Z

294SN-T1009Z

294SN-T1010Z

294SN-T1011Z

294SN-T1012Z

294SN-T1013Z

294SN-T1014Z

294SN-T1015Z

Inductance

Range

(µH)

0.08±2%

0.10±6%

0.15±6%

0.22±6%

0.33±6%

0.47±6%

0.68±6%

1.00±6%

(min.)

Test

Frequency

(MHz)

75.0

45.0

30.0

STANDARD COILS SELECTION GUIDE

TYPE 5KM

TOKO

Part

Number

369SNS-1646Z

369SNS-1647Z

369SNS-1648Z

369SNS-1649Z

369SNS-1650Z

369SNS-1651Z

369SNS-1652Z

369SNS-1653Z

369SNS-1654Z

369SNS-1655Z

369SNS-1656Z

369SNS-1657Z

369SNS-1658Z

369SNS-1659Z

369SNS-1660Z

369SNS-1661Z

369SNS-1662Z

369SNS-1663Z

369SNS-1664Z

369SNS-1665Z

369SNS-1666Z

369SNS-1667Z

369SNS-1668Z

369SNS-1676Z

369SNS-1677Z

Inductance

Range

(µH)

0.10±5%

0.12±5%

0.15±5%

0.18±6%

0.22±6%

0.27±6%

0.33±6%

0.39±6%

0.47±6%

0.56±6%

0.68±6%

0.82±6%

1.00±6%

1.20±6%

1.50±6%

1.80±5%

2.20±5%

2.70±5%

3.30±6%

3.90±6%

4.70±6%

5.60±5%

6.80±5%

8.20±5%

10.00±3%

(min.)

Test

Frequency

(MHz)

7.96

369SNS-1667Z Related Products

	369SNS-1667Z	294SN-T1008Z	294SN-T1009Z	5KM	5K	369SNS-1664Z	369SNS-1659Z	369SNS-1650Z	294SN-T1011Z	294SN-T1010Z
Description	UNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR	UNSHIELDED, 0.08 uH - 1 uH, VARIABLE INDUCTOR
Reach Compliance Code	unknown	unknow	unknow	-	-	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
Nominal inductance(L)	5.6 µH	0.08 µH	0.1 µH	-	-	3.3 µH	1.2 µH	0.22 µH	0.22 µH	0.15 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	-	-	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	-	-	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR
Number of functions	1	1	1	-	-	1	1	1	1	1
Number of terminals	4	5	5	-	-	4	4	4	5	5
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	-	-	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER
shield	NO	NO	NO	-	-	NO	NO	NO	NO	NO
special characteristics	INDUCTANCE IS ADJUSTABLE OVER 5% FROM NOMINAL	INDUCTANCE IS ADJUSTABLE OVER 2% FROM NOMINAL	INDUCTANCE IS ADJUSTABLE OVER 6% FROM NOMINAL	-	-	INDUCTANCE IS ADJUSTABLE OVER 6% FROM NOMINAL	INDUCTANCE IS ADJUSTABLE OVER 6% FROM NOMINAL	INDUCTANCE IS ADJUSTABLE OVER 6% FROM NOMINAL	INDUCTANCE IS ADJUSTABLE OVER 6% FROM NOMINAL	INDUCTANCE IS ADJUSTABLE OVER 6% FROM NOMINAL
surface mount	NO	NO	NO	-	-	NO	NO	NO	NO	NO
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	-	-	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	WIRE	PRINTED WIRING PIN	PRINTED WIRING PIN	-	-	WIRE	WIRE	WIRE	PRINTED WIRING PIN	PRINTED WIRING PIN
Test frequency	7.96 MHz	75 MHz	75 MHz	-	-	7.96 MHz	7.96 MHz	50 MHz	45 MHz	75 MHz
Base Number Matches	1	1	1	-	-	-	1	1	1	1
