35YXG33M5X11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 35YXG33M5X11

35YXG33M5X11: DescriptionMINIATURE ALUMINUM ELECTROLYTIC CAPACITORS; CategoryPassive components capacitor; File Size98KB，7 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

35YXG33M5X11 Overview

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

35YXG33M5X11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	5 mm
dielectric materials	ALUMINUM
length	11 mm
Manufacturer's serial number	YXG
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	210 mA
series	YXG
Terminal pitch	2 mm

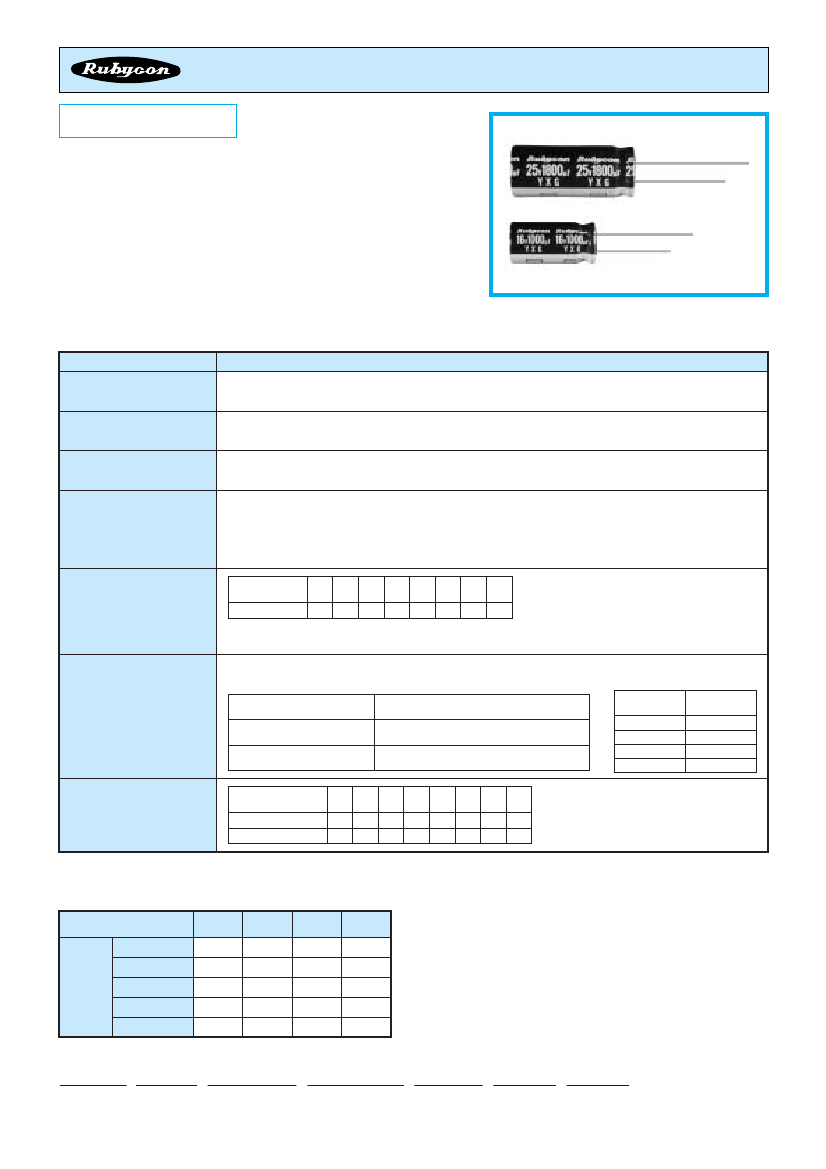

Preview

Download Datasheet

View All

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

YXG

SERIES

105℃ High ripple current. Long Life.

◆FEATURES

•

Low impedance at 100kHz with selected materials.

•

Load Life : 105℃ 3000∼6000hours.

•

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−40∼＋105℃

6.3∼100V.DC

±20％（20℃，120Hz）

I＝0.01CV

or 3μA whichever is greater.

(After 2 minutes)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I＝

Leakage Current

(μA) C＝

Rated Capacitance

(μF) V＝

Rated Voltage

(V)

Rated Voltage

6.3 10 16 25 35 50 63 100

(V)

tanδ

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

（20℃，120Hz）

Dissipation Factor(MAX)

(tanδ)

When rated capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet the following requirements.

Capacitance Change

Dissipation Factor

Leakage Current

Within ±25％ of the initial value.

Not more than 200％ of the specified value.

Not more than the specified value.

Case Dia

φD≦6.3

φD=8

φD=10

φD≧12.5

Life Time

(hrs)

3000

4000

5000

6000

Endurance

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

6.3

(V)

（−25℃）（20℃） 4

（−40℃）（20℃） 8

100

（120Hz）

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

Frequency

（Hz）

6.8∼33μF

39∼270μF

330∼680μF

820∼1800μF

2200∼18000μF

120

0.42

0.50

0.55

0.60

0.70

0.73

0.77

0.80

0.85

10k

0.90

0.92

0.94

0.96

0.98

100k≦

1.00

Coefficient

◆PART NUMBER

□□□

Rated Voltage

YXG

Series

□□□□□

Rated Capacitance

□

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size
