DEMO MANUAL DC1980A
LT3514
Triple Step-Down Switching Regulator
with 100% Duty Cycle Operation
Description

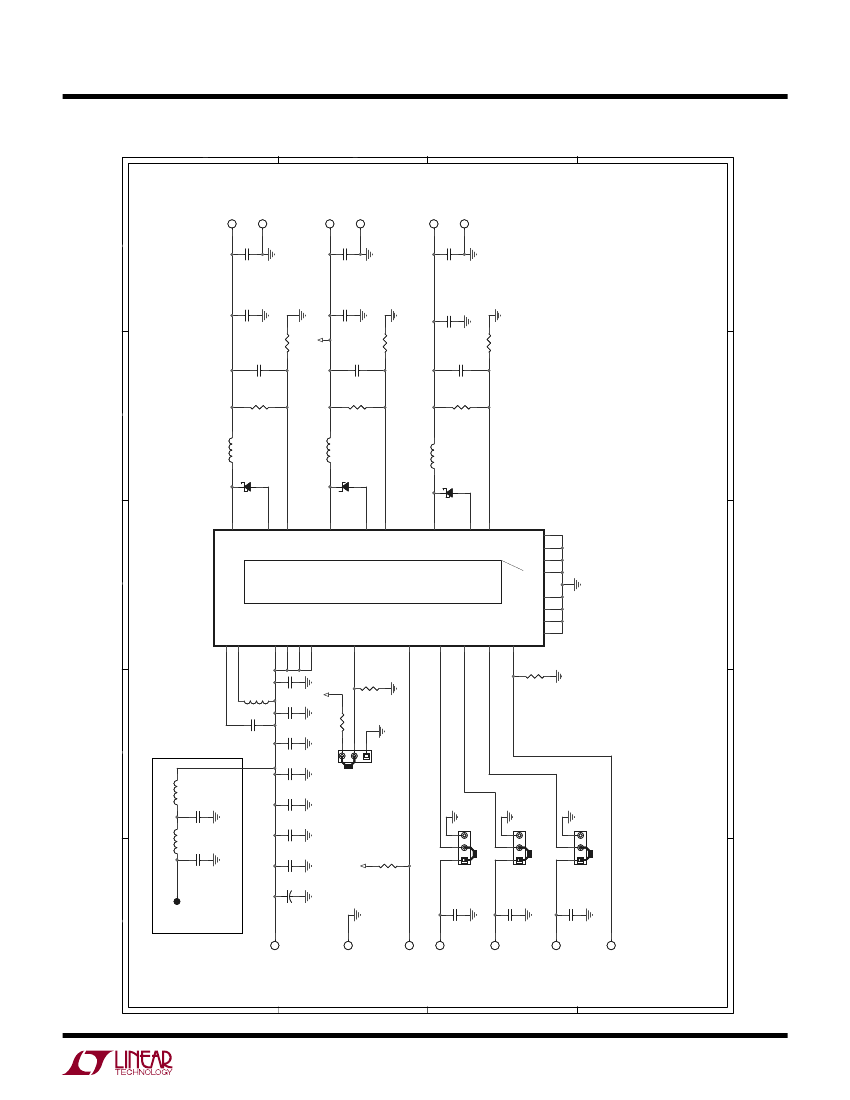

Demonstration circuit 1980A is a triple current mode PWM
step-down DC/DC converter featuring the
LT
®
3514.
The
demo circuit is designed for 5V, 3.3V and 1.8V outputs
from a 5.4V to 36V input. The current capability of 5V
and 1.8V outputs is 1A and the 3.3V output is capable of
2A output. Individual soft-start and current limit for each
output as well as frequency synchronous function simplify
the complex design of triple-output power converters.
Each converter is synchronized to either a common ex-
ternal clock input or a resistor programmable 250kHz to
2.2MHz internal oscillator. Programmable frequency allows
optimization between efficiency and external component
size. Each output can be independently disabled using its
own RUN/SS pin.
The LT3514 data sheet gives complete description of the
device, operation and application information. The data
sheet must be read in conjunction with this quick start
guide for the demo circuit 1980A.
Design files for this circuit board are available at
http://www.linear.com/demo
L,
LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
EFFICIENCY (%)
100
95
90
85
80
75
70
65
60
5
10
15
20
25
V
IN
(V)
30
35
40
DC1980a F01

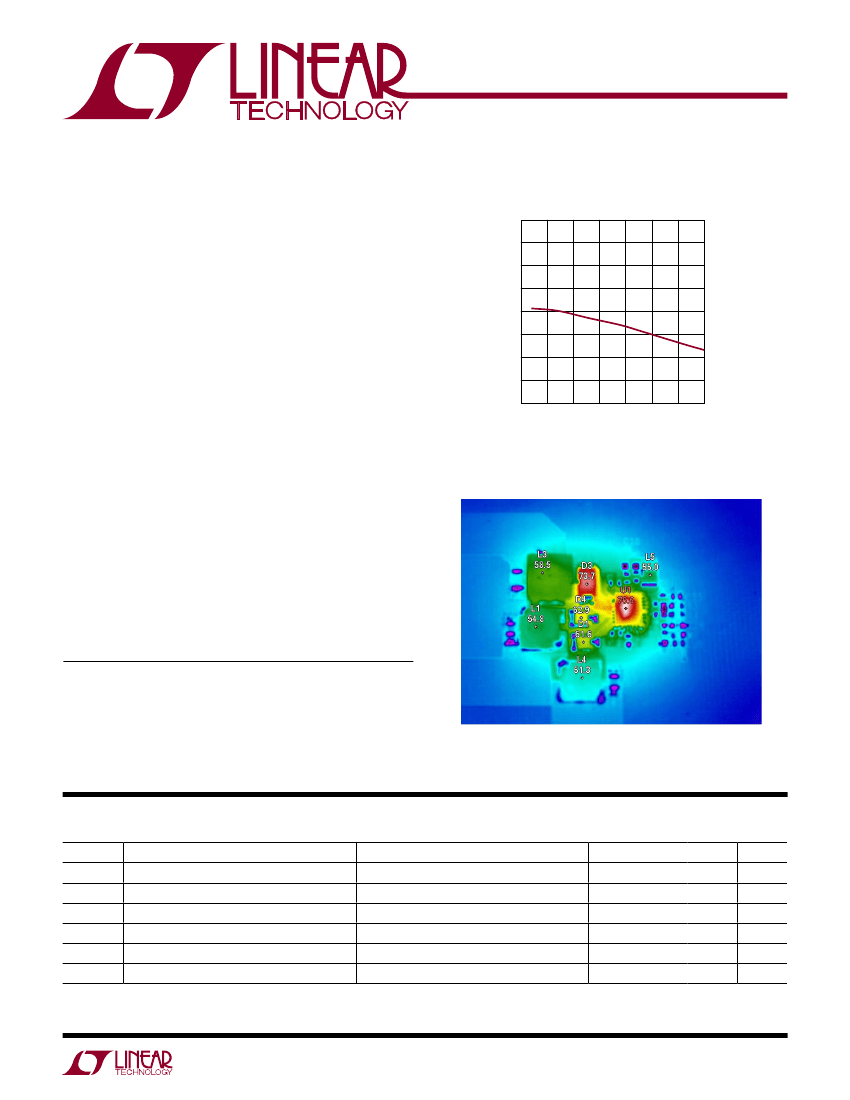

Figure 1. System Efficiency at f = 1MHz with I
OUT1
= I
OUT4
= 1A
and I
OUT3
= 2A
DC1980a F02
Figure 2. Thermal Image at V
IN
= 12V, f = 1MHz with
I
OUT1
= I
OUT4
= 1A and I
OUT3
= 2A
performance summary
SYMBOL
V
IN
V
OUT1
V
OUT3
V
OUT4
Frequency
I
OUT1
PARAMETER
Input Supply Range
Output Voltage 1
Output Voltage 3
Output Voltage 4
Switching Frequency
V
OUT1
Maximum Output Current
Specifications are at T
A
= 25°C
CONDITIONS
MIN
5.4
4.85
3.2
1.746
V
IN
= 12V
V
IN
= 5.4V ~ 36V
0.9
1
5
3.3
1.8
1
TYP
MAX
36
5.15
3.4
1.854
1.1
UNITS
V
V
V
V
MHz
A
dc1980af
1
DEMO MANUAL DC1980A
performance summary
SYMBOL
I
OUT3
I
OUT4
PARAMETER
V
OUT3
Maximum Output Current
V
OUT4
Maximum Output Current
Specifications are at T
A
= 25°C
CONDITIONS
V
IN
= 5.4V ~ 36V
V
IN
= 5.4V ~ 36V
VIN = 5.4V ~ 36V, I
OUT1
= 1A
VIN = 5.4V ~ 36V, I
OUT3
= 2A
VIN = 5.4V ~ 36V, I
OUT4
= 1A
MIN
2
1
25
25
25
TYP
MAX
UNITS
A
A
mV
mV
mV
VOUT1(AC) VOUT1 Output Ripple
VOUT3(AC) VOUT3 Output Ripple
VOUT4(AC) VOUT4 Output Ripple
Quick start proceDure
Demonstration circuit 1980A is easy to set up to evalu-

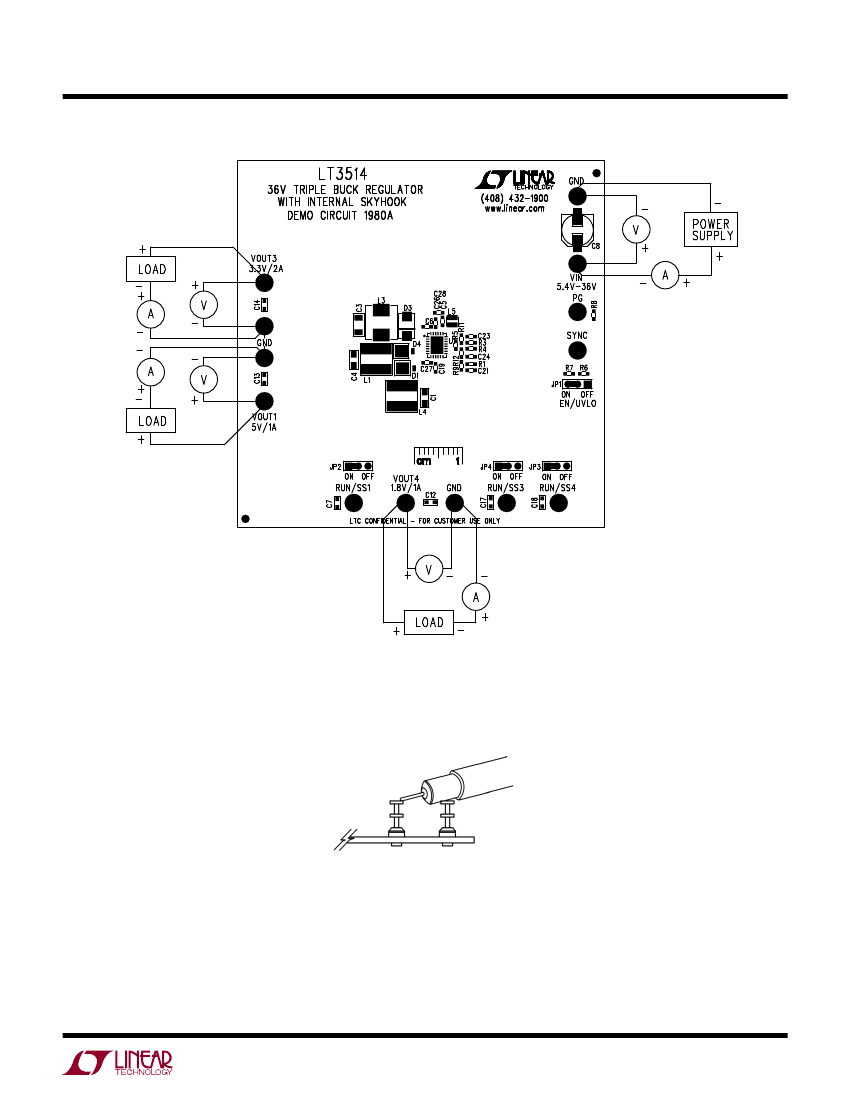

ate the performance of the LT3514. Refer to Figure 3 for
proper measurement equipment setup and follow the
procedure below:
NOTE. When measuring the input or output voltage
ripple, care must be taken to avoid a long ground lead
on the oscilloscope probe. Measure the input or output
voltage ripple by touching the probe tip directly across
the VIN or VOUT and GND terminals. See Figure 4 for
proper scope probe technique.
1. Place JP1 to JP4 on ON position.
2. With power off, connect the input power supply to VIN
and GND.
3. Turn on the power at the input.
NOTE. Make sure that the input voltage does not exceed
36V
4. Check for the proper output voltages.
NOTE. If there is no output, temporarily disconnect the
load to make sure that the load is not set too high.
5. Once the proper output voltages are established, adjust
the load within the operating range and observe the
output voltage regulation, ripple voltage, efficiency and
other parameters.
