LTE Vertical Standard Directional Panel
Antenna
PAV69278O
LTE
MUTI-‐BAND
DIRECTIONAL
PANEL
ANTENNA
698-‐960
MHz/1710-‐2700
MHz
The
PAV69278O is
a
multiband,
high
gain
directional
panel
antenna
with
vertical
polarization
that
covers
the
698-960
MHz/1710-2700
MHz,
LTE700/Cellular/PCS/AWS/
MDS
and
global
GSM900/GSM1800/UMTS/LTE2600 bands.
The
radiation
patterns
are
uniform
and
symmetrical,
providing
high level
signal
density
into
defined
coverage
zones.
This
antenna
will
greatly
enhance
the
performance
of
LTE
systems
and
is
ideal
for
indoor
or outdoor
applications.
The
antenna
includes
a
wall
mounting
bracket,
anchors
and
bolts.
The antenna can also be mast mounted
with bracket adapter and clamps.
FEATURES
•
Performance
optimized
using
Laird
proprietary
RF
optimization
tools.
•
Can be mounted
directly
to
wall
with
standard bracket or mast
mounted
with bracket adapter & clamps.
•
UV
stable,
aesthetically
compact
radome
with
excellent
flame
rating.
•
Multiple
connector
and
coax
options
available
including
fixed
Type
N(F)
and
integrated
coax
pigtail
with
Type
N(F).
•
Conformance
to
RoHS.
•
IP67 rated for dust, dirt & water ingress.
APPLICATIONS
•
In-building
or Outdoor
Wireless
Networks
•
Wireless
Terminal,
Point-‐of-‐Sale,
and
Machine-‐to-‐Machine
•
Automatic
meter
reading
•
Commercial
and
industrial
security

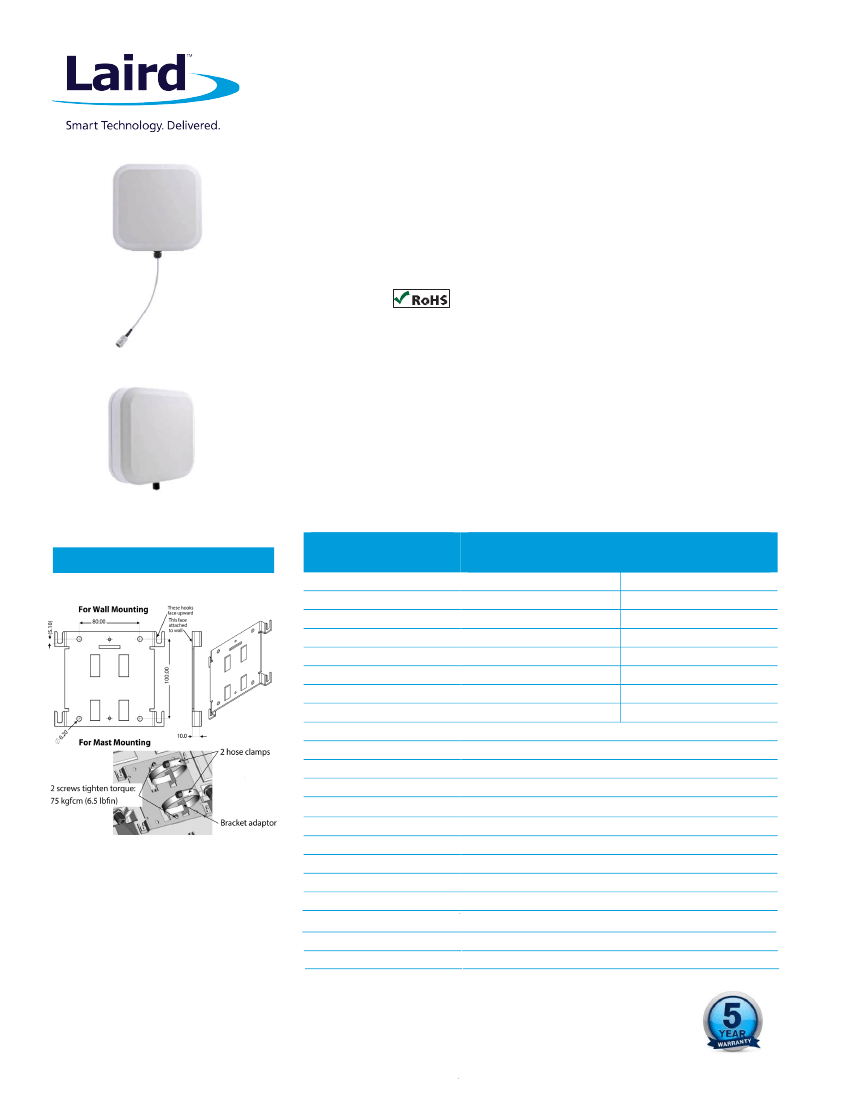

PAV69278O-30NF
PAV69278O-FNF
SPECIFICATIONS
MOUNTING OPTIONS
PARAMETER
Frequency Bands, MHz
Peak Gain, dBi (Typ)
Peak Gain, dBi (Max)
VSWR, Typ
VSWR, Max
Azimuth 3 dB Beamwidth
Elevation 3 dB Beamwidth
Front-to-Back Ratio
Nominal Impedance
Polarization
Max Power (Ambient 25
o
C)
Antenna Dimension (H x Dia)
Weight
Antenna Color
Radome
Wind Operational
Americas:
+1.847
839.6907
IAS-‐AmericasEastSales@lairdtech.com
Europe:
+44.1628.858941
IAS-‐EUSales@lairdtech.com
Asia:
+86.21.5855.0827.127
IAS-‐AsiaSales@lairdtech.com
Wind Survival
Operating Temperature
Storage
Temperature
Ingression Protection
Material
Substance
Compliance
Connector(s)
PAV69278O-30NF (pigtail w/Type N(F)
SPECIFICATION
MODEL PAV69278O
698-960
MHz
6.8
7.6
<1.8:1
<2.0:1
75
o
64
o
10 dB
50Ω
1710-2700
MHz
7.6
8.1
<1.8:1
<2.0:1
63
o
51
o
25 dB
Vertical
50 Watts
249.4 x 248.6 x 61.3 mm (9.82" x 9.8" x 2.41")
0.62 kg (1.35 lbs)
White
Luran ASA, UV Stable, UL 94-HB Material
160 km/h (100 mph)
220 km/h (136 mph)
-30
o
C to +70
o
C
-40
o
C to +85
o
C
IP67
RoHS
PAV69278O-FNF (fixed Type N (F)
www.lairdtech.com
Laird warrants to the original end user customer of its products that its products are free from defects in material and
workmanship. Subject to conditions and limitations Laird will, at its option, either repair or replace any part of its products
that prove defective by reason of improper workmanship or materials.
This limited warranty is in force for the useful
lifetime of the original end product into which the Laird product is installed. Useful lifetime of the original end product may
vary but is not to exceed five (5) years from the original date of the end product purchase.
698-‐960
MHz/1710-‐2700
MHz
LTE Vertical Standard Directional Panel
Antenna PAV69278O

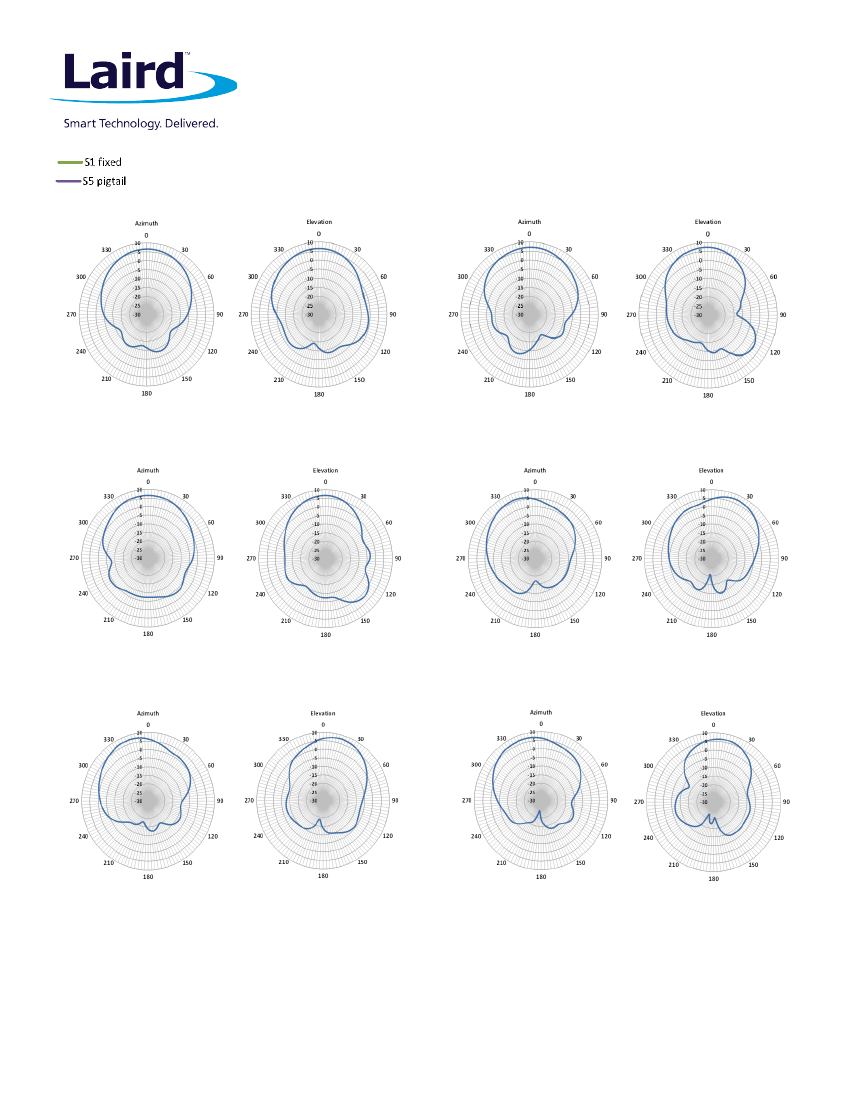

Radiation
Pattern
at
824
MHz
Radiation
Pattern
at
698
MHz
Radiation
Pattern
at
960
MHz
Radiation
Pattern
at
1710
MHz
Radiation
Pattern
at
1880
MHz
Radiation
Pattern
at
2110
MHz

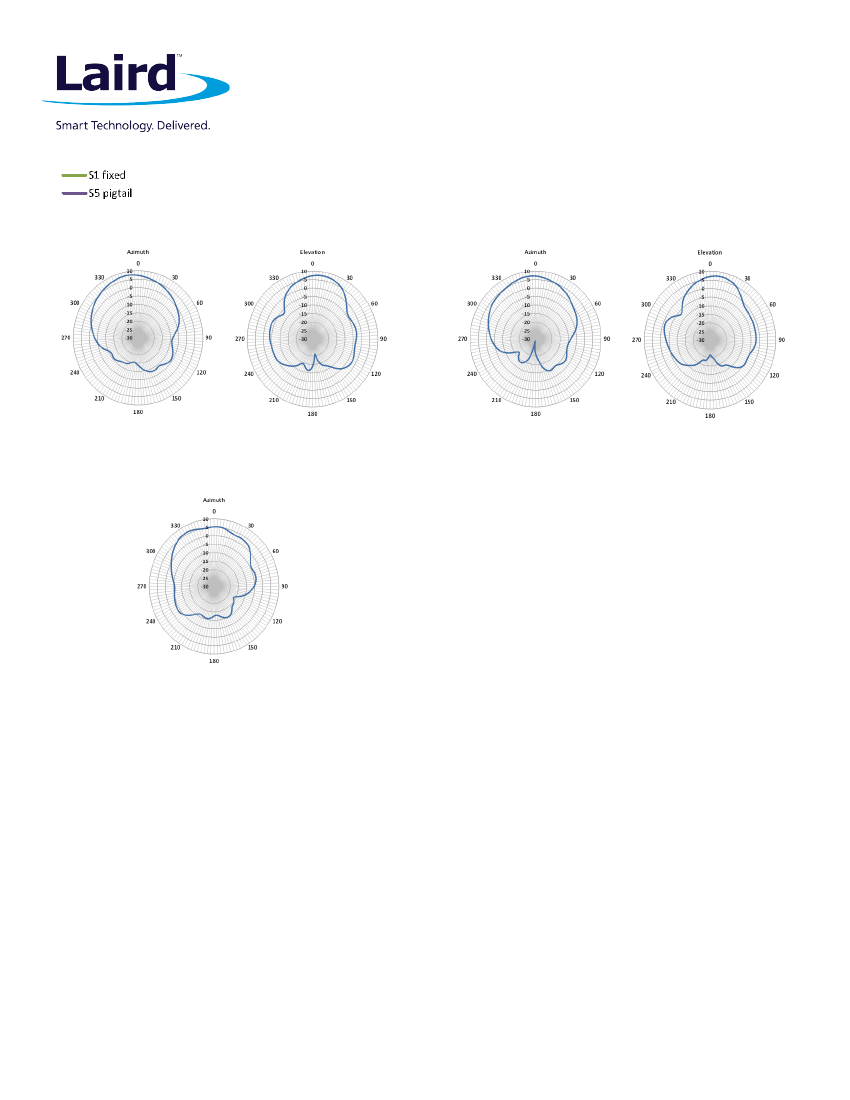

698-‐960
MHz/1710-‐2700
MHz
LTE Vertical Standard Directional Panel
Antenna PAV69278O
Radiation
Pattern
at
2305
MHz
Radiation
Pattern
at
2412
MHz
Radiation
Pattern
at
2700
MHz
ANT-DS-PAV69278O_102315
Any
information
f urnished
by
Laird
and
its
agents
is
believed
to
be
accurate
and
reliable.
All
specifications
are
s ubject
to
change
without
notice.
Responsibility
for
the
use
and
application
of
Laird
m aterials
r ests
w ith
the
e nd
user,
since
L aird
and
its
agents
cannot
be
aware
of
all
potential
uses.
Laird
m akes
no
w arranties
as
to
the
fitness,
merchantability
or
suitability
of
any
Laird
m aterials
or
products
for
any
specific
or
general
uses.
Laird,
L aird
Technologies,
Inc
or
any
of
its
affiliates
or
agents
shall
not
be
liable
for
incidental
or
consequential
damages
of
any
kind.
All
L aird
products
are
sold
pursuant
to
the
L aird
Technologies’
Terms
and
Conditions
of
s ale
in
effect
from
time
to
time,
a
copy
of
w hich
w ill
be
furnished
upon
request.
©
Copyright
2 013
Laird
Technologies,
I nc.
All
Rights
R eserved.
L aird,
L aird
Technologies,
the
Laird
Technologies
Logo,
and
other
marks
are
trademarks
or
registered
trademarks
of
L aird
Technologies,
Inc.
or
an
affiliate
company
thereof.
O ther
product
or
service
names
m ay
be
the
property
of
third
parties.
N othing
herein
provides
a
license
under
any
L aird
or
any
third
party
intellectual
property
rights.
