BY127MGP datasheet, PDF - EEWORLD Datasheet

BY127MGP: DescriptionRectifier Diode, 1 Phase, 1 Element, 1.5A, 1250V V(RRM), Silicon, DO-15,; Categorydiode Rectifier diode; File Size102KB，2 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

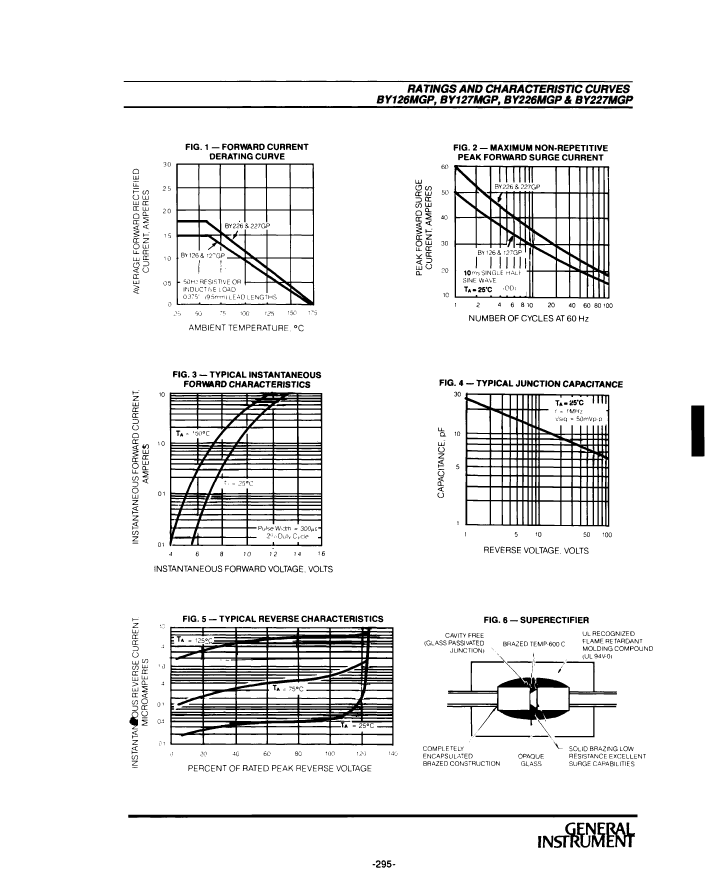

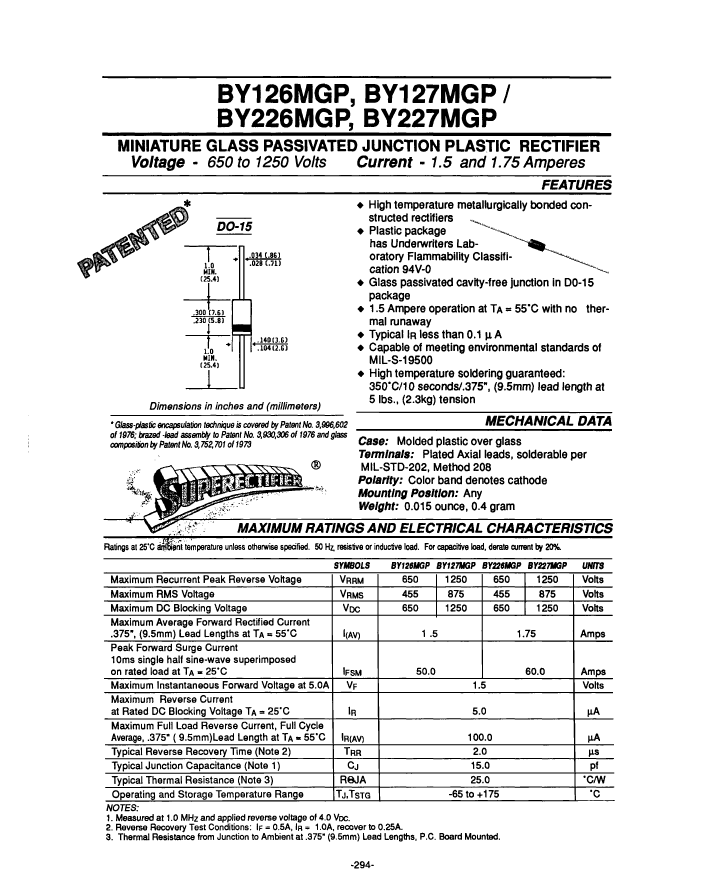

BY127MGP Overview

Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1250V V(RRM), Silicon, DO-15,

Parameter Name	Attribute value
Maker	General Instrument Corp
Reach Compliance Code	unknown
Is Samacsys	N
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1250 V
Maximum reverse recovery time	2 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

	BY127MGP	BY126MGP	BY226MGP	BY227MGP
Description	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 1250V V(RRM), Silicon, DO-15,	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 650V V(RRM), Silicon, DO-15,	Rectifier Diode, 1 Phase, 1 Element, 1.75A, 650V V(RRM), Silicon, DO-15,	Rectifier Diode, 1 Phase, 1 Element, 1.75A, 1250V V(RRM), Silicon, DO-15,
Maker	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp
Reach Compliance Code	unknown	unknown	unknown	unknown
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-15	DO-15	DO-15	DO-15
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	50 A	50 A	60 A	60 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum output current	1.5 A	1.5 A	1.75 A	1.75 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1250 V	650 V	650 V	1250 V
Maximum reverse recovery time	2 µs	2 µs	2 µs	2 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
