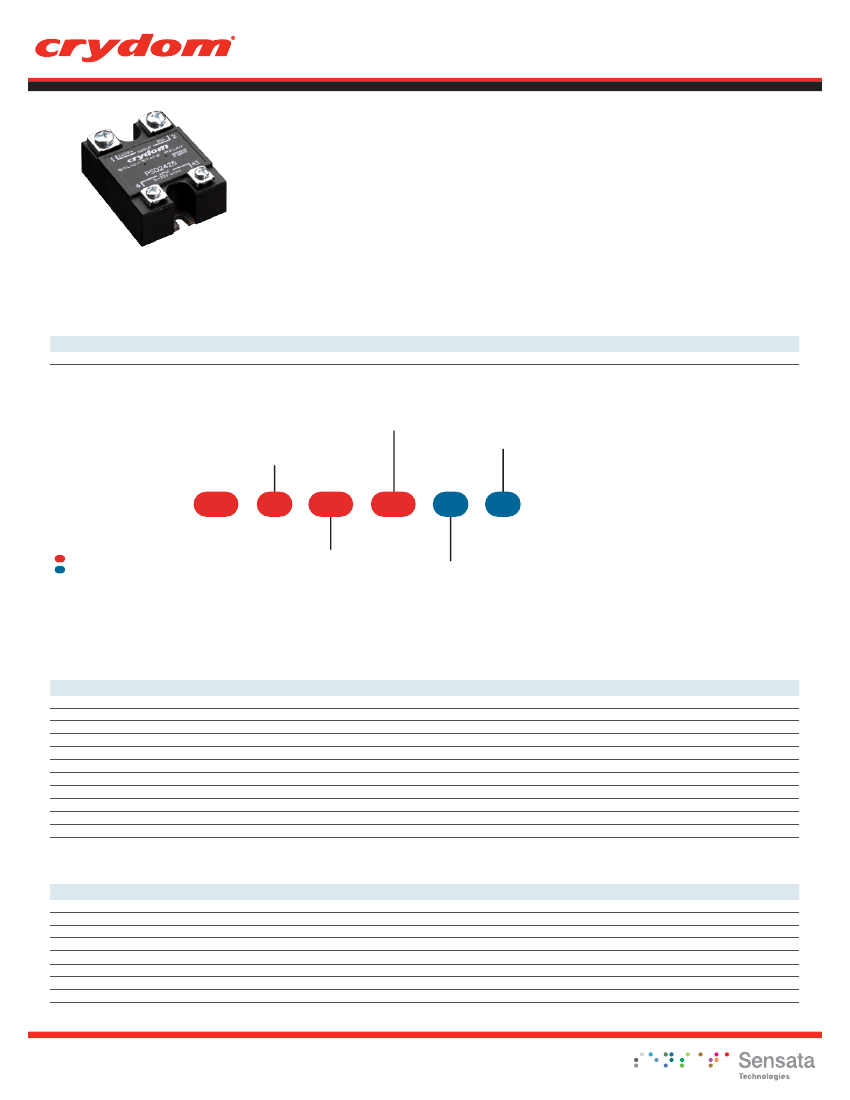

Datasheet
PS48 Series
•
Peak-fire SSR for high inductance applications; Ratings from 10A to
90A @ 380-530 VAC
•
SCR output for heavy industrial loads
•
DC Control
Panel Mount
PRODUCT SELECTION
Control Voltage
4-32 VDC
10A
PSD4810
25A
PSD4825
50A
PSD4850
90A
PSD4890
AVAILABLE OPTIONS
Control Voltage
D:
4-32 VDC
Series
Load Current
10:
10 Amps
25:
25 Amps
50:
50 Amps
90:
90 Amps
Status indicator
Blank:
No Input Status LED
G:
Input Status LED
PS
Required for valid part number
For options only and not required for valid part number
Not all part number combinations are available.
Contact Crydom Technical Support for information on
the availability of a specific part number.
D
48
10
F
G
Operating Voltage
48:
380-530 VAC
Termination
Blank:
No Faston Terminals
F:
Faston Terminals
*
OUTPUT SPECIFICATIONS
(1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec]
(2)
Maximum Load Current [Arms]
(3)
Minimum Load Current [mArms]
Maximum 1 Surge Current (50/60Hz) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec]
Minimum Power Factor (at Maximum Load)
10A
380-530
1200
10
500
10
40
134/140
1.6
1.48
89/81
0.5
25A
380-530
1200
10
500
25
40
239/250
1.6
1.02
285/259
0.5
50A
380-530
1200
10
500
50
40
597/625
1.6
0.63
1779/1621
0.5
90A
380-530
1200
10
500
90
40
1145/1200
1.6
0.28
6560/5976
0.5
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range
Maximum Turn-On Voltage
(2)
Minimum Turn-Off Voltage
Maximum Reverse Voltage
Typical Input Current
(4)
Nominal Input Impedance
Maximum Turn-On Time [msec]
Maximum Turn-Off Time [msec]
DC Control
4-32 VDC
4.0 VDC
1.0 VDC
-32
8 mADC
See note (4)
1/2 Cycle
1/2 Cycle
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
GENERAL SPECIFICATIONS
(1)
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Terminals
Recommended Terminal Screw Torque Range:
Faston
Panel Mount
Parameters
4000 Vrms
10
9
Ohm
8 pF
-40 to 80 °C
-40 to 125 °C
3.0 oz (86.5g)
Thermally conductive Epoxy
Screw and Saddle Clamps Furnished, Unmounted
6-32 Screws - 10 in/lbs. 8-32 & 10-32 Screws - 20 in/lbs.
Single pair (up to 25A) Double pair*(50A model only) *Caution: User must connect to both pairs
GENERAL NOTES
(1)
All parameters at 25°C unless otherwise specified.
(2)
Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
(3)
Heat sinking required, for derating curves see page 3.
(4)
Input circuit incorporates active current limiter.
MECHANICAL SPECIFICATIONS
1.10
(27.9)
.45
(11.4)
MOUNTING
HOLE/SLOT
0.192 (4.9) DIA.
M 4 TERMINAL
(2 PLACES )
1
1.87
(47.5)
OUTPUT
2
2.30
(58.4)
1.70
(43.2)
--
4
INPUT
+
3
BASE PLATE
.125 (3.2)
1.00
(25.4)
1.80
(45.7)
M 3 TERMINAL
(2 PLACES)
.78
(19.8)
.9
(23.0)
MOUNTING
HOLE/SLOT
0.192 (4.9) DIA.
1.10
(27.9)
.45
(11.4)
FASTON TERMINAL
.250 X .032 (2 PLCS.)
.87 REF.
(22.2)
1
1.87
(47.5)
OUTPUT
2
2.30
(58.4)
1.70
(43.2)
--
4
INPUT
+
3
BASE PLATE
.125 (3.2)
1.00
(25.4)
1.80
(45.7)
FASTON
TERMINAL
.187 X .032
(2 PLCS.)
.78
(19.8)
.900
(23.0)
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet

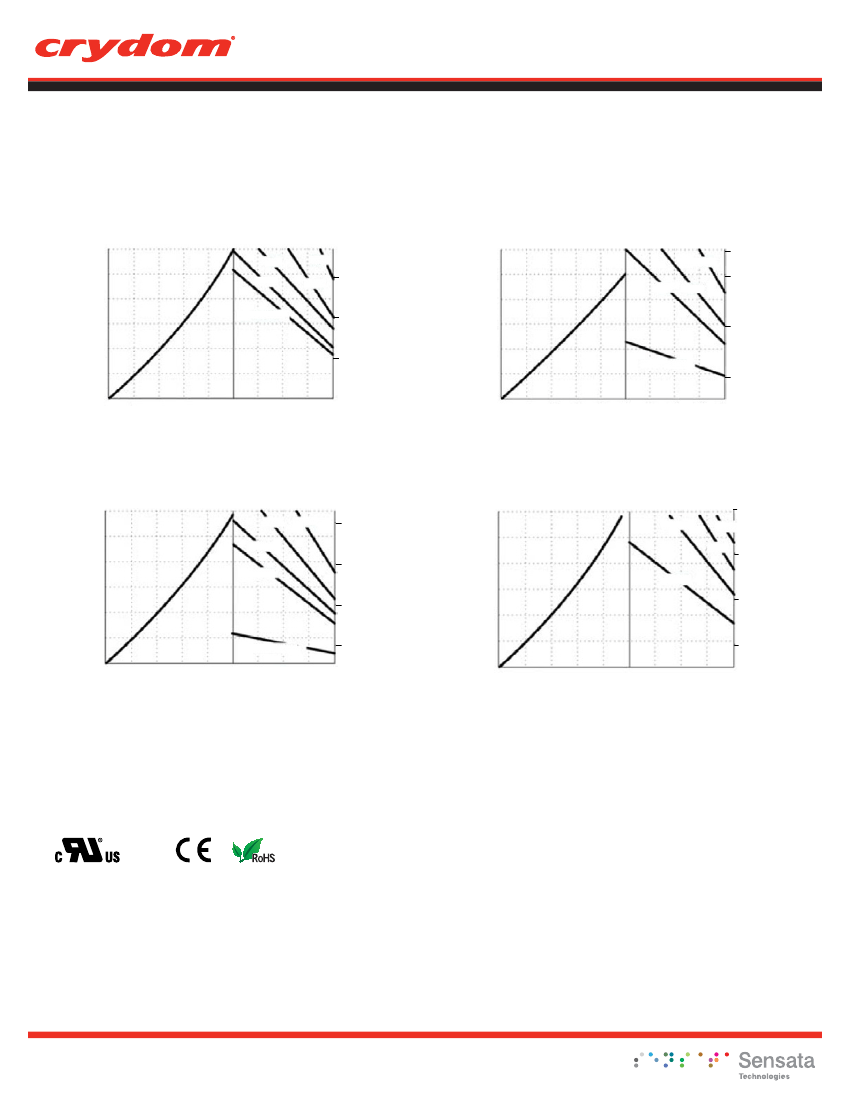

THERMAL DERATE INFORMATION
CURRENT DERATING CURVES
Panel Mount
10A
12
Power Dissipation
Base Plate Temp [°C]
7°C/W
9°C/W
3°C/W
5°C/W
25A
30
Power Dissipation
95
100
3°C/W
2°C/W
110
115
120
25
20
15
10
5
NO HEATSINK
8
NO HEATSINK
110
4
120
0
2
4
6
8
Load Current [Arms]
0
20 40 60 80
Max Ambient Temp. [°C]
0
5
10 15 20
Load Current [Arms]
25
20 40 60 80
Max Ambient Temp. [°C]
50A
60
Power Dissipation
1°C/W
1.5°C/W
.5°C/W
90A
90
Base Plate Temp [°C]
120
.5°C/W
.2°C/W
.4°C/W
90
40
2°C/W
100
110
120
80
1ºC/W
100
20
NO HEATSINK
110
40
120
0
20 40 60 80
Load Current [Arms]
0
20 40 60 80
Max Ambient Temp. [°C]
0
10 20 30 40
Load Current [Arms]
50
20 40 60 80
Max Ambient Temp. [°C]
AGENCY APPROVALS
