3510F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 3510F

Preview

3510F: DescriptionBridge Rectifier Diode, 3 Phase, 50A, 1000V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size91KB，2 Pages; ManufacturerVOLTAGE MULTIPLIERS INC.; Websitehttp://www.voltagemultipliers.com/

Download Datasheet Parametric Compare View All

3510F Overview

Bridge Rectifier Diode, 3 Phase, 50A, 1000V V(RRM), Silicon

3510F Parametric

Parameter Name	Attribute value
Objectid	1940935494
package instruction	R-XUFM-D5
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.8 V
JESD-30 code	R-XUFM-D5
Maximum non-repetitive peak forward current	375 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	150 °C
Maximum output current	50 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

Preview

Download Datasheet

View All

200 V - 1,000 V Three Phase Bridge

40.0 A - 60.0 A Forward Current

70 ns - 3000 ns Recovery Time

3502 - 3510

3502F - 3510F

3502UF - 3510UF

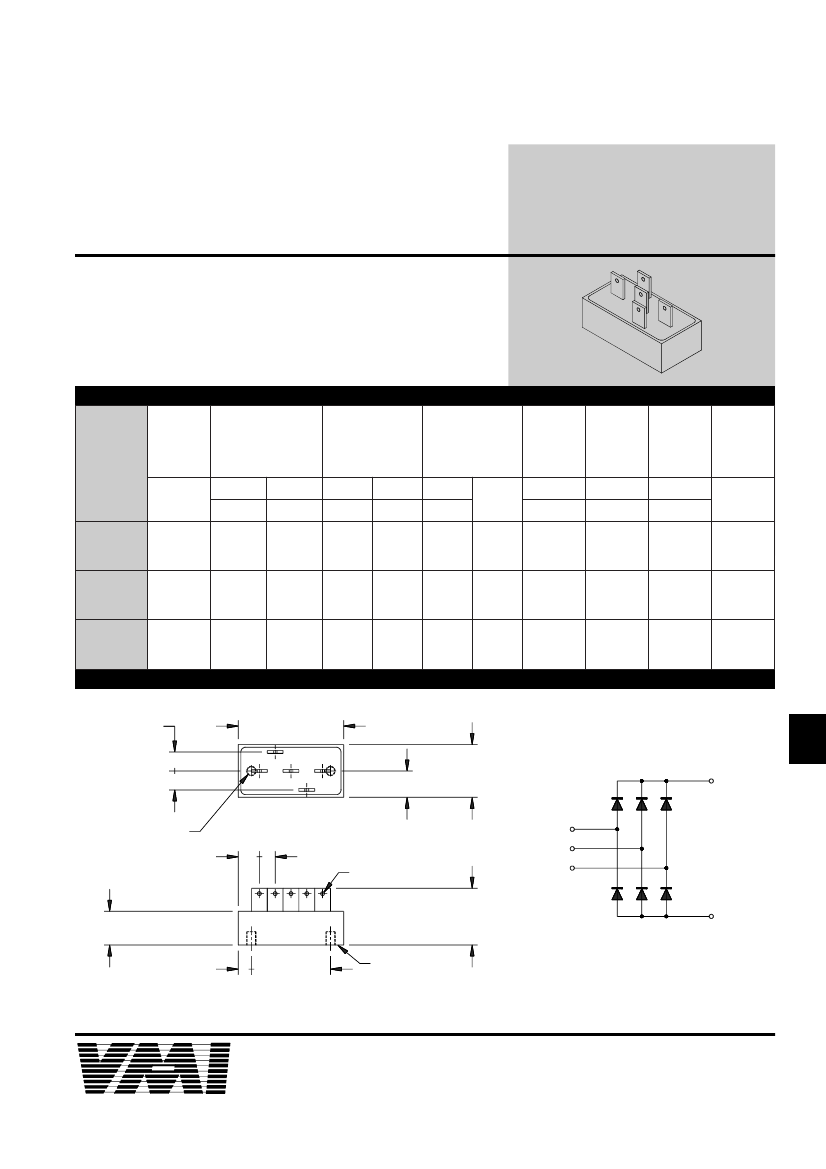

ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS

Part Number

Working

Reverse

Voltage

(Vrwm)

Average

Rectified

Current

@TC

(Io)

55°C

Volts

3502

3506

3510

3502F

3506F

3510F

3502UF

3506UF

3510UF

Amps

100°C

Amps

Reverse

Current

@ Vrwm

(Ir)

25°C

µA

100°C

µA

25°C

Volts

Amps

Forward

Voltage

1 Cycle

Surge

Current

tp=8.3ms

(Ifsm)

25°C

Amps

Repetitive

Surge

Current

(Ifrm)

25°C

Amps

Reverse

Recovery

Time

(1)

(Trr)

25°C

ns

°C / W

Thermal

Impd.

(Vf)

u

J-C

200

600

1000

200

600

1000

200

600

1000

60.0

50.0

40.0

44.0

37.0

29.0

3.0

75

1.1

1.2

1.5

1.8

1.7

2.1

18.0

375

70

3000

150

70

0.5

(1)Trr Testing: If=0.5A, Ir=1.0A, Irr=0.25A *Op. Temp. & Stg. Temp. = -55°C to +150°C Isolation Voltage: 2000V

.36(9.14)

(2 PL)

2.00(50.8)

+

.500(12.7)

10-32 UNC-2B

.25(6.35) DP

.400

(2PL)

(10.16)

AC

1.00

(25.4)

11

+

AC

_

.30(7.62) (5PL)

.071(1.80) DIA.

_

AC

.64(16.26)

.250(6.35)

1.500

(38.1)

1.25(31.75)

MAX.

Aluminum

Case

Dimensions: In. (mm) • All temperatures are ambient unless otherwise noted. • Data subject to change without notice.

VOLTAGE MULTIPLIERS INC.

8711 W. Roosevelt Ave.

Visalia, CA 93291

TEL

559-651-1402

FAX

559-651-0740

www.voltagemultipliers.com
