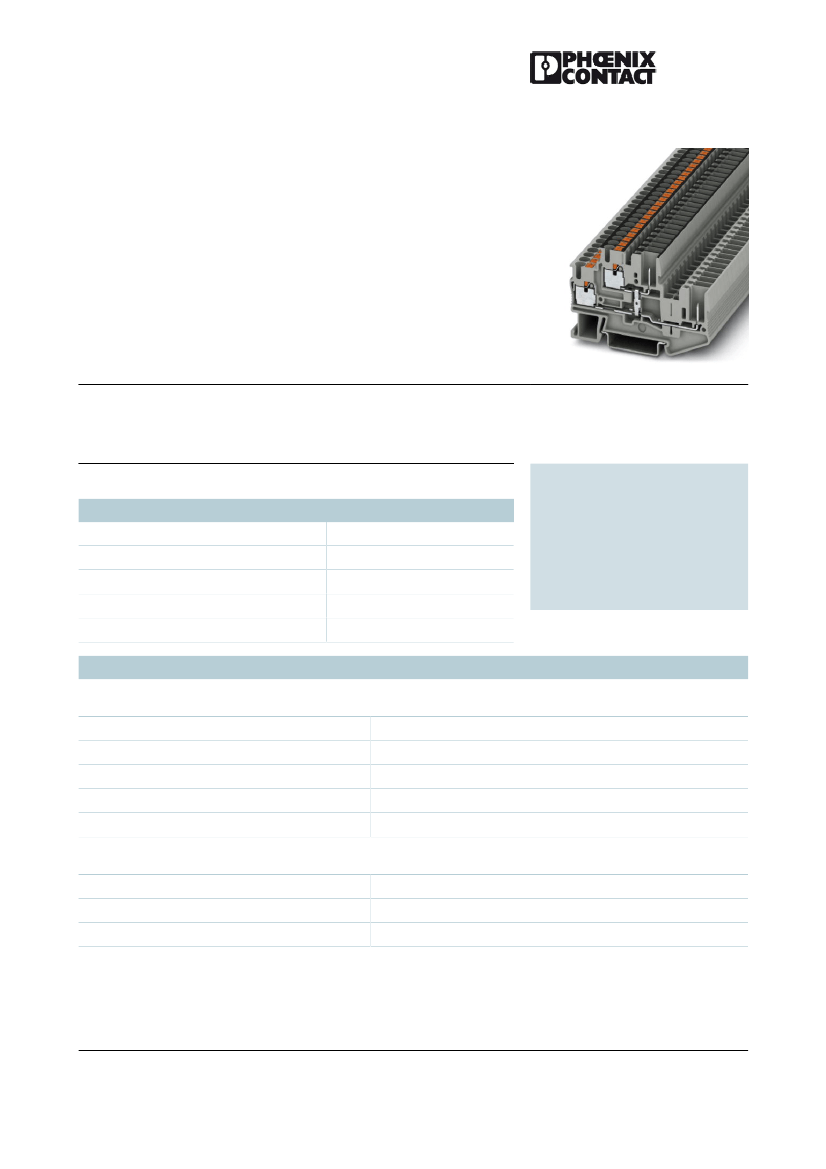

PITTB 2,5/2P-PV
Order No.: 3210907
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3210907
Feed-through modular terminal block, Cross section: 0.14 mm² - 4
mm², AWG: 26 - 12, Connection type: Leg spring connection,
Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7,5
5.2 mm
71.5 mm
47.5 mm
4
4
gray
PA
V0
4046356412056
50 pcs.
85369010
0.01137 KG
Page 265 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 7
Apr 14, 2010
PITTB 2,5/2P-PV
Order No.: 3210907
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3210907
Height NS 35/15
Technical data
Rated surge voltage
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
Accessories
Item
Assembly
3030747
ATP-STTB 4
Designation
55 mm
6 kV
III
I
IEC 61984
22 A
500 V
0.14 mm²
4 mm²
0.14 mm²
2.5 mm²
26
12
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
0.5 mm²
Leg spring connection
10 mm
A3
Description
Partition plate, Length: 88.7 mm, Width: 2 mm, Height: 53 mm,
Color: gray
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 7
Apr 14, 2010
PITTB 2,5/2P-PV
Order No.: 3210907
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3210907
3022276
CLIPFIX 35-5
Snap-on end bracket, for NS 35/7.5 or NS 35/15 DIN rail, can be
fitted with Zack strip ZB 5 and ZBF 5, terminal strip marker KLM
2 and KLM, parking facility for FBS...5, FBS...6, KSS 5, KSS 6,
width: 5,15 mm, color: gray
Spacer plate, Color: red
DIN rail, material: Aluminum, unperforated, height 7.5 mm, width
35 mm, length: 2 m
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
NS 35 DIN rail, height 7.5 mm, length 755 mm
NS35 DIN rail, height 7.5 mm, length 955 mm
NS 35 DIN rail, height 7.5 mm, length 1155 mm
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, Color: silver
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, Color: silver
DIN rail, Color: silver
DIN rail, Width: 35 mm, Height: 7.5 mm, Length: 2000 mm,
Color: silver
DIN rail, material: Galvanized, perforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Galvanized, unperforated, height 7.5 mm, width
35 mm, length: 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, Color: silver
DIN rail, Color: silver
DIN rail, material: Galvanized, unperforated, height 15 mm, width
35 mm, length: 2 m
3036725
0801704
0801762
1207640
1207653
1207666
0801733
1208131
0801681
1208115
1208128
0801377
1206421
1206434
1201895
1201730
1201714
1208144
1208157
1206586
DP PS-5
NS 35/ 7,5 AL UNPERF
2000MM
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 755MM
NS 35/ 7,5 PERF 955MM
NS 35/ 7,5 PERF 1155MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 PERF/...
NS 35/ 7,5 UNPERF 2000MM
NS 35/ 7,5 UNPERF/...
NS 35/ 7,5 UNPERF/SO/...
NS 35/ 7,5 V2A UNPERF
2000MM
NS 35/ 7,5 ZN PERF 2000MM
NS 35/ 7,5 ZN UNPERF
2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15 UNPERF/...
NS 35/15 UNPERF/SO/...
NS 35/15 ZN UNPERF 2000MM
Bridges
3030161
3030174
3030187
3030190
FBS 2-5
FBS 3-5
FBS 4-5
FBS 5-5
Cross connector/bridge, Number of positions: 2, Color: red
Cross connector/bridge, Number of positions: 3, Color: red
Cross connector/bridge, Number of positions: 4, Color: red
Cross connector/bridge, Number of positions: 5, Color: red
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 7
Apr 14, 2010
PITTB 2,5/2P-PV
Order No.: 3210907
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3210907
3030213
3030226
3038930
Marking
0800967
0800970
0818108
FBS 10-5
FBS 20-5
FBS 50-5
Cross connector/bridge, Number of positions: 10, Color: red
Cross connector/bridge, Number of positions: 20, Color: red
Cross connector/bridge, Number of positions: 50, Color: red
STP 5-2
STP 5-2/S
UC-TM 5
Double marker carrier, snaps onto the double-level spring-cage
terminal block STTB 2.5 and STTB 4, labeled with ZB 5 or ZBF 5
Double marker carrier, snaps onto the double-level spring-cage
terminal block ZFKK 1,5, with MSTBV or ICV pick-off
UniCard sheets, for labeling terminal blocks using Zack marker
strip groove,96-section, labeling with BLUEMARK X1 and CMS-
P1-PLOTTER, color: White
UniCard sheets, for labeling terminal blocks with a zack marker
strip groove, can be printed as per customer requirements
UniCard sheets, for labeling terminal blocks using a flat Zack
marker strip groove, 192-section, can be labeled with CMS-P1-
PLOTTER, color: White
Zack strip, unprinted, 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, pack is sufficient for 100 terminal
blocks, for a terminal width of 5.2 mm, color: White
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
0824581
0819796
UC-TM 5 CUS
UC-TMF 5L
1050004
ZB 5 :UNBEDRUCKT
1050295
ZB 5:SO/CMS
Plug/Adapter
3002843
3002856
3002869
3030925
3030983
Tools
1204517
SZF 1-0,6X3,5
Screwdriver, blade: 0.6 x 3.5 x 100 mm, length 180 mm
ISH 2,5/0,2
ISH 2,5/0,5
ISH 2,5/1,0
PAI-4
PS-5
Insulation stop sleeve, Color: white
Insulation stop sleeve, Color: gray
Insulation stop sleeve, Color: black
Test adapter, Color: gray
Test adapter, Color: red
Additional products
Item
Assembly
3040559
3040630
3040614
3040627
PR
PR/2
PRZ
PZ/2
Latching, Number of positions: 1, Color: orange
Latching, Number of positions: 2, Color: orange
Latching, Number of positions: 2, Color: orange
Strain relief, Number of positions: 2, Color: black
Designation
Description
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 7
Apr 14, 2010
PITTB 2,5/2P-PV
Order No.: 3210907
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3210907
General
3209824
3061169
DF-SP-H 2,5
STTB 2,5/2P-F
Cover flange, Color: gray
Screw flange, for screwing COMBI plugs, with the same structure
and pitch as the relevant COMBI terminal blocks
Plug/Adapter
3209866
PP-H 2,5/ 1
Connectors, Type of connection: Leg spring connection, Number
of positions: 1, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 5.2 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 2, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 10.4 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 3, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 15.6 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 4, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 20.8 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 5, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 26 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 6, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 31.2 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 7, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 36.4 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 8, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 41.6 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 9, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 46.8 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 1, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 5.2 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 1, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 5.2 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 1, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 5.2 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Leg spring connection, Number
of positions: 10, Cross section: 0.14 mm² - 4 mm², AWG 26 - 12,
Width: 52 mm, Height: 39 mm, Color: gray
3209879
PP-H 2,5/ 2
3209882
PP-H 2,5/ 3
3209895
PP-H 2,5/ 4
3209905
PP-H 2,5/ 5
3209918
PP-H 2,5/ 6
3209921
PP-H 2,5/ 7
3209934
PP-H 2,5/ 8
3209947
PP-H 2,5/ 9
3210062
PP-H 2,5/1-L
3210091
PP-H 2,5/1-M
3210127
PP-H 2,5/1-R
3209950
PP-H 2,5/10
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 7
Apr 14, 2010
