*"RoHS compliant" means that the product or part does not contain any of
the following substances in excess of the following maximum
concentration values in any homogeneous material, unless the
substance is in an application that is exempt under RoHS: (a) 0.1% (by
weight) for lead, mercury, hexavalent chromium, polybrominated
biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight)
for cadmium. Unless otherwise stated in writing by 3M, this information
represents 3M's knowledge and belief based on information provided
by third party suppliers to 3M.
3M Part Number
3490-1
3490-2
3490-3
3490-4
.22
[ 5.6 ]
.15
[ 3.8 ]
Dimension A ± .02
0.50 [ 12.7 ]
1.00 [ 25.4 ]
1.50 [ 38.1 ]
2.00 [ 50.8 ]
2.50 [ 63.5 ]
3.10 [ 78.7 ]
3.25 [ 82.6 ]
1.50 [ 38.1] width
2.00 [ 50.8 ] length
0.26 [ 6.6 ]
B
3490-5
3490-7
3490-6
3490-9
“No Product Labeling”
3490-10
.63
[ 16.0 ]
Plastic
Material: Gray Polyester (PBT)
C
See Note 1
.08
[ 2.0 ]
.53 Ref
[ 13.5 ]
Notes:
1. Matte finish for ink labeling.
2. Material: Polyester
Thickness: .005 ± .001
Flammability: Oxygen index minimum 28, ASTM D-2863.
3. Material: Double sided adhesive tape with liner.
4. RoHS compliant*.
Metal
Material: Stainless
Steel pasivated
.10
[ 2.5 ]
Strain Relief
3448-X0XX
XX= ‘‘Contact Quantity''
of Socket:
(i.e. 50 for
50 Position
Strain Relief)
Note:
1. The notch is non-existent on 40 position and larger.
2. RoHS* compliant
Type:
2 = Metal
10-60 Position
3 = Plastic
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.0.
±.01
.00.
±..005
[ ] Dimensions for Reference Only
TS-0720-E
Sheet 1 of 1
Date Modified: April 3, 2013
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Accessories

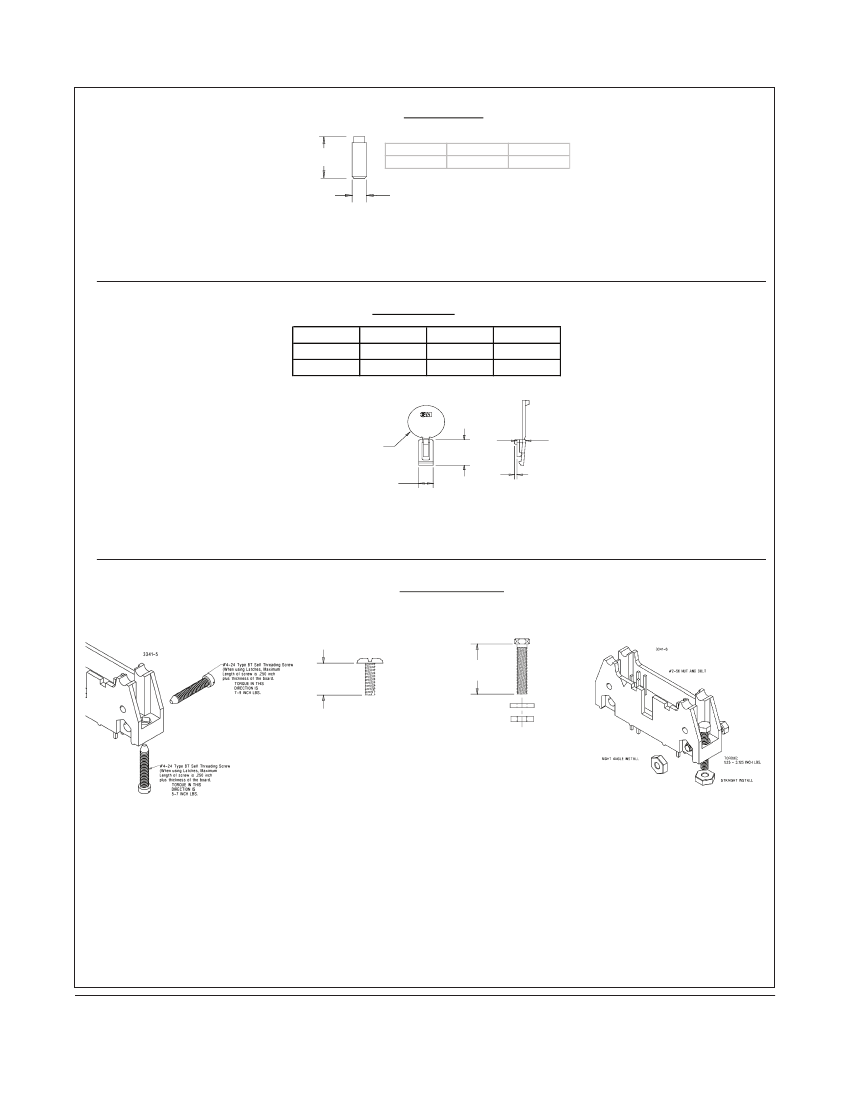

.100" x .100" Wiremount Socket
Polarizing Post
.318
[8.08]
.100 Dia
[2.54]
Note: Insert Post into one mounting hardware hole on
bottom of header. Set post to protrude .115” [2.92]
3 2 0 1 -4
3 2 0 1 -5
LCP
PBT
B la c k
G ra y
Polarizing Keys
Dim A
N3518
3518
LCP
PBT
Blac k
Gray
.02
.02
Breakaway Tab
.34 Ref
[8.6]
.15
[3.8]
A
.09
[2.3]
Note: #2216 B/A Scotchweld can be used to adhere keys.
Mounting Hardware
3341-5
(Installed from bottom of board)
3341-6
(Must be inserted prior to latch on
vertical headers)
.31
[7.9]
.50
[12.7]
Panhead Thread Cutting Screw:
#4-24 X 5/16”
Type: USA Std BT, Federal BG
Hex Head Bolt, Nut and Washer
Bolt - #2-56 X 1/2”
3341-5 & 6
Material - Stainless Steel
TS-0720-E
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M is a trademark of 3M Company.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
