3M
™

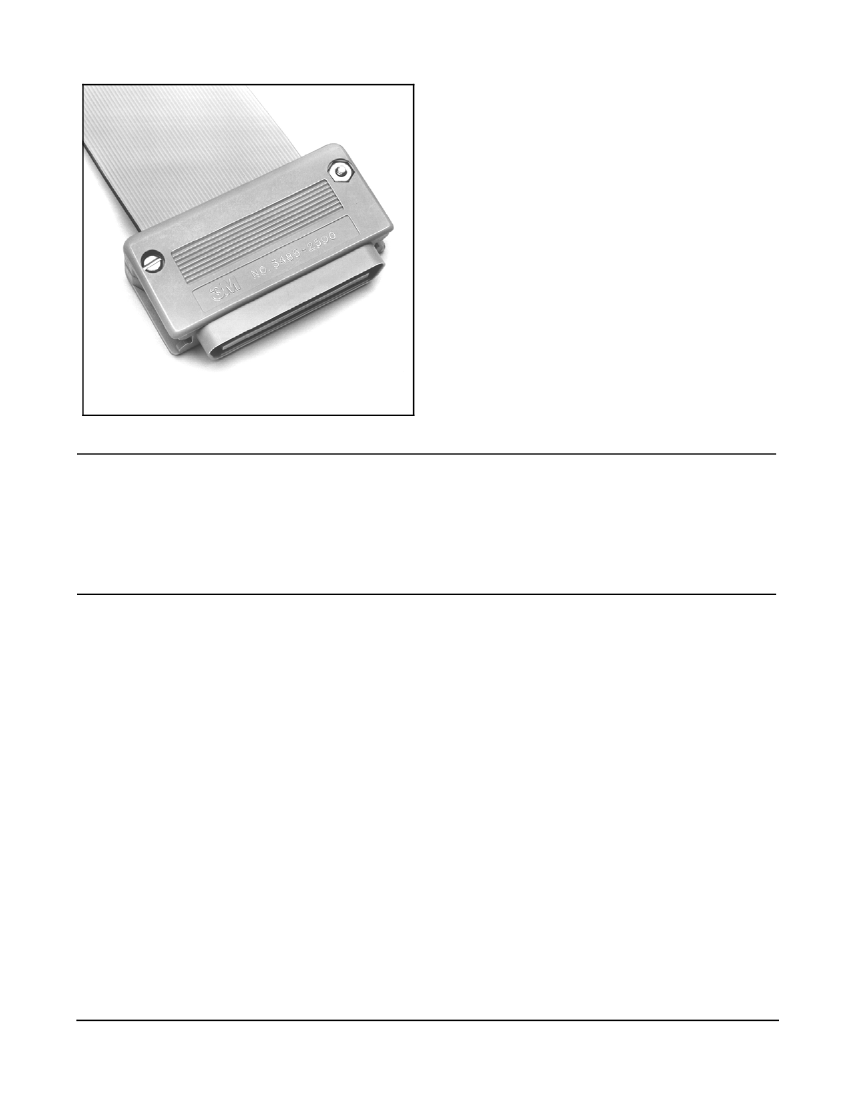

D Ribbon Junction Shell
Plastic
•
•
•
•
•
•
Uses standard hardware
Lightweight, compact size
Low profile
Full family of sizes
Accepts flat and round cables
RoHS* compliant
Date Modified: February 22, 2005
TS-0028-10
Sheet 1 of 2
Physical
Shell
Material: Glass Filled Ployester (PBT)
Flammability: UL 94V-0
Hardware Included:
Screw 6-32
×
7/8 Pan Hd., Zinc Plated Steel (2)
Marking:
Hex Nut 6-32 Zinc Plated Steel (2)
Environmental
Temperature Rating:
-55°C to +105°C
*RoHS = Directive 2002/95/EC,
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
D Ribbon Junction Shell
Plastic
In c h
[m m ]
T o le ra n c e U n le s s N o te d
.0
in c h
± .1
.0 0
.0 0 0
± .0 1 ± .0 0 5
Contact
Quantity
14
24
36
50
Dimensions
A
1.76 [ 44.7 ]
2.19 [ 55.6 ]
2.70 [ 68.6 ]
3.29 [ 83.6 ]
B
1.27 [ 32.3 ]
1.70 [ 43.2 ]
2.21 [ 56.1 ]
2.80 [ 71.1 ]
D Dia
.30 [ 7.6 ]
.32 [ 8.1 ]
.34 [ 8.6 ]
.36 [ 9.1 ]
E Dia
.21 [ 6.9 ]
.29 [ 7.4 ]
.31 [ 7.9 ]
.33 [ 8.4 ]
[ ] D im e n s io n s fo r R e fe re n c e
O n ly
3485-XXXXR ( Round Cable )
D
E
3485-1700R ( Only )
3485-XXXXF ( Flat Cable )
.100
[ 2.54 ]
1.00
[ 25.4 ]
.50
[ 12.7 ]
.50
[ 12.7 ]
1.52
[ 38.6 ]
.312 Dia
[ 7.92 ]
B
A
Notes:
1. Only the plastic 3M D Ribbon Connectors can be used with this junction shell.
2. With or without strain relief on connector.
Ordering Information
3485-XX00X
Connector Quantity:
18 = 14 Position
17 = 24 Position
28 = 36 Position
25 = 50 Position
Cable Type:
F = Flat Cable
R = Round Cable
TS-0028-10
Sheet 2 of 2
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related
to 3M’s products are based on information believed to be reliable,
but the accuracy or completeness is not guaranteed. Before using
this product, you must evaluate it and determine if it is suitable
for your intended application. You assume all risks and liability
associated with such use. Any statements related to the product
which are not contained in 3M’s current publications, or any
contrary statements contained on your purchase order shall have
no force or effect unless expressly agreed upon, in writing, by an
authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture
for a period of 1 year from the time of purchase.
3M MAKES NO
OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
If this product is defective within
the warranty period stated above, your exclusive remedy shall be,
at 3M’s option, to replace or repair the 3M product or refund the
purchase price of the 3M product.
Except where prohibited by
law, 3M will not be liable for any indirect, special, incidental or
consequential loss or damage arising from this 3M product,
regardless of the legal theory asserted.
3
Electronic Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
www.3M.com/esd
Minimum 10%
Post-consumer Fiber
Printed in USA.
© 3M 2005
