JANTX1N3957 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> JANTX1N3957

JANTX1N3957: DescriptionD MET 1A STD 1KV HR; CategoryDiscrete semiconductor diode; File Size91KB，2 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

JANTX1N3957 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JANTX1N3957	-	-	View	Buy Now

JANTX1N3957 Overview

D MET 1A STD 1KV HR

JANTX1N3957 Parametric

Parameter Name	Attribute value
Parts packaging code	DO-41
package instruction	SIMILAR TO DO-41, 2 PIN
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-41
JESD-30 code	O-XALF-W2
Maximum non-repetitive peak forward current	20 A
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Certification status	Qualified
Guideline	MIL-19500/228J
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

POWER DISCRETES

Description

Quick reference data

V =

1N3611, 1N3612, 1N3613,

1N3614, 1N3957

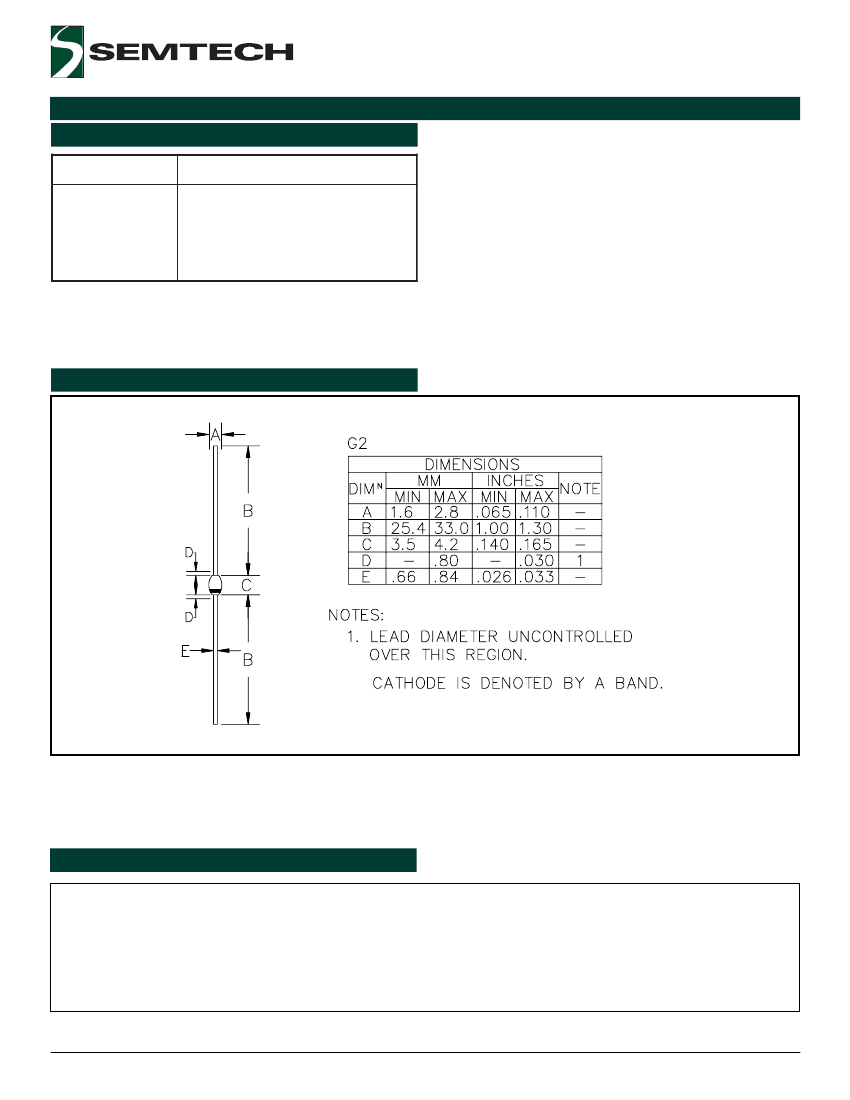

Axial Leaded Hermetically Sealed

Standard Recovery Rectifier Diode

Features

Low reverse leakage current

Hermetically sealed in Metoxilite fused metal oxide

Good thermal shock resistance

Low forward voltage drop

Avalanche capability

These products can be supplied as JANTX levels.

200 - 1000 V

1.0A

2µS

1.1V

Electrical Specifications

Electrical specifications @ T

= 25°C unless otherwise specified.

Types

RWM

FSM

S TG

an d T

L=.375

inch

(9.53mm)

At: T

25°C

= 1A

At: T

+100°C

(1)(2)

At: T

+150°C

(1)(2)

= +25°C

= 1 A dc

= 8.0ms

RWM,

= 25°C

0.5A I

1.0A I

recover to

0.25A I

(REC)

µS

°C

-65 to +175

°C/W

V(pk)

1N3611

1N3612

1N3613

1N3614

1N3957

200

400

600

800

1000

1.1

A dc

mA dc

300

A(pk)

µA

0.5

Notes:

(1) From I

rating is independent of heat sinking, special mounting, or leads of the device.

(2) Derate linearly at 13.3mA between T

= +100°C and T

= +175°C

Revision: June 19, 2006

www.semtech.com

JANTX1N3957 Related Products

	JANTX1N3957	JANTX1N3611	JANTX1N3612	P-0505H2803BBTP	JANTX1N3614
Description	D MET 1A STD 1KV HR	D MET 1A STD 200V HR	D MET 1A STD 400V HR	Fixed Resistor, Thin Film, 0.15W, 280000ohm, 75V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 0505, CHIP	D MET 1A STD 800V HR
package instruction	SIMILAR TO DO-41, 2 PIN	SIMILAR TO DO-41, 2 PIN	SIMILAR TO DO-41, 2 PIN	CHIP	SIMILAR TO DO-41, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	not_compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	155 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-55 °C	-65 °C
Package form	LONG FORM	LONG FORM	LONG FORM	SMT	LONG FORM
surface mount	NO	NO	NO	YES	NO
Parts packaging code	DO-41	DO-41	DO-41	-	DO-41
Contacts	2	2	2	-	2
Shell connection	ISOLATED	ISOLATED	ISOLATED	-	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE
Diode component materials	SILICON	SILICON	SILICON	-	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	-	1 V
JEDEC-95 code	DO-41	DO-41	DO-41	-	DO-41
JESD-30 code	O-XALF-W2	O-XALF-W2	O-XALF-W2	-	O-XALF-W2
Number of components	1	1	1	-	1
Maximum output current	1 A	1 A	1 A	-	1 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	-	ROUND
Certification status	Qualified	Qualified	Qualified	-	Qualified
Guideline	MIL-19500/228J	MIL-19500/228J	MIL-19500/228J	-	MIL-19500/228J
Maximum repetitive peak reverse voltage	1000 V	200 V	400 V	-	800 V
Terminal form	WIRE	WIRE	WIRE	-	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	-	AXIAL
Base Number Matches	1	1	1	-	1
Maker	-	SEMTECH	SEMTECH	-	SEMTECH
Is Samacsys	-	N	N	-	N
