51704-10401204B0LF: DescriptionV/T HDR POWERBLADE; CategoryThe connector The connector; File Size271KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51704-10401204B0LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51704-10401204B0LF	-	-	View	Buy Now

51704-10401204B0LF Overview

V/T HDR POWERBLADE

51704-10401204B0LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Factory Lead Time	6 weeks
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN (78) OVER NICKEL (50)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	51704
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

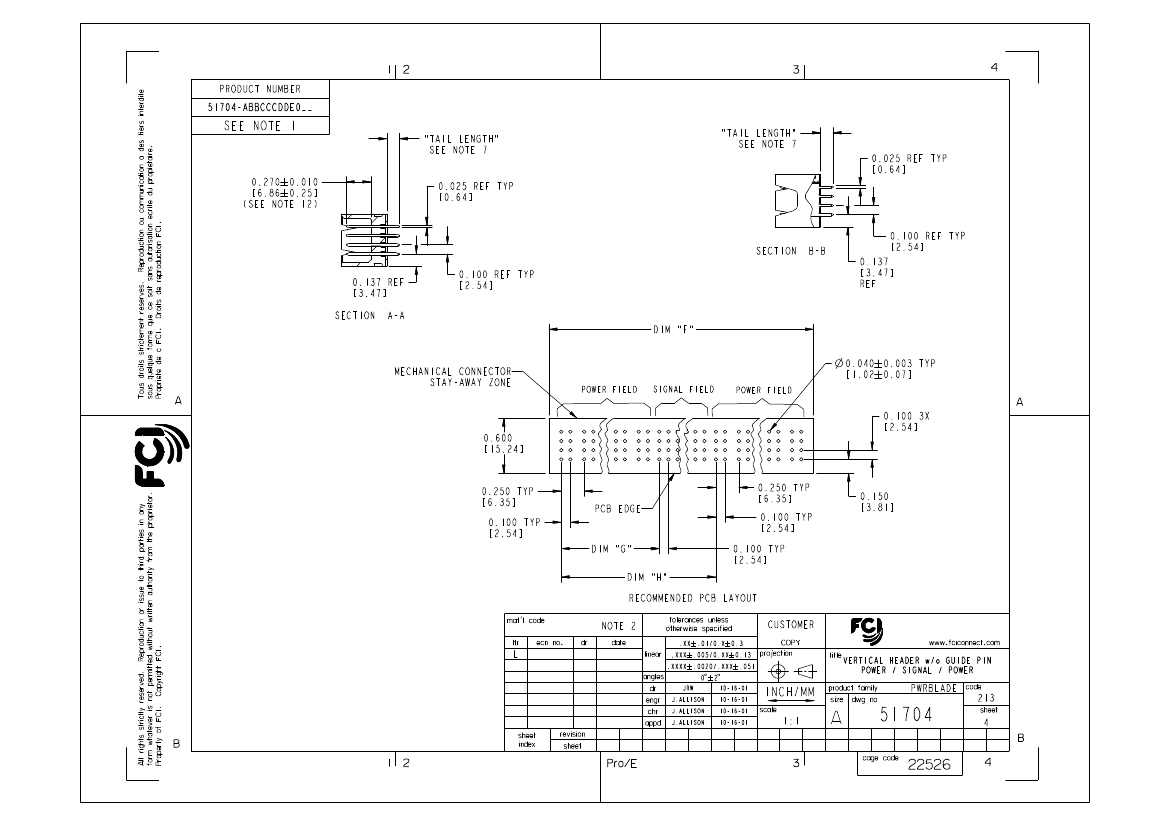

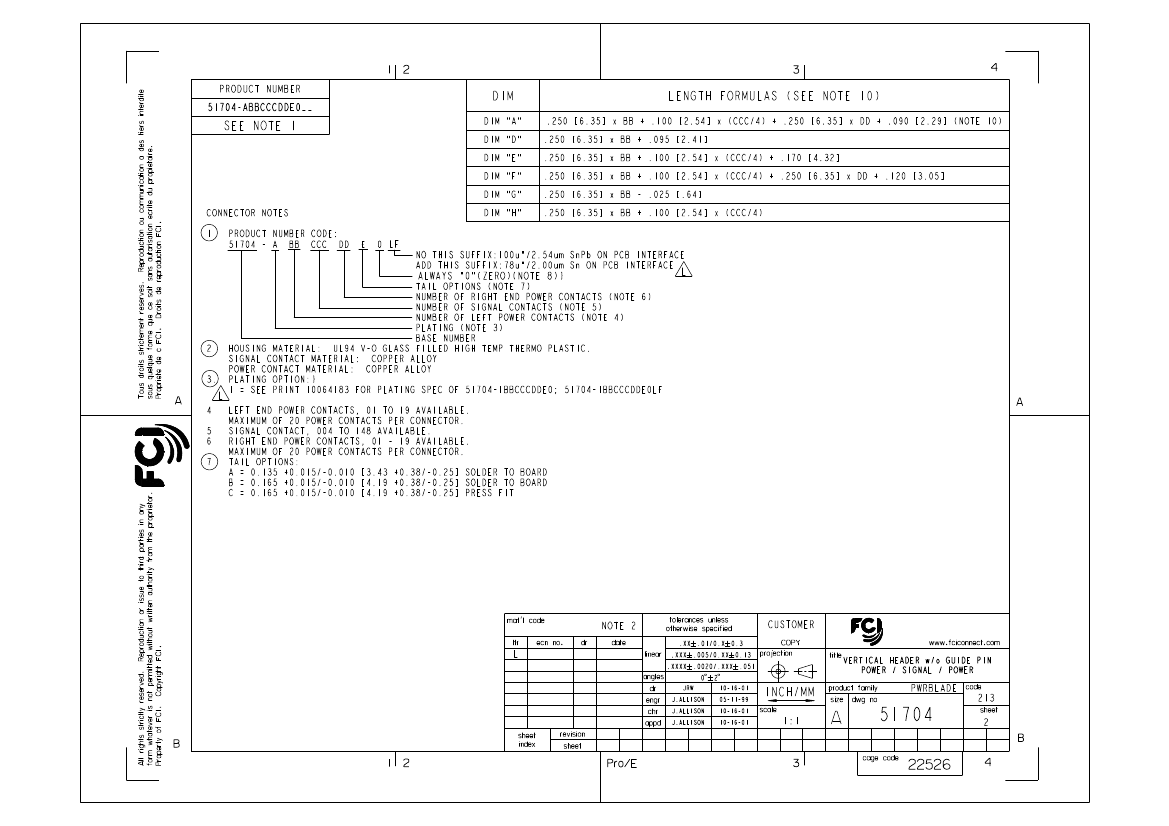

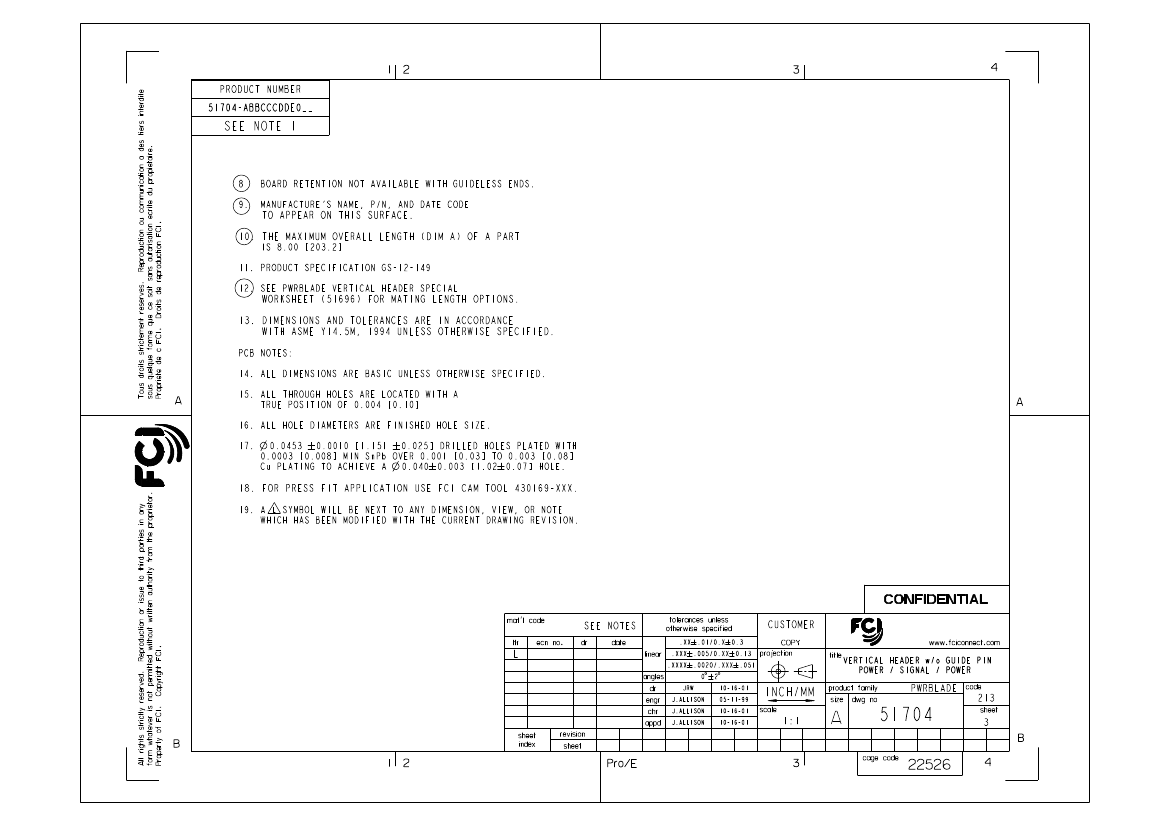

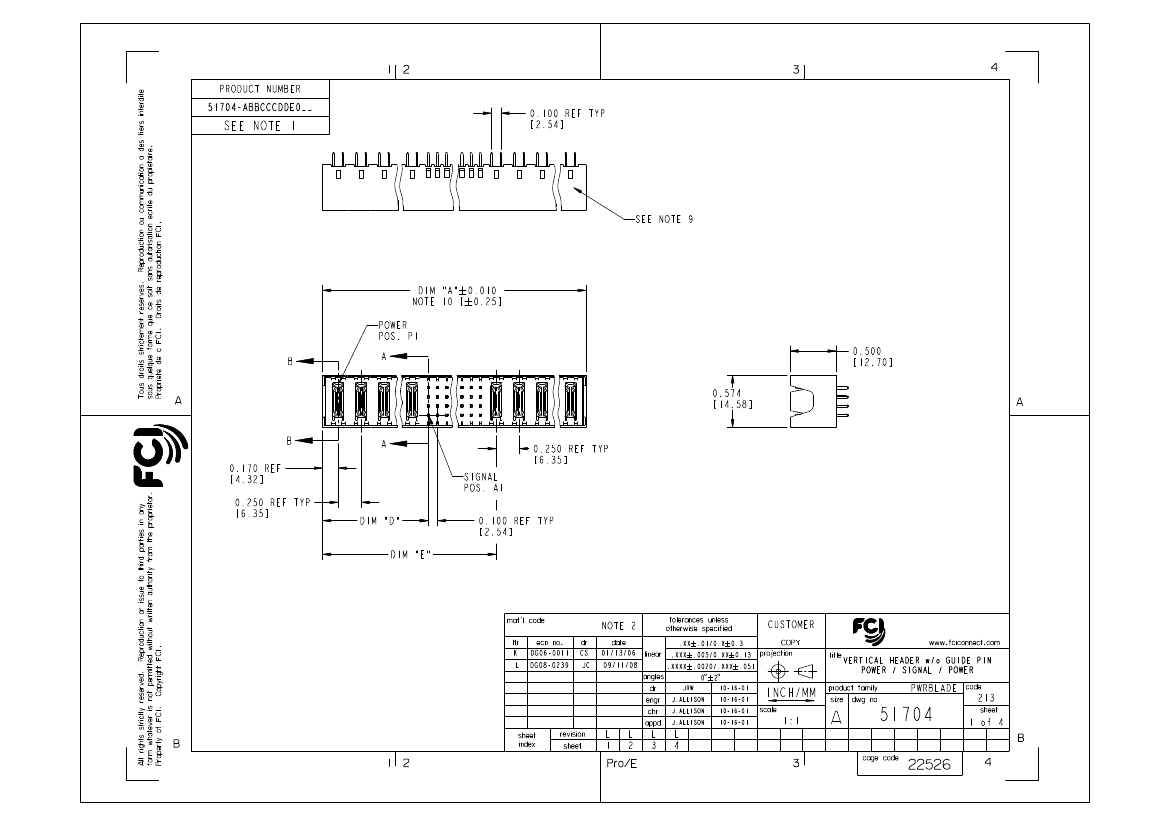

Preview

Download Datasheet

View All

PDM: Rev:L

STATUS:

Released

Printed: Dec 20, 2010

.

51704-10401204B0LF Related Products

	51704-10401204B0LF	51704-10202402A0LF	51704-10302403C0LF	51704-10206002A0LF	51704-10401604C0LF
Description	V/T HDR POWERBLADE	PWRBLADE V/T LF HDR	V/T HDR POWERBLADE	PWRBLADE VERT HDR	V/T HDR POWERBLADE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	6 weeks	6 weeks	6 weeks	6 weeks	6 weeks
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN (78) OVER NICKEL (50)	TIN (78) OVER NICKEL (50)	TIN (78) OVER NICKEL (50)	TIN (78) OVER NICKEL (50)	TIN (78) OVER NICKEL (50)
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	51704	51704	51704	51704	51704
Mixed contacts	YES	YES	YES	YES	YES
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	PRESS FIT	SOLDER	PRESS FIT
Total number of contacts	20	28	30	64	24
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	-
