MPX824K305E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MPX824K305E

MPX824K305E: DescriptionCAP FILM 0.82UF 10% 305VAC RAD; CategoryPassive components; File Size411KB，4 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MPX824K305E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MPX824K305E	-	-	View	Buy Now

MPX824K305E Overview

CAP FILM 0.82UF 10% 305VAC RAD

MPX824K305E Parametric

Parameter Name	Attribute value
capacitance	.82µF
Tolerance	±10%
Rated voltage - AC	305V
Rated voltage - DC	-
dielectric materials	Polypropylene (PP), metallized
Operating temperature	-40°C ~ 110°C
Installation type	Through hole
Package/casing	Radial
size/dimensions	0.709" long x 0.492" wide (18.00mm x 12.50mm)
Height - Installation (maximum)	0.886"（22.50mm）
Termination	PC pin
lead spacing	0.591"（15.00mm）
application	EMI, RFI suppression
grade	X2
characteristic	-

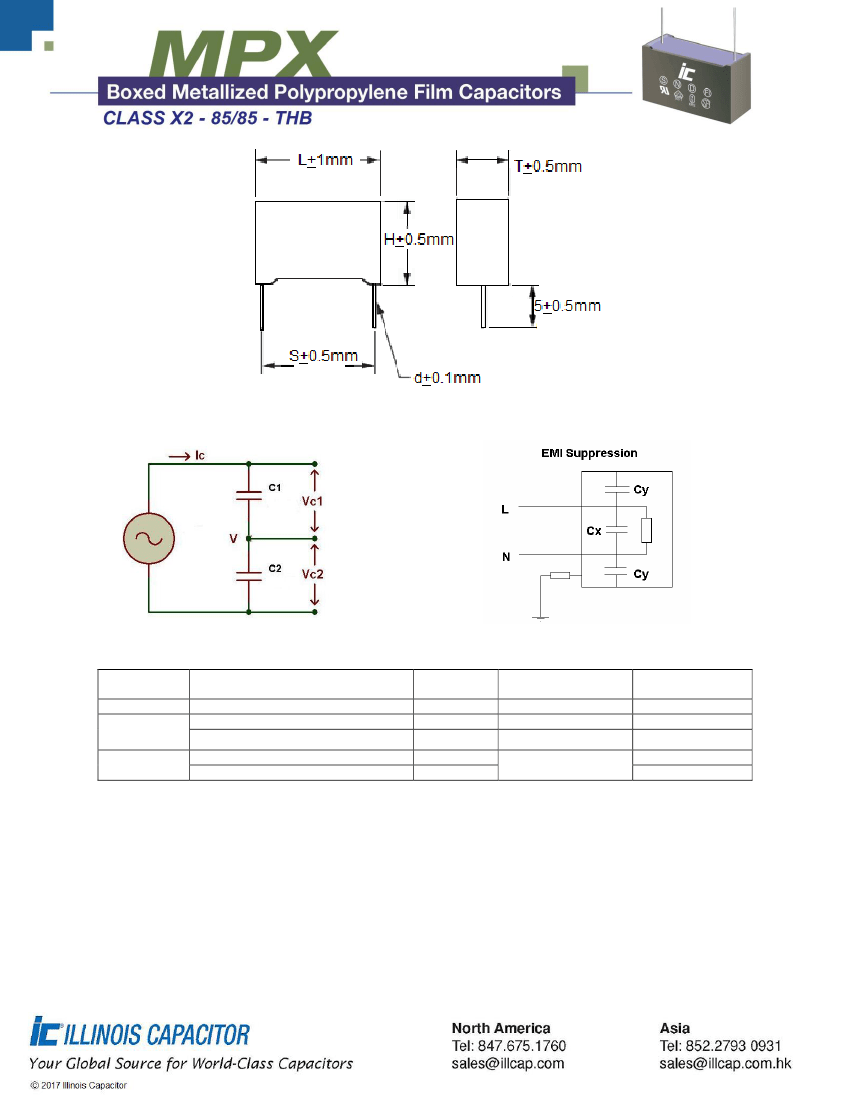

Preview

Download Datasheet

View All

FEATURES

85/85 THB

–

Safety Agency Approved

–

Metalized Polypropylene

EMI Filters

–

Across the Line

–

Outdoor

Applications

-40°C to +110°C

+10% or +20% at 1 kHz, 25°C

UL/CSA

275/305

ENEC

275/305

Tan δ

CQC

305

≤0.1%

≤0.3%

≤0.4%

Terminal to Case

APPLICATIONS

Operating Temperature Range

Capacitance Tolerance

AC voltage

(50/60 Hz)

Dissipation Factor

at 1 kHz and 25°C

0.01uF≤Cn≤1.0 uF

1.0uF＜Cn≤10.0 uF

Cn＞10.0 uF

Capacitance

<0.33uF

15,000 MΩ

Insulation Resistance

@25°C (<70% RH)for 1 minute

at 100VDC applied

Self-Inductance

Terminal to Terminal

Dielectric Strength

>30000 MΩ at 100VDC

>5000 MΩ at 500VDC

>30000 MΩ at 100VDC

>0.33uF

5,000 MΩxuF

>5000 MΩ at 500VDC

<1 nano-Henry per mm of lead spacing and lead length

1312 VDC applied for 60 seconds or

2000 VDC applied for 2 seconds

Terminal to Terminal

Cut-off current: 2A ac or 10mAdc

Current limiting resistance: 1Ω/V

2050VDC (50/60 Hz) applied between the terminals and case for 60

Terminal to case

Seconds and 25°C

100,000 hours at Un @Hot-Spot temperature T=85°C

<10% of initially measured value

<1.0% at 1kHz

>100% of initially specified value (T-T)

Insulation Resistance

>3000 MΩ (Terminal to case)

Temperature: 85°C + 2°C; Humidity: 85% + 2%

Loading Voltage: 240Vac (50Hz/60Hz)

Duration: 1000 hours

Capacitance change

<10% of initially measured value

Dissipation Factor

<1.0% at 1kHz

>50% of initially specified value (T-T)

Insulation Resistance

>15000 MΩ (Terminal to case)

C< 1uF Vp=2.5kVDC

C> 1uF Vp=2.5kV √C

-200ppm/°C, +100ppm/°C

Metallized Polypropylene film

Vacuum deposited Metal layers

Flame retardant Solvent resistant plastic case with epoxy end fill (UL94V-0)

Tinned copper clad steel leads

Capacitance change

Dissipation Factor

Life Expectancy

Humidity test

Impulse voltage

(24 pulses)

Capacitance temperature

coefficient

Construction

Electrodes

Coating

Lead terminations

Oct-17

MPX824K305E Related Products

	MPX824K305E	MPX186K305R
Description	CAP FILM 0.82UF 10% 305VAC RAD	CAP FILM 18UF 10% 305VAC RAD
capacitance	.82µF	18µF
Tolerance	±10%	±10%
Rated voltage - AC	305V	305V
dielectric materials	Polypropylene (PP), metallized	Polypropylene (PP), metallized
Operating temperature	-40°C ~ 110°C	-40°C ~ 110°C
Installation type	Through hole	Through hole
Package/casing	Radial	Radial
size/dimensions	0.709" long x 0.492" wide (18.00mm x 12.50mm)	2.264" long x 1.181" wide (57.50mm x 30.00mm)
Height - Installation (maximum)	0.886"（22.50mm）	1.791"（45.50mm）
Termination	PC pin	PC pin
lead spacing	0.591"（15.00mm）	2.067"（52.50mm）
application	EMI, RFI suppression	EMI, RFI suppression
grade	X2	X2
