5219249F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> 5219249F

5219249F: DescriptionLED YELLOW CLEAR 5MM T/H; CategoryLED optoelectronic/LED; File Size221KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric View All

5219249F Overview

LED YELLOW CLEAR 5MM T/H

5219249F Parametric

Parameter Name	Attribute value
color	yellow
Lens color	yellow
Lens transparency	transparent
millicandela level	90mcd
Lens style/size	Round, with dome, 5.00mm
Voltage - Forward (Vf) (Typical)	2.1V
Current - Test	20mA
perspective	16°
Installation type	Through hole
Wavelength - Main	588nm
Wavelength - Peak	585nm
characteristic	-
Package/casing	Radial
Supplier device packaging	5mm
size/dimensions	-
Height (maximum value)	9.66mm

Preview

Download Datasheet

View All

REV

ECN NO

REVISIONS

NEW RELEASE

DRN CKD APP

DATE

Part Numbers with the "F" suffix ending are RoHS Compliant.

Packaging is marked with "RoHS Compliant" label or equivalent

markings. Parts can be wave soldered, dip soldered or hand

soldered using typical lead-free soldering process with max

260°C temp. for 5 sec.

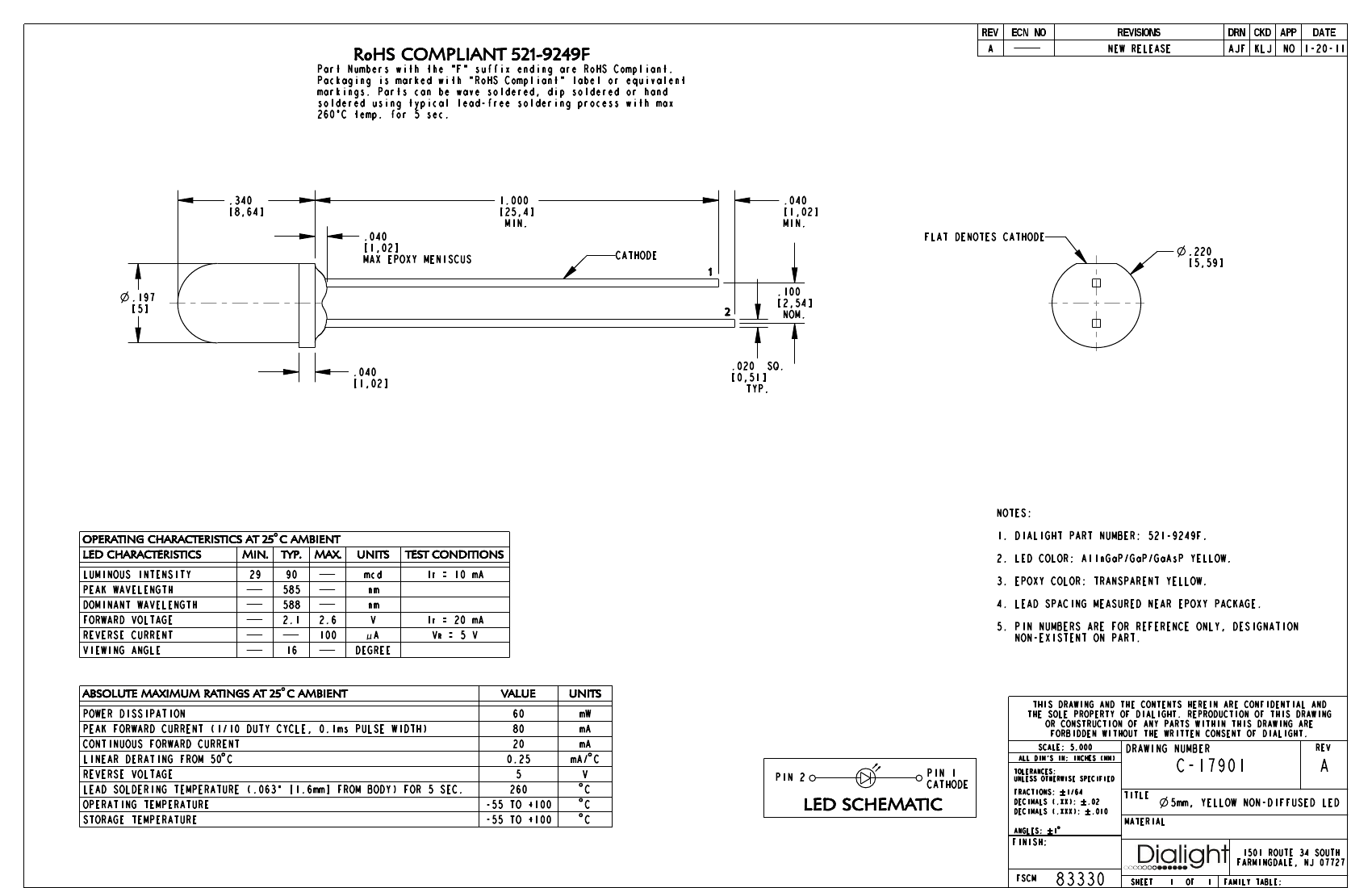

RoHS COMPLIANT 521-9249F

AJF KLJ

NO 1-20-11

.340

[8,64]

.040

[1,02]

MAX EPOXY MENISCUS

1.000

[25,4]

MIN.

CATHODE

.040

[1,02]

MIN.

FLAT DENOTES CATHODE

.220

[5,59 ]

.100

[2,54]

NOM.

.197

[5]

.040

[1,02]

.020 SQ.

[0,51]

TYP.

NOTES:

OPERATING CHARACTERISTICS AT 25 C AMBIENT

LED CHARACTERISTICS

MIN. TYP. MAX.

LUMINOUS INTENSITY

PEAK WAVELENGTH

DOMINANT WAVELENGTH

FORWARD VOLTAGE

REVERSE CURRENT

VIEWING ANGLE

585

588

2.1

2.6

100

1. DIALIGHT PART NUMBER: 521-9249F.

UNITS

mcd

DEGREE

TEST CONDITIONS

= 10 mA

2. LED COLOR: AllnGaP/GaP/GaAsP YELLOW.

3. EPOXY COLOR: TRANSPARENT YELLOW.

4. LEAD SPACING MEASURED NEAR EPOXY PACKAGE.

= 20 mA

= 5 V

5. PIN NUMBERS ARE FOR REFERENCE ONLY, DESIGNATION

NON-EXISTENT ON PART.

ABSOLUTE MAXIMUM RATINGS AT 25 C AMBIENT

POWER DISSIPATION

PEAK FORWARD CURRENT (1/10 DUTY CYCLE, 0.1ms PULSE WIDTH)

CONTINUOUS FORWARD CURRENT

LINEAR DERATING FROM 50 C

REVERSE VOLTAGE

LEAD SOLDERING TEMPERATURE (.063" [1.6mm] FROM BODY) FOR 5 SEC.

OPERATING TEMPERATURE

STORAGE TEMPERATURE

VALUE

0.25

260

-55 TO +100

UNITS

mA/ $

PIN 2

PIN 1

CATHODE

THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND

THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING

OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE

FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.

SCALE: 5.000

ALL DIM'S IN: INCHES (MM)

TOLERANCES:

UNLESS OTHERWISE SPECIFIED

DRAWING NUMBER

REV

C-17901

TITLE

MATERIAL

LED SCHEMATIC

FRACTIONS: #

1/64

DECIMALS (.XX): #

.02

DECIMALS (.XXX): #

.010

ANGLES:

# $

5mm, YELLOW NON-DIFFUSED LED

FINISH:

1501 ROUTE 34 SOUTH

FARMINGDALE, NJ 07727

FSCM

83330

SHEET

FAMILY TABLE:
