PL
Features
■
■
■
IA
NT
SMD Single-Turn / Cermet / Industrial
Open Frame
Cross slot rotor designs suitable
for automatic adjustment equipment
Supplied in 12 mm embossed tape,
compatible with automatic pick-and-place
assembly equipment
*R
oH
S
CO
M
■
■
Recommended for reflow solder
processing only
RoHS compliant* - see
processing
information
on lead free surface mount
trimmers

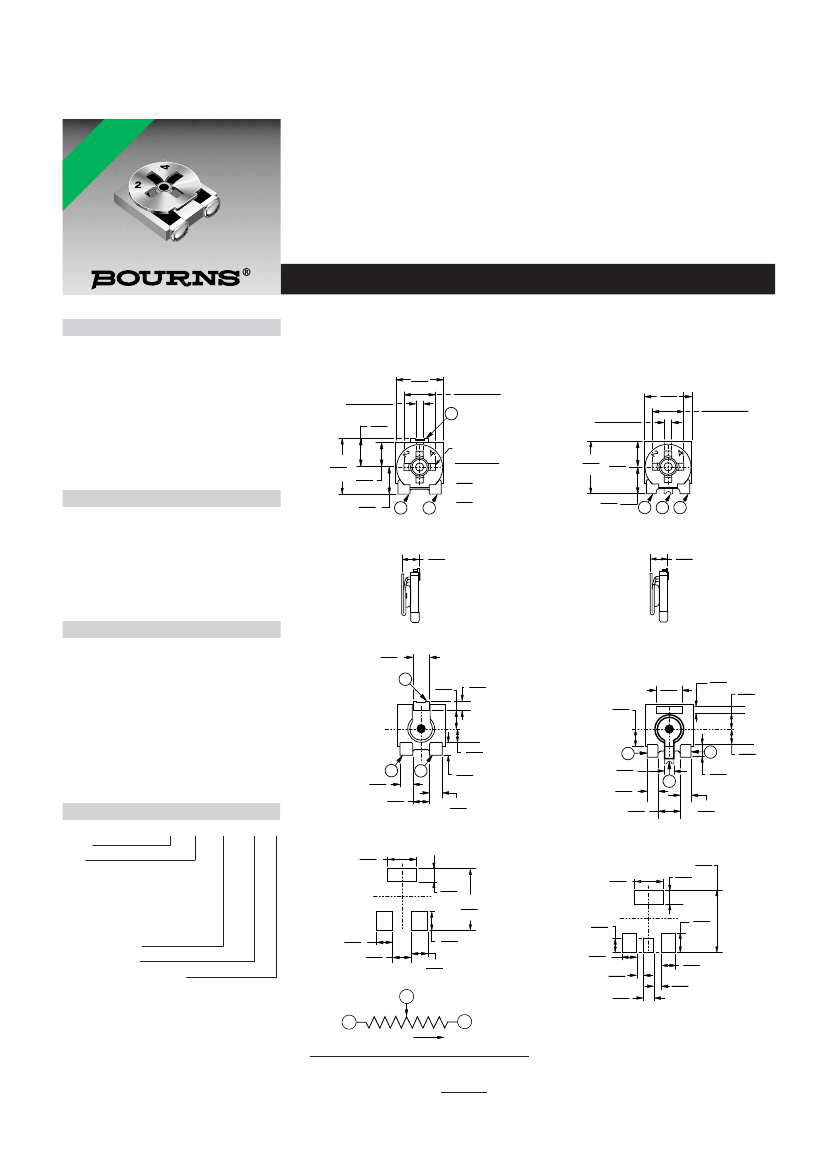

3364 - 4 mm Square Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
.......................100 ohms to 1 megohm
(see standard resistance table)
Resistance Tolerance ............±25 % std.
End Resistance
<1K ................................20 ohms max.
>1K.................................................2 %
Contact Resistance Variation
(Voltage Divider) ....................5 % max.
Resolution.....................................Infinite
Adjustment Angle...................260 °±20 °
Environmental Characteristics
Power Rating (50 volts max.)
70 °C........................................0.2 watt
Temperature Range ....-40 °C to +100 °C
Temperature Coefficient ....±250 ppm/°C
Humidity.................500 hours (5 %
∆TR)
Load Life .................................500 hours
0.2 watt @ 70 °C (5 %
∆TR)
Rotational Life .......20 cycles (15%
∆TR)
Physical Characteristics
Torque.............................20 to 200 g-cm
Mechanical Angle .................Continuous
Marking ........................Resistance code,
manufacturer's full part number
and date code on packaging
Terminals...........................Solder coated
Standard Packaging
..................................1000 pcs./7 ˝ reel
Adjustment Tool ..............................H-90
Reflow solder processing recommended
Common Dimensions
3364W, X
3-Terminal
3.80
(.150)
0.55
±
0.15
(.022
±
.006)
3364A, B
3-Terminal
2.50
±
0.15
(.098
±
.006)
3.80
(.150)
0.55
±
0.15
(.022
±
.006)
2
2.30
(.091)
ADJ.
CROSS SLOT
0.55
±
.15
WIDE X
(.022
±
.006)
0.35
X
DEEP X
(.014)
2.50
X
LONG
(.098)
2.50
±
0.15
(.098
±
.006)
4.50
(.177)
2.00
(.079)
2.20
(.087)
4.20 2.00
(.165) (.079)
2.20
(.087)
1
3
1
2
3
1.50
MAX.
(.059)
1.50
MAX.
(.059)
1.40
(.055)
2
1.50
(.059)
0.80
(.031)
1.40
(.055)
2.00
(.079)
0.50
(.020)
1.35
(.053)
.12
(.047)
How To Order
3
0.95
(.037)
1.60
(.063)
1
1.00
(.039)
0.95
(.037)
3364 X - 1 - 103 E
Model
Style
Orientation of parts in tape:
Styles W,A
Terminals toward sprocket holes
Styles X,B
Terminals away from sprocket
holes
Standard Product
Resistance Code
Embossed Tape Designator
E = 1000 pcs./7 " reel (-1 standard)
G = 5000 pcs./14.5 " reel (-1 optional)
Consult factory for other available options.
CCW
SUGGESTED PWB LAYOUT
2.40
(.094)
1.10
(.043)
5.10
(.201)
3
0.80
(.031)
0.80
(.031)
1.90
(.075)
1
0.99
(.039)
0.80
(.031)
1.20
(.047)
2
SUGGESTED PWB LAYOUT
2.40
(.094)
5.08
1.10 (.200)
(.043)
1.30
(.051)
1.60
(.063)
1.50
(.059)
1.20
(.047)
1.20
(.047)
0.60
(.024)
0.80
(.031)
1.50
(.059)
1.30
(.051)
2
1
CLOCKWISE
WIPER
1.20
(.047)
0.60
(.024)
3
CW
TOLERANCES: ± 0.25 (.010) EXCEPT WHERE NOTED
DIMENSIONS ARE:
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
MM
(INCHES)
