MBR1535CT thru MBR15150CT
Taiwan Semiconductor
CREAT BY ART

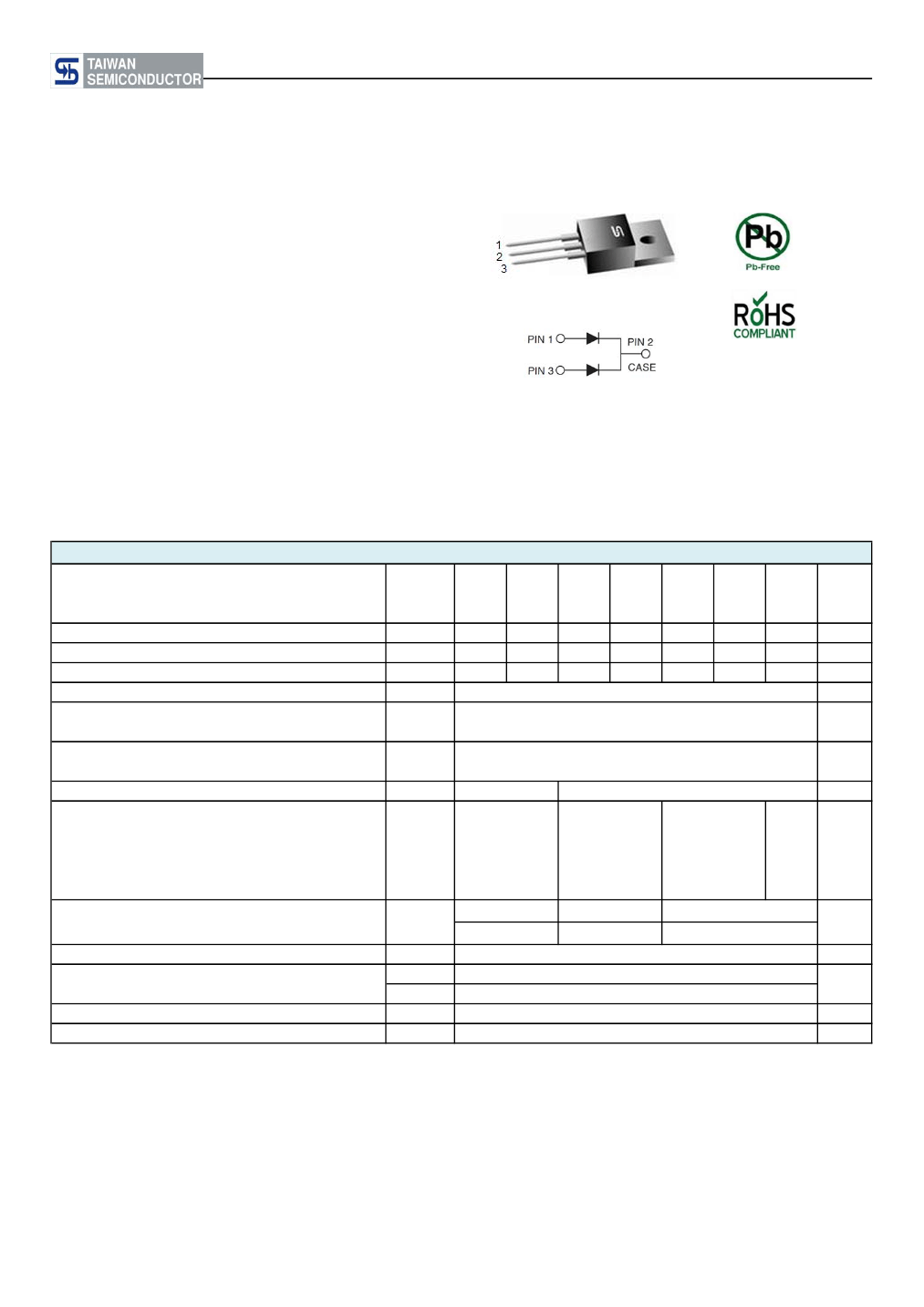

FEATURES
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Dual Common Cathode Schottky Rectifier
TO-220AB
MECHANICAL DATA
Case:
TO-220AB
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test,
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
5 in-lbs maximum
Weight:
1.88 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
MBR
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak repetitive forward current
(Rated VR, Square wave, 20KHz)
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Peak repetitive reverse surge current (Note 1)
Maximum instantaneous forward voltage (Note 2)
I
F
=7.5A, T
J
=25℃
I
F
=7.5A, T
J
=125℃
I
F
=15A, T
J
=25℃
I
F
=15A, T
J
=125℃
Maximum reverse current @ rated VR
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: tp = 2.0
μs,
1.0KHz
Note 2: Pulse test with PW=300μs, 1% duty cycle
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FRM
I
FSM
I
RRM
1
-
V
F
0.57
0.84
0.72
I
R
dV/dt
R
θJC
R
θJA
T
J
T
STG
0.5
10
0.75
0.65
-
-
0.3
7.5
10000
1.5
10
- 55 to +150
- 55 to +150
1535
CT
35
24
35
MBR
1545
CT
45
31
45
MBR
1550
CT
50
35
50
MBR
1560
CT
60
42
60
15
15
150
0.5
0.92
0.82
-
-
0.1
5.0
1.05
0.92
-
-
mA
V/μs
O
MBR
1590
CT
90
63
90
MBR
CT
100
70
100
MBR
UNIT
V
V
V
A
A
A
A
CT
150
105
150
15100 15150
V
C/W
O
O
C
C
Document Number: DS_D1308062
Version: H13
MBR1535CT thru MBR15150CT
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
MBR15xxCT
(Note 1)
AEC-Q101
QUALIFIED
Prefix "H"
PACKING
CODE
C0
GREEN COMPOUND
CODE
Suffix "G"
PACKAGE
TO-220AB
PACKING
50 / Tube
Note 1: "xx" defines voltage from 35V (MBR1535CT) to 150V (MBR15150CT)
EXAMPLE
PREFERRED P/N
MBR1560CT C0
MBR1560CT C0G
MBR1560CTHC0
PART NO.
MBR1560CT
MBR1560CT
MBR1560CT
H
AEC-Q101
QUALIFIED
PACKING CODE
C0
C0
C0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

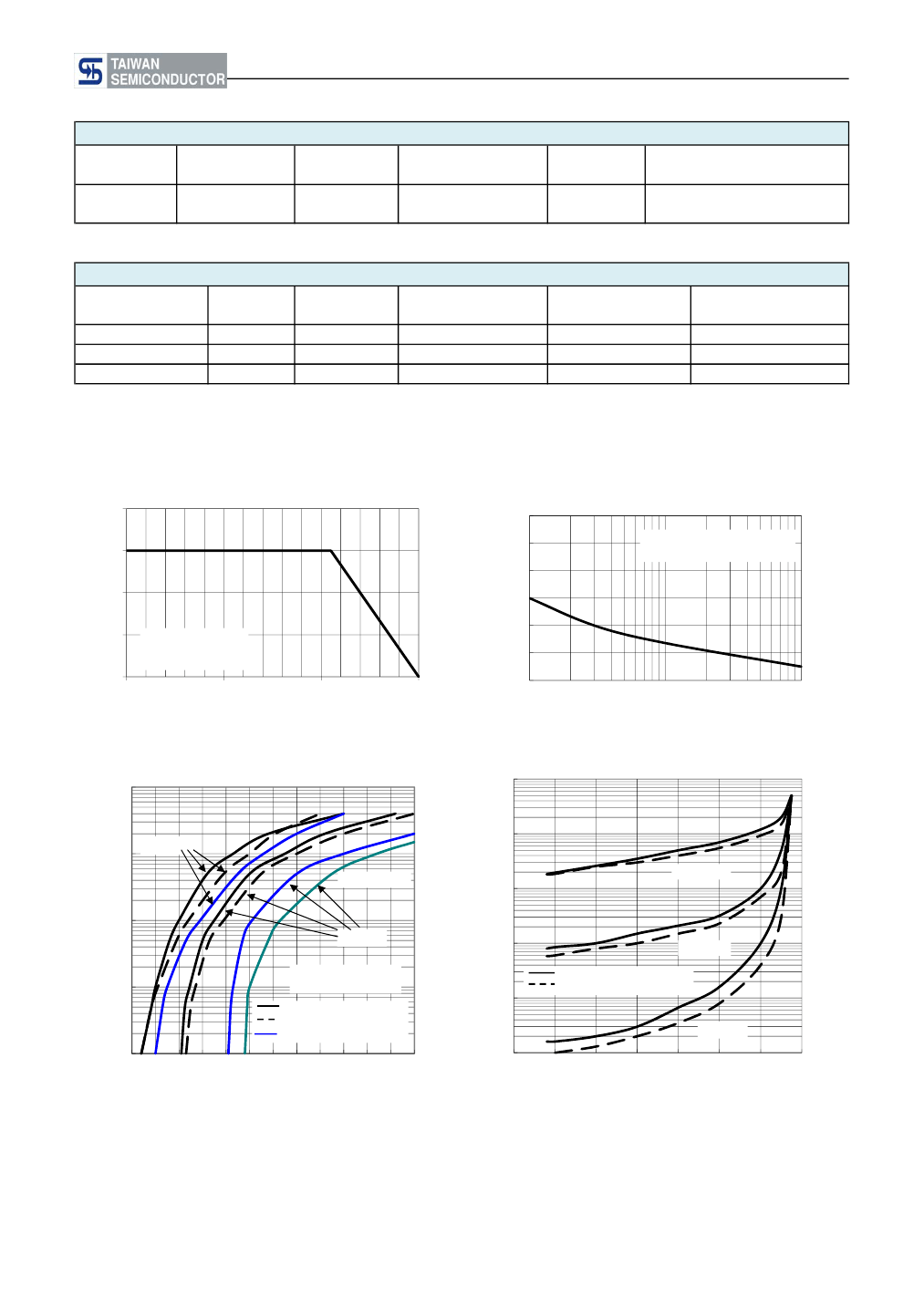

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1- FORWARD CURRENT DERATING CURVE
PEAK FORWARD SURGE CURRENT (A)
20
300
250
200
150
100
50
0
1
FIG. 2- MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT PER LEG
AVERAGE FORWARD
A
CURRENT (A)
15
8.3ms Single Half Sine Wave
JEDEC Method
10
5
RESISTIVE OR
INDUCTIVELOAD
WITH HEATSINK
0
50
100
(
o
C)
150
0
CASE TEMPERATURE
10
NUMBER OF CYCLES AT 60 Hz
100
FIG.3- TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS PER LEG
100
100
FIG. 4- TYPICAL REVERSE CHARACTERISTICS
PER LEG
10
TJ=125℃
MBR15150CT
INSTANTANEOUS REVERSE CURRENT (mA)
INSTANTANEOUS FORWARD CURRENT (A)
10
TJ=125℃
1
1
TJ=25℃
Pulse Width=300μs
1% Duty Cycle
MBR1535CT-MBR1545CT
MBR1550CT-MBR1560CT
MBR1590CT-MBR15100CT
0.01
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
FORWARD VOLTAGE (V)
1
1.1 1.2
0.1
TJ=75℃
MBR1535CT-MBR1545CT
MBR1550CT-MBR15150CT
0.1
0.01
TJ=25℃
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Document Number: DS_D1308062
Version: H13
MBR1535CT thru MBR15150CT
Taiwan Semiconductor
FIG. 5- TYPICAL JUNCTION CAPACITANCE PER LEG
FIG. 6- TYPICAL TRANSIENT THERMAL
CHARACTERISTICS PER LEG
10000
JUNCTION CAPACITANCE (pF)
A
f=1.0MHz
Vsig=50mVp-p
100
1000
100
MBR1535CT-MBR1560CT
MBR1590CT-MBR15150CT
TRANSIENT THERMAL
IMPEDANCE (℃/W)
10
1
10
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
10
100
T-PULSE DURATION. (sec)

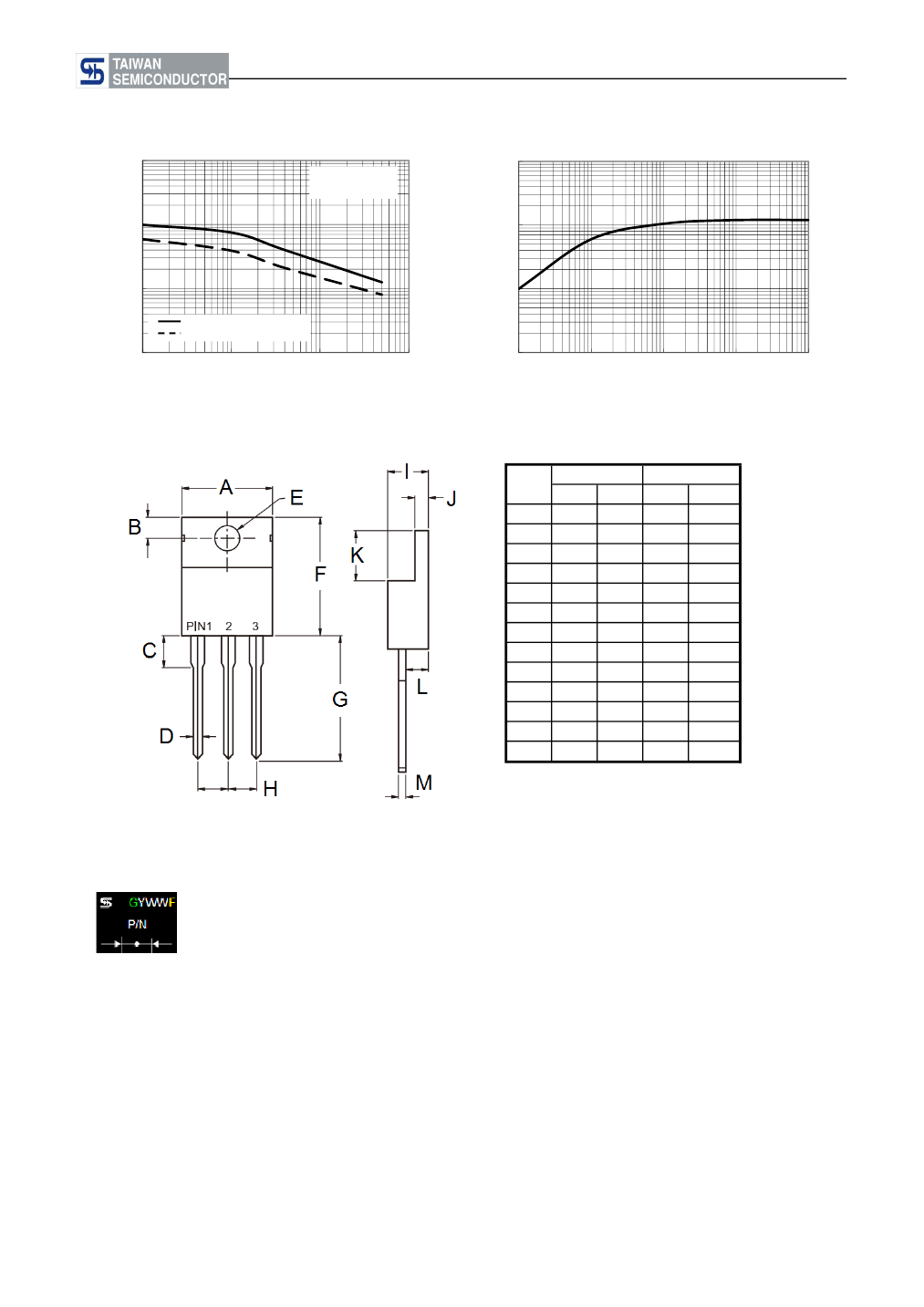

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
-
2.62
2.80
0.68
3.54
14.60
13.19
2.41
4.42
1.14
5.84
2.20
0.35
Max
10.50
3.44
4.20
0.94
4.00
16.00
14.79
2.67
4.76
1.40
6.86
2.80
0.64
Unit (inch)
Min
-
0.103
0.110
0.027
0.139
0.575
0.519
0.095
0.174
0.045
0.230
0.087
0.014
Max
0.413
0.135
0.165
0.037
0.157
0.630
0.582
0.105
0.187
0.055
0.270
0.110
0.025
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
MARKING DIAGRAM
P/N
G
YWW
F
= Marking Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1308062
Version: H13
MBR1535CT thru MBR15150CT
Taiwan Semiconductor
CREAT BY ART
